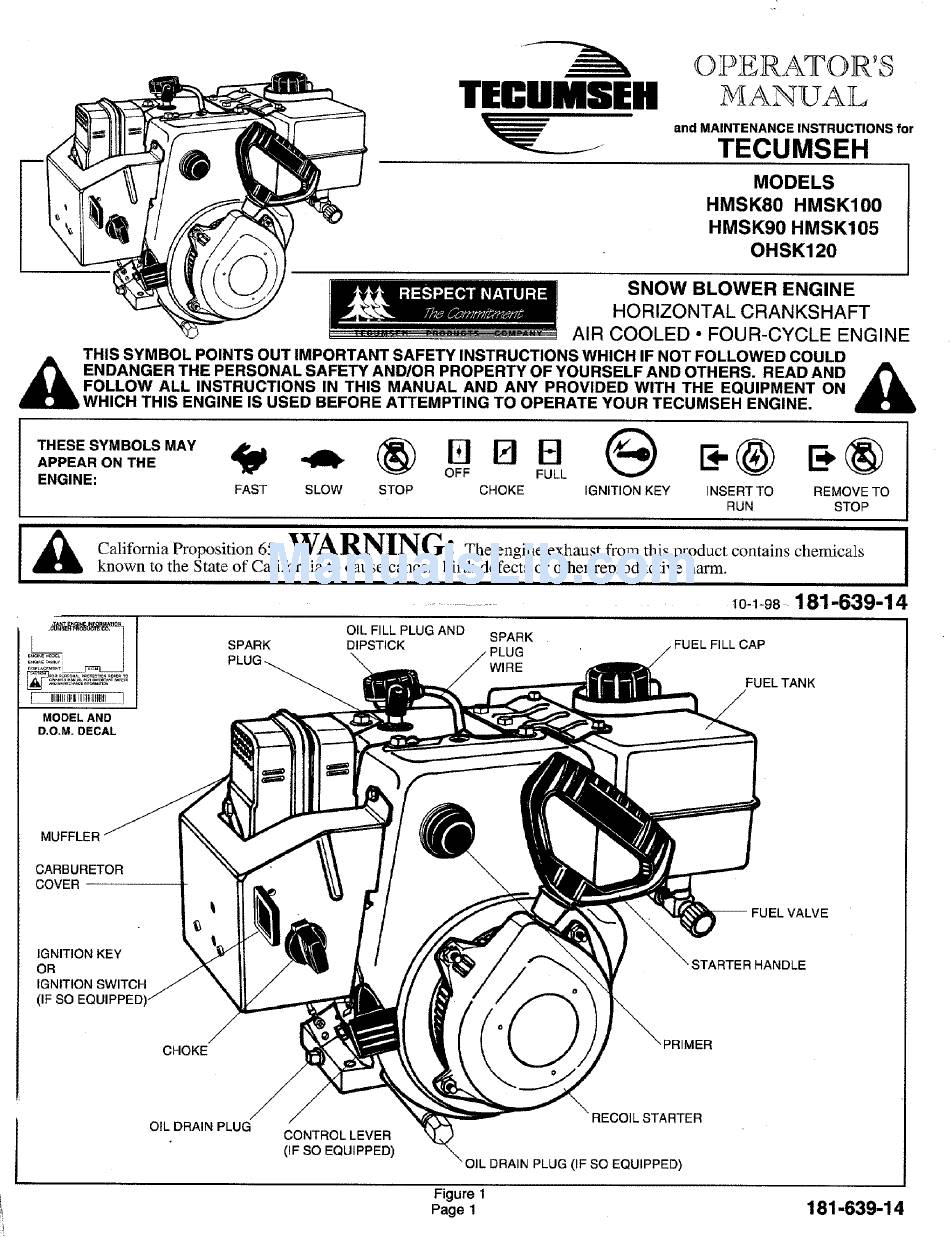

TECUMSEH
OPERATOR'S
MANUAL
and MAINTENANCE
INSTRUCTIONS
for
TECUMSEH
MODELS
HMSK80
HMSK100
HMSK90
HMSK105
OHSK120
SNOW BLOWER
ENGINE
HORIZONTAL
CRANKSHAFT
AIR COOLED
• FOUR-CYCLE
ENGINE
THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS
WHICH IF NOT FOLLOWED COULD
_
ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OF YOURSELF AND OTHERS. READ AND
FOLLOW ALL INSTRUCTIONS
IN THIS MANUAL AND ANY PROVIDED WITH THE EQUIPMENT
ON
WHICH THIS ENGINE IS USED BEFORE ATTEMPTING
TO OPERATE YOUR TECUMSEH
ENGINE.
THESE
SYMBOLS
MAY
,4,_._
V
APPEAR
ON THE
ENGINE:
FAST
SLOW
STOP
CHOKE
IGNITION KEY
INSERT TO
REMOVE TO
RUN
STOP
_
California
Proposition
65
WARNING:
The engine exhaust
from this
contains
chemicals
product
known
to the State of California
to cause cancer, birth defects or other reproductive
harm.
|llllfll | IIIfIIIIINII " ]
MODEL AND
D.O.M. DECAL
OIL FILL PLUG AND
SPARK
SPARK
DIPSTICK
WIRE
lo-1-98 181-639-14
FUEL FILL CAP
FUEL TANK
CARBURETOR
COVER
--
FUEL VALVE
IGNITION KEY
OR
IGNITION SWITCH
0
'STARTER
HANDLE
CHOKE
ER
i
OIL DRAIN PLUG
CONTROL
LEVER
(IF SO EQUIPPED)
DIL DRAIN PLUG (IF SO EQUIPPED)
Figure 1
Page 1
181-639-14
