QuickSpecs

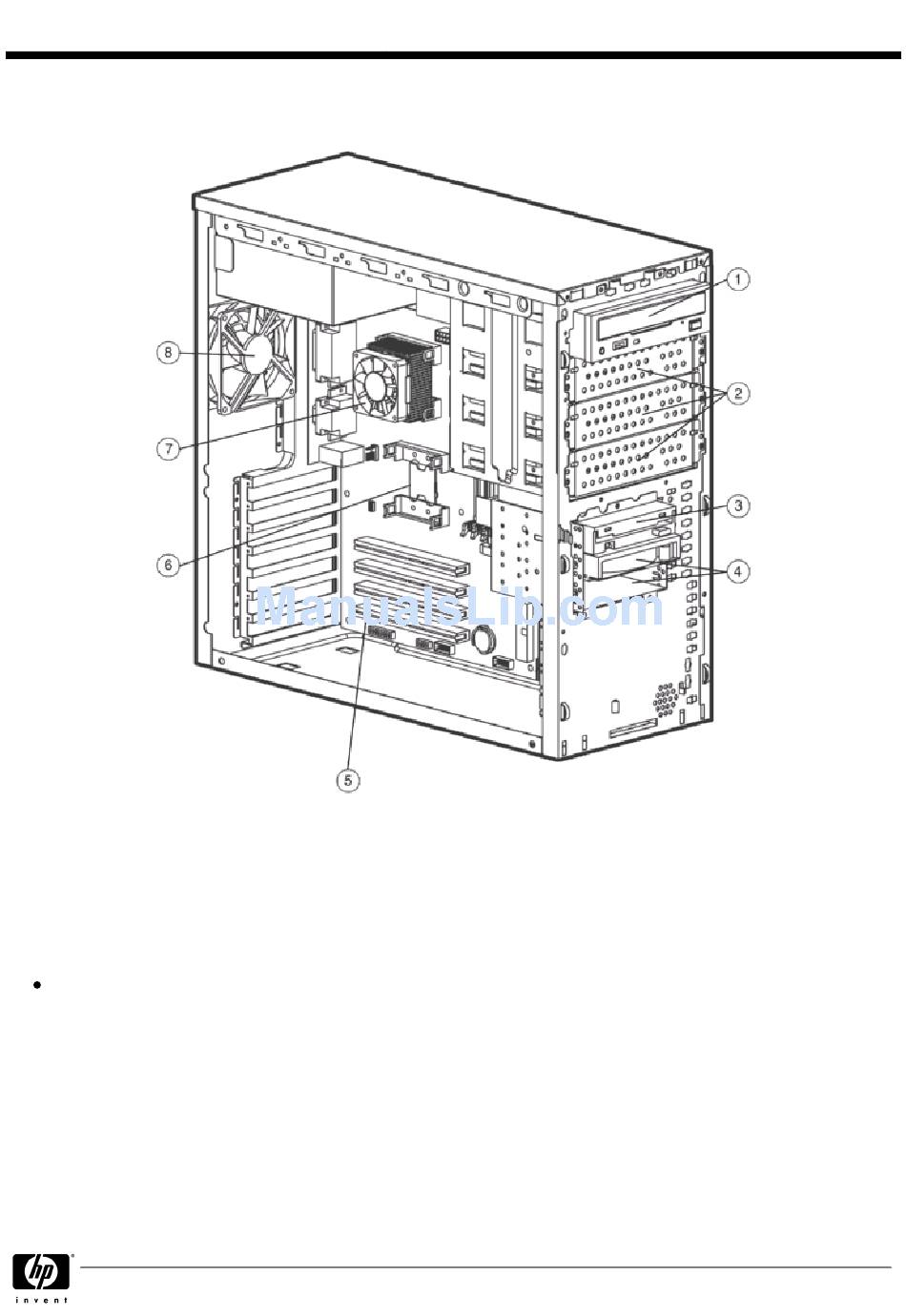

Overview
1. 48x IDE (ATAPI) CD-ROM
2. Removable Media Bays (1.6" each)
3. 1.44 MB Diskette Drive
4. Two 1" Non-hot plug Hard Drive Bays
What's New
Supports up to 2 Intel® Xeon® 3.06 GHz or 2.8 GHz processors
DA - 11614 Worldwide QuickSpecs — Version 44 — 6.28.2005
HP ProLiant ML330 Generation 3
5. Four 64-bit/33MHz PCI
6. Processor socket 2 (unpopulated)
7. Processor 1 (populated)
8. System Fan
Page 1

Advertisement

loading

Related Manuals for HP ProLiant ML330 Generation 3

Summary of Contents for HP ProLiant ML330 Generation 3

  • Page 1 QuickSpecs HP ProLiant ML330 Generation 3 Overview 1. 48x IDE (ATAPI) CD-ROM 5. Four 64-bit/33MHz PCI 2. Removable Media Bays (1.6" each) 6. Processor socket 2 (unpopulated) 3. 1.44 MB Diskette Drive 7. Processor 1 (populated) 4. Two 1" Non-hot plug Hard Drive Bays 8.
  • Page 2 Systems Insight Manager, SmartStart and Automatic Server Recovery-2 (ASR-2) Protected by HP Services, including a one-year, limited warranty, Next Business Day 1 year on-site limited Global warranty and Pre-Failure Warranty, which covers processors, memory, and hard drives - Certain restrictions and exclusions apply.

  • Page 3: Standard Features

    QuickSpecs HP ProLiant ML330 Generation 3 Standard Features Processor Intel Xeon Processor 3.06 GHz/533-512KB (Supports up to 2 processors) One of the following depending on Intel Xeon Processor 2.8 GHz/533-512KB (Supports up to 2 processors) Model Cache Memory Integrated 512-KB Level 2 ECC cache (full speed)
  • Page 4 Form Factor Tower (5U) Tower to Rack Enabling Option Kit available (PN 238547-B22) ProLiant Essentials HP Systems Insight HP Systems Insight Manager (HP SIM) helps maximize system uptime Foundation Pack Manager and performance and reduce system maintenance costs by providing...
  • Page 5 QuickSpecs HP ProLiant ML330 Generation 3 Standard Features Optional ProLiant Optional software offerings that selectively extend the functionality of an Essentials Value Packs Adaptive Infrastructure to address specific business problems and needs: Rapid Deployment Pack – an automated solution for multi-server deployment and provisioning, enabling companies to quickly and easily adapt to changing business demands.
  • Page 6 NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at: http://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant ML330, please see: http://h18023.www1.hp.com/support/files/server/us/index.html. NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: http://h18004.www1.hp.com/products/servers/software/OEM.html...
  • Page 7 & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack. NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices or resellers or visit our worldwide Web site on the internet at: http://www.hp.com/hps/carepack...
  • Page 8 QuickSpecs HP ProLiant ML330 Generation 3 Models ML330T03 X3.06- Processor (1) Intel Xeon 3.06 GHz Processor standard 512KB/533 256MB, Cache Memory Integrated 512-KB Level 2 cache (full speed) 40GB, ATA Memory 256 MB 353448-xx2 Network Controller NC7760 PCI Gigabit Server Adapter (embedded)
  • Page 9 QuickSpecs HP ProLiant ML330 Generation 3 Models ML330T03 P2.8- Processor (1) Intel Xeon 2.8 GHz Processor standard 512KB/533 256MB, Cache Memory Integrated 512-KB Level 2 cache (full speed) 36GB, SCSI Memory 256 MB 317821-xx2 Network Controller NC7760 PCI Gigabit Server Adapter (embedded)
  • Page 10 QuickSpecs HP ProLiant ML330 Generation 3 Options ProLiant Essentials Rapid Deployment Pack, 1 User, V1.x 267196-B21 Value Pack Software NOTE: This license allows 1 server to be managed and deployed via the Deployment Server. Rapid Deployment Pack, 1 User, V1.x (Japan)
  • Page 11 QuickSpecs HP ProLiant ML330 Generation 3 Options Processors Intel Xeon 3.06 GHz-512KB Processor Option Kit 354606-B21 NOTE: The Intel Xeon 3.06 GHz-512KB Processor Option Kit is supported by the ProLiant ML330 G3 servers only. Intel Xeon 2.80 GHz-512KB Processor Option Kit 317823-B21 NOTE: The Intel Xeon 2.80 GHz-512KB Processor Option Kit is supported by...
  • Page 12 256-MB Battery-Back Cache Module 254786-B21 NOTE: This 256-MB Battery-Backed Cache Module supports the Smart Array 5300 series controllers, HP StorageWorks Modular Smart Array 1000 and the HP StorageWorks Modular Smart Array 500. 256MB Battery-Backed Cache Upgrade Kit for SA-6400 273913-B21 NOTE: This 256-MB Battery-Backed Cache upgrade kit supports the Smart Array 6400 series controller only.
  • Page 13 Ultrium Tape Drives - External, Rack-Mount and Array HP StorageWorks Ultrium 215 Tape Drive, External (Carbon) Q1545A HP StorageWorks Ultrium 215 rack-mount (Carbon) - Single drive installed in a A7444A 1U rack-mount kit HP StorageWorks Ultrium 215 Array Module (Carbon) - Offline hot-swap drive...
  • Page 14 (Worldwide) http://h18006.www1.hp.com/products/quickspecs/12128_na/12128_na.html (North America) For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect DAT Drives - External, Rack-Mount and Array Module NOTE: Use of a hot plug tape drives requires installation of the optional two-bay SCSI drive cage.
  • Page 15 HP ProLiant ML330 Generation 3 Options (Worldwide) http://h18006.www1.hp.com/products/quickspecs/11840_na/11840_na.HTML (North America) For an up-to-date listing of the latest O/S and software support details for HP SDLT tape drives, please visit: http://www.hp.com/go/connect Rack-Mount Tape Drive Enclosures HP StorageWorks 1U Rack-Mount Kit A7445A...
  • Page 16 QuickSpecs HP ProLiant ML330 Generation 3 Options Tape Autoloaders DAT Autoloader HP StorageWorks DAT 72x6 Internal Autoloader Q1566A HP StorageWorks DAT 72x6 External Autoloader Q1567A NOTE: Please see the DAT Tape Autoloader QuickSpecs for additional options such as host bus adapters, controllers and media: http://h18000.www1.hp.com/products/quickspecs/11985_div/11985_div.HTML...
  • Page 17 QuickSpecs HP ProLiant ML330 Generation 3 Options NOTE: Please reference the MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs HP StorageWorks MSL5026S2 Tape Library MSL5026S2, 1 drive, 26 slots, SDLT 320, RM...
  • Page 18 QuickSpecs HP ProLiant ML330 Generation 3 Options NOTE: Please reference the ESL E-Series Tape Libraries QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs Magneto-Optical HP StorageWorks 9.1 GB Entry-level Optical Storage...
  • Page 19 HP UPS Model T700 (700VA, 500 Watt), High Voltage (Int'l) 204015-B31 HP UPS Model T700 (700VA, 500 Watt), Low Voltage (Japan) 204015-291 HP UPS Model T1000 XR (1000VA, 700 Watt), Low Voltage (NA) 204155-001 HP UPS Model T1000 XR (1000VA, 700 Watt), High Voltage (Int'l) 204155-B31...
  • Page 20 HP UPS R3000 XR (230V) (16A CEE 7/7 SCHUKO Plug) 192186-B33 HP UPS R3000 XR (230V) (16A BS-546 Plug) 192186-AR1 HP Power Distribution HP Power Distribution Unit with Power Monitoring Model S2324 - dual input, 3 370959-D71 Unit with Power phase, 24A (NA/JPN) Monitoring...
  • Page 21 NOTE: The stabilizing kit is used to prevent rack from tipping over. Baying Kit for 5642 rack (Graphite Carbon) 374499-B21 NOTE: The baying kit is used to join two or more HP 5642 racks. HP Rack 10000 Series 10642 (42U) Infrastructure Rack (Low Voltage)
  • Page 22 -B23 (crated) used for air shipments of empty racks NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed. Not all HP equipment is qualified to be shipped in the Rack 10000 series...
  • Page 23 263474-B23 CAT5e Cable 20', 4 pack 263474-B24 CAT5e Cable 40', 1 pack 263474-B25 NOTE: For additional information regarding HP KVM Switches and options, please see the following URL: http://h18004.www1.hp.com/products/servers/proliantstorage/rack- options/list.html#console DA - 11614 Worldwide QuickSpecs — Version 44 — 6.28.2005...
  • Page 24 Support Plus Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech U4475A support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays. Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech U4475E support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl.
  • Page 25 1024 MB 1024 MB 1024 MB Following are memory options available from HP: 128MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 128 MB) 287494-B21 256MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 256 MB)

  • Page 26: Drive Support

    QuickSpecs HP ProLiant ML330 Generation 3 Storage 48x IDE (ATAPI) CD-ROM 1.44 MB Diskette Drive B, C, D Removable Media Bays (1.6" each) Two 1" Non-Hot Plug Drive Bays Drive Support Quantity Position Supported Supported Controller Removable Media 1.44-MB Diskette Drive...
  • Page 27 QuickSpecs HP ProLiant ML330 Generation 3 Storage positioning of 64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter CD-ROM) NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.
  • Page 28 QuickSpecs HP ProLiant ML330 Generation 3 Storage following: http://h18000.www1.hp.com/products/quickspecs/North_America/10233.html (North America) http://h18000.www1.hp.com/products/quickspecs/Division/10233.html (Worldwide) NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders and Tape Libraries listed below, please see the following: http://h18000.www1.hp.com/products/quickspecs/North_America/10809.html (North America) http://h18000.www1.hp.com/products/quickspecs/Division/10809.html...
  • Page 29 QuickSpecs HP ProLiant ML330 Generation 3 Storage Libraries, External reference the 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, MSL6000 (Ultrium 960-based) MSL Tape Alternate OS MSL6000 (SDLT 600-based) Library MSL6000 (Ultrium 460-based) QuickSpecs to MSL5026S2 (SDLT 320-based) determine MSL5052S2 (SDLT 320-based)

  • Page 30: Power Specifications

    QuickSpecs HP ProLiant ML330 Generation 3 Power Specifications Part Number 319640-001 Spare Kit 324714-001 Operational Input Voltage Range 90-264 (Vrms) Frequency Range (Nominal) (Hz) 47 - 63 (50 / 60) Nominal Input Voltage (Vrms) Max Rated Output Wattage Rating Nominal Input Current (Arms)
  • Page 31 QuickSpecs HP ProLiant ML330 Generation 3 Power Specifications Server Power Cords One 12 Ft. lowline power cord ships standard. 12 ft. Power Cords (13 Cord Sets) Power Cord Part Number Country 139867-006 100613-003 100614-003 Australia 100611-007 Europe 100614-003 France 100614-003...

  • Page 32: Technical Specifications

    QuickSpecs HP ProLiant ML330 Generation 3 Technical Specifications System Unit Dimensions (HxWxD) 16.8 x 7.5 x 20.25 in (41.91 x 19.05 x 51.44 cm) (with feet) Weight 40 lb (18.18 kg) Input Requirements Range Input Voltage 100 to 199 VAC/200 to 240 VAC...
  • Page 33 QuickSpecs HP ProLiant ML330 Generation 3 Technical Specifications Data Transfer Rate Sustained 150 KB/s (single), 1,500 to 7,200 KBps (10x to 48x) Burst 150 KB/s to 7,200 KB/s Cache Buffer 128 KB Start-up Time (typical) <7seconds Stop Time <4seconds Laser Parameters...
  • Page 34 Microsoft Corporation. Intel is a US registered trademark of Intel Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
