QuickSpecs

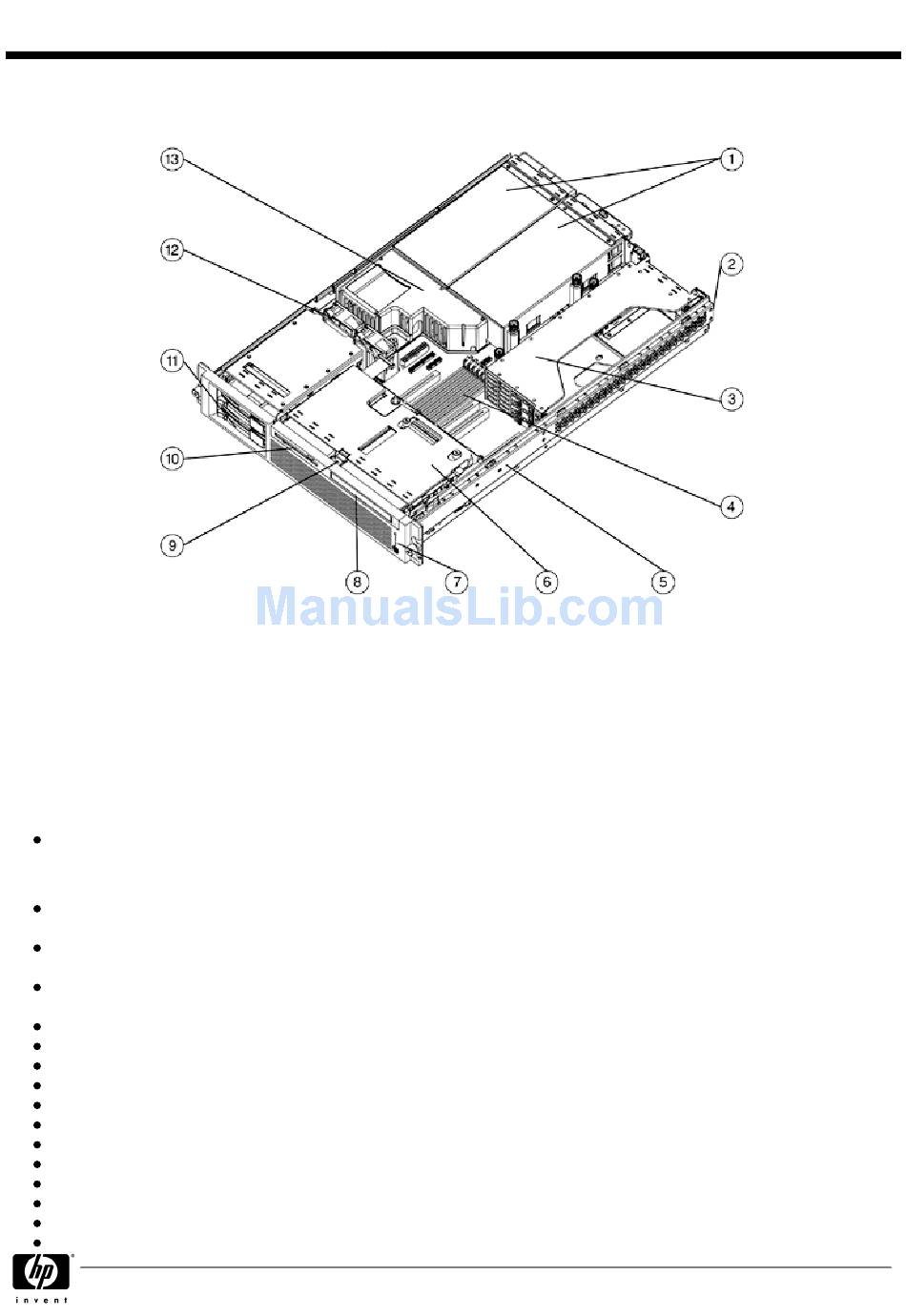

Overview
1. Dual 550W Hot Plug Redundant Power
2. 2U (3.5" Height) rack form factor
3. PCI-X Riser Cage, Three 64-bit PCI-X slots
4. Six memory DIMM slots
5. Tool-less "Snap in" Rail Solution
6. Hood
7. LEDs
What's New
Intel® Xeon® Processors MP at 3.0 GHz/4MB, 2.7 GHz/2MB, or 2.2 GHz/2MB (Expandable to 4 processors)
At a Glance
Intel Xeon Processors MP at 3.0 GHz/4MB, 2.7 GHz/2MB, 2.2 GHz/2MB, 2.8 GHz/2MB, 2.5 GHz/1MB, 2.0 GHz/1MB
(Expandable to 4 processors)
The HP ProLiant DL560 delivers extraordinary performance and maximum power efficiency in an ultra dense, rack
optimized form factor ServerWorks Grand Champion-LE chipset
2x1 interleaved memory, 200MHz DDR SDRAM Memory (PC2100 Registered SDRAM with Advanced ECC
functionality)
1024 MB or 512 MB (depending on model) standard memory, expandable to 12 GB
HP Advanced Memory Protection
Two, full length 64-bit/100 MHz Non-Hot Pluggable PCI slots, one full length 64-bit/133 MHz Non-Hot Pluggable
Integrated Lights-Out Standard Management (iLO) on system board
Two NC7781 PCI-X Gigabit NICs (embedded)
Integrated Smart Array 5i Plus Controller (Ultra3) with 64-MB total memory on 5i Plus Memory Module
Battery-Backed Write Cache Enabler module on all 2P models (optional on 1P model)
Internal Hot Plug Drive Storage of up to 600 GB (2 x 300 GB 1" Ultra320 hard drives)
Redundant Cooling Zones for major subsystems (Memory, I/O, CPUs) assure 7x24 cooling
Toolless and virtually cable-less internal design
Rapid Deployment racking solution (rack rails and cable management)
Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day,
DA - 11595 Worldwide QuickSpecs — Version 46 — 12.16.2005
8. Slimline Removable media Bay with 24x CD-ROM installed
9. Hood latch (accesses processors and fans)
10. 1.44 MB Diskette Drive
11. Wide Ultra3 SCSI drive cage for two hot plug hard drives
or one DAT hot plug tape drive (plus 1 hard drive)
12. Hot Plug Fans
13. DC Power Converter Module
HP ProLiant DL560
Page 1

Advertisement

loading

Related Manuals for HP ProLiant DL560

Summary of Contents for HP ProLiant DL560

  • Page 1 Intel Xeon Processors MP at 3.0 GHz/4MB, 2.7 GHz/2MB, 2.2 GHz/2MB, 2.8 GHz/2MB, 2.5 GHz/1MB, 2.0 GHz/1MB (Expandable to 4 processors) The HP ProLiant DL560 delivers extraordinary performance and maximum power efficiency in an ultra dense, rack optimized form factor ServerWorks Grand Champion-LE chipset...
  • Page 2 QuickSpecs HP ProLiant DL560 Overview on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives. DA - 11595 Worldwide QuickSpecs — Version 46 — 12.16.2005 Page 2...

  • Page 3: Standard Features

    NOTE: The Smart Array 5i Plus Controller is integrated on the system board and is designed to support the simplex drive cage. An external SCSI port is not available on the HP ProLiant DL560. External SCSI solutions require the addition of a PCI or PCI-X option card.
  • Page 4 Battery charge/life: Up to 72 hours/ 3 years Transportable data protection Increases overall controller performance NOTE: Safely transport your write cache data to another HP ProLiant DL560 in the data center be removing the BBWC Enabler and 5i Plus Memory Module simultaneously (connected by short cable).
  • Page 5 SmartStart website at www.hp.com/servers/smartstart. Survey Utility and The most advanced configuration analysis, reporting and diagnostics utilities troubleshooting utilities used by HP and at your fingertips, available in SmartStart. Optional ProLiant Optional software offerings that selectively extend the functionality of an...
  • Page 6 QuickSpecs HP ProLiant DL560 Standard Features management and control of virtual machines from Microsoft and VMware. Integrated approach provides the ability to manage both physical and virtual resources from a single management console. NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs.
  • Page 7 Smart Array 5i Plus Controller with standard Battery Backed Write Cache (BBWC) Enabler provides transportable data protection and increases overall controller performance. Up to 64MB Battery Backed Write Cache protection available on 2P HP ProLiant DL560 models (BBWC Enabler is optional on 1P model).
  • Page 8 Each fan is hot plug redundant and individually removable. Required Cabling For required cabling information, refer to the HP Web site at http://h18000.www1.hp.com/products/servers/proliantDL560/. DA - 11595 Worldwide QuickSpecs — Version 46 — 12.16.2005...
  • Page 9 NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: http://www.hp.com/go/supportos NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant DL560, please see: http://www.HP.com/support/files/server/us/index.html. NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux website at http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html...
  • Page 10 Service and Support This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase.
  • Page 11 QuickSpecs HP ProLiant DL560 Models DL560R01 X3.0GHz- Processor(s) (2) Intel Xeon Processors MP at 3.0 GHz standard (up to 4 supported) 4MB, 1024MB (2P) Cache Memory 4MB Integrated Level 3 Cache 346921-xx1 Memory 1024 MB 200-MHz (DDR) SDRAM (PC2100-MHz Registered SDRAM...
  • Page 12 QuickSpecs HP ProLiant DL560 Models DL560R01 X2.2-2MB, Processor(s) (1) Intel Xeon Processor MP at 2.2 GHz standard (up to 4 supported) 1024MB (1P) Cache Memory 2MB Integrated Level 3 Cache 346919-xx1 Memory 1024 MB 200-MHz (DDR) SDRAM (PC2100-MHz Registered SDRAM...
  • Page 13 ProLiant Essentials Performance Management Pack, Single-Server License 306696-B21 NOTE: For use with a single server. Contains one license with a unique license activation key, HP Management CD and documentation. NOTE: The most recent version of the software can always be downloaded at http://www.hp.com/products/pmp.
  • Page 14 QuickSpecs HP ProLiant DL560 Options virtual machine. Or this license can be used to migrate a virtual machine from one virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware ESX or Microsoft Virtual Server 2005. NOTE: For additional ProLiant Essentials Virtualization Management Software License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_div/12328_div.HTML...
  • Page 15 256-MB Battery-Backed Cache Module 254786-B21 NOTE: This 256-MB Battery-Backed Cache Module supports the Smart Array 5300 series controllers, HP StorageWorks Modular Smart Array 1000 and the HP StorageWorks Modular Array 500. Battery-Backed Write Cache Enabler Option Kit 255514-B21 NOTE: This Battery-Backed Write Cache Enable Option Kit (PN 255514-xx1) is optional for the HP ProLiant DL560 1P Model only.
  • Page 16 HP StorageWorks Ultrium 232 Internal Tape Drive (Carbonite) DW064A NOTE: No internal tape drives fit inside this HP ProLiant server (except hot plug tape). The internal drive shown here is for the 1U and 3U Rack-mount Kit. HP StorageWorks Ultrium 232 External Tape Drive (Carbonite)
  • Page 17 (Worldwide) http://h18000.www1.hp.com/products/quickspecs/11985_na/11985_na.HTML (North America) HP StorageWorks 1/8 Tape Autoloader HP StorageWorks 1/8 Ultrium 960 Tape Autoloader AF204A HP StorageWorks 1/8 Ultrium 448 Tape Autoloader AF203A HP StorageWorks 1/8 SDLT 320 Tape Autoloader AA926A...
  • Page 18 1200mx, 4 drive, up to 128 slots C1104M 2200mx, 6 drive, up to 238 slots C1107M NOTE: Please see the HP StorageWorks Magneto-Optical Products data sheet for a complete listing of available jukeboxes at: http://www.hp.com/products1/storage/products/archivalprod/brochures/ MO_family_pb.pdf NOTE: Please reference the Magneto-Optical Jukebox data sheets at http://www.hp.com/go/optical...
  • Page 19 HP Serviceguard for Linux License A.11.15 for SUSE SLES 8 / UnitedLinux 1.0 307754-B24 and Red Hat EL 3 (single license version) HP Serviceguard for Linux A.11.16 for SUSE SLES9 and Red Hat EL 3 & 4 307754-B26 (single license version)
  • Page 20 Modular Smart Array 20 NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies. HP StorageWorks Modular Smart Array 20 Starter Kit 366172-B21 NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies. Includes Smart Array 6402/128 Controller.
  • Page 21 HP UPS R3000 XR (2400VA, 2250 Watt), Low Voltage (Japan) 192186-291 HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage (Japan) 192186-292 HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage (Int’l - detachable cord) 192186-B31 HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage (16A IEC309 Plug) 192186-B32...
  • Page 22 USB 1.44-MB External Diskette Drive (Carbonite) DC141B Third Party Rack Kit Rack Adapter Kit 332815-B21 NOTE: This kit allows HP rack servers to fit in racks that are 24" wide. HP Rack 10000 Series 10642 (42U) Infrastructure Rack (Low Voltage) 379006-001 (Graphite Metallic)
  • Page 23 (North America) NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://h18000.www1.hp.com/products/servers/proliantstorage/rack- options/index.html. Rack Options for HP HP Rack Light Kit (Neon) 361589-B21 Rack 10000 Series HP Rack Plinth Kit (Carbon) 251960-B21 42U Side Panel – Graphite Metallic 246099-B21 36U Side Panel –...
  • Page 24 293052-B21 party Cabinet Racks NOTE: Support for racks with round mounting holes (include HP Rack System /E and HP Systems) with and adjustment range of 24 inches to 36 inches (60.96 cm to 91.44 cm). Service and Support Hardware Services On-site Service...
  • Page 25 Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech U4709E support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic Onsite HW support, 8am-9pm, M-F, 4hr response and Linux O/S SW Tech U4711E support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl.
  • Page 26 2048 MB 2048 MB 2048 MB The following memory options are available from HP: 512 MB of PC2100 ECC DDR DIMM Memory Kit (2 x 256 MB) 300678-B21 1 GB of PC2100 DDR SDRAM DIMM Memory Kit (2 x 512 MB)

  • Page 27: Drive Support

    QuickSpecs HP ProLiant DL560 Storage 1.44-MB Diskette Drive Ejectable: 24x IDE CD-ROM (Slimline) Wide Ultra3/Ultra320 Drive Cage Drive Support Quantity Position Supported Supported Controller Slim Line Drives 1.44-MB slim-line Up to 1 Integrated Diskette Drive Ejectable IDE slim-line Up to 1...
  • Page 28 QuickSpecs HP ProLiant DL560 Storage determine configuration requirements Modular Smart Array Please see the External Please see the Modular Smart Array 1500 cs QuickSpecs (URL 1500 cs Modular Smart below) for the latest list of supported HBAs Array 1500 cs...
  • Page 29 QuickSpecs HP ProLiant DL560 Storage Ultrium 230 Alternate OS Ultrium 232 Ultrium 448 Ultrium 460 DAT 40 DAT 72 DLT VS80 DLT VS160 SDLT 320 HP StorageWorks Tape 1 drive per SCSI External 64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter Drives, External...

  • Page 30: Power Specifications

    Maximum Inrush Current (A peak) Maximum Inrush Current duration System Specifications HP ProLiant DL560 Fully Configured Up to 4 Processors, 6 Memory Slots, 2 Hard Drives, 3 PCI Slots, and 2 Hot Plug Power Supplies Nominal Input Voltage (Vrms) Fully Loaded System Input Wattage (W)

  • Page 31: Technical Specifications

    QuickSpecs HP ProLiant DL560 Technical Specifications System Unit Rack Chassis Footprint 3.38 x 17.50 x 25.75 in (8.59 x 44.45 x 65.41 cm) (HxWxD) Weight Maximum (2 Power 60 lb (27 kg) Supplies, 2 Hard Drives) Minimum (No hard drives...
  • Page 32 QuickSpecs HP ProLiant DL560 Technical Specifications 24X Max (or higher) IDE Disk Applicable Disk CD-DA, CD-ROM (Mode 1 and 2) CD-ROM Drive Slimline CD-XA, CD-I (Mode 2, Form 1 and 2) Photo CD (Single and Multi-session) Mixed Mode (Audio and Data combined)
  • Page 33 QuickSpecs HP ProLiant DL560 Technical Specifications CD-I (mode 2) CD-I Ready CD-Bridge Capacity DVD-ROM DVD-SL 4.7 GB/side DVD-DL 8.5 GB/side Double 9.40 GB/side Sided DVD-R 3.95 GB/side DVD-RAM 2.6 GB/side and 5.2 GB/ CD-ROM Mode-1 650 MB (550 MB) Mode-2...
  • Page 34 QuickSpecs HP ProLiant DL560 Technical Specifications Integrated Lights-Out Architecture 32-bit PCI-based health and remote management ASIC (Application Standard (integrated Specific Integrated Circuit) on system board) Processor 32-bit RISC processor core running at 66 MHz Upgradability Option firmware upgradable via flash ROM.
  • Page 35 The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
