CCR™ 2450 GTS
Model No. 38515—Serial No. 290000001 and Up
Introduction
Read this information carefully to learn how to operate
and maintain your product properly and to avoid injury
and product damage. You are responsible for operating
the product properly and safely.
You may contact Toro directly at www.Toro.com for
product and accessory information, help finding a
dealer, or to register your product.
Whenever you need service, genuine Toro parts, or
additional information, contact an Authorized Service
Dealer or Toro Customer Service and have the model
and serial numbers of your product ready. Figure 1
identifies the location of the model and serial numbers
on the product. Write the numbers in the space
provided.

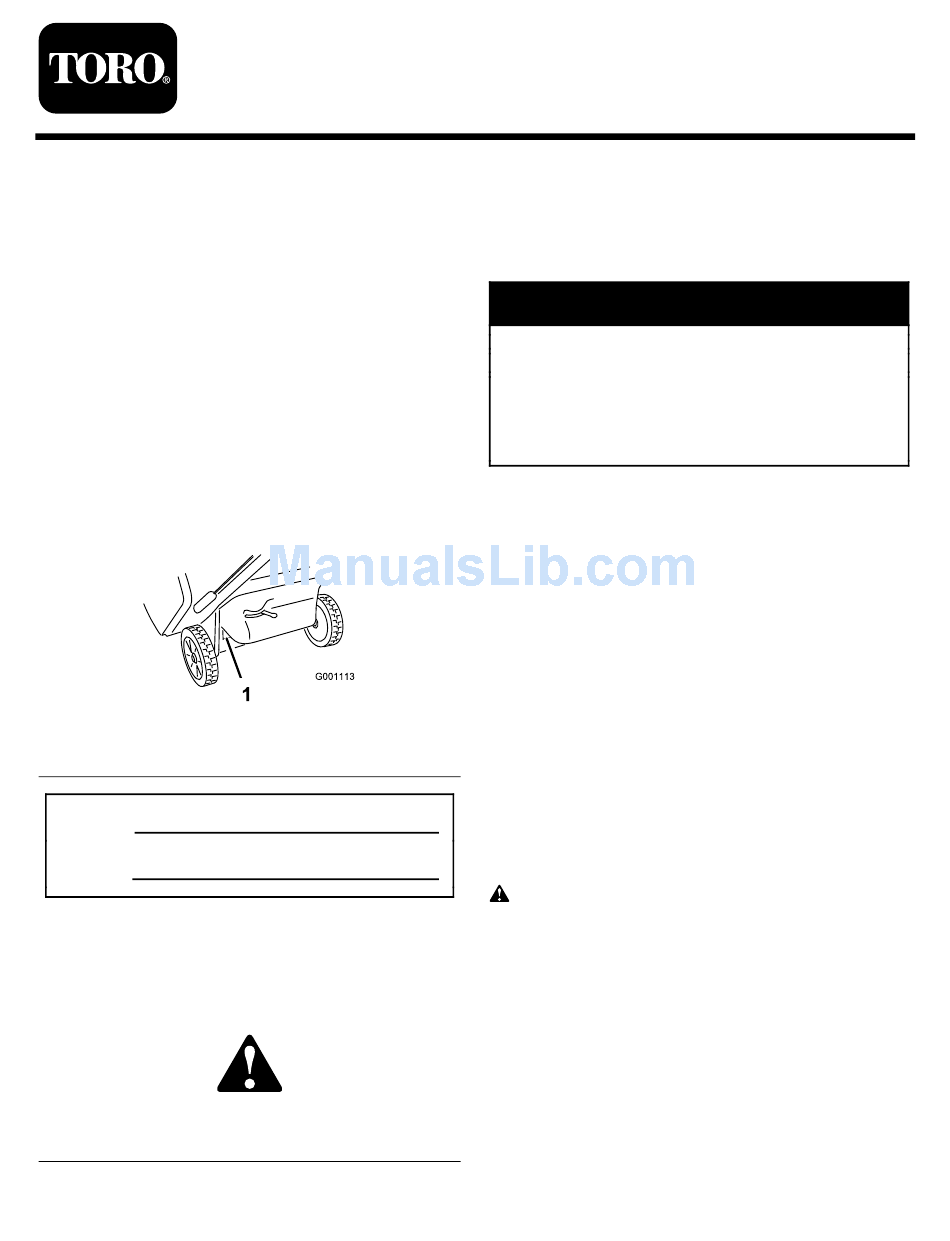

Figure 1
1. Model and serial number location
Model No.
Serial No.
This manual identifies potential hazards and has
safety messages identified by the safety alert symbol
(Figure 2), which signals a hazard that may cause serious
injury or death if you do not follow the recommended
precautions.
Figure 2
1. Safety alert symbol
© 2008—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
Snowthrower
This manual uses 2 other words to highlight information.
Important calls attention to special mechanical
information and Note emphasizes general information
worthy of special attention.
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
This spark ignition system complies with Canadian
ICES-002.
The enclosed Engine Owner's Manual is supplied
for information regarding the US Environmental
Protection Agency (EPA) and the California
Emission Control Regulation of emission systems,
maintenance, and warranty. Replacements may be
ordered through the engine manufacturer.
Safety
This snowthrower meets or exceeds the B71.3
specifications of the American National Standards
Institute in effect at the time of production.
Read and understand the contents of this manual
before you start the engine.
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
Improperly using or maintaining this snowthrower
could result in injury or death. To reduce this
potential, comply with the following safety
instructions.
This snowthrower is capable of amputating hands
and feet and of throwing objects. Failure to observe
the following safety instructions could result in
serious injury.
Register at www.Toro.com.
Form No. 3360-738 Rev A
Operator's Manual
Warning
CALIFORNIA
Proposition 65 Warning
or other reproductive harm.
Original Instructions (EN)
Printed in the USA
All Rights Reserved
Advertisement
Table of Contents
Related Manuals for Toro Toro Snow Blower 38515
Summary of Contents for Toro Toro Snow Blower 38515
- Page 1 State of additional information, contact an Authorized Service California to cause cancer, birth defects, Dealer or Toro Customer Service and have the model or other reproductive harm. and serial numbers of your product ready. Figure 1...
- Page 2 Training • Do not attempt to clear snow from a gravel or crushed rock surface. This product is intended for • Read, understand, and follow all instructions on the use only on paved surfaces. machine and in the manual(s) before operating this •...
-
Page 3: Clearing A Clogged Discharge Chute
The following list contains safety information specific • Never operate the snow thrower without good to Toro products or other safety information that you visibility or light. Always be sure of your footing, and must know. - Page 4 Safety and Instructional Decals Important: Safety and instruction decals are located near areas of potential danger. Replace damaged decals. 104-2775 60-9480 104-2767 104-4135 105-1978 Reorder part no. 108-7335...
-
Page 5: Loose Parts
105-1980 Reorder part no. 105-3521 Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. – No parts required Unfold the handle. Discharge chute Chute handle Phillips head screws Install the discharge chute. Washers Locknuts 1. -
Page 6: Product Overview
3. Hook the end of the control cable spring into the bottom hole of the control bar (Figure 4). Figure 4 4. Fully insert the handle bolts (Figure 5). Important: Ensure that you do not pinch the control cable (Figure 5). Figure 6 Figure 5 Product Overview... -
Page 7: Figure
• Store gasoline in an approved fuel container, out of the reach of children. Mixing the Gasoline and Oil This snowthrower uses a 50:1 gasoline-to-oil mixture. Use Toro 50:1 2-Cycle Oil (Fuel Stabilizer Added) or an equivalent high-grade, NMMA TCW-certified two-cycle oil. Figure 10... - Page 8 Starting the Engine Stopping the Engine 1. Turn the ignition key clockwise to the On position To stop the engine, turn the ignition key (Figure 11). counterclockwise to the Off position (Figure 15). Figure 11 Figure 15 2. Move the choke lever to the right (Figure 12). Starting the Rotor Blades To start the rotor blades, hold the control bar against the handle (Figure 16).
-
Page 9: Figure
Adjusting the Discharge Chute Operating Tips To adjust the discharge chute, move the chute handle and the chute deflector handle as shown (Figure 18). The rotor blades can throw stones, toys, and other foreign objects and cause serious personal injury to the operator or to bystanders. •... -
Page 10: Figure
Adjusting the Control Cable inch (2 to 3 mm) gap between the control bar and the handle (Figure 21). Checking the Cable Service Interval: After the first hour Yearly—Check the control cable and adjust it if necessary. Important: Check the control cable for proper adjustment initially, after the first operating hour, and then annually thereafter. -
Page 11: Figure
This can damage the chute handle. 1. Add a fuel stabilizer/conditioner to the fuel in the fuel tank as directed. Note: If you use Toro 50:1 2-Cycle Oil (Fuel Stabilizer Added), you do not need to add a fuel stabilizer/conditioner. - Page 12 Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guaran- tee policies for your country, province, or state. If for any reason you are dissatisfi ed with your Distributor’s service or have diffi culty obtaining guarantee information, contact the Toro importer.
