Banner American Finisher 4300 Operation Manual
Model no. ba-fs43
Hide thumbs
Also See for Finisher 4300:
- Operating instructions manual (12 pages) ,
- Operating instructions manual (12 pages)
Related Manuals for Banner American Finisher 4300
Summary of Contents for Banner American Finisher 4300

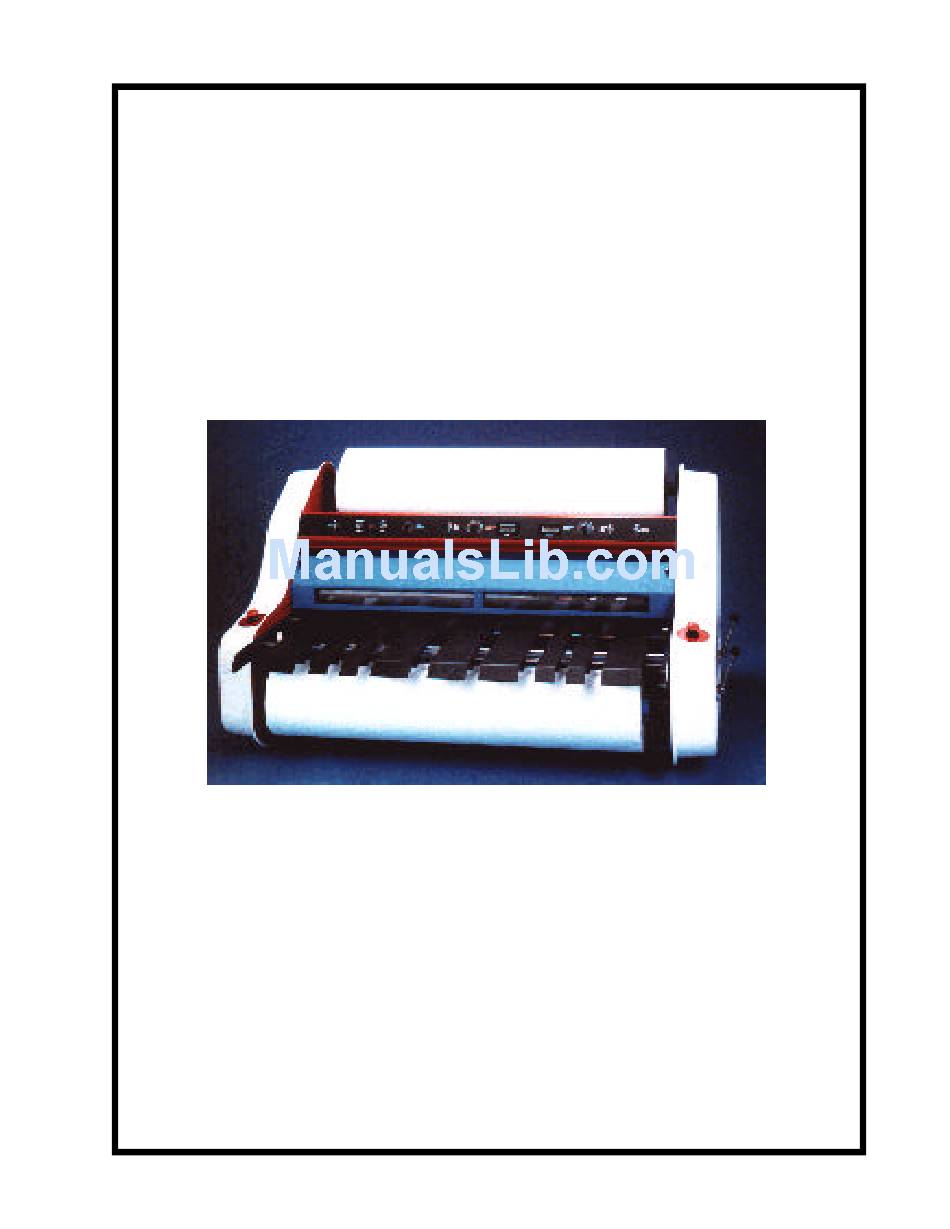

- Page 1 OPERATING INSTRUCTIONS FINISHER 4300 Model No. BA-FS43 OfficeZone 1-800-543-5454 www.officezone.com...
-
Page 2: Table Of Contents
Mounting & Laminating ........7 Maintenance/Service ........7-8 Cleaning Rubber Rollers ........8 Cleaning Heat Shoes ........8 Removing Wrap-arounds ......... 8 Trouble-shooting ..........9 Laminating & Mounting Do’s & Don’ts .... 10 XII. Warranty & Return Policy ........ 10 OfficeZone 1-800-543-5454 www.officezone.com... -
Page 3: Control Panel
Finisher 4300 (BA-FS43) Mandrel Control Panel Upper Supply Brake Nut (see below) Mandrel Top Supply Mandrel Holder Safety Shield Emergency Stop Button Feed Table Guide Laminating/Mounting Selection Knobs Lower Supply Tie Bar Feed Table Adjustment Knob Feed Table Mandrel Left Side Cover... -
Page 4: For Your Safety
OPERATING INSTRUCTIONS and on the serial label located on the rear panel of the unit. Do not leave the laminator power on for extended periods while not in use. Open the panel breaker at the end of the day as a precaution against a possible fire hazard. OfficeZone 1-800-543-5454 www.officezone.com... -
Page 5: Specifications
Appropriate Location: Your Finisher 4300 must be placed on a sturdy table or stand in a clean, well lit area with ample space on all four sides of the laminator. Contact your dealer for the optional stand designed especially for the Finisher 4300. -
Page 6: Threading The Film
Adjust the pressure only ¾ of a turn between tests. Adjust each pressure block as necessary. The pressure on your Finisher 4300 has been preset at the factory. However, shipping Bottom and handling may necessitate slight pressure adjustment. -
Page 7: Slitters
8. You may laminate subsequent prints now, leaving ample space between each print for trimming. 9. Once your last print has completely exited the laminator, turn the MOTOR switch OFF and use the trimmer on the rear of the laminator to remove the laminted prints. OfficeZone 1-800-543-5454 www.officezone.com... -
Page 8: Pressure Sensitive Laminating
VII. Coating Mount Board... The Finisher 4300 is capable of applying an adhesive coating to mount board that has not previous been coated. 1. Load a roll of adhesive, with the liner wound to the outside, onto the top mandrel in the same manner as with laminating film. -
Page 9: Mounting & Laminating
Contact the manufacturer at 800-572-2144 for training information or technical assistance. Adjust only those controls that are specified in these operating instructions. Use caution when installing and removing the feed table as it weighs about 30 pounds. OfficeZone 1-800-543-5454 www.officezone.com... -
Page 10: Cleaning Rubber Rollers
3. Open the ROLLER RELEASE handle onthe side of the laminator and pull the film out of the unit that has become wrapped around the rollers. 4. If you have a severe wrap-around, it may be necessary to use the REVERSE feature to back the film out. Be sure to pull the film away from the laminator. OfficeZone 1-800-543-5454 www.officezone.com... -
Page 11: Trouble-Shooting
Brake nut improperly adjusted Tighten nut constant Core gripper blade is not preventing Rotate film core while holding the mandrel the core from spinning on the firm to lock the mandrel blade into the core. Mandrels are reversed. Reverse mandrels OfficeZone 1-800-543-5454 www.officezone.com... -
Page 12: Laminating & Mounting Do's & Don'ts
Warranty: Your Finisher 4300 is warranted to be free of defects in material and workmanship for a period of 1 year from the date of original purchase. In the event of a defect in materials or workmanship, Banner American Prod- ucts, Inc.
