Furuno FAR-2XX7 Operator's Manual

FAR-2xx7 SERIES MARINE RADAR
The purpose of this Operator's Guide is to provide the basic operating procedures for this equipment. For
more detailed information, see the Operator's Manual. This manual describes operating procedures using
the trackball module, since it is common to both types of control units.
BRILL
OFF ON
1
EBL HL
OFF
4
F1 F2 OFF
CENTER
7
F3 F4 VECTOR
TIME
ALARM STBY CANCEL
ACK TX TRAILS

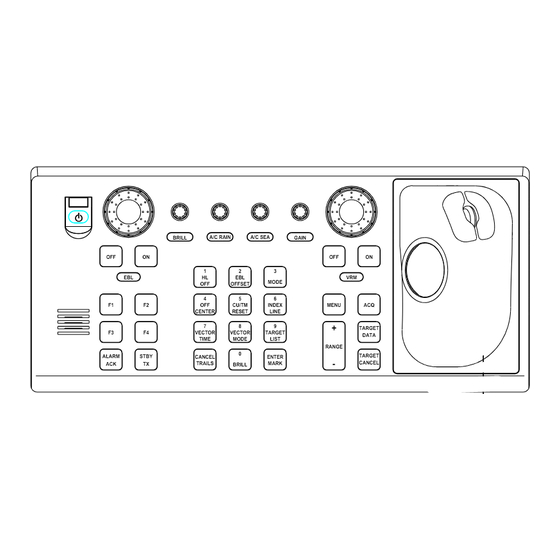

RCU-014
Control
POWER
EBL and VRM controls
EBL ON, EBL OFF
VRM ON, VRM OFF
F1-F4
ALARM ACK
STBY TX
BRILL
A/C RAIN
A/C SEA
GAIN
HL OFF
EBL OFFSET
MODE
OFF CENTER
CU/TM RESET
INDEX LINE
VECTOR TIME
VECTOR MODE
TARGET LIST
CANCEL TRAILS
BRILL/O
ENTER MARK
MENU
ACQ
RANGE
TARGET DATA
TARGET CANCEL
Operator's Guide
A/C RAIN A/C SEA GAIN
OFF ON
2 3
EBL VRM
MODE
OFFSET
5 6
CU/TM INDEX MENU ACQ
RESET LINE
8 9 +
TARGET
VECTOR TARGET
DATA
MODE LIST
RANGE
0
TARGET
ENTER
-
CANCEL
MARK
BRILL
Turns the system on and off.
Adjust EBL and VRM, respectively.
Turns the EBLs on and off, respectively.
Turns the VRMs on and off, respectively
Execute menu short cut assigned.
Silences audible alarm.
Toggles between stand-by and transmit.
Adjusts screen brilliance of FURUNO-supplied monitor.
Suppresses rain clutter.
Suppresses sea clutter.
Adjusts sensitivity of the radar receiver.
Temporarily erases the heading line while pressed.
Enables, disables the EBL offset. Switches coordinate polarity (menu operation).
Chooses presentation mode.
Shifts own ship position.
Moves own ship position in 75% radius in stern direction.
Resets the heading line to 0° in course-up and true motion modes.
Turns index lines on and off.
Chooses vector time (length).
Chooses vector mode, relative or true.
Displays ARP target list.
Cancels all target trails. In menu operation it clears line of data.
Chooses color scheme.
Enters marks; terminates keyboard input.
Opens and closes the MAIN menu; closes other menus.
- Acquires a target for ARP.
- Changes a sleeping AIS target to an activated one.
Chooses radar range.
Displays target data for ARP or AIS target chosen with the trackball.
Cancels tracking on ARP, AIS or reference target chosen with the trackball.
F1
F2
F3
F4
RCU-015
Trackball
Module
Description
Trackball
Module
