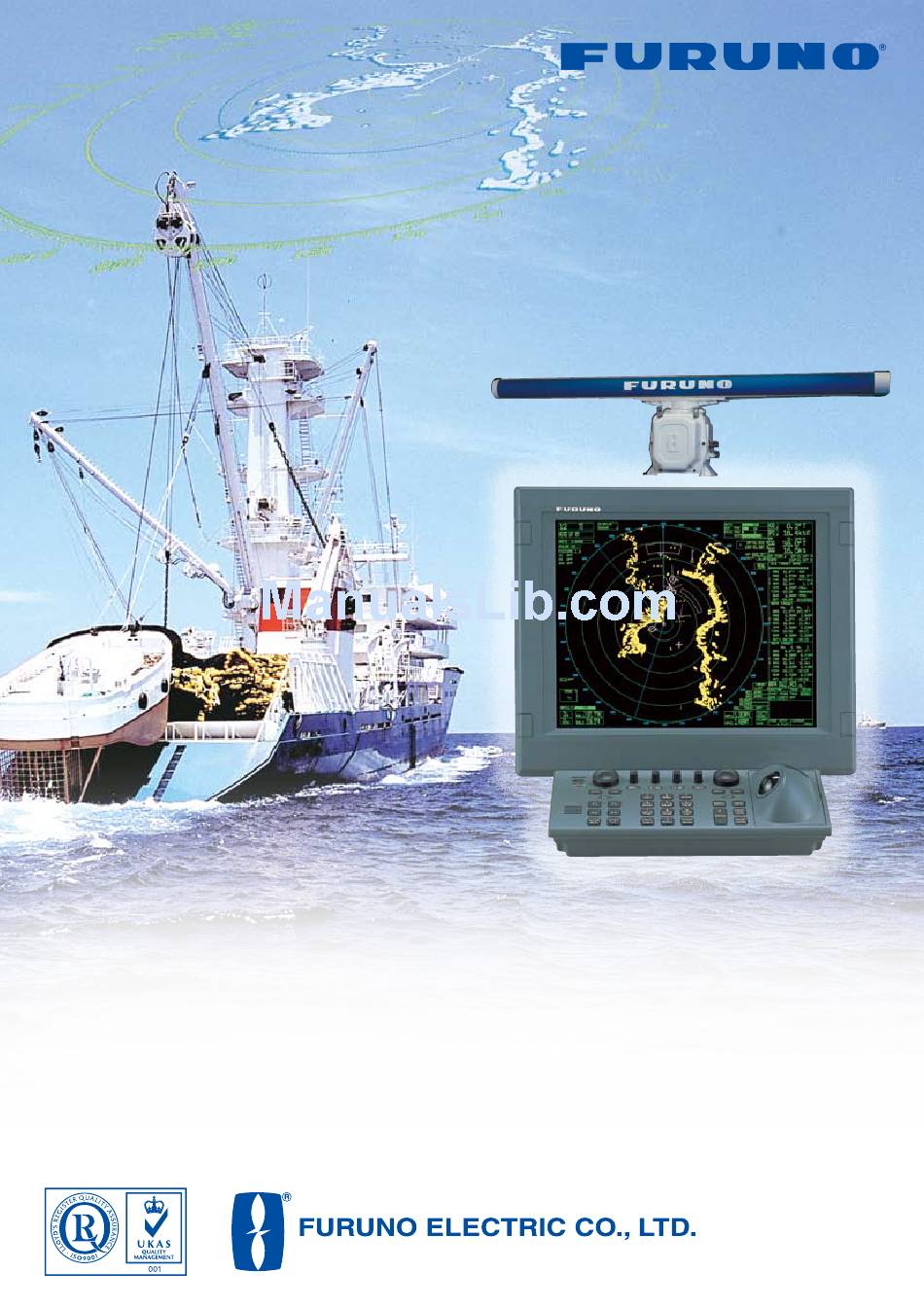

picture credit: ALBACORA SA. PESQUERAS ECHEBASTAR S.A.
s High output power radar delivers long-range
detection capability
s Advanced signal processing for improved
detection of small targets, buoys and birds
s Straightforward operation using customiz-
able Function & Direct Key, trackball/wheel
palm module and rotary controls
20.1" High-resolution Multi-color LCD
MARINE RADAR
Models
The future today with FURUNO's electronics technology.
9-52 Ashihara-cho, Nishinomiya City, Japan Phone: +81 (0)798 65-2111
Fax: +81 (0)798 65-4200, 66-4622 URL: www.furuno.co.jp
FAR-2157/2167DS
s Up to four radar sets can be networked via
Ethernet without an extra device
s Target trail with its various functions en-
hances situation awareness of vessel traffic
around the vessel
s All Echo Area Mode lets the operator ob-
serve a wider picture area around the vessel
Catalogue No. R-192
TRADEMARK REGISTERED
MARCA REGISTRADA
Advertisement
Related Manuals for Furuno FAR-2157
Summary of Contents for Furuno FAR-2157
- Page 1 The future today with FURUNO's electronics technology. 9-52 Ashihara-cho, Nishinomiya City, Japan Phone: +81 (0)798 65-2111 Fax: +81 (0)798 65-4200, 66-4622 URL: www.furuno.co.jp Catalogue No. R-192 TRADEMARK REGISTERED MARCA REGISTRADA...
- Page 2 The combina- tion of these technologies ensures a clear image, even in rough seas. The FAR-2157 and 2167DS deliver a variety of use- ful functions to skippers. Direct Key control allows the operators to activate specific settings with just a few keystrokes.
- Page 3 X-band antenna for FAR-2157 50 kW TR up (8 or 10 ft ANT selectable) The FAR-2157 radar is suitable for detection of vessels and buoys under most sea conditions. The 50 kW high-power output enables long range detection and its long antenna delivers high-resolution images.
- Page 4 The chart may be displayed in combination with radar images. It is compatible with FURUNO or Navionics charts. The target trails feature generates a monotone or gradual shading afterglow on all objects on the display. The trails are useful in showing own ship movement and other ship tracks.
- Page 5 sMarks and Comments Marks can be placed on the radar screen to note certain positions of importance. Comments can be placed near the mark to aid in their identification. Marks allow a skipper to grasp the relative position between own vessel and mark locations.
-
Page 6: Data Display
The FAR-2157 and 2167DS radar have a unique zoom function which enlarges a part of the radar image twice or three times in size. - Page 7 SPECIFICATIONS OF FAR-2157/2167DS ANTENNA RADIATORS 1. Type Slotted waveguide array 2. Beamwidth and sidelobe attenuation X-Band Radiator Type XN-4A XN-5A Length 8 ft 10 ft Beamwidth (H) 0.95˚ 0.75˚ Beamwidth (W) 20˚ 20˚ Sidelobe (within ± 10˚) -28 dB -26 dB Sidelobe (outside ±...
-
Page 8: Processor Unit
Antenna Unit for FAR-2157 XN-4A 74 kg 163 lb XN-5A XN4A: 2570 101.2" 79 kg 170 lb XN5A: 3210 126.4" 4- 15 580 22.8" 444 17.5" Processor Unit RPU-013 10 kg 22 lb 2- 7 385 15.2" 370 14.6" 350 13.8"...
