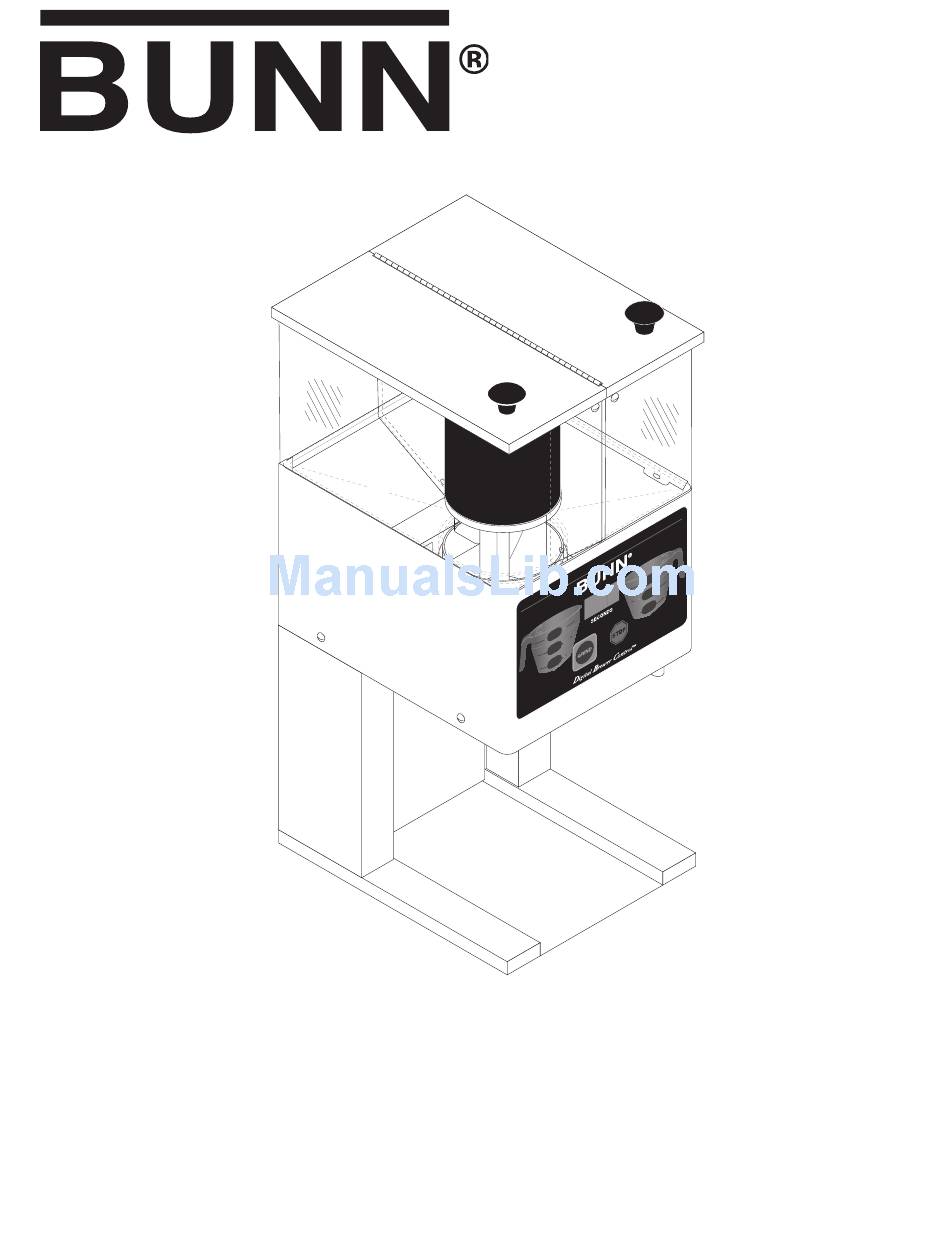

- Page 1 FPG-2 DBC ® INSTALLATION & OPERATING MANUAL BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 www.bunnomatic.com 36705.0000 03/04 ©2004 Bunn-O-Matic Corporation...
-
Page 2: Table Of Contents
INTRODUCTION The FPG-2 DBC will store up-to three pounds of whole bean coffee in each of two hoppers and grind it to a preset grind and amount into an awaiting funnel and filter from most commercial drip coffee brewers. The equipment is only for indoor use on a sturdy counter or shelf. -
Page 3: User Notices
USER NOTICES Carefully read and follow all notices on the grinder and in this manual. They were written for your protection. All notices on the grinder are to be kept in good condition. Replace any unreadable or damaged labels. Replacement part #05876.0000 Replacement part #20545.0000... -
Page 4: Initial Set-Up
The use of a damp cloth rinsed in any mild, non-abrasive, liquid detergent is recommended for cleaning all surfaces on Bunn-O-Matic equipment. Care should be taken not to scratch the hopper with any abrasive material. Regular cleaning will keep your grinder looking new for years. -
Page 5: Timer Adjustment (Control Board)
TIMER ADJUSTMENT (CONTROL BOARD) Three different batch settings are selectable for each hopper. Each batch is independently adjustable by setting the length of time a slide gate opens to allow beans to drop into the grinding chamber. A second time setting for each batch determines how long the grind motor continues to run after the slide gate closes. -
Page 6: Schematic Wiring Diagram
Medium Batch Size "Left" Small Batch Size "Left" SWITCH UNIT ASSY Large Batch Size "Right" Medium Batch Size "Right" Small Batch Size "Right" RECT – 120 VOLTS AC 2 WIRE WHI/BLK SINGLE PHASE 60 HZ 36706.0000A 03/04 © 2004 Bunn-O-Matic Corporation 36705 031505...
