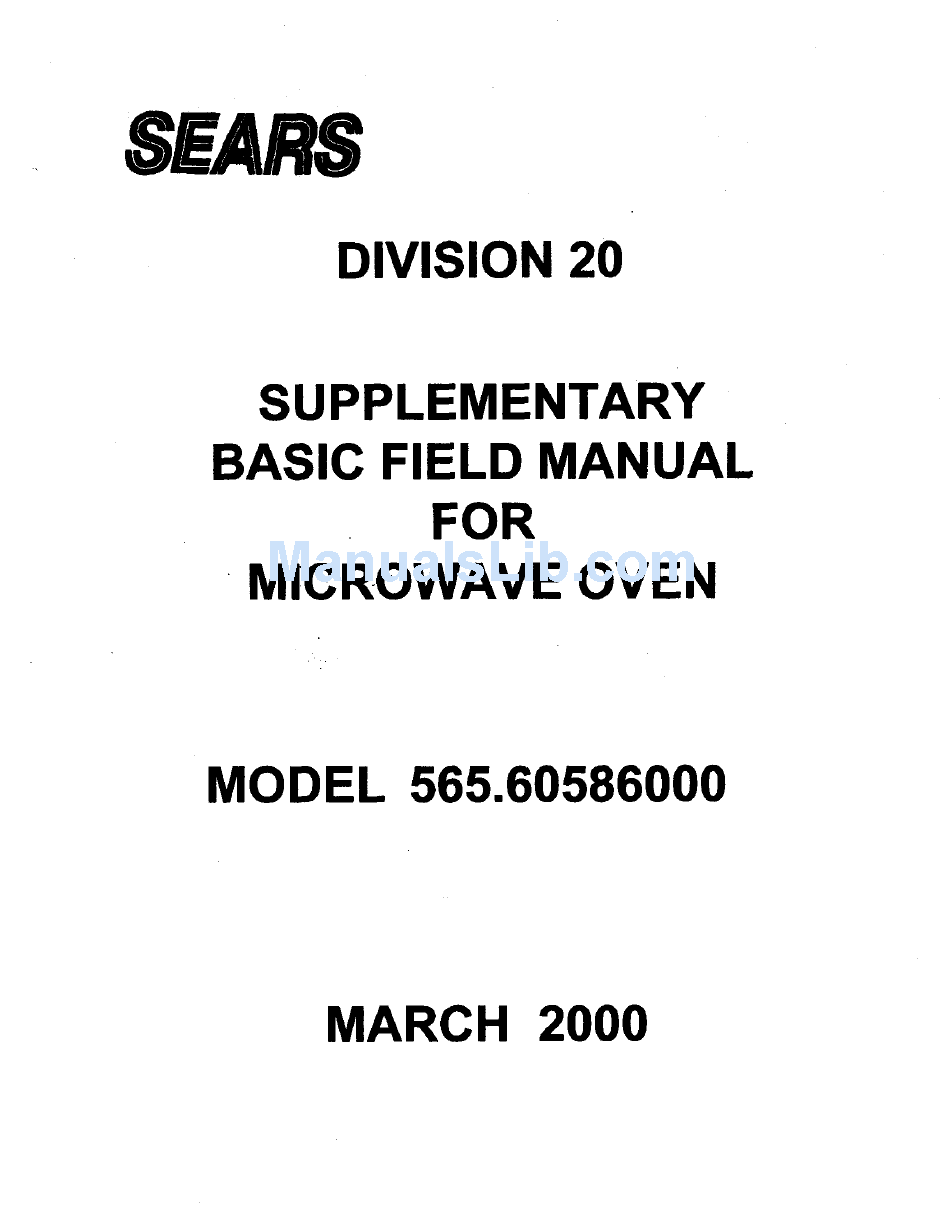

- Page 1 SEARS DIVISION 20 SUPPLEMENTARY BASIC FIELD MANUAL MICROWAVE OVEN MODEL 565.60586000 MARCH 2000...
- Page 2 CAUTION WARNING- TO SERVICE TECHNICIANS PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID POSSIBLE EXPOSURE EXCESSIVE MICROWAVE ENERGY a. Do not operate or allow the oven to be operated with the door open. Make the following safety checks on all ovens to be serviced before activating the magnetron or other microwave source, and make repairs as necessary ;...
- Page 3 CAUTION For microwave I MODEL 565.60586000 energy emission On every service call, checks microwave followin,q U.S. standard aUDlies to microwave ovens : 21 energy emission must be made according to the 1030. 10, Performance following manner. Standard for Microwave Ovens.
- Page 4 FORWARD I MODEL565.60586000 This supplement covers the information about model 565.60586000 by adding the following information to Basic Field Manual for Model 565.60509990. Model 565.60586000 DIFFERENCES Model 565.60586000 is the same as Model 565.60509990 in the mechanical construction except the following specifications.
- Page 5 I MODEL 565.60586000 Feature and Specification Features (A) The safety devices incorporated in this unit : - Fuse (Cartridge Type 20A). Primary interlock switch. Interlock monitor switch. Door sensing switch and relay 2. Choke system. Magnetron thermal protector opens at 122°(3 / closes at 105°C.
- Page 6 MODEL 565.60586000 Overall Circuit Diagram 120V 60Hz FUSE (2OA) CAVIler TEMP. FJJSE OPEN : 167=_'C CAVI1Y UGRT THERMAL PROTECTOR OPEN :122_C BLOWER MOTOR HIGH _,iOLTAGETRANSFORMER .... GEAR MOTOR RELAY 2 I CONNECTOR I Sl RELAY 3 RL2 SIGNAL CIRCUIT SECONDARY...
- Page 7 MODEL 565.60586000 Matrix Circuit for Touch Key Board FPC Connector ($101) & Matrix Circuit for Touch Key Board FPC Connector - $101 "_UP ---m-- 2 ---=,.-3 --P-4 --m-- ---D.- 7 ---P'- ---D_9 ---=,-10 ---=,.- 11 Matrix Circuit for Touch Key Board...
- Page 8 MODEL 565.60586000 Control Sheet, Display I Touch Key Board Model 565.60586000 Model : 565.60509990 Pa_ No 16645 Paff No : 16518 QuickTouch Sensor FROZEN ROUPI ENTREE BEVERAGE POPCORN • POI%'OnN • Rm_NmmZZ • POTATO • PIZZA SLRIE PIZZA SLICE CHICKEN •...
- Page 9 MODEL 565.60586000 Power Output Measurement ( 1 Liter Method ) The power output of the magnetron can be measured by performing a tap water temperature rise test. Equipment needed for test ; One liter beaker. One thermometer ( digital recommended Note : Check the line voltage during the test.
- Page 10 A special screw will prevent customer from removing the cabinet when they attempt to repair or service the unit. This should reduce the number of injuries reported. Sears Service technicians can remove the screws with the following required screwdriver, part number 22-16346 or bit, part number 22-16347.
- Page 11 565.60586000 MODEL Disassembly Instructions B. Removing & Installation of Antenna (Figure 2 & 3) Hook Cavity Cover Driver Hook Hook Figure 2 Removing of Antenna Figure 2. To detach the cavity cover from right side of the oven cavity :...
- Page 12 I MODEL 565.60586000 Test and Checkout Procedure and Troubleshooting - Caution DISCONNECT THE POWER SUPPLY CORD FROM WALL OUTLET, WHENEVER REMOVING THE CABINET FROM UNIT, PROCEED WITH THE TESTS AFTER THE HIGH VOLTAGE CAPACITOR DISCHARGED AND PRIMARY WINDING OF HIGH VOLTAGE...
-
Page 13: Troubleshooting
MODEL 565.60586000 Test and Checkout Procedure and Troubleshooting A, Test Procedures Humidity Sensor The following test procedures indicate a check method as to whether the thermistors in the sensor are open or short-circuited. Any characteristic relation between moisture resistance value of the thermistors can not be checked because the amount of the moisture can not be created as you need. - Page 14 MODEL 565.60586000 Test and Checkout Procedure and Troubleshooting B. Troubleshooting PROBLEM : Little, no heating or overheating in produced in Automatic Reheat. CHECK : 1. AIR FLOW. 2. CONNECTOR $201. Replace Determine Humidity Sensor Circuit Board or Humidity Sensor is defective.
- Page 15 I MODEL 565.60586000 How the Humidity Sensor Works for "Sensor Reheat" The humidity sensor is located on top of the oven cavity. This sensor detects an amount of moisture as it escapes from the food and the amount of moisture is closely related to the doneness of the food being reheated.
