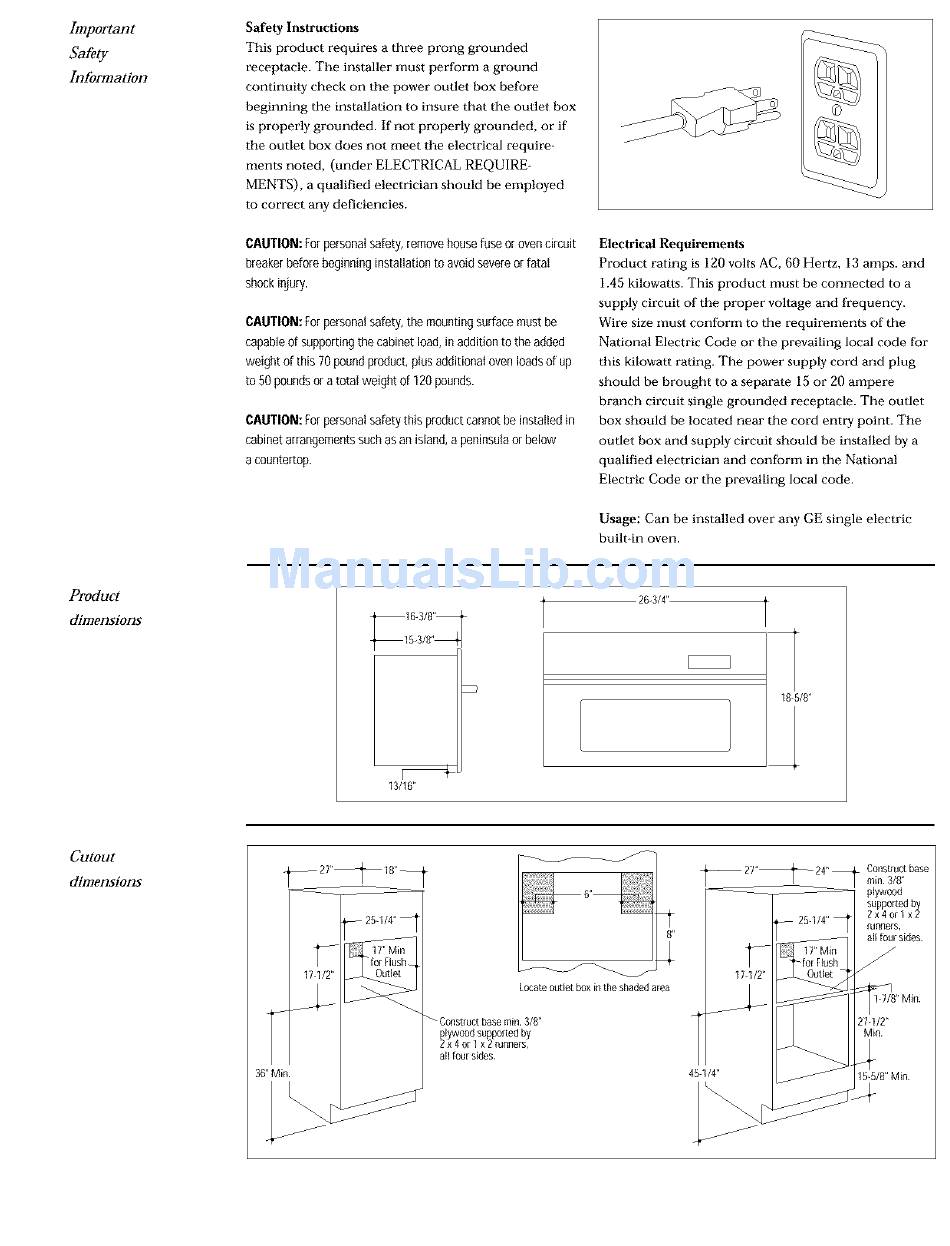

Safety Instructions
This product
requires
a three prong
grounded
receptacle.
The installer
must perform
a ground
continuity
check
on lhe power
outlet
box before
beginning
the installation
to insure
that the outlet
box
is properly
grounded.
If not properly
grounded,
or if
the outlet
box does not meet the electrical
require-
ments noted,
(under
ELECTRICAL
REQUIRE-
MENTS),
a qualified
electrician
should
be employed
to correct
any deficiencies.
CAUTION: Forpersonal safety, removehouse fuse or oven circuit
breakerbefore beginning installation to avoid severe or fatal
shock injury.
CAUTION: for personal safety, the mounting surface must be
capable of supporting the cabinet load, in addition to the added
weight of this 70 pound product, plus additional oven loads of up
to 50 pounds or a total weight of 120 pounds.
CAUTION: Forpersonal safety this product cannot be installed in
cabinet arrangements such as an island, a peninsula or below
a countertop.
Electrical
Requirements
Product
rating
is 120 volts AC, 60 Hertz,
13 amps.
arid
1.45 kilowatts.
This product
must
be connected
to a
supply circuit
of the proper
voltage
and frequency.
Wire size must conform
to the requirements
of tbe
National
Electric
Code or the prevailing
local code for
this kilowatt
rating.
The power
supply cord and plug
should
be brought
to a separate
15 or 20 ampere
branch
circuit single grounded
receptacle.
The outlet
box should
be located
near the cord
entry point.
The
outlet
box and supply
circuit should
be installed
by a
qualified
electrician
and contbrm
in the National
Electric
Code or the prevailing
local code.
Usage:
Can be installed
over any GE single electric
built-ln
oven.
Product
dimensions
13/16"
26-3/4"
L
18 5/8"
Cutout
dimensions
--211<_18"--
_J
J
Locate outletboxintheshaded area
_Constructbase min3/8"
lywood supportedby
1×4o[1
× 2 runllers
aE[foursides
Construct base
rain3/8"
plywood
supported b
2x4or1×_
fUnl_elS,
all foursides
_
.forHush
171/2"
481/4"
27-1/2"
Min
