Avital AviStart 4500 Installation Manual
Keyless entry and remote engine starter system
Hide thumbs
Also See for AviStart 4500:
- Owner's manual (16 pages) ,
- Installation manual supplement (1 page)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Owner's Manual
Advertisement
Table of Contents
Related Manuals for Avital AviStart 4500
Summary of Contents for Avital AviStart 4500

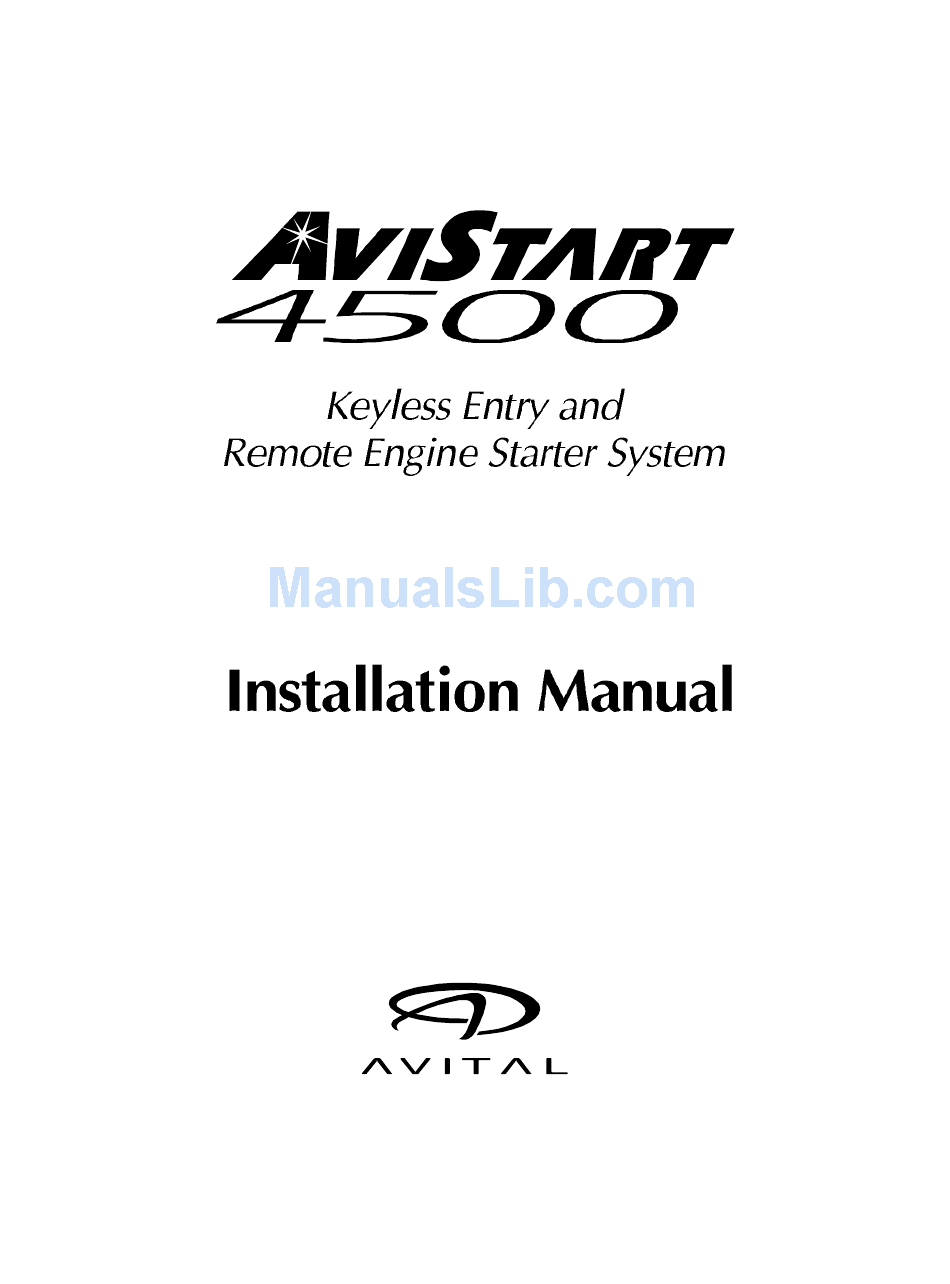

- Page 1 AviStart 4500 Installation Manual - 0898 Rev. A...
- Page 2 AviStart 4500 Installation Manual - 0898 Rev. A...
-
Page 3: Table Of Contents
Programming Table for System Features ....21 Programming Table for Remote Controls ....22 AviStart 4500 Installation Manual - 0898 Rev. A... -
Page 4: Important Information
7. Turn off dome light or remove dome light fuse to prevent battery drain. This device complies with Part 15 of the FCC rules. Any changes or modifications made to the system without the express approval of Avital Technologies, Inc. could void the user’s authority to operate this equipment. -
Page 5: Main Wiring Diagram
Main Wiring Diagram AviStart 4500 Installation Manual - 0898 Rev. A... -
Page 6: Satellite Relay Module Diagram
Satellite Relay Module Diagram AviStart 4500 Installation Manual - 0898 Rev. A... -
Page 7: 24 Pin Connectors
Lock Polarity (+) or (-) Select 6 Pin Connector Pin Number Wire Color Description YELLOW Starter Interrupt Switch Side GRAY Heater / AC Output VIOLET Starter Interrupt Starter Side Ignition Output PINK Battery (+) PINK Ignition Output AviStart 4500 Installation Manual - 0898 Rev. A... -
Page 8: Installation Procedures
4. Sleeve these wires with vinyl tubing or electrical tape and route them through an existing rubber grommet into the engine compartment. 5. If an existing grommet is not available, drill a hole and install a snap grommet. AviStart 4500 Installation Manual - 0898 Rev. A... -
Page 9: Led Indicator
NOTE: Do not connect the RED/WHITE wire to the control unit RED wire. NOTE: Do not connect the RED/WHITE wire to the control unit RED wire. Con tin ued on next page. Con tin ued on next page. AviStart 4500 Installation Manual - 0898 Rev. A... -
Page 10: Reverse Light
LOCK and UNLOCK buttons are continually pressed, the output will stay at ground as long as the buttons are held. This output can be used for optional accessories such as window roll-up/down or any other accessory requiring a (-) activation. AviStart 4500 Installation Manual - 0898 Rev. A... -
Page 11: Remote Start Armed Signal (-) Output
PINK wire to prevent a short circuit. The main control module has an 18 ga PINK wire that must be connected to the vehicle ignition wire with one of the satellite module 14 ga wires. AviStart 4500 Installation Manual - 0898 Rev. A... - Page 12 If it will not crank, you have the correct wire. 3. Connect the YELLOW wire to the ignition switch side of the starter wire. 4. Connect the VIOLET wire to the starter solenoid side of the starter wire. AviStart 4500 Installation Manual - 0898 Rev. A...
-
Page 13: Remote Engine Start Neutral Safety Switch Bulletin
Currently, the only vehicles with the combined neutral safety switch that Avital is aware of are General Motors trucks, GM sport utility vehicles, GM column shift passenger cars and Dodge Dakota pickup trucks. There may be additional vehicles with the combined neutral safety switch that require the additional relay. - Page 14 The wire color codes are subject to change. Check all wires with a volt/ohmmeter. If you have any questions, please contact the Avital Technical Support Department. AviStart 4500 Installation Manual -0898 Rev. A...
- Page 15 Gen eral Mo tors Sport Util ity Ve hi cles, Trucks and Col umn Shift Pas sen ger Ve hi cles Dodge Da kota Pickup Trucks AviStart 4500 Installation Manual - 0898 Rev. A...
-
Page 16: Door Lock/Unlock
The system has onboard door lock relays to lock and unlock all of the doors as well as a two-stage unlock. The diagrams on pages 14-17 will illustrate standard lock/unlock and two-stage unlock. AviStart 4500 Installation Manual - 0898 Rev. A... - Page 17 AviStart 4500 Installation Manual - 0898 Rev. A...
- Page 18 AviStart 4500 Installation Manual - 0898 Rev. A...
- Page 19 AviStart 4500 Installation Manual - 0898 Rev. A...
-
Page 20: Tach Wire (Rpm Monitoring)
On most vehicles, the tach wire is easily accessible. If the tach wire is not accessible, there are several alternative choices. Contact Avital Technical Support Department for alternate choices. The following procedure for testing the vehicle tach wire is not exact and may vary with different vehicle make, model and year. -
Page 21: Power And Ground Connections
Features" on page 21. 5. Press and hold the remote START button. 6. The parking lights will flash two times to confirm the RPMs have been memorized. 7. Release the START button. AviStart 4500 Installation Manual - 0898 Rev. A... -
Page 22: Programmable Features
6. Follow the "Secondary Action." You will hear a number of beeps to confirm that you have changed the setting of that feature. 7. Turn the ignition key "OFF." 8. Repeat steps 1-7 for any other feature you wish to program. AviStart 4500 Installation Manual - 0898 Rev. A... -
Page 23: Programming Table For System Features
Temperature-Controlled Wait 3 seconds. The piezo beeper will beep Starting — once for -7 F (-20 C), twice for -22 F -7 F (-20 C) or -22 F (-30 C). (-30 C) AviStart 4500 Installation Manual - 0898 Rev. A... -
Page 24: Programming Table For Remote Controls
LOCK Button Control Code Learning beeper will beep 1 time. Wait 3 seconds, the piezo beeper Instant Remote Control — will beep twice, all codes are erased Code Deletion out of memory. AviStart 4500 Installation Manual - 0898 Rev. A...
