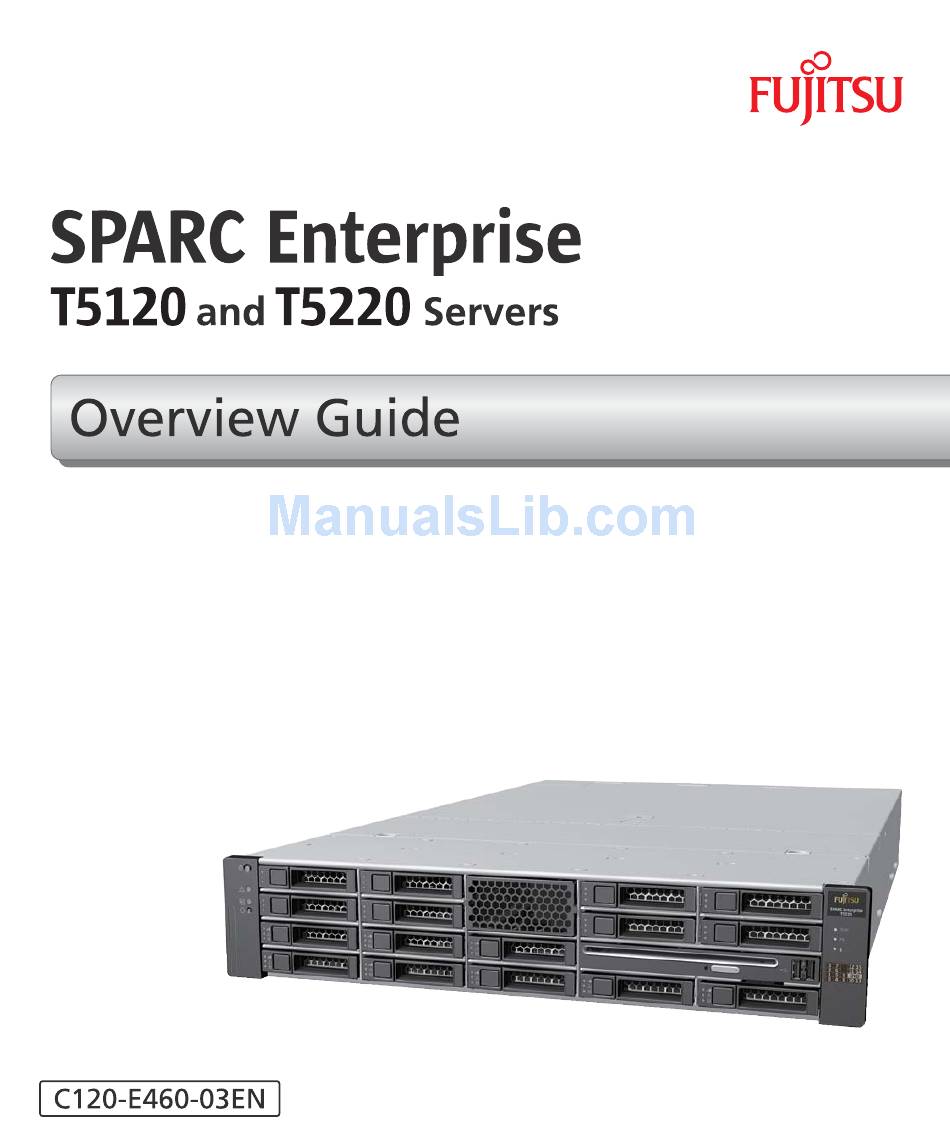

  • Page 3 SPARC Enterprise T5120 and T5220 Servers Overview Guide Manual Code C120-E460-03EN Part No. 875-4196-12 July 2009, Revision A...
  • Page 4 Fujitsu Limited or Sun Microsystems, Inc., or any affiliate of either of them.
  • Page 5 Aucune partie de ce produit, de ces technologies ou de ce document ne peut être reproduite sous quelque forme que ce soit, par quelque moyen que ce soit, sans l’autorisation écrite préalable de Fujitsu Limited et de Sun Microsystems, Inc., et de leurs éventuels bailleurs de licence.

  • Page 7: Table Of Contents

    Contents Preface vii Understanding Server Features 1 Server Highlights 2 Features at a Glance 4 Additional Feature Information 8 Chip-Multithreaded Processor and Memory Technology 8 Performance Enhancements 9 Preinstalled Solaris Operating System 9 Hardware-Assisted Cryptography 10 Support for Virtualization Through...
  • Page 8 SPARC Enterprise T5120 and T5220 Servers Overview Guide • July 2009...

  • Page 9: Preface

    Read this manual thoroughly. Use the product according to the instructions and information available in this manual. Keep this manual handy for further reference. Fujitsu makes every effort to prevent users and bystanders from being injured or from suffering damage to their property. Use the product according to this manual.

  • Page 10: Related Documentation

    T5220 Servers Overview Guide SPARC Enterprise T5120 and T5220 Servers Installation Guide viii SPARC Enterprise T5120 and T5220 Servers Overview Guide • July 2009 Description Minimum steps to power on and boot the server for the first time Minimum steps to power on and boot the...
  • Page 11 Title SPARC Enterprise T5120 and T5220 Servers Service Manual SPARC Enterprise T5120 and T5220 Servers Administration Guide Integrated Lights Out Manager 2.0 User’s Guide Integrated Lights Out Manager 2.0 Supplement for SPARC Enterprise T5120 and T5220 Servers Integrated Lights Out Manager (ILOM) 3.0 Concepts Guide...

  • Page 12: Conventions For Alert Messages

    A space of one line precedes and follows an alert statement. Caution – The following tasks regarding this product and the optional products provided from Fujitsu should only be performed by a certified service engineer. Users must not perform these tasks. Incorrect operation of these tasks may cause malfunction.
  • Page 13 Maintenance and inspections (repairing, and regular diagnosis and maintenance) ■ Caution – The following tasks regarding this product and the optional products provided from Fujitsu should only be performed by a certified service engineer. Users must not perform these tasks. Incorrect operation of these tasks may cause malfunction.
  • Page 14 URL. For Users in U.S.A., Canada, and Mexico: (https://download.computers.us.fujitsu.com/) For Users in Other Countries: (http://www.fujitsu.com/global/contact/computing/sparce_index.ht SPARC Enterprise T5120 and T5220 Servers Overview Guide • July 2009...

  • Page 15: Understanding Server Features

    Understanding Server Features These topics describe the features of the SPARC Enterprise T5120 and T5220 servers. The following topics are covered: “Server Highlights” on page 2 ■ “Features at a Glance” on page 4 ■ “Additional Feature Information” on page 8 ■...

  • Page 16: Server Highlights

    Self-Healing features of the Solaris 10 Operating System (Solaris OS). Both servers come in a space efficient, rack-optimized form factor chassis, 1U for ■ the SPARC Enterprise T5120 server, and 2U for the SPARC Enterprise T5220 server. Investment protection with SPARC V9 binary application compatibility and the ■...
  • Page 17 The following figure shows the SPARC Enterprise T5220 server chassis as viewed from the front and top. SPARC Enterprise T5220 Server FIGURE: Related Information SPARC Enterprise T5120 and T5220 Servers Product Notes ■ SPARC Enterprise T5120 and T5220 Servers Administration Guide ■ Integrated Lights Out Manager (ILOM) software documentation ■...

  • Page 18: Features At A Glance

    Integrated Lights Out Manager (ILOM) 3.0 Supplement for SPARC Enterprise T5120 ■ and T5220 Servers Solaris OS ■ documentation Features at a Glance The following table describes in summary form the main features of the SPARC Enterprise T5120 and T5220 servers.
  • Page 19 Four 10/100/1000 Mbps Ethernet, RJ-45-based, autonegotiating ports (on two separate controllers) Note - 10-Gbit Ethernet ports are available by adding XAUI cards to the I/O expansion slots. For each XAUI card added, one onboard 1-Gbit Ethernet port is disabled. Understanding Server Features...
  • Page 20 TABLE: Feature PCI Express Interfaces USB Ports Additional Ports Remote Management SPARC Enterprise T5120 and T5220 Servers Overview Guide • July 2009 Description T5120: Three low-profile PCI Express slots with the following slot † designated specifications • One slot – PCIe, 8-lane •...
  • Page 21 † PCI-e and PCI-X specifications described in this table list the physical requirements for PCI cards. Additional support capabilities must also be provided (such as device drivers) for a PCI card to function in the server. Refer to the specifications and documentation for a given PCI card to determine if the required drivers are provided that enable the card to function in this server.

  • Page 22: Additional Feature Information

    Chip-Multithreaded Processor and Memory Technology The UltraSPARC T2 multicore processor is the basis of the SPARC Enterprise T5120 and T5220 servers. The UltraSPARC T2 processor is based on chip multithreading (CMT) technology that is optimized for highly threaded transactional processing. The UltraSPARC T2 processor improves throughput while using less power and dissipating less heat than conventional processor designs.

  • Page 23: Performance Enhancements

    Performance Enhancements The SPARC Enterprise T5120 and T5220 servers running the Solaris 10 OS provide several new performance enhancing technologies with its sun4v architecture and multicore, multithreaded UltraSPARC T2 processor. Some of these enhancements are: A floating point unit (FPU) for each core ■...

  • Page 24: Hardware-Assisted Cryptography

    Support for Virtualization Through Logical Domains (LDoms) The SPARC Enterprise T5120 and T5220 servers support the use of Logical Domains (LDoms) technology. Through the use of the Solaris OS and the built-in server firmware, and by installing the Logical Domains Manager software, you can virtualize the compute services that run on your server.

  • Page 25: Remote Manageability With Ilom

    Therefore, ILOM firmware and software continue to function when the server operating system goes offline or when the server is powered off. ILOM monitors the following SPARC Enterprise T5120 and T5220 server conditions: Understanding Server Features...

  • Page 26: High Levels Of System Reliability, Availability, And Serviceability

    Solaris watchdog, boot time-outs, and automatic server restart events ■ In addition to the ILOM CLI and browser interface, you can set up the server to use the ALOM CMT compatibility CLI. The ALOM CMT compatibility CLI provides commands that approximate the ALOM CMT UI that was provided on some previous servers.

  • Page 27: Hot-Pluggable And Hot-Swappable Components

    ■ Hot-Pluggable and Hot-Swappable Components SPARC Enterprise T5120 and T5220 server hardware is designed to support hot-plugging of the chassis-mounted hard drives, and hot-swapping of fan units, and power supplies. By using the proper software commands, you can install or remove these components while the system is running.

  • Page 28: Environmental Monitoring

    ■ SPARC Enterprise T5120 and T5220 Servers Service Manual ■ Environmental Monitoring The SPARC Enterprise T5120 and T5220 servers feature an environmental monitoring subsystem that protects the server and its components against: Extreme temperatures ■ Lack of adequate airflow through the system ■...

  • Page 29: Support For Raid Storage Configurations

    Additional RAID levels are supported by installing the StorageTek SAS HBA (internal PCIe card). This option requires a different set of internal cables. By attaching one or more external storage devices to the SPARC Enterprise T5120 and T5220 servers, you can use a redundant array of independent drives (RAID) software application such as Solstice DiskSuite or VERITAS Volume Manager system drive storage in a variety of different RAID levels.

  • Page 30: Fault Management And Predictive Self Healing

    This technology is incorporated into both the hardware and software of the SPARC Enterprise T5120 and T5220 servers. At the heart of the Predictive Self-Healing capabilities is the Solaris Fault Manager, a new service that receives data relating to hardware and software errors, and automatically and silently diagnoses the underlying problem.
  • Page 31 SPARC Enterprise T5120 and T5220 Servers Safety and Compliance Guide ■ Understanding Server Features...
  • Page 32 SPARC Enterprise T5120 and T5220 Servers Overview Guide • July 2009...
