Sony VPLFHZ55/B Service Parts

3LCD Laser Light Source Projector
VPL-FHZ55

Key Features

• 4,000 lumens
• Native WUXGA (1,920 x 1,200) Resolution
• Bright Era
TM
long lasting optics
• Laser Light Source and 3LCD Optical System
• V : +60%, H : +/-32% Lens Shift
• Advanced Geometric Correction
• Edge Blending
• Tilt angle free
• Up to 20,000h* Maintenance-free
• Energy-efficient Functions
• Instant ON/OFF
• Constant Brightness Mode
*With the Auto Light Dimming enabled.
Actual hours may very depending on usage environment.

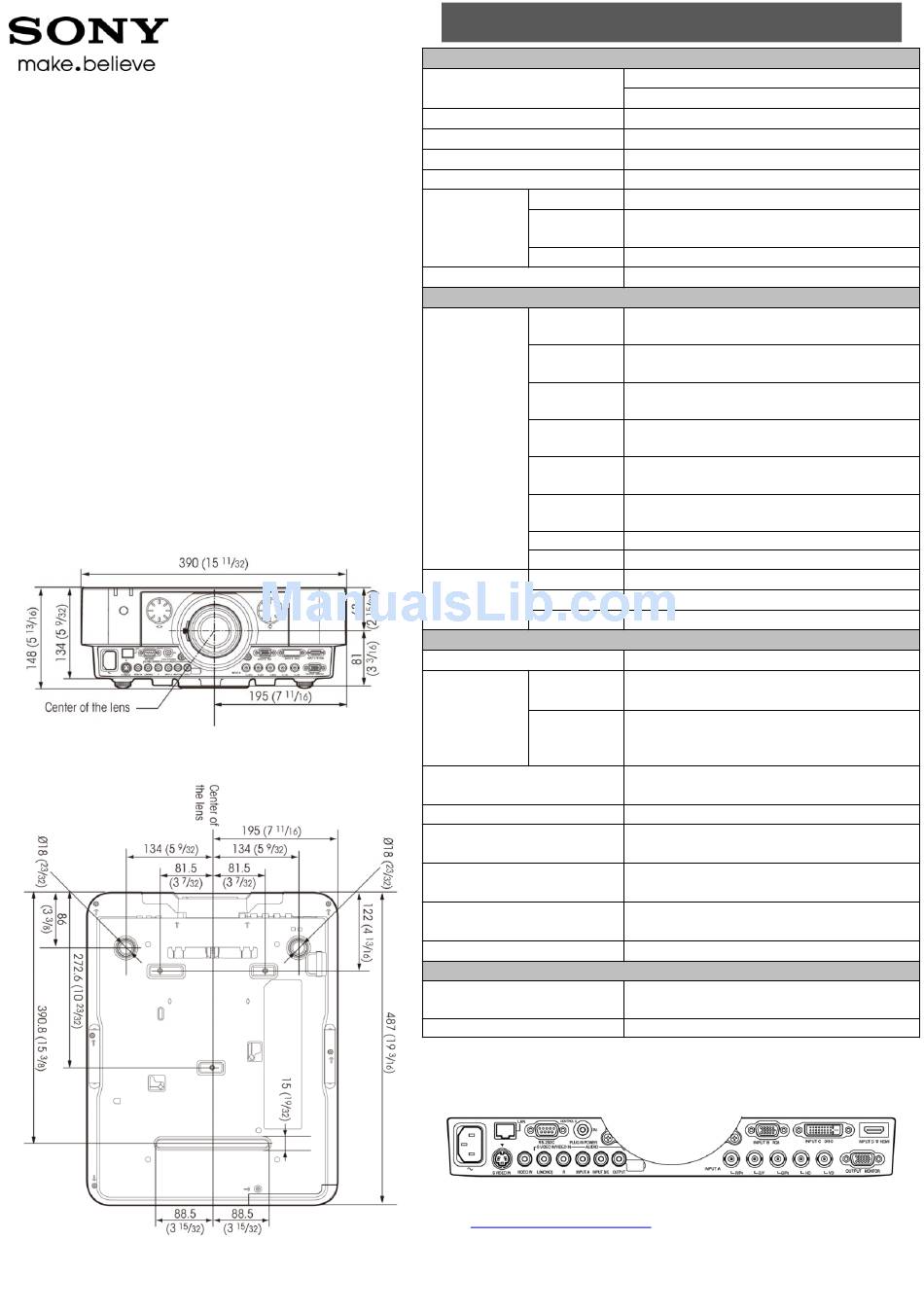

Dimensions (Front)
Dimensions (Bottom)
© 2013 Sony Corporation. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and
dimension are approximate. "SONY", "make.believe" and "BrightEra" are trademarks of Sony Corporation. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries. All other trademarks are the property of their respective owners.
This Data Projector is classified as a CLASS 2 LASER PRODUCT. (Laser radiation IEC60825-1:2007)
Optical
Light Output /
Color Light Output
LCD Panels
Panel Display Resolution
Contrast Ratio
Light source
Projection Lens
Screen Size
Interface
Computer and
Video
Input/Output
Unit: mm (inches)
Control Signal
Input/Output
General
Scanning Frequency
Display
Resolution
Color System
Power Requirements
Power Consumption
Standby Mode
Power Consumption
Dimensions (W x H x D)
Mass
Service Parts
Replacement Filter
Replacement Remote
* The value is average.
1
* Works as an audio switcher function. Output from a selected channel, not available in standby.
2
Connector Panels
Visit
WUXGA/4,000lm
4000 lumens (high mode)
3000 lumens (Std mode)
0.76" x 3 BrightEra LCD Panel
WUXGA (1920 x 1200 dots)
8,000:1 (Full white/full black)*
Laser diode
Zoom / Focus Approx. 1.6x manual zoom / Manual focus
Manual, Vertical +60%/-0%
Lens Shift
Horizontal +/- 32%
Throw Ratio 1.39:1 to 2.23:1
40" to 600"
5BNC (RGB / Y Pb Pr)
INPUT A
Audio : Stereo mini jack
Mini D-sub 15-pin (RGB)
INPUT B
Audio : Stereo mini jack (shared with INPUT C)
DVI-D (HDCP support)
INPUT C
Audio : Stereo mini jack (shared with INPUT B)
HDMI (Digital RGB/Y Pb Pr, Digital Audio)
INPUT D
(HDCP support)
Mini DIN-4pin
S VIDEO IN
Audio : Pin jack x2 (shared with VIDEO IN)
Pin Jack
VIDEO IN
Audio : Pin jack x2 (shared with S VIDEO IN)
Monitor OUT Mini D-sub 15-pin (from INPUT A and B)
Audio OUT Stereo mini jack (variable out)*
RS-232C D-sub 9 pin
LAN RJ-45, 10BASE-T/100BASE-TX
Control S Stereo mini jack, Plug in power DC5V
H: 14 to 93kHz, V: 47 to 93Hz
Computer Maximum display resolution :
signal input 1920x1200 dots
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p,
Video signal
576/50p, 720/60p, 720/50p, 1080/60i,
input
1080/50i, 1080/60p, 1080/50p, 1080/24p
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M,
PAL-N, PAL60
AC 100V to 240V, 4.6A to 1.9A, 50Hz/60Hz
449W (AC 100V-120V)
426W (AC 220V-240V)
8.5 W (Std) / 0.15 W (Low) (AC 100V-120V)
9.5 W (Std) / 0.3W (Low) (AC 220V-240V)
390 x 148 x 500 mm
15 11/32 x 5 13/6 x 19 11/16"
11kg / 25 lb
4-459-455-01
(filters are cleanable)
1-489-092-11 (RM-PJ19)
www.sony.com/laser
1
2
for more information
