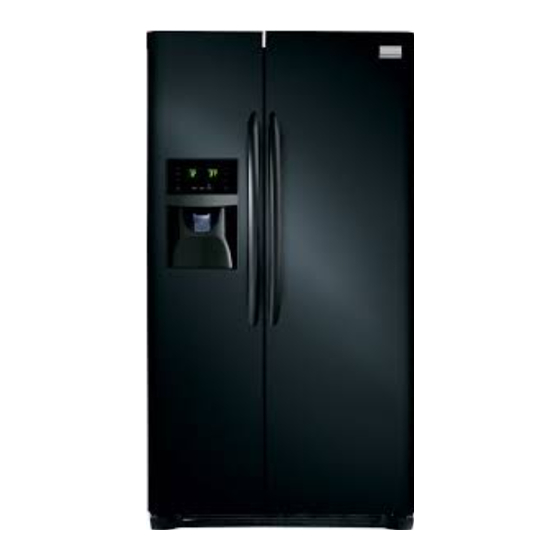

Frigidaire FGHS2631PE Service Data Sheet

PERFORMANCE DATA NO LOAD & NO DOOR OPENINGS AT
0° F FREEZER & 37° F FRESH FOOD (2500 ++ V5)
65°F (18°C) Ambient 90°F (32°C) Ambient
Type A with Run/
Start Capacitor
Variable Speed Standard Variable Speed
Operating Time 74 to 84% 32 to 40% 100%
Freezer -2° to 2° F 0° to 4° F -1° to 3° F
Temperature -19° to -17° C -18° to -16° C -18° to -16° C
Refrigerator 34° to 39° F 34° to 39° F 34° to 39° F
Temperature 1° to 4° C 1° to 4° C 1° to 4° C
Low Side Pressure 5 to 12 psig 5 to 12 psig
N/A
(cut-in) 43 to 83 kPa 43 to 83 kPa
Low Side Pressure -2 to 2 psig -2 to 2 psig -2 to 2 psig
(cut-out) -14 to 14 kPa -14 to 14 kPa -14 to 14 kPa
High Side 90 to 105 psig 90 to 115 psig 120 to 135 psig
Pressure (last 621 to 724 kPa 621 to 793 kPa 827 to 931 kPa
1 / cycle)
3
Wattage (last 50 to 60 90 to 130 60 to 70
1 / cycle)
3
Amps (running) 0.5 to 0.9 0.7 to 1.1 0.6 to 1.0
Base Voltage 115 vac (127 vac max)
DEFROST SPECIFICATIONS
Thermostat Heater
Cabinet Size
Cut-in Cut-out Watts
23' CD, 26' 25° F (-4° C) 47° F (8° C) 450
Electronic Timer - (ADC) Defrost 24 minutes every 6-96 hours of compressor run time.
CONDENSER FAN MOTOR
Watts RPM Amps
3.1 1100 CW Opposite Shaft 0.03 Running
Standard
55 to 65%
-1° to 3° F
-18° to -16° C
IMPORTANT: PLEASE RETURN THIS SHEET TO ITS ORIGINAL LOCATION
34° to 39° F
1° to 4° C
Error Codes
5 to 12 psig
43 to 83 kPa
Display
-2 to 2 psig
FZ FF
-14 to 14 kPa
-- OP-
130 to 155 psig
896 to 1069 kPa
-- OP¯
100 to 140
OP --
0.8 to 1.2
-- SH-
-- SH¯
SH --
Ohms
30
SY CF
SY CE
SY EF
ISOLATED
INTERFACE
USER
SERVICE DATA SHEET
242288300
ICE & WATER - AUTOMATIC DEFROST
SIDE BY SIDE - R134a
Special Modes
Display Activate/Deactivate
Interpretation Mode (press for up to 10 sec.
FZ FF
simultaneously)
+ and -/same to deac-
Open FF mid-level Manual d F
thermistor Defrost tivate
Open FF upper-level Display/ 77 77 ^ and -/set
thermistor Showroom
Open FZ thermistor Sabbath Sb Sb V and +/same to deac-
tivate
Shorted FF mid-level Diagnostic No FF or FZ display, ^ and V/+ to deactivate
thermistor all UI LEDs on.
Shorted FF upper-level Notes:
thermistor
• Always check for pin back-outs, pinched or damaged wires
before replacing components.
Shorted FZ thermistor
• Determine whether failure is caused by the component, main
control board or wiring. Contact TID before replacing main
UI to Main Control Board
control board.
communication failure;
• Refer to Service Manual for additional information.
on start up
UI Main Control Board
communication error;
after a period in operation
Evaporator fan failure
Diagnostic Mode
Activate:
Press ^ and V temperature pads for up to 10 sec. simultaneously.
Press + to advance through tests.
Deactivate: Press + for up to 10 sec. Diagnostic Mode will automatically deactivate after 5 min. of inactivity.
Note: Silence alarm.
• Tests marked with "*" may not be applicable to this unit and will not be displayed in Diagnostic Mode.
• Tests displayed in diagnostic mode but not described below are for internal purposes only; advance through.
• View UI display for "on," "off," "CL," "OP," "SH," "LO," "HI" or numerical results of tests.
• Listen for operating sounds; feel for heat or air flow as appropriate to determine results of tests.
Test To activate test: Passing result
-- First Screen -- All LED lights on UI illuminated
-- Second Screen -- All segments on UI temperature displays illuminated
-- Third Screen -- Blank UI display, no lights illuminated, no shadowing; "-" and "+"
blinking on FF display side to show location.
28 Dispenser Paddle Press disp. paddle "on" on UI when depressed; "off" when released
1* Standard Compressor Press set Compressor and Condenser Fan running when "on"; stopped when "off"
and Condenser Fan
2 Defrost Heater Press set Defrost limit switch must be closed; verify "CL" in test 26.
Feel for heat from defrost heater when "on".
If "OP" in test 26, heater will not activate.
3 FF Light Press set With FF door open, FF lights on when "on"; off when "off"
Be prepared to collect water at dispenser.
8 Water Valve Press set
(Dispenser) Water dispenses when "on"; stops when "off"
9 FZ Light Press set With FZ door open, FZ lights on when "on", off when "off"
10 Auger Motor Press set FZ door must be closed.
Motor running when "on"; motor stopped when "off"
11 Cube/Crush Press set Do not leave solenoid in activated state.
Solenoid Solenoid activated when "on"; deactivated when "off"
41* Perfect Temp Drawer Press set PTD UI illuminated when "on", off when "off"
(PTD)
12* VCC Condenser Fan Press set Fan running when "on"; stopped when "off"
38* VCC Compressor Press set Compressor running when "on"; stopped when "off"
15 Evaporator Fan Press set Fan running for minimum of 10 sec. when "LO" or "HI"; stopped when
"off". Feedback failure if fan starts but runs less than 10 sec. Listen for
speed change from "LO" to "HI".
22 Damper Press set With inspection mirror, observe damper open when "OP"; closed when "CL"
23 FF Door Open/close FF door "CL" on UI when door closed; "OP" when open
24 FZ Door Open/close FZ door "CL" on UI when door closed; "OP" when open
26 Defrost Limit Switch Activates automatically "CL" on UI when closed; "OP" when open
36 Ice Chute Door Depress ice chute door "OP" on UI when manually opened; "CL" when closed. Or, using "set",
or press set "OP" on UI when solenoid activated, "CL" when deactivated
29 FF Thermistor Activates automatically UI shows temperature sensed by FF thermistor; pass if within 10°F of
Mid-level temperature measured with gauge at mid-level FF thermistor location.
"OP-" if open; "SH-" if short
30 FZ Thermistor Activates automatically UI shows temperature sensed by FZ thermistor; pass if within 10°F of temperature
measured with gage at FZ thermistor location.
"OP" if open; "SH" if short
33 Ambient Thermistor Activates automatically UI shows temperature sensed at main board; pass if within +20°F/-10°F
@ Main Board of temperature measured with gauge at main board location.
"OP" if open; "SH" if short
35 FF Thermistor Activates automatically UI shows temperature sensed by upper level FF thermistor; pass if within
Upper-Level 10°F of temperature measured with gauge at upper-level FF thermistor
location. "OP¯" if open; "SH¯" if short
34 Ambient Thermistor Activates automatically UI shows temperature sensed at UI; pass if within +20°F/-10°F of tem-
@ UI perature measured with gauge at UI location. "OP" if open; "SH" if short
0- Firmware Press set Displays digit sequence; record
Parameters
2- Main Board Press set Displays digit sequence; record
Firmware
4- UI Firmware Press set Displays digit sequence; record
IMPORTANT SAFETY NOTE
The information provided herein is designed to assist qualified repair personnel only. Untrained persons should not attempt to make
repairs due to the possibility of electrical shock. Disconnect power cord before servicing this appliance.
IMPORTANT
If any green grounding wires are removed during servicing, they must be returned to their original position and properly secured.
CAUTION
All electrical parts and wiring must be shielded from torch flame. DO NOT allow torch to touch insulation; it will char at
200°F and flash ignite (burn) at 500°F. Excessive heat will distort the plastic liner.
