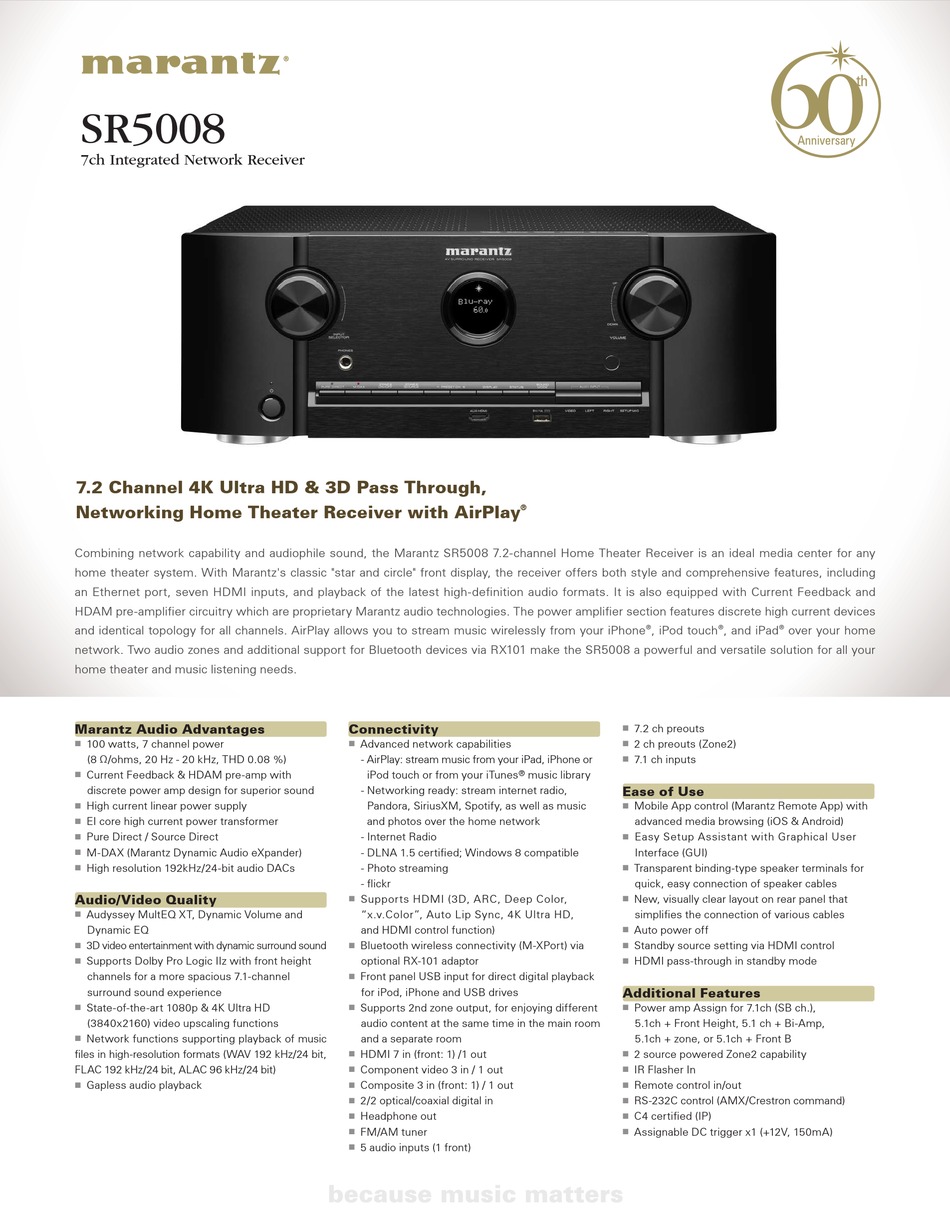

Marantz SR5008 Easy Setup

SR5008
7ch Integrated Network Receiver
7.2 Channel 4K Ultra HD & 3D Pass Through,
Networking Home Theater Receiver with AirPlay
Combining network capability and audiophile sound, the Marantz SR5008 7.2-channel Home Theater Receiver is an ideal media center for any
home theater system. With Marantz's classic "star and circle" front display, the receiver offers both style and comprehensive features, including
an Ethernet port, seven HDMI inputs, and playback of the latest high-definition audio formats. It is also equipped with Current Feedback and
HDAM pre-amplifier circuitry which are proprietary Marantz audio technologies. The power amplifier section features discrete high current devices
and identical topology for all channels. AirPlay allows you to stream music wirelessly from your iPhone
network. Two audio zones and additional support for Bluetooth devices via RX101 make the SR5008 a powerful and versatile solution for all your
home theater and music listening needs.
Marantz Audio Advantages
100 watts, 7 channel power
n
(8 Ω/ohms, 20 Hz - 20 kHz, THD 0.08 %)
Current Feedback & HDAM pre-amp with
n
discrete power amp design for superior sound
High current linear power supply
n
EI core high current power transformer
n
Pure Direct / Source Direct
n
M-DAX (Marantz Dynamic Audio eXpander)
n
High resolution 192kHz/24-bit audio DACs
n
Audio/Video Quality
Audyssey MultEQ XT, Dynamic Volume and
n
Dynamic EQ
3D video entertainment with dynamic surround sound
n
Supports Dolby Pro Logic IIz with front height
n
channels for a more spacious 7.1-channel
surround sound experience
State-of-the-art 1080p & 4K Ultra HD
n
(3840x2160) video upscaling functions
Network functions supporting playback of music
n
files in high-resolution formats (WAV 192 kHz/24 bit,
FLAC 192 kHz/24 bit, ALAC 96 kHz/24 bit)
Gapless audio playback
n
®
Connectivity
Advanced network capabilities
n
- AirPlay: stream music from your iPad, iPhone or
iPod touch or from your iTunes ® music library
- Networking ready: stream internet radio,
Pandora, SiriusXM, Spotify, as well as music
and photos over the home network
- Internet Radio
- DLNA 1.5 certified; Windows 8 compatible
- Photo streaming
- flickr
Supports HDMI (3D, ARC, Deep Color,
n
"x.v.Color", Auto Lip Sync, 4K Ultra HD,
and HDMI control function)
Bluetooth wireless connectivity (M-XPort) via
n
optional RX-101 adaptor
Front panel USB input for direct digital playback
n
for iPod, iPhone and USB drives
Supports 2nd zone output, for enjoying different
n
audio content at the same time in the main room
and a separate room
HDMI 7 in (front: 1) /1 out
n
Component video 3 in / 1 out
n
Composite 3 in (front: 1) / 1 out
n
2/2 optical/coaxial digital in
n
Headphone out
n
FM/AM tuner
n
5 audio inputs (1 front)
n
® , iPod touch ® , and iPad ® over your home
7.2 ch preouts
n
2 ch preouts (Zone2)
n
7.1 ch inputs
n
Ease of Use
Mobile App control (Marantz Remote App) with
n
advanced media browsing (iOS & Android)
Easy Setup Assistant with Graphical User
n
Interface (GUI)
Transparent binding-type speaker terminals for
n
quick, easy connection of speaker cables
New, visually clear layout on rear panel that
n
simplifies the connection of various cables
Auto power off
n
Standby source setting via HDMI control
n
HDMI pass-through in standby mode
n

Additional Features

Power amp Assign for 7.1ch (SB ch.),
n
5.1ch + Front Height, 5.1 ch + Bi-Amp,
5.1ch + zone, or 5.1ch + Front B
2 source powered Zone2 capability
n
IR Flasher In
n
Remote control in/out
n
RS-232C control (AMX/Crestron command)
n
C4 certified (IP)
n
Assignable DC trigger x1 (+12V, 150mA)
n
