RS232 Commands and Protocol
Function List

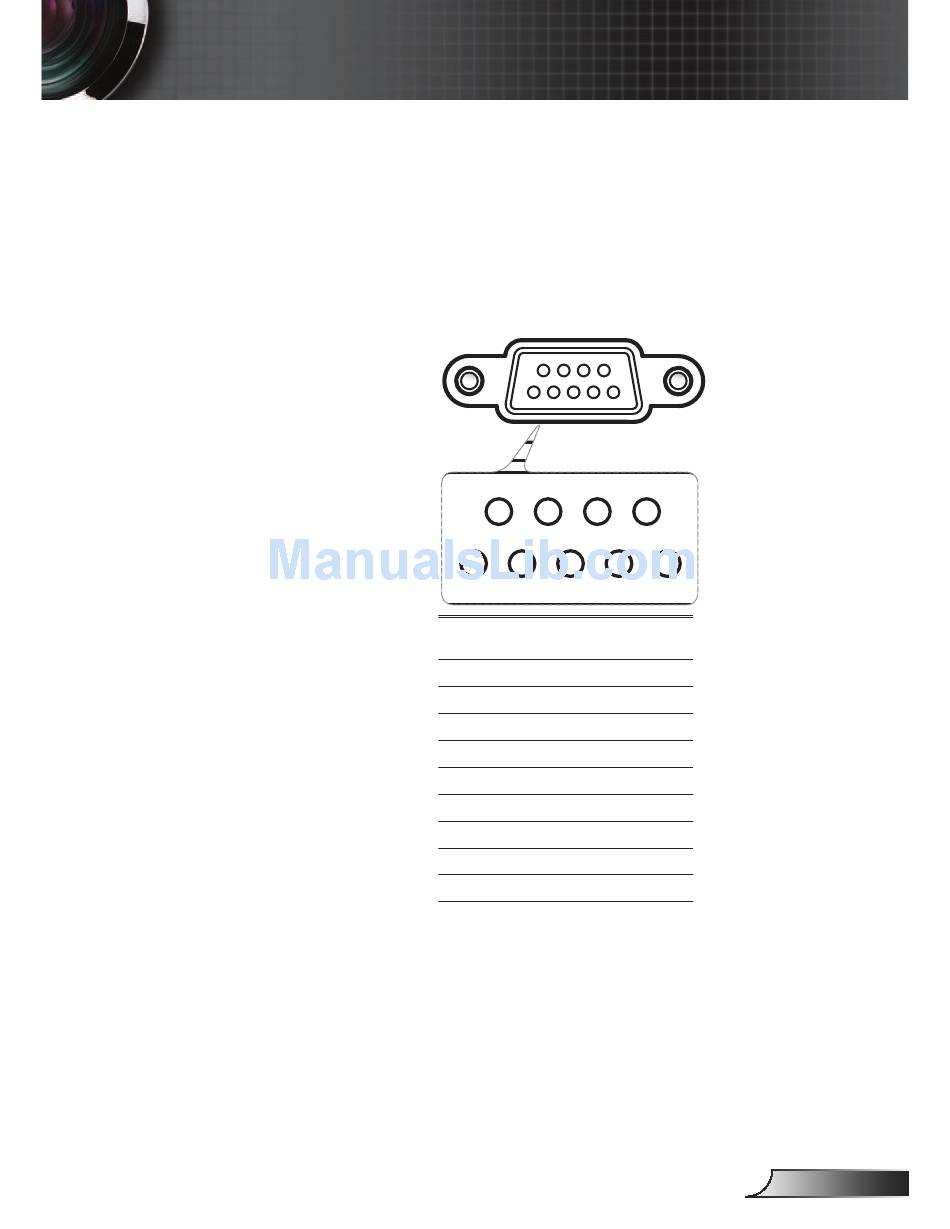

RS232 Pin Assignments
Pin no.
1
2
3
4
5
6
7
8
9
Appendices
9
8
7
6
5
4
3
2
Spec.
(from projector side)
N/A
RXD
TXD
N/A
GND
N/A
N/A
N/A
N/A
1
59
English
Advertisement
Related Manuals for Optoma EH300
Summary of Contents for Optoma EH300
-
Page 1: Rs232 Commands And Protocol Function List
Appendices RS232 Commands and Protocol Function List RS232 Pin Assignments Spec. Pin no. (from projector side) English... -
Page 2: Rs232 Protocol Function List
Appendices RS232 Protocol Function List XX=00-99, projector's ID, Baud Rate : 9600 XX=00 is for all projectors Data Bits: 8 Parity: None There is a <CR> Stop Bits: 1 after all ASCII com- mands. Flow Control : None 0D is the HEX code UART16550 FIFO: Disable for <CR>... - Page 3 Appendices --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX200 n 7E 30 30 32 30 30 20 a 0D White Level n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX201 n 7E 30 30 32 30 31 20 a 0D Black Level n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX202 n 7E 30 30 32 30 32 20 a 0D Saturation...
- Page 4 Appendices --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX95 n 7E 30 30 39 35 20 a 0D Treble n = 0 (a=30) ~ 10 (a=31 30) ~XX96 n 7E 30 30 39 36 20 a 0D Bass n = 0 (a=30) ~ 10 (a=31 30) ~XX89 0 7E 30 30 38 39 20 30 0D Audio Input...
- Page 5 Appendices --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- READ from projector ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 232 ASCII Code HEX Code Function Projector Return Description --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX121 1 7E 30 30 31 32 31 20 31 0D Input Source Commands n : n: 0/1/2/3/4/5 = None/VGA1/VGA2/Video/HDMI1/HDMI2 ~XX122 1 7E 30 30 31 32 32 20 31 0D Software Version OKdddd dddd: FW version...
