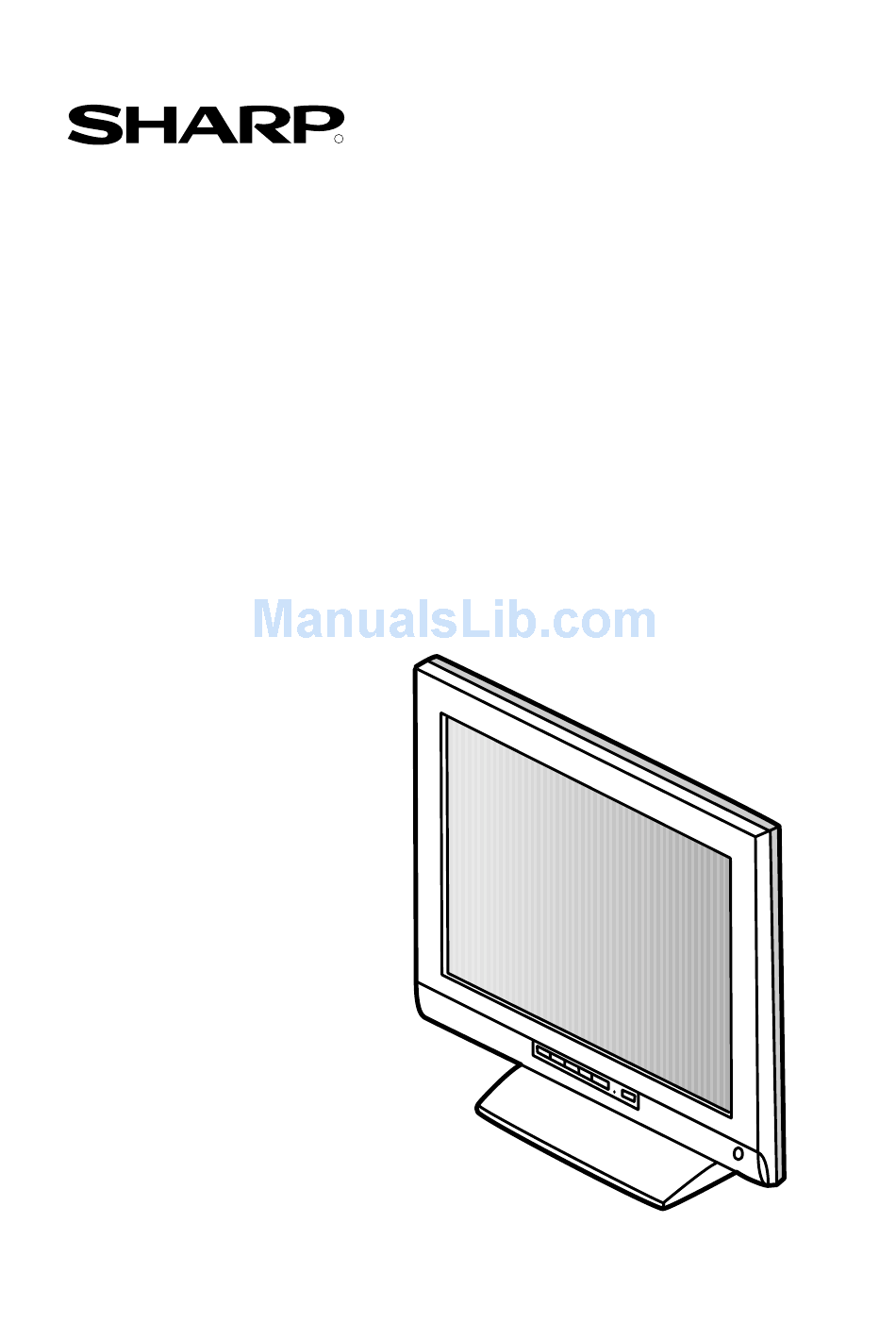

- Page 1 LCD MONITOR LCD FARBMONITOR MONITEUR LCD MONITOR LCD LL-T15A1 OPERATION MANUAL BEDIENUNGSANLEITUNG MODE D’EMPLOI MANUALE D’USO...
-
Page 2: Table Of Contents
Table of Contents Notice for Users in the USA ............4 TCO'99 . -
Page 3: Notice For Users In The Usa
Sharp Plaza, Mahwah, New Jersey 07430 TEL :1-800-BE-SHARP * As an ENERGY STAR Partner, SHARP has determined that this product meets the ENERGY STAR guidelines for energy efficiency. This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. -
Page 4: Tco'99
Congratulations! You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. - Page 5 TCO Development SE-114 94 Stockholm, Sweden Fax: +46 8 782 92 07 Email (Internet): development@tco.se Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire.
-
Page 6: Notice For Users In Europe
Notice for Users in Europe This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC. Dieses Gerät entspricht den Anforderungen der EG-Richtlinien 89/336/EWG und 73/23/EWG mit Änderung 93/68/EWG. Ce matériel répond aux exigences contenues dans les directives 89/336/CEE et 73/23/CEE modifiées par la directive 93/68/CEE. -
Page 7: Notice For Users In The Uk
"WARNING :THIS APPARATUS MUST BE EARTHED" Notice for Users in Australia Service Inquiries Please contact your dealer for service if required or contact Sharp Corporation of Australia on 1 300 13 50 22 for referral to your nearest Sharp authorized Service Center. -
Page 8: Tips And Safety Precautions
This monitor and its accessories may be up- Authorship rights to the Monitor Settings graded without advance notice Adjustment Disk program are held by Sharp Corporation. Do not reproduce it without Location permission. Do not use the monitor where ventilation is poor,... -
Page 9: Product Description
Product description Front view Rear view 1. MENU button This button is used to pop-up, select and close the OSD Menu. 2. SELECT button Selects the menu option to be adjusted. buttons When the On Screen Display (OSD) Menu is displayed: These buttons are used to increase or decrease the value of a selected option. - Page 10 Product description Standing up and adjusting the monitor CAUTION! Be sure to hold the green section only. Pressure from hands on the LCD panel could cause damage. Standing up the monitor Press down on the stand and lift up the top section of the monitor.
-
Page 11: Connecting The Monitor And Turning The Monitor On And Off
Connecting the monitor and turning the monitor on and off 2. Attach the power cord to the AC adapter and Connecting the monitor to a computer place the power plug into the AC terminal (PC etc.) When connecting, ensure that both the monitor and computer are switched off. - Page 12 Connecting the monitor and turning the monitor on and off Installing set-up information For Windows98 Depending on the computer or OS, it may be neces- sary to use the computer to operate the installation of Installing monitor set-up information into Win- monitor set-up information etc.
-
Page 13: Turning The Power Off
Connecting the monitor and turning the monitor on and off 6. Remove the Monitor Settings Adjustment Disk For Windows2000 from the A drive. Installing monitor set-up information into Win- If the "Add New Hardware Wizard" has not ap- dows2000. peared: This explanation assumes that the floppy disk drive (This explanation assumes that the floppy disk drive is "A drive". -
Page 14: Adjusting The Screen Display
Adjusting the screen display If necessary, the screen can be adjusted as follows. Choosing a message language Automatic screen adjustment (p.16) The clock, phase, H-POS (horizontal positioning) Messages displayed on the screen and OSD Menu and V-POS (vertical positioning) functions can be contents can be changed to the following languages. -
Page 15: Automatic Screen Adjustment
Adjusting the screen display Opening the Adjustment Pattern (for Windows) Automatic screen adjustment If you are using Windows, you can use the Adjust- ment Pattern on the accompanying Monitor Settings Options in MENU 1 (ADJUSTMENT) can be ad- Adjustment Disk. justed automatically (CLOCK, PHASE, H-POS, This explanation is for Windows 95/98/Me/2000, and V-POS). -
Page 16: Adjusting The Backlight
Adjusting the screen display When not adjusting brightness automatically Adjusting the backlight 1. Without the OSD Menu being displayed, press button or the button. The backlight brightness can be set to change automatically for use in different surroundings. (Automatic brightness adjustment) If the surroundings become brighter, the backlight 2. - Page 17 Adjusting the screen display MENU 1: ADJUSTMENT MENU 2: GAIN CONTROL BLACK LEVEL and CONTRAST are optimized before shipment, but can be adjusted to suit. MANUAL: Individual menu options are manually adjusted. AUTO: Every menu option is automatically MANUAL: Individual menu options are manually adjusted.
- Page 18 Adjusting the screen display MENU 3: WHITE BALANCE MENU 4: MODE SELECT WHITE BALANCE (color tone) can be adjusted as necessary. (As adjustments are made before ship- ment, there is no real necessity for further altera- tion.) Notes: Depending on the resolution of the input signal, even if menu options can be selected, the display Notes: may not change.
-
Page 19: Monitor Care And Repair
LCD panel. (A soft cloth such inquire at the shop where you purchased the as gauze or that used for lens cleaning is suitable.) monitor or your nearest Sharp authorized Service Center. (Never attempt this CAUTION! replacement on your own.) -
Page 20: Specifications
Specifications LCD display Dimensions (Units: mm) 38 cm (15 inch) TFT Color LCD module Dot pitch 0.297(H) x 0.297(V) mm Screen display size Horizontal 304.1 mm x Vertical 228.1 mm Resolution (max.) XGA 1024 x 768 Displayable colors (max.) 16.19 million colors Video signal Analog RGB (0.7Vp-p) [75Ω] Sync signal... - Page 21 Specifications Signal timings Dot frequency Display mode Hsync (kHz) Vsync (Hz) (MHz) 31.5kHz 60Hz 25.175MHz 640x480 37.9kHz 72Hz 31.5MHz 37.5kHz 75Hz 31.5MHz VESA 35.1kHz 56Hz 36.0MHz 37.9kHz 60Hz 40.0MHz 800x600 48.1kHz 72Hz 50.0MHz 46.9kHz 75Hz 49.5MHz 48.4kHz 60Hz 65.0MHz 1024x768 56.5kHz 70Hz 75.0MHz...
- Page 22 Specifications Power management DDC (Plug & Play) The monitor is based on VESA DPMS (Display This monitor supports the VESA DDC (Display Data Power Management Signaling). Channel) standard. To activate the monitor's Power Management func- DDC is a signal standard for carrying out Plug & tion, both the video card and the computer must Play functions on the monitor or PC.
-
Page 23: Instructions For Installing A Vesa Compliant Arm
Instructions for installing a VESA compliant arm An arm based on the VESA standard can be at- 4. Remove the four screws and then remove the tached to the monitor. The arm must be purchased stand from the monitor. separately. When choosing the arm to be installed please take note of the following points. - Page 24 SHARP CORPORATION © 2001 SHARP CORPORATION Printed in China 624315150002 OLTHG15150002 (2)
