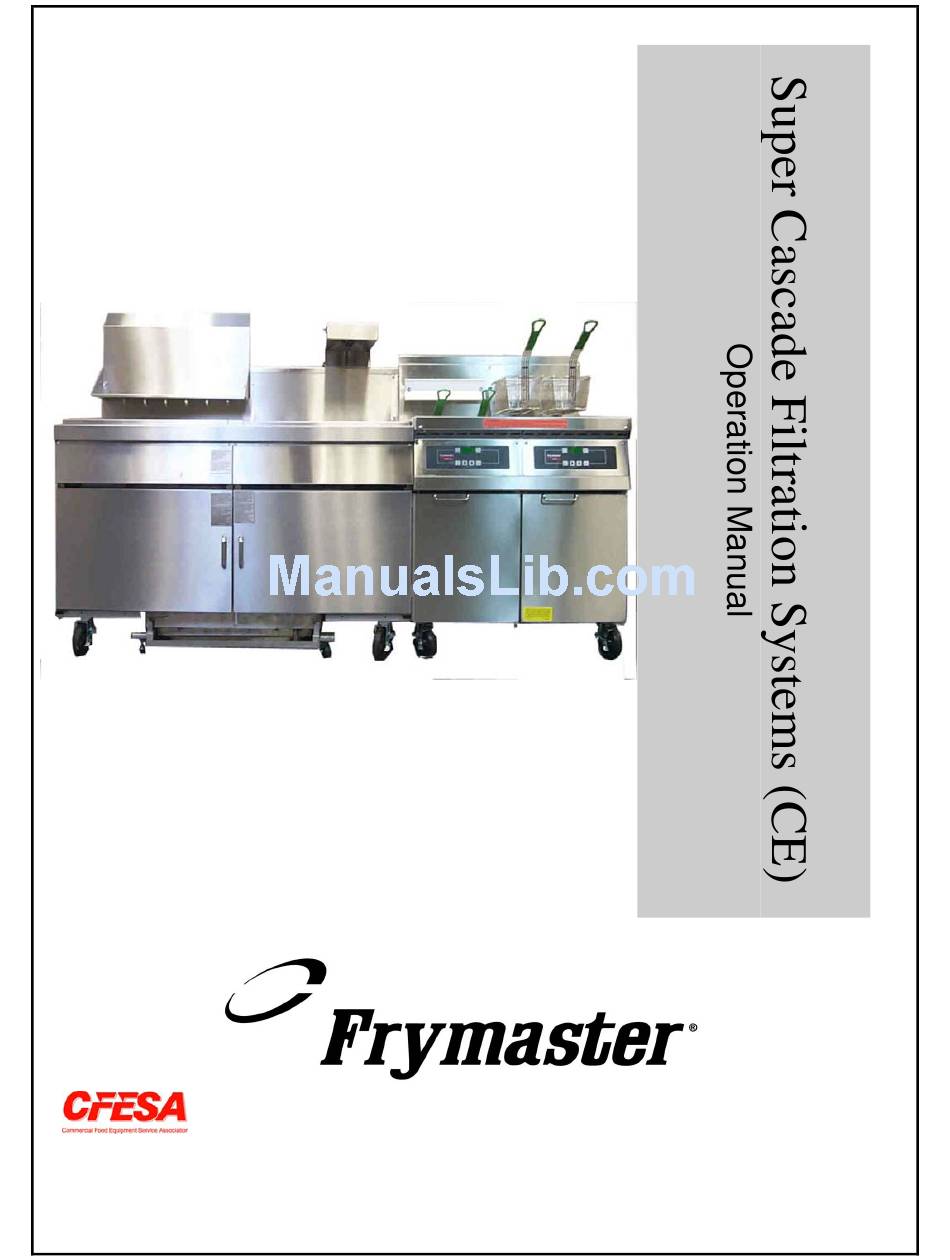

Summary of Contents for Frymaster Super Cascade Filtration Systems CE
- Page 1 CE ONLY Frymaster, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certified Technicians. Price: $6.00 24-Hour Service Hotline 1-800-551-8633 819-5726 10-99...
-
Page 3: Table Of Contents
FILTRATION SYSTEM TABLE OF CONTENTS PARTS ORDERING AND SERVICE INFORMATION GENERAL FILTER PREPARATION FILTER OPERATIONS FILTER TROUBLESHOOTING WIRING DIAGRAM 1. PARTS ORDERING AND SERVICE INFORMATION 1.1 ORDERING PARTS: Customers may order parts directly from their local Authorized Parts Distributor. For this address and phone number, contact your Maintenance &... -
Page 4: General
4. Filter Paper, Frymaster Part No. 803-0170 (100 sheets) or 803-0173 (25 sheets). Note: Use only genuine Frymaster filter paper and filter powder for best results. Use of other filter powder may clog filter paper causing longer refill times and could cause premature motor failure. -
Page 5: Filter Operations
f. Unlatch and remove the hold down ring. Remove and discard old filter paper sheet from the filter pan. g. Clean out the filter pan. h. Place one sheet of filter paper in the bottom of the filter pan. Reinstall and latch the hold down ring into position. - Page 6 4. Open the oil return valve by turning the smaller red handle located under the control panel of the fryer. Move the handle left to right to open the oil return line. This will activate the filter pump also. Oil return handle Flatbottom 24G 5.
- Page 7 b. H250 Fryers: 1. Turn the lower red drain valve handle from left to right to open the drain valve. The photo below shows the drain valve in the open position. 2. Stir the oil in the frypot with the L-shaped teflon brush as the oil drains into the filter pan.
-
Page 8: Filter Troubleshooting
Troubleshooting Diagram Index Problem WARNINGS! Is the pump motor running? Contact your Frymaster Servicer. Start at the top of the There may be blockages in the oil lines. Go to page 7 and follow procedures for Rate of Oil Return Slowing. - Page 9 5.2 RATE OF OIL RETURN SLOWING? Rate of oil return to the fryer is slowing. Is this the first fryer to be filtered in this filtering session? Check the filter paper in the filter pan. Is the filter paper properly secured by the hold down ring? Paper may be plugged due to improper use of...
- Page 10 5.3 BLOCKAGE BETWEEN FILTER PAN AND OIL RETURN VALVE? Check filter circuit breaker. Push the filter circuit breaker reset button located in the right-hand fryer. Activate pump by turning oil return valve handle. Does the pump motor run? Filter motor's internal circuit breaker has tripped.
- Page 11 Enter from page 8 here. Plug is in the bottom of the filter pan or in the line from the filter to the pump. Disconnect the tubing from the filter pan to the motor. Make sure the pipe is cool. Can you blow air through it? The line is clear.
-
Page 12: Wiring Diagram
6. WIRING DIAGRAM (Super Cascade Filter (CE), 230VAC/50Hz) leads long inch cm/8 20.32 WHT#2 WHT#1... - Page 13 Frymaster, L.L.C., 8700 Line Avenue, PO Box 51000, Shreveport, Louisiana 71135-1000 Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106 TEL 1-318-865-1711 FAX (Parts) 1-318-219-7140 (Tech Support) 1-318-219-7135 Price: $6.00 SERVICE HOTLINE 819-5726 PRINTED IN THE UNITED STATES 1-800-551-8633 10-99...
