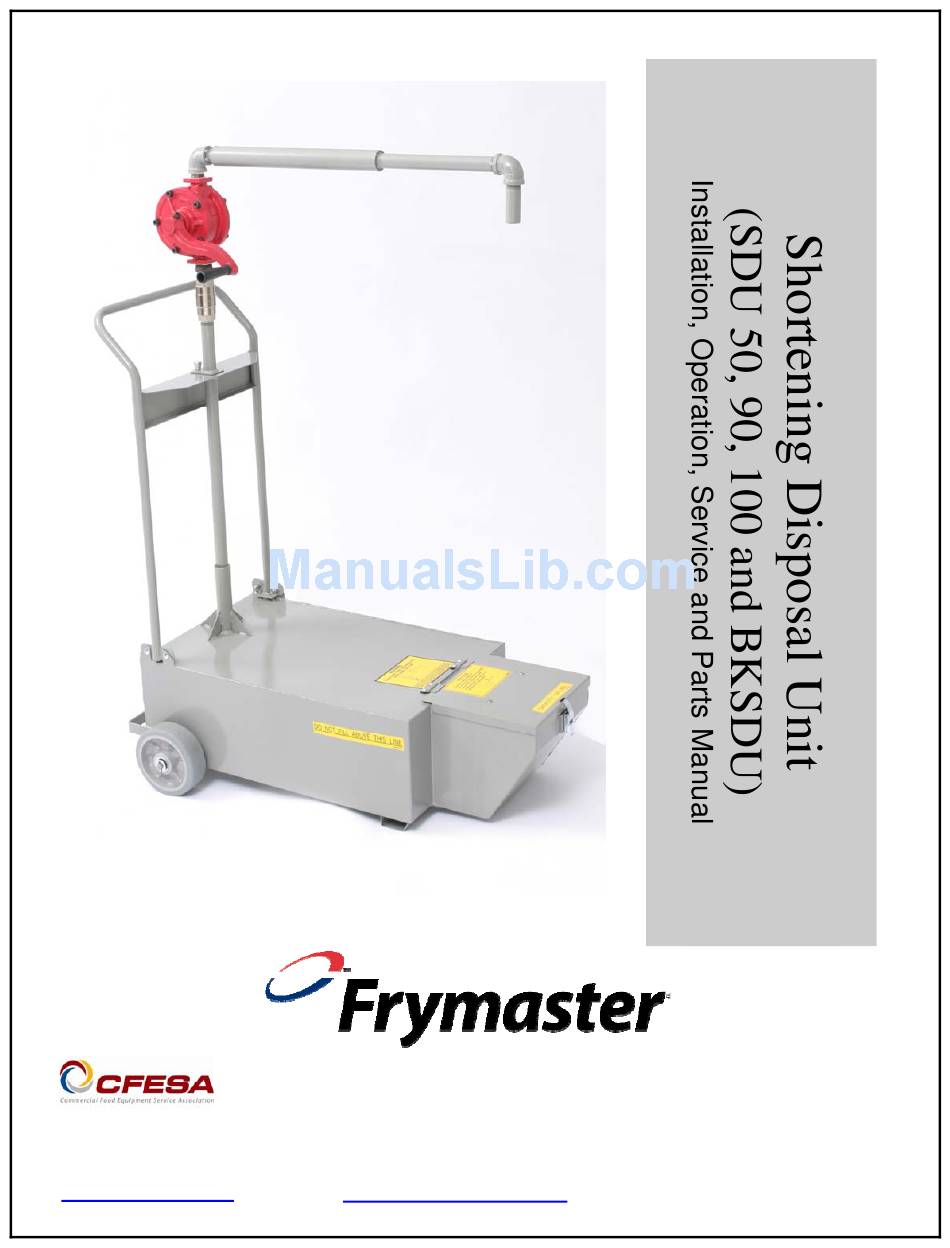

- Page 1 Frymaster, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certified Technicians. 24-Hour Service Hotline 1-800-551-8633 MARCH 11 *8195703* E-mail: service@frymaster.com www.frymaster.com...
- Page 2 SERVICE CENTERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, FRYMASTER DEAN AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE CENTER.
-
Page 3: Table Of Contents
Shortening Disposal Unit (SDU) Installation, Operation, Service, and Parts Manual TABLE OF CONTENTS INTRODUCTION 1.1 Service Information and Parts Ordering ...1 1.2 Installation, Operating and Service Personnel ...1 1.3 Definitions ...1 1.4 Shipping Damage Claim Procedure ...2 1.5 What To Do If Your Equipment Arrives Damaged ...2 ASSEMBLY AND OPERATION ...2 2.1 Equipment Description ...2 2.2 Equipment Assembly ...3... -
Page 4: Introduction
Service information may be obtained by contacting your local FAS. Information may also be obtained by calling the Frymaster Technical Service Department at 1-800-551-8633 or 1-318-865- 1711 or by e-mail: service@frymaster.com. In order to assist you as quickly as possible, the FAS or Service Department representative requires certain information about your equipment. -
Page 5: Shipping Damage Claim Procedure
The units consist of a tank and a heavy-duty manual pump. All models are equipped with 6 " (150 mm) wheels. The BKSDU is equipped with a 120VAC or 240VAC tank heater to prevent solid shortening from solidifying prior to disposal. The BKSDU is equipped with a receptacle that accepts a three-prong, grounded plug for protection against shock hazard. -
Page 6: Equipment Assembly
2.2 Equipment Assembly Assembly of the unit is a four-step process: 1. Remove the two bolts from the handle-mounting bracket and raise the handle to the upright position. Reinstall the bolts in the bracket and tighten to 8 ft/lbs. 2. Ensure the O-rings and the bottom 2 inches of the suction tube are lubricated with Accrolube with Teflon or an equivalent light oil or grease. -
Page 7: Cleaning
Continue turning the handle until the MSDU reservoir is empty. 6. On BKSDU units, the built-in heater may be connected to a grounded 120VAC or 240VAC receptacle to prevent shortening from solidifying in the tank when immediate transfer to a disposal container is not possible. -
Page 8: Service Procedures
Page 6). 1. Loosen the setscrew securing the pump handle to the pump shaft and slip the handle off the shaft. If unit is a BKSDU remove the eight screws that secure the pump cover in place and remove the cover. - Page 9 Step 4 - Replace vanes, spring, and rod. 4. Assemble the replacement vanes, spring and rod into the rotor assembly. Compress the vane spring and carefully insert the rotor assembly back into the pump housing. 5. Position the replacement gasket on the pump body, slip the cover over the shaft, and align the pins in the cover with the holes in the pump housing.
-
Page 10: Parts List
4. PARTS LIST SDU 50, 90, 100 and BKSDU units built April 2010 and later. - Page 11 Tank assembly, SDU 50 823-6268 Tank assembly, BKSDU 823-6267 Heater assembly for BKSDU (other BKSDU heater components on page 10,11) * Not illustrated. ** CAUTION: Risk of fire and electric shock. Replace only with manufacturer’s cord set, part No. 8071224 for 120V. Component...
- Page 12 NOTE: See Page 6 for BKSDU pump assembly components. SDU 50, 90, 100 and BKSDU units built before April 2010. (Crumb Basket optional)
- Page 13 810-1112 Wheel, 7-inch x 1½-inch 807-1577 Heater, 120V 50W 5” x 10” (BKSDU only) 807-1224 Cord, Power – 120VAC (BKSDU only)** (use 106-4697 for 240VAC) 823-1915 Shield Heater (BKSDU only) 809-0104 Screw, 8-32 x ½-inch Slotted Truss Head (BKSDU only)
- Page 14 ITEM PART # 823-1847 Cover and Handle Assembly, BKSDU 900-4429 Box, BKSDU Pump 811-0861 Insulation, 3-inch X 50-foot Adhesive-Backed Foam 823-4617 Pipe Assembly, BKSDU Discharge 809-0477 Screw, #10 X ¼-inch Philips Truss Head...
-
Page 16: March
Frymaster, L.L.C., 8700 Line Avenue, Shreveport, Louisiana 71106 TEL 1-318-865-1711 FAX (Parts) 1-318-688-2200 FAX (Tech Support) 1-318-219-7135 819-5703 SERVICE HOTLINE PRINTED IN THE UNITED STATES March 2011 1-800-551-8633...
