OWNER'S MANUAL
Mobile Video System

Advertisement

Table of Contents
loading

Related Manuals for Power Acoustik PADVD-230

Summary of Contents for Power Acoustik PADVD-230

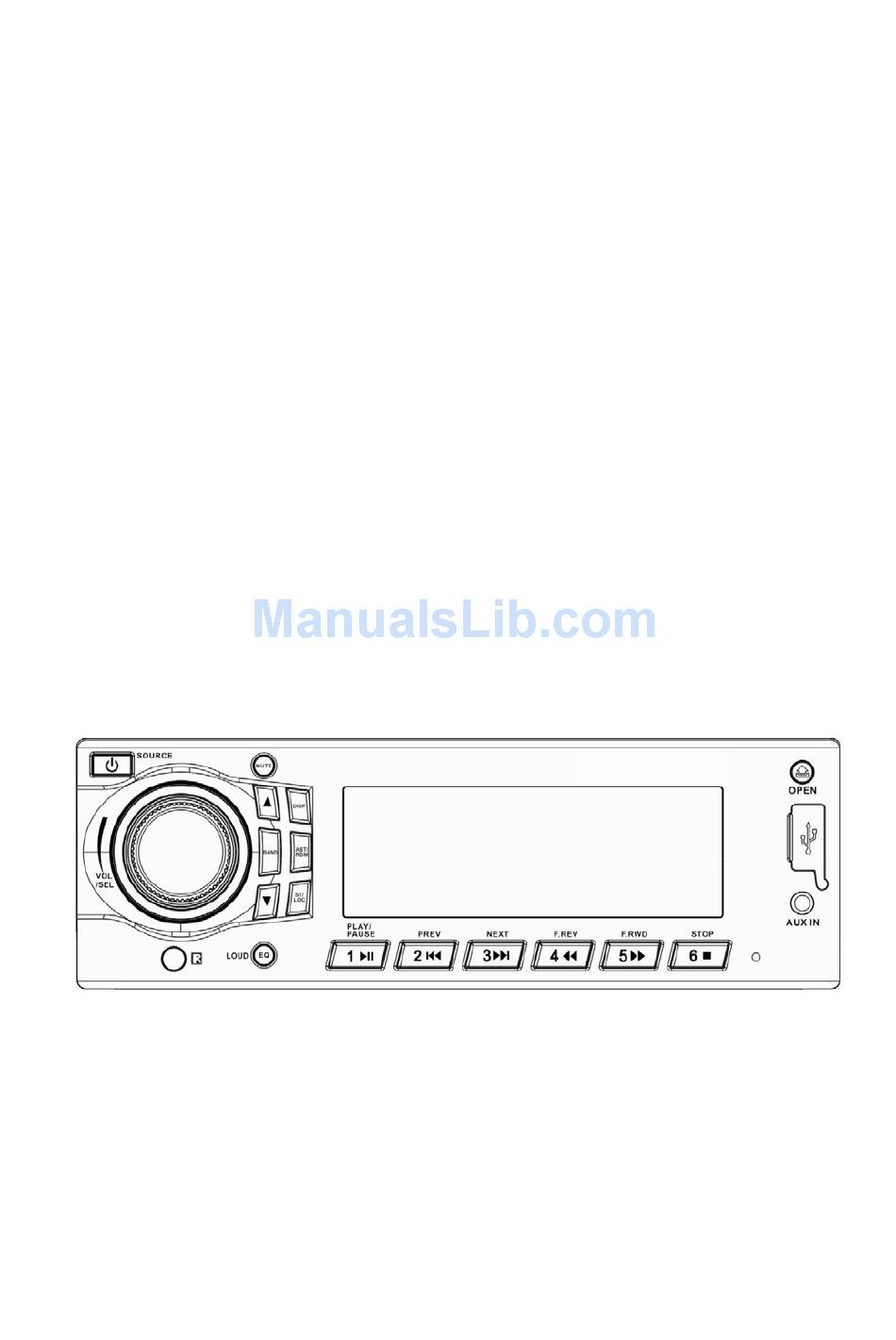

  • Page 1 OWNER’S MANUAL Mobile Video System...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Information ….…………………………………………………………………….2 Features …………………………………………………………………………………...3 Accessories……………………………………………………………………………. ….4 Wire Connection……………...……………………………..……………………………….5 Unit Installation and Removal………………………….….………………………………8 Basic Operations………………………………………………..…..……………………12 Radio Operations………………………………………………..…..……………………14 DVD/USB/SD CARD Operations………………………………..…..……………………15 AV IN Operations………………………………………………..…..……………………16 AUX IN Operations………………………………………………..…..……………………16 ATSC Operations………………………………………………..…..……………………16 IPOD Operations………………………………………………..…..……………………17 Remote Control……………………………………………………………………………18 DVD Setup Menu…………………………………………………………………..…...23 Specifications ………………………………………………………………………..…...28 Trouble Shooting ………………………………………………………………….…..29 Disc Notes………………………………………………………………………………...30 - 1 -...

  • Page 3: Safety Information

    SAFETY INFORMATION Please read the manual carefully before operating this unit and keep it for future reference. CAUTION: This unit is a class 1 laser product. To prevent direct exposure to the laser system, do not open the unit. The laser beam may hurt your eyes. If the unit requires adjustments, contact an authorized service centre.

  • Page 4: Features

    FEATURES • ISO/1-DIN SIZE • Drop-down Faceplate for Concealed Disc Loading • Digital TV Tuner (ATSC) Ready-(Optional) DTV-1 • Car-Spec DVD Transport for Extreme Temperature Exposure • Playback from DVDR/RW & CDR/RW Including VCD, MP3, MP4 & DivX • Recall Memory for Last DVD Position •...

  • Page 5: Accessories

    ACCESSORIES Bolt x 1 Back Strap x 1 M5X5 Screws x 4 Keys x 2 Power Wire x 1 Connecter Wire x 1 Connecter Wire x 1 Operational Manual x 1 （White） （Yellow） Trim Bezel x 1 Mounting Sleeve x 1 Remote Control x 1 USB Cable x 1 Faceplate Case x 1...

  • Page 6: Wire Connection

    WIRE CONNECTION 1. RADIO & ANALOG TV ANTENNA (OPTIONAL) 2. 15PIN SOCKET 3. AUDIO / VIDEO OUTPUT & INPUT 4. DIGITAL TV ADAPTER (OPTIONAL) 5. IPOD ADAPTER - 5 -...
  • Page 7 Telephone Mute Control (Optional) Connect the telephone mute control wire TEL_MUTE (see Wiring Diagram). If there is a vehicle call comes in, the sound volume will mute off automatically, and TFT monitor shows: PHONE…; when call finished, the sound volume will recover to former volume, and the words PHONE…...
  • Page 8 Wiring Diagram - 7 -...

  • Page 9: Unit Installation And Removal

    UNIT INSTALLATION AND REMOVAL Installation Method 1: 1 Install the mounting sleeve 2 Bend the claws into place into the dashboard. to secure the sleeve. 3 Slide the units into the mounting 4 Install the trim bezel onto the unit. sleeve.
  • Page 10 Removal Method 1: 1 Detach the face panel by 2 Detach the trim bezel. pushing the release button. 3 Insert the keys into the aperture 4 Pull the unit out of the between the unit and the mounting mounting sleeve. sleeve to release the internal locks.

  • Page 11: White

    Installation Method 2: 1 Tighten the bolt onto the rear 2 Tighten the back strap onto your panel of the unit. car inside the dashboard. 3 Place the unit into the dashboard; 4 Screw the unit on the car on the make the bolt bar across back strap;...
  • Page 12 Removal Method 2: 1 Detach the front panel by 2 Detach the trim bezel. pushing the release button. 4 Unscrew the Nut M5 screw on the rear 3 Unscrew the unit off the car on the two sides. side of the unit and pull out the unit. 5 Sketch map when removal is finished.

  • Page 13: Basic Operations

    Basic Operations 1. Power When ACC is on, press to turn the unit on; hold on pressing the button to turn off the unit. When the unit is on, press to switch between different modes as following: RADIO – DVD – USB – SD CARD – IPOD – ATSC – AUX IN – AV IN – RADIO NOTE: The unit could be switched to DVD Mode if disc inside;...
  • Page 14 7. Open Press to open the front panel, then you can insert / eject the disc or take off the panel for burglar-proof purpose. 8. USB The unit will be switched to DVD Mode automatically when USB connected, and play the songs, pictures, videos in USB.

  • Page 15: Radio Operations

    Radio Operations 1. / 3. Tune Frequency / Seek Next Station – Up / Down Press to tune the radio to a higher / lower frequency by one frequency step. Hold on pressing to tune to the next strong station at a higher / lower frequency. Press any button to stop seeking.

  • Page 16: Dvd/Usb/Sd Card Operations

    DVD/USB/SD CARD Operations 1. / 3. Up / Down Press the [∧] / [∨] buttons to move the cursor upward / downward to select item. 2. Enter Press to confirm the selection. 4. Random Press to switch the RANDOM function On/ Off when playing DVD, VCD, CD disc. 5.

  • Page 17: Av In Operations

    11. Eject Press to eject the disc. AV IN OPERATIONS Connect an external audio /video device to RCA audio / video inputs in rear panel of unit. Under the AV IN mode, only Basic Operations are effective. AUX IN OPERATIONS Connect an external audio device to AUX IN jack in front panel.

  • Page 18: Ipod Operations

    IPOD OPERATIONS The unit will switch to IPOD Mode automatically if iPod connected. When iPod connected, the unit will be audio mode automatically. Under the audio mode, it is not effective for the controller of iPod itself, use the keys of unit to control the operation only.

  • Page 19: Remote Control

    REMOTE CONTROL 1. POWER/SOURCE 13. PREVIOUS 25. SYSTEM / NAVI 2. MUTE 14. SLOW / END CALL 26. F.FWD 3. NUMBER BUTTONS 15. TITLE / PBN 27. RIGHT(Seek up) 4. MENU / * 16. ZOOM / CALL 28. STOP 5. AUDIO / # 17.
  • Page 20 1. [POWER/SOURCE] When ACC is on, press the button to turn the unit on; hold on pressing the button to turn off the unit. When the unit is on, press to switch between different modes. 2. [MUTE] Press to switch off the sound; press it again to resume to the previous volume level. 3.
  • Page 21 NAVI Mode, press the [∨] / [∧] buttons to decrease / increase the brightness of the screen. 9. [BAND/ENTER] DVD Mode, press to confirm the selection. Radio Mode, press to switch the wave band as following: FM1 – FM2 - FM3 - AM1- AM2 - FM1 TV Mode, press to switch the TV audio as following: NTSC –...
  • Page 22 18. [OPEN/CLOSE/P.ANGLE/EJECT] Press the button to open the monitor to eject the disc, press it again to close the monitor. Hold pressing the button to enter into adjusting mode, press it again to adjust the angle of the front panel as following: Angle 1 - Angle 2 - Angle 3 - Angle 4 - Angle 1 19.
  • Page 23 32. [A-B/PHONE PAIR] DVD Mode, press to set point A, press it again to set point B, then the unit starts to repeat from A to B. When playing DVD, MP3, press it again to stop repeating. When playing VCD, CD, press it again to repeat all tracks. Bluetooth Mode, press to start phone-pairing.

  • Page 24: Dvd Setup Menu

    DVD SETUP MENU SETUP MENU OPERATION Press the [SETUP] button of remote control to enter the DVD SETUP Menu. Press the [<] / [>] buttons to switch the main menus as following: SYSTEM – LANGUAGE – AUDIO – VIDEO – SPEAKER – DIGITAL Press the [∧] / [∨] buttons to enter the submenus from main menus.
  • Page 25 SYSTEM MENU TV SYSTEM Following options are available for the TV Display: NTSC SCREEN SAVER Select ON or OFF. VIDEO Following options are available for the TV Display: INTERLACE-YUV TV-RGB P-SCAN YPBPR S-VIDEO TV TYPE Following options are available for the TV Display: 4 : 3 PS 4 : 3 LB 16 : 9...
  • Page 26 LANGUAGE SETUP OSD LANGUAGE Following options are available for the OSD LANGUAGE: ENGLISH GERMAN SPANISH FRENCH PORTUGUESE ITALIAN RUSSIAN DUTCH SWEDISH KOREAN DANISH NORWEGIAN POLISH HUNGARIAN AUDIO LANGUAGE Following options are available for the AUDIO LANGUAGE: ENGLISH GERMAN SPANISH FRENCH PORTUGUESE ITALIAN RUSSIAN...
  • Page 27 AUDIO SETUP AUDIO OUT Following options are available for the AUDIO OUT: SPDIF / OFF SPDIF / RAW SPDIF / PCM Following options are available for the KEY: VIDEO SETUP BRIGHTNESS Following options are available for the BRIGHTNESS: CONTRAST Following options are available for the CONTRAST: Following options are available for the HUE: SATURATION Following options are available for the SATURATION:...
  • Page 28 SPEAKER SETUP DOWNMIX Following options are available for the DOWNMIX: LT / RT Stereo BASS MODE Following options are available for the BASS MODE: ALL LG SPK ALL SM SPK MIXED SPK DIGITAL SETUP OP MODE Following options are available for the OP MODE: LINE OUT RF REMOD DYNAMIC RANGE...

  • Page 29: Specifications

    SPECIFICATIONS GENERAL Supply Voltage : 14.4V DC (11-16V allowed) Load Impedance : 4Ω per channel Max Power Output : 50W x 4 : ≥ 10dB Bass 100Hz : ≥ 10dB Treble 10KHz Dimensions (approx.) : 183 x 188 x 59 mm (d/w/h) Mounting (approx.) : 160 x 178 x 50 mm (d/w/h) FM TUNER...

  • Page 30: Trouble Shooting

    TROUBLE SHOOTING SYMPTOM CAUSE / SOLUTION No sound Cancel the mute function. Adjust the volume. The memory contents are lost Disconnect the power wire or battery. Press the reset button. The disc does not play The disc might be dirty or damaged. The disc comes out The temperature is outside the range of the automatically...

  • Page 31: Disc Notes

    DISC NOTES Handling and Cleaning ● Dirty, dusty, scratched or warped discs will cause misoperation. ● Do not place stickers or make scratches on discs. ● Do not warp discs. ● A disc should always be kept in its case when not in use to prevent from damage. ●...
