Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
FGF328FSA
Series
30" f/s gas
Color
white
Market
North America
Wiring Diagram
316255201
Owner's Guide
316257511
Installation Instructions 316259336
Service Data Sheet
316218502
Publication No.
5995462271
06/02/27
(EN/SERVICE/ECL)
369
Copyright

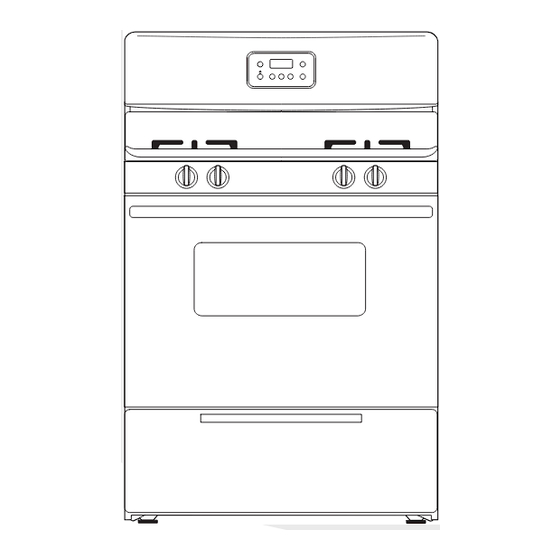

30-INCH FREE-
STANDING GAS
RANGE
Model No.
FGF328F
©
2006 Electrolux Home Products, Inc.
All rights reserved.
