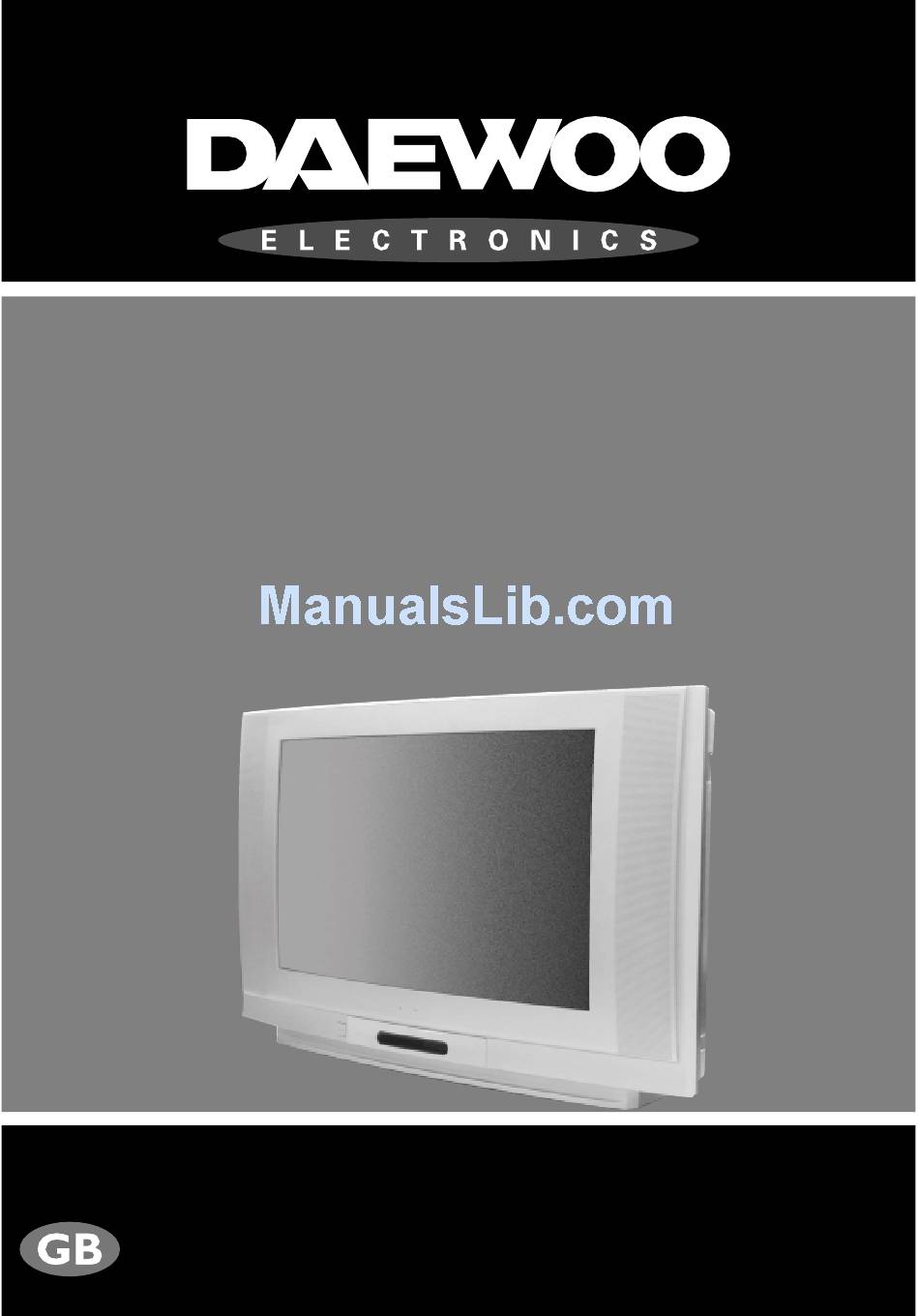

- Page 1 DTG-28 DTG-29 DTH-28 DTH-29 HE LP L IN E NUM BE R : 011 89 2 52 62 7 With queries, please quote the page number, reference number and model number S ET- UP M ANUAL C olou r Te le v i s io n...
- Page 2 ADDITIONAL INFORMATION FOR TV’S SOLD IN GREAT BRITAIN The appliance is supplied with a moulded three pin mains plug fitted with 5Amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 5 amp and approved by ASTA or BSI to BS1362. The plug contains a removable fuse cover that must be refitted when the fuse is replaced.In the event of the fuse cover being lost or damaged, the plug must not be used until a replacement cover has been obtained.Replacement fuse covers can be...
-
Page 3: Table Of Contents
CONTENTS REMOTE CONTROL & TV CONNECTIONS IMPORTANT SAFEGUARDS INSTALLATION START UP CONNECTING EXTERNAL EQUIPMENT DAILY USE MENUS DESCRIPTION TELETEXT... -
Page 4: Remote Control & Tv Connections
REMOTE CONTROL & TV CONNECTIONS LOCAL CONTROL Front DTG-28/DTG-29 (Option for real flat TVs) MAIN POWER button REMOTE sensor FRONT VIDEO INPUT socket TV / AV button FRONT AUDIO INPUT (L + R) socket VOLUME UP/DOWN buttons HEADPHONE socket PROGRAM UP/DOWN buttons STAND-BY indicator B10 FRONT PANEL S-VIDEO jack Rear... -
Page 5: Important Safeguards
IMPORTANT SAFEGUARDS WATER AND MOISTURE The apparatus shall not be exposed to dripping or splashing water and no object filled with liquids, such as vases , should be placed on the apparatus. HEAT Never place the set near heat sources. Never put a naked flame, such as a candle, on the top of TV set. -
Page 6: Start Up
START UP LANGUAGE MENU The very first time that you turn on the TV, the LANGUAGE menu will appear on the screen. Its purpose is to enable you to select the language that will be used for all the OSD (On Screen Display) menus. The user must enter a choice of language before proceeding further. The language entered at this stage can still be modified at any later time, by entering the LANGUAGE menu (accessed from the FEATURES menu: see later section under MENU DESCRIPTION). -
Page 7: Daily Use
Front TV/AV SELECTION Allows to switch between TV and external modes. By repeatedly pressing the remote control TV / AV (A5) or the TV front panel TV / AV (B7) button, the on-screen display is changed as shown (SVHS3 is an option): AV1 >... -
Page 8: Sound Control
PROGRAM SELECTION (FROM 0 TO 99) Direct selection Up / Down selection Use the remote control NUMBER 0….9 buttons (A3). Use the remote control PROGRAM UP (A6) / DOWN For two digits program numbers, enter the second (A21) buttons or the TV set front panel PROGRAM digit within 2 seconds. -
Page 9: Picture Control
PICTURE CONTROL You can select three pictures settings, by using the remote control NORMAL button (A17) : - Normal I (standard hard picture) - Normal II (standard soft picture) - Favourite For other adjustments: BRIGHTNESS, CONTRAST, COLOUR, SHARPNESS, NOISE REDUCTION, use the PICTURE menu. If an NTSC signal is received, then the TINT adjustment will also be available. -
Page 10: Menus Description
MENUS LANGUAGE SELECTION, CHILD LOCK, CLOCK SETTING, WAKE UP, NOISE REDUCTION These functions are available in the Features menu (see description page 13). CHILD LOCK function. However, if this is done the clock will not be periodically This function only allows the TV to be turned on using the remote updated as would happen if the time is set automatically. -
Page 11: Sound Menu
PICTURE MENU (For operating instructions, see page 9, HOW TO USE THE SUB-MENUS) PICTURE FAVOURITE - Select and adjust the level of each function : BRIGHTNESS, CONTRAST, COLOUR, SHARPNESS, TINT (if available). - The above modified values are automatically stored in FAVOURITE mode. BRIGHTNESS - NOISE REDUCTION feature has 4 levels according to your preference. -
Page 12: Install Menu
INSTALL MENU (For operating instructions, see page 9, HOW TO USE THE SUB-MENUS) INSTALL Automatic tuning system Country Program list edition ATSS TV system TV system modification EDIT Channel number Channel number SYSTEM CHANNEL Channel Frequency Channel Frequency FREQUENCY 671,25 Channel name Channel name NAME... - Page 13 Channel order changing Channel skipping Channel deleting - Select the program to move using the - You can select skip "YES" or - Select the program to delete using remote control CURSOR UP (A6) / DOWN "NO" using the remote control the remote control CURSOR UP (A21) buttons.
-
Page 14: Features Menu
FEATURES MENU See section near the end of section DAILY USE for a more detailed explanation of these functions. (For operating instructions see page 9, HOW TO USE THE SUB-MENUS) 1. Adjust this value ON or OFF. - In stand-by mode, the stand-by indicator flashes red and green to indicate the CHILD LOCK is set. -
Page 15: Teletext
TELETEXT ENTERING/LEAVING TELETEXT MODE - Select the desired program with teletext. - Press the remote control TELETEXT ( ) button (A22) to select teletext mode. The initial page (or the last page viewed if you have already used teletext in the present channel) appears. - Picture And Teletext (PAT) function : If you want to watch the TV program and use teletext at the same time, press the TELETEXT button (A22) again. - Page 16 USEFUL TELETEXT FUNCTIONS INDEX button (A18): Allows you to return directly to the PAGE HOLD button (A9): Any teletext page or initial teletext page. subpage can be held on the screen by pressing the PAGE HOLD button. - The page number shown in the extreme top left corner of the screen will become red.
- Page 17 TELETEXT FORMAT PICTURE & SOUND CONTROL Doubling character height Repeatedly pressing the HEIGHT button (A23) doubles the character height in the following order: Upper half of the page (UP) > Lower half of the page (DOWN) > Return to normal height. If the page is in UP or DOWN mode, then normal size is automatically set if : - A new page request is made (e.g.
