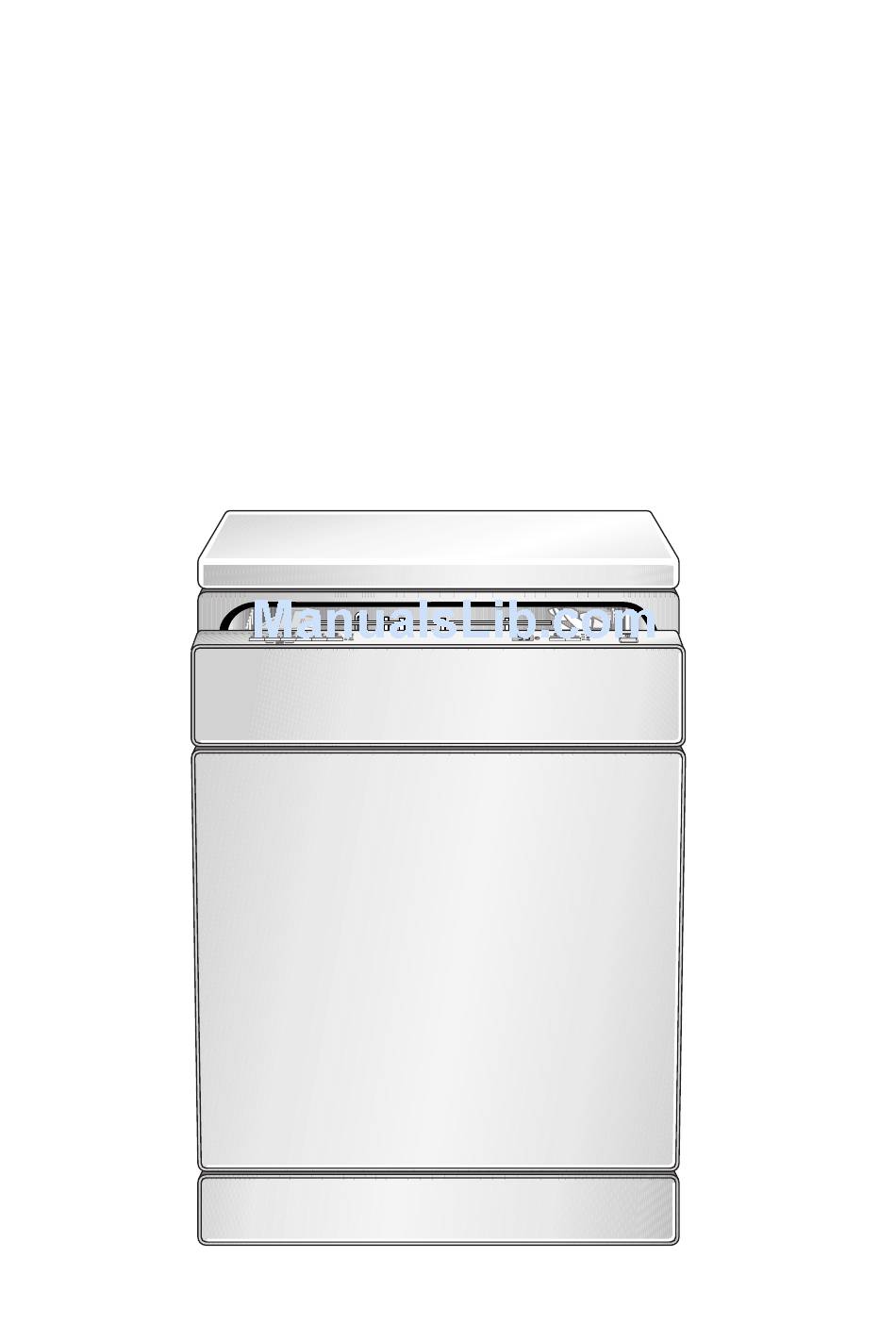

- Page 1 FAVORIT 86070 VI Fully Integrated Dishwasher User Instructions...
- Page 2 In the event of a malfunction, these operating instructions contain information on how to rectify faults yourself, see the "What to do, if..." section. If these instructions are insufficient, please contact your AEG Service Force Centre. In this respect please read the chapter "Service & Spare Parts".
-
Page 3: Table Of Contents
Contents CONTENTS Operating Instructions ........Safety Instructions . - Page 4 Contents Care and Cleaning ..........36 Cleaning the filters .
-
Page 5: Operating Instructions
Operating Instructions OPERATING INSTRUCTIONS Safety Instructions The safety aspects of AEG electrical appliances comply with accepted technical standards and the German Appliance Safety Law. Neverthe- less, as a manufacturer we consider it our obligation to make you aware of the following safety information: Installation, Connection and Placing into Operation •... -
Page 6: Correct Use
• If the mains lead is damaged, or is to be replaced for a longer lead, the cable (obtainable from AEG Service Force) must be changed by a service engineer authorised by AEG. • Never unplug the appliance by pulling on the cable, always pull the plug. -
Page 7: Disposal
Operating Instructions • Do not sit or stand on the open door, the appliance may tip over. • In the event of a fault, first close the tap, then switch off the appli- ance and unplug it from the mains. If the appliance is permanently wired to the mains: remove the fuse. -
Page 8: Appliance Features, Display And Control Panel
Operating Instructions Appliance Features, Display and Control Panel Top Spray Arm Rubber Seal for Con- necting the Water Feed to the Spray Spray Arms Water Hardness Switch Container for Salt Container for Rinse Aid Detergent Dispenser Display and Control Panel Rating Plate Filters... -
Page 9: Display And Control Field
Operating Instructions Display and control field Programme buttons Control Indicators Multi-display ON/OFF button Set start delay Function buttons Control Indicators The Programme buttons are used to select the desired dishwashing cy- cle. Function buttons: In addition to the dishwashing cycle and/or start delay selected, the following functions can also be set with the help of these buttons: Function button 1... -
Page 10: Prior To Using For The First Time
Operating Instructions Control indicators have the following meanings: Refill with special salt Refill with rinse aid Open the tap Clean the dishwasher’s filter system The dishwasher door is open The middle spray arm is jammed The indicators are never illuminated while a dishwashing cycle is run- ning. -
Page 11: Water Softener
Operating Instructions Water softener To avoid scale deposits on the dishes and in the dishwasher, the dishes must be washed with soft water, i.e. water with a low lime content. The dishwasher therefore has a built-in water softener, in which tap water with a hardness of 4°d (German degree) and harder is softened with the aid of special salt. -
Page 12: Setting The Water Softener
Operating Instructions Setting the water softener Using the table as a guide, adjust the water softener to that which cor- responds to the hardness of the water in your area: The dishwasher must be switched off. Setting manually: 1. Open the dishwasher door. 2. -
Page 13: Special Salt For The Water Softener
Operating Instructions Special salt for the water softener If the water hardness in your area is less than 4 °d, then the water in your dishwasher does not need to be softened and you do not need to use special salt or salt substitute. Water can be softened in one of two ways: •... -
Page 14: Adding Special Salt
Operating Instructions If the water softener is electronically set at “1” for the purpose of using detergent that includes special salt, the special salt indicator is deacti- vated. Adding special salt If you are using dishwasher detergent and special salt separately, add the special salt: –... -
Page 15: Rinse Aid
Operating Instructions Rinse aid Rinse aid ensures that your dishes gleam and are free from spots, and that your glasses are clear. Rinse aid can be added in one of two ways: • If you are using dishwasher detergent that already contains rinse aid, the detergent including the rinse aid is put into the detergent com- partment. -
Page 16: Adding Rinse Aid
Operating Instructions 3. Press function button 2. The LED indicator for function button 2 will flash. The multi-display will indicate the current setting: Inflow of rinse aid is deactivated Inflow of rinse aid is activated (factory setting) 4. Pressing function button 2 will change the setting. 5. -
Page 17: Adjusting Rinse Aid Dosing
Operating Instructions 4. Fill with rinse aid exactly up to the level marked “max”; this corresponds to a quantity of approx. 140 ml. 5. Close the lid and press until it locks into place. 6. Wipe up any spilt rinse aid with a cloth. -
Page 18: Activating/Deactivating The Acoustic Signal
Operating Instructions Activating/deactivating the acoustic signal The acoustic signal can indicate acoustically: – at which water hardness the water softener is set. – when a programme has finished. – when an error has occurred with the dishwasher. You can switch on/off the acoustic signal in the following way: 1. -
Page 19: In Daily Use
Operating Instructions In Daily Use • Check the salt and rinse aid levels. • Load cutlery and dishes into the dishwasher • Fill with dishwasher detergent • Select a wash programme suitable for the cutlery and dishes • Start the wash programme Loading Cutlery and Dishes Sponges, household cloths and any object that can absorb water should not be washed in the dishwasher... -
Page 20: Loading Cutlery
Operating Instructions Loading Cutlery Long bladed knives stored in an upright position are a potential hazard. Long and/or sharp items of cutlery such as carving knives must be posi- tioned horizontally in the upper basket. Take care when loading or unloading sharp items such as knives. Place knives, small spoons and small forks in the cutlery tray. - Page 21 Operating Instructions On some models of dishwasher it is possible to open the cutlery basket. To ensure that the cutlery basket cannot open on removal from the appliance, you should always hold both parts of the two part handle. 1. Place the cutlery basket on a table or work surface 2.
-
Page 22: Loading Pans, Frying Pans And Large Plates
Operating Instructions Loading Pans, Frying Pans and Large Plates Load large and heavily soiled dishes in the lower basket (Plates up to 29cm in diameter). Your dishwasher has one of the following four types of lower basket: Type 1: The right-hand plate inserts in the lower basket can be folded across one another To ease the loading of large items,... - Page 23 Operating Instructions Cups, Glasses, Coffee Service Load smaller, fragile crockery and long, sharp cutlery in the upper bas- ket. • Arrange items of crockery on and under the folding cup racks so that they are offset from each other and water can reach all items.
- Page 24 Operating Instructions • The row of spikes on the left of the upper basket is also in two parts and can be folded away. Spikes not folded away: place glasses, mugs etc. in the upper basket. Spikes folded away: More room for serving dishes.
-
Page 25: Adjusting The Height Of The Upper Basket
Operating Instructions Adjusting the Height of the Upper Basket Maximum Height of the Dishes in the Upper Basket Lower Basket With upper basket raised 22 cm 31 cm With upper basket lowered 24 cm 29 cm The height of the basket can also be adjusted when it is loaded. Lowering the Upper Basket: 1. -
Page 26: Filling With Detergent
Operating Instructions Filling with Detergent Only use dishwasher detergent. Fill with detergent: – Prior to the start of a wash programme (not for the pre wash pro- gramme). The detergent is released into the wash water during the programme. Please observe the manufacturer's dosing and storage recommenda- tions as stated on the detergent packaging. -
Page 27: Use Of "3 In 1"/ Combi Detergent Tablets
Operating Instructions Use of "3 in 1"/ Combi Detergent Tablets General Advice These products are tablets with combined detergent/rinse-aid and salt functions. 1. Before using these products you should first check that the water hard- ness in your supply is compatible with the use of these products as per the detergent manufacturers instructions (on the product packaging). -
Page 28: Concentrated Detergent
Operating Instructions Concentrated Detergent Based on their chemical composition, dishwasher detergents can be split into two basic types: – conventional, alkaline detergents with caustic components – low alkaline concentrated detergents with natural enzymes. The use of 50 °C wash programmes in conjunction with concentrated detergents reduces pollution and is good for your dishes;... -
Page 29: Intensiv Wash Programme With Integrated Disinfecting Programme
Operating Instructions Intensiv wash programme with integrated disinfect- ing programme In the Intensiv wash programme an additional programme has been integrated which thoroughly disinfects items such as baby bottles and jam jars. In order to achieve this, in the final wash cycle the temperature is kept at 68°... -
Page 30: Selecting The Wash Programme (Programme Table)
Operating Instructions Selecting the Wash Programme (Programme Table) Choose the most suitable wash programme with the aid of this table: Dinner Service and Dishes Dinner Service and Type of Dishes Cooking Utensils without Pans Cooking Utensils In Addition Type of Soiling •... - Page 31 Operating Instructions Dinner Service and Dessert Dishes and Type of Dishes Cooking Utensils Coffee Service Types of Dishes In Addition with non-temperature with resistant dishes delicate glasses Type of • normally soiled • lightly Used dishes that soiled are collected in the Soiling particularly suitable dishwasher and are...
-
Page 32: Starting A Dishwashing Cycle
Operating Instructions Starting a dishwashing cycle 1. Check that dishes and cutlery are arranged in the dishwasher so that the spray arms can turn freely. 2. Turn the water tap on fully. 3. Press the ON/OFF button. The LED indicators for all programme buttons (and the button for the delay start timer if present) light up. -
Page 33: In 1 Function
Operating Instructions Hot steam may escape when the dishwasher door is opened. There is a risk of scalding. Therefore: 1. Open the dishwasher door carefully. The dishwasher cycle will stop. 2. Press the button for the new dishwasher cycle and hold it down. Then the indicator for the current cycle will flash. -
Page 34: Setting Or Changing The Start Delay
Operating Instructions 3. Press the button for the additional 3 in 1 function. The indicator for the 3 in 1 function becomes illuminated. – The addition of special salt and rinse aid from each respective supply container is prevented. – The displays will no longer indicate a shortage of salt or rinse aid. 4. -
Page 35: Load Sensing - Sensor Logic
Operating Instructions 4. Press the button for the desired programme. The length of the selected programme will flash for a moment in the multi-display, and then the selected starting time will be displayed again. 5. Close the door. The programme will start automatically following a countdown of the hours set. -
Page 36: Switching Off The Dishwasher
Operating Instructions Switching off the dishwasher When the dishwasher cycle has ended, the dot shaped light signal on the floor below the door of the appliance goes out. If the acoustic signal is activated, at the end of the dishwasher cycle a 15 second long continuous acoustic signal is heard. -
Page 37: Cleaning The Filters
Operating Instructions Cleaning the filters The filters must be regularly checked and cleaned. Dirty filters will spoil the wash results. 1. Open the door and remove the lower basket. 2. Turn the handle about ¼ of a turn anticlockwise (A) and remove the filter system (B). -
Page 38: What To Do, If
Operating Instructions What to do, if ... Try to rectify minor faults on the dishwasher with the aid of the instructions given here. If you call an engineer to resolve a of fault listed here, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is in guarantee. - Page 39 Operating Instructions Malfunction Possible cause Remedy Two short continuously The siphon is blocked. Clean out siphon. repeated warning tones can be heard; the cycle display for the selected cycle is The water drain hose has Check hose installation. Å 20 flashing;...
-
Page 40: There Are Problems With The Operation Of The Dishwasher
Operating Instructions ...there are problems with the operation of the dish- washer. Symptom Possible Cause Solution The door of the dishwasher is Shut the door. not closed properly. Mains plug is not plugged in. Insert mains plug. The programme does House fuse is defective. -
Page 41: Technical Data
Operating Instructions There are streaks, milky spots or a bluish coating on glasses and dishes. – Lower rinse aid dosing. There are dried water drops on the glasses and dishes. – Increase rinse aid dosing. – The detergent may be the cause. Contact the detergent manufac- turer’s customer advisor. -
Page 42: Notes For Test Institutes
Operating Instructions Notes for Test Institutes Testing in accordance with EN 60704 must be carried out with the appliance fully loaded and using the test programme (see Programme Table). Tests in accordance with EN 50242 must be carried out when the salt dispenser and rinse aid container have been filled with salt and rinse aid respectively and using the test programme (see Programme Table). -
Page 43: Installation And Connection Instructions
Installation and Connection Instructions INSTALLATION AND CONNECTION INSTRUCTIONS Installing the Dishwasher • The dishwasher must be installed on a firm floor and adjusted to ensure that it is stable and level. • To compensate for unevenness in the floor and to match the height of the appliance to that of surrounding units extend the threaded feet by unscrew- ing:... -
Page 44: Connecting The Dishwasher
Installation and Connection Instructions Connecting the Dishwasher Water Connection The dishwasher is fitted with safety devices that prevent the wash water returning into the drinking water system and comply with the applicable plumbing regulations. • The dishwasher must be connected to a cold water supply. •... -
Page 45: Water Inlet Hose With Safety Valve
Installation and Connection Instructions The following section is only applicable to dishwashers that have a safety valve on the threaded hose fitting for the tap: Water inlet hose with safety valve After connecting the double-walled water inlet hose, the safety valve is next to the tap. -
Page 46: Water Drain
– Minimum required height 40 cm above the lower edge of the machine. Extension hoses • Extension hoses are available from AEG Service Force. The internal diameter of the extension hoses must be 19 mm to ensure that the function of the appliance is not impeded. -
Page 47: Leak Prevention System
Installation and Connection Instructions Leak prevention system To avoid damage caused by water leakage, the dishwasher is equipped with a leak prevention system. In the event of a fault, the safety valve in the appliance immediately interrupts the inflow of water and the drain pump is activated. In this way water can neither escape nor overflow. -
Page 48: Electrical Connection
Installation and Connection Instructions Electrical Connection Any electrical work required to install this appliance should be car- ried out by a qualified electrician or competent person. WARNING - This appliance must be earthed. The manufacturer declines any responsibility should these safety measures not be observed. -
Page 49: Connections
Installation and Connection Instructions Connections The water inlet and drain hoses, as well as the mains cable must be connected beside the dishwasher as there is insufficient space behind the appliance. The plumbing and electrical installation example given below can only be regarded as a recommendation. -
Page 50: Guarantee Conditions
GUARANTEE CONDITIONS Standard guarantee conditions We, AEG, undertake that if within 12 months of the date of the purchase this AEG appliance or any part thereof is proved to be defective by reason only of faulty work- manship or materials, we will, at our discretion repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: •... -
Page 51: Service And Spare Parts
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls. Customer Care For general enquiries concerning your AEG appliance or for further information on AEG products please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.aeg.co.uk. - Page 52 USD 14 billion in more than 150 countries around the world. AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg.hausgeraete.de © Copyright by AEG 822 961 334 -00- 0704 Subject to change without notice...
