© 2009 Pella Corporation

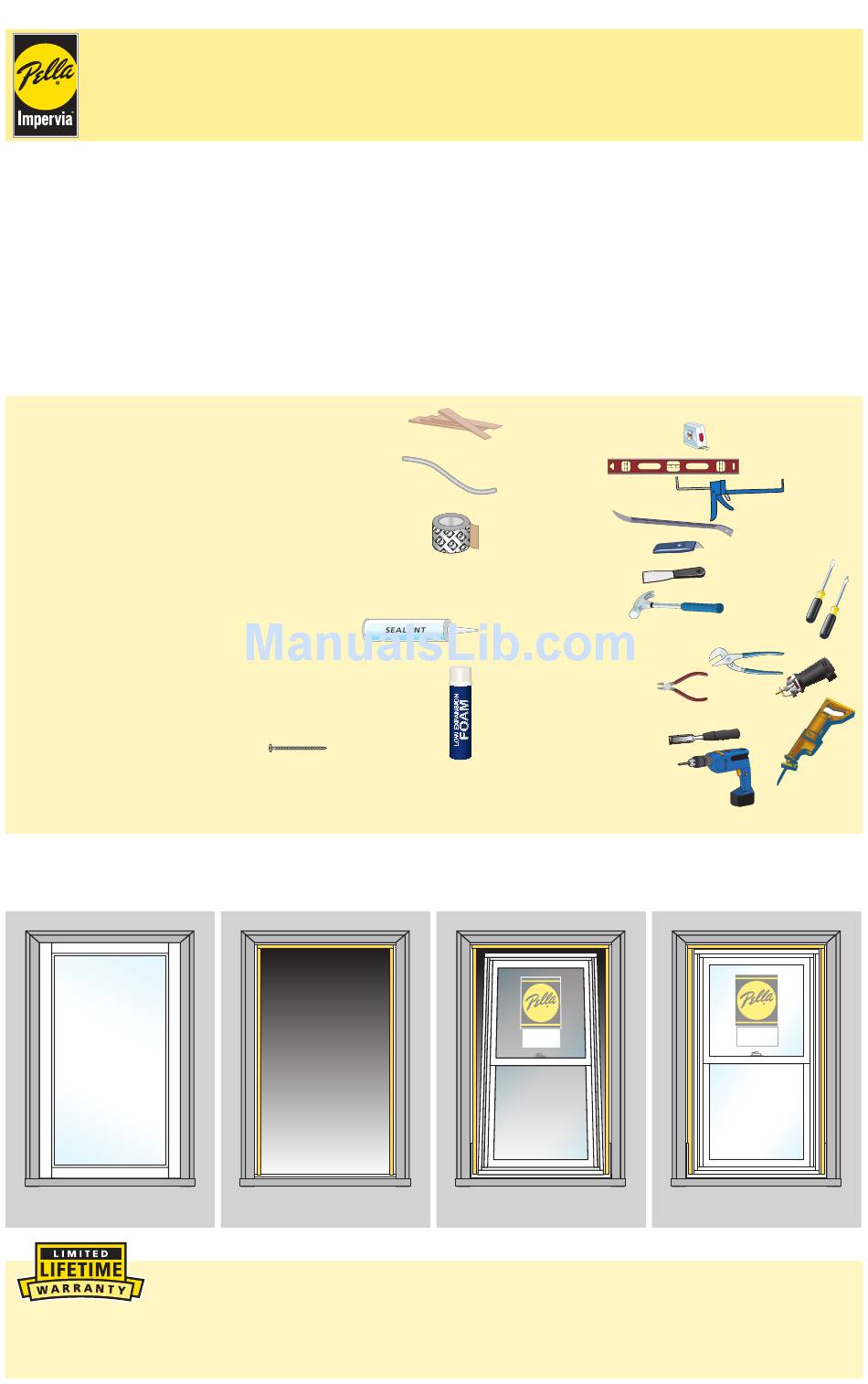

WINDOW REPLACEMENT INSTRUCTIONS FOR
SINGLE-HUNG, DOUBLE-HUNG, CASEMENT, AWNING
INTO EXISTING CASEMENT FRAME USING FRAME SCREWS
These instructions were tested and developed for replacing windows in wood-frame wall
construction systems designed to manage moisture. This method of installation involves removing
the sash, frame stops and frame hardware from the existing window. The original window frame
will remain in place. If the existing window frame shows signs of water infiltration or is damaged
beyond repair, this method should not be followed and the entire existing window should
be removed. Installation recommendations for other types of wall construction, wall systems,
conditions, multiple windows or bow/bay windows, may be obtained from Pella Corporation or a
local Pella retailer. Building designs, construction methods, building materials, and site conditions
unique to your project may require an installation method different from these instructions and
additional care on your part. Determining the appropriate installation method is the responsibility
of you, your architect, or other construction professional.
YOU WILL NEED TO SUPPLY:
• Cedar or Impervious shims/spacers (12 to 20)
• Closed cell foam backer rod/sealant backer
(12 to 30 ft.)
• Pella
SmartFlash
®
and door flashing tape or equivalent
• Pella Window and Door Installation Sealant or
equivalent high quality, multi-purpose sealant
(1 tube per window)
• Low expansion, low pressure polyurethane
insulating window and door foam sealant.
DO NOT use high pressure or latex foams
• #8 x 2-1/2" Wood screws
(6 to 10 per window)
Installation will require two or more persons
for safety reasons.
CAUTION: Many windows in older homes are painted with lead-based paint. Removal of old
windows may disturb this paint. Proper precautions must be taken to minimize exposure to dust
and debris. Consult state or local authorities for more information.
EXTERIOR
EXISTING WINDOW
Always read the Vinyl Window and Door Limited Warranty before purchasing or installing
Vinyl Windows and Doors manufactured by Pella Corporation. By installing this product,
you are acknowledging that this Limited Warranty is part of the terms of the sale. Failure to comply with all
Pella installation and maintenance instructions may void your Pella product warranty. See Limited Warranty for
complete details at http://warranty.pella.com.
foil backed butyl window
™
EXTERIOR
REMOVE EXISTING
SASH and STOPS
TOOLS REQUIRED:
• Tape measure
• Level
• Sealant gun
• Prybar
• Utility knife
• Putty knife
• Hammer
• Screwdrivers (Flat & Phillips)
• Adjustable pliers
• Side cutter
• Roto-tool, reciprocating saw
• Wood chisel
• 1/8" drill bit
• Drill
EXTERIOR
INSERT REPLACEMENT
WINDOW
Part Number: 80YV0102
EXTERIOR
REPLACEMENT WINDOW
INSTALLED
Advertisement
Related Manuals for Pella 80YV0102
Summary of Contents for Pella 80YV0102
- Page 1 Vinyl Windows and Doors manufactured by Pella Corporation. By installing this product, you are acknowledging that this Limited Warranty is part of the terms of the sale. Failure to comply with all Pella installation and maintenance instructions may void your Pella product warranty. See Limited Warranty for complete details at http://warranty.pella.com.
- Page 2 REMOVE THE EXISTING SASH Note: Remove the new window from its packaging. Inspect and measure the new window to confirm it will fit into the opening prior to removing the existing window. The window needs to be 3/8" smaller in both width and height than the pocket frame, i.e.
- Page 3 WINDOW PREPARATION (AWNING and CASEMENT ONLY) The interior frame covers must be removed to provide access to the pre-drilled frame screw installation holes. AWNING/ CAUTION: To Avoid Interior Frame Cover Breakage - Carefully read and understand CASEMENT the following steps before proceeding with cover removal. Note: The following interior frame cover removal steps are for Casement, Standard Awning, Fixed Awning/Casement and Large Awning.
- Page 4 B. Remove Interior Frame Cover #1. If an Interior Frame Cover has a "Quick Release Band" around the cover, pull the band to help remove the cover. The cover on vent units where the lock handle slot is located and the cover on the AWNING/ CASEMENT opposite frame side. Note: Interior Frame Covers #1 are jamb covers on Casement, Fixed Awning/Casement and Large Awning units.
- Page 5 C. Remove Interior Frame Cover #2. The cover on vent units where the crank handle and roto-cover will be located. AWNING/ CASEMENT For Standard Awning, single units greater than 42" in height and multiple window combinations. 1. Starting at the cover end closest to where the crank handle will be located, insert the tool between the sash and cover (using the same method of insertion used for Interior Frame Cover #1).
- Page 6 SETTING AND FASTENING THE WINDOW AWNING/CASEMENT AWNING/ CASEMENT A. Insert the window and center it in the opening to allow clearance for shimming. Note: Use of a suction cup on the glass will assist in handling the window. Note: Each existing window frame and wall depth will vary in different applications;...
- Page 7 SHIM and FASTENER PLACEMENT GUIDE Number of factory drilled fastener locations may vary depending on size of unit(s). = Indicates typical locations of factory drilled anchor holes where screws and shims are required. = Indicates location where installation screws are optional. Vent &...
- Page 8 Number of factory drilled fastener locations may vary depending on size of unit(s). = Indicates typical locations of factory drilled anchor holes where screws and shims are required. = Indicates location where installation screws are optional. If Frame Width <42”, top and bottom screws are optional 3-High Combination Vent &...
- Page 9 Re-install Interior Frame Covers. Note: Discard all Quick Release Bands before re-installing Interior Frame Covers. AWNING/ CASEMENT Compression Spring I. Interior Frame Cover #3 (Head cover on Casement, Fixed and location in Large Awning and the jamb cover without roto cover cut-out on Cover 3 Standard Awning units): Starting on one end of the frame, NOTE insert the cover barbs of Interior...
- Page 10 SINGLE-HUNG and DOUBLE-HUNG SINGLE- HUNG M. Insert the window and center it in the opening to allow DOUBLE- HUNG clearance for shimming. Note: Use of a suction cup on the glass will assist in handling the window. Note: Each existing window frame and wall depth will vary in different applications;...
-
Page 11: Interior Seal
S. Fasten the window in the opening by driving the 2-1/2" long screws through each pre- drilled hole in the window frame, through the shims and into the rough opening. Note: Single-hung: Raise the lower sash to access lower installation holes. Double- hung: Lower the top sash to access the upper installation holes and raise the lower sash to access the lower installation holes. - Page 12 C. Begin the sill sealant bead 1/2" from one jamb, running it across the sill and stopping 1/2" from the opposite jamb. This 1/2" sealant gap on each side of the sill allows for incidental water drainage. D. Shape, tool, and clean excess sealant. When finished, the sealant should be the shape of an hourglass. Note: This method creates a more flexible sealant line capable of expanding and contracting.
- Page 13 LOCK LEVER REMOVAL AND INSERTION Note: You may want to remove the lock lever if it needs to be replaced with a different AWNING/ finish. CASEMENT A. Unlock and open the window. Interior B. Place the lock lever in the locked position.
-
Page 14: Care And Maintenance
Pella windows and doors installed in barrier wall systems. In the states listed above, the installation of Pella products in barrier wall or similar systems must be in accordance with Pella installation instructions.
