Table of Contents
loading

Related Manuals for Teac CT-W32ID

Summary of Contents for Teac CT-W32ID

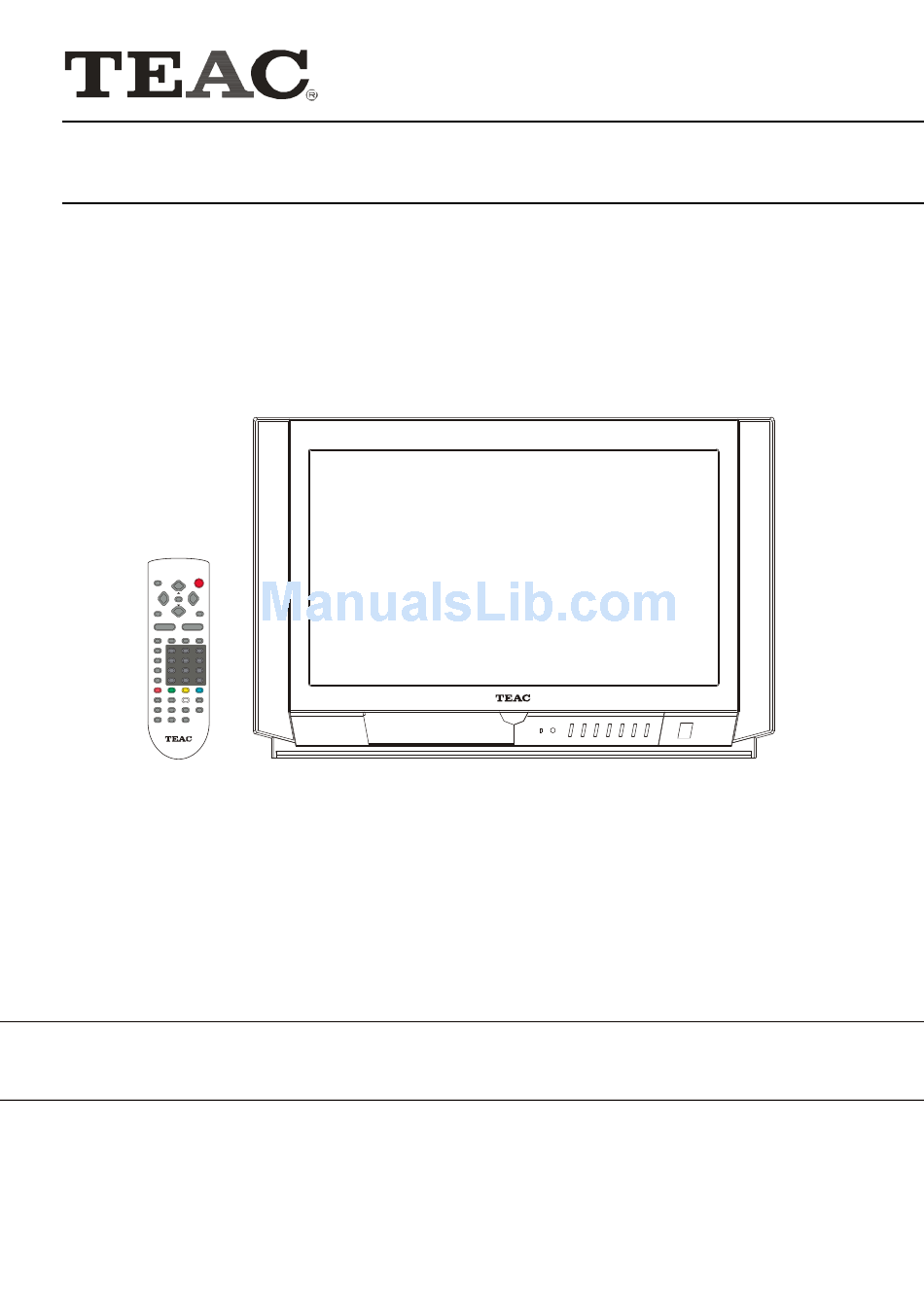

  • Page 1 CT-W32ID CT-W32ID COLOUR COLOUR COLOUR TELEVISION TELEVISION TELEVISION TELEVISION COLOUR COLOUR TELEVISION STANDBY ATV/DTV EXIT SELECT ATV MENU DTV MENU V OL TV/AV PICTURE S.E. MUTE EPS&ESS A B C J K L V WX ZOOM/INS. CA PS R ECA L L...
  • Page 2 *Your nearest Authorised TEAC Service Centre is listed in your Owners Manual In the event that this unit or any defective parts must be returned to TEAC Service Centres, a copy of this warranty certificate and of your purchase receipt must be enclosed to be a valid warranty. Such equipment or parts must be sent freight prepaid to the nearest authorised TEAC Service Centre.
  • Page 3 Dealer’s Name Dealer’s Address Postcode Please ensure that your product is packed appropriately upon return to the service centre. If you have any other queries regarding service or warranty please contact the TEAC Service Centre in your State. info@teac.com.au www.teac.com.au...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS DTV OPERATION INTRODUCTION LANGUAGE SETTING FEATURES CHANNEL SETTING PRECAUTIONS 6.2.1 AUTO SEARCH DESCRIPTION OF CONTROL 6.2.2 MANUAL SEARCH KEYS & CONNECTIONS 6.2.3 FIRST TIME INSTALLATION 1.3.1 FRONT VIEW CONFIGURATION 1.3.2 EXPLANATION OF JACKS 6.3.1 TIME ZONE OPERATION OF REMOTE CONTROL 6.3.2 SUBTITLE 6.3.3 FAVOURITE MODE 1.4.1 DESCRIPTION OF REMOTE...

  • Page 5: Introduction

    INTRODUCTION 1.1 FEATURES PAL/BG TV Receiving System AV Color System PAL, NTSC 3.58 & 4.43 Sound Systems DTV Systems DVB-T(Free To Air, Standard Definition Receiver For Australia) Preset Programs - 100 (For ATV Mode) Preset Method - Auto Search, Manual Store, Fine Tune(For ATV Mode) Tuning Method - FS Voltage Range...

  • Page 6: Precautions

    1.2 PRECAUTIONS CLEANING THE UNIT WARNING When the cabinet has become dirty or TO REDUCE THE RISK OF FIRE stained, dip a piece of gauze or soft cloth OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO into a dilute solution of neutral cleanser and RAIN OR MOISTURE.

  • Page 7: Description Of Control Keys & Connections

    1.3 DESCRIPTION OF CONTROL KEYS & CONNECTIONS 1.3.1 FRONT VIEW Digital Television 1. POWER button 6. MENU button Turn the TV on or off. Press it to display ATV main menu. 2. STANDBY (LED INDICATOR) 7. TV/AV button Lights to show AC power is available. Choose between TV programming and the AV input.

  • Page 8: Explanation Of Jacks

    1.3.2 EXPLANATION OF JACKS 75OHM INPUT INPUT2 OUTPUT ANTENNA VIDEO VIDEO INPUT AUDIO-L C C b b AUDIO-L SPDIF OUTPUT RS232 C C r r AUDIO-R AUDIO-R Digital Audio Output & RS232 Port Rear Panel AV INPUT1 (MONO) VIDEO S-VIDEO AUDIO Front AV Input (AV1 INPUT)
  • Page 9 L (LEFT) AUDIO Provides left audio connection. The right audio connector is usually white. Press TV/AV to choose the video input channel. Choose AV1 to view material playing on equipment connected to the front AV inputs or AV2 to view material playing on equipment connected to the rear AV inputs.

  • Page 10: Operation Of Remote Control

    1.4 OPERATION OF REMOTE CONTROL 1.4.1 DESCRIPTION OF REMOTE CONTROL KEYS LEFT- /RIGHT+ BUTTON Press it to enter submenus, move highlight bar left/right or adjust some controls. EXIT/ SELECT BUTTON In ATV mode, press it to exit the on-screen STANDBY ATV/DTV menu directly.
  • Page 11 1.4.1 DESCRIPTION OF REMOTE CONTROL KEYS RECALL BUTTON SUBTITLE BUTTON In ATV mode, press it to return to the previously Press it to turn Subtitle On or Off. viewed channel. FAVORITE BUTTON RETURN BUTTON Press it to browse the favourite channels preset In DTV mode, press it to return to the previously in Favourite Channel List.

  • Page 12: Installa Tion Of Baterries

    1.4.2 INSTALLATION OF BATTERIES 1.4.3 EFFECTIVELY USING THE REMOTE CONTROLLER Point the remote toward the infra-red remote 1. Open the battery compartment cover. sensor on the main unit. 2. Install two Size AA batteries in correct direction. NOTE: 3. Close the battery cover. If direct sunlight, incandescent light, or •...

  • Page 13: Connections

    2. CONNECTIONS 2.1 ANTENNA CONNECTION UHF Antenna VHF Antenna 75-ohm Coaxial Cable VHF/UHF 75 OHM Combination Antenna ANTENNA INPUT 300 to 75 ohm flat twin-lead wire adapter A combination antenna receives normal broadcast channels. Your connection is easy since you will connect the antenna to the 75 OHM ANTENNA INPUT jack on the rear of the TV .

  • Page 14: Tv + Vcr + Dvd Connection

    2.3 TV + VCR + DVD CONNECTION The basic component (VCR, DVD player etc.) to TV connection is described below. For other hookup, refer to your component s instruction manual. Connect the audio cables (white and red) to the R and L AUDIO jacks on the TV and the Audio output jacks on the VCR (or other component).

  • Page 15: Atv General Operation

    3. ATV GENERAL OPERATION The following operations will be conducted in the mode of ATV. Picture Icon and the corresponding main menu Brightness Colour Contrast Picture Sound Setup Sharpness Tint Picture Enhance Middle Combfilter Clock Tune Color Temp. Normal Picture Mode MENU EXIT 3.1 AUTO SEARCH...

  • Page 16: Fine Tuning

    3. ATV GENERAL OPERATION 3.3 FINE TUNING Tune Fine tuning function may improve the receiving quality for some weak /unstable Program channels by adjusting the channel frequency manually. Frequency 503. 25MHz Manual Search Follow the above steps to enter Tune submenu. Skip Colour Auto...

  • Page 17: Picture Adjustment

    3. ATV GENERAL OPERATION 3.6 COLOUR SYSTEM SELECTION This feature allows you to select suitable receiving system for the specific broad Tune -casting system in your area. Program Frequency 503. 25M Manual Search Press ATV MENU button to display the on-screen menu. Skip Colour Auto...

  • Page 18: Preset Picture Mode

    3. ATV GENERAL OPERATION 3.8 PRESET PICTURE MODE This function enables you to choose preset video settings for different types of Picture programs and viewing conditions. Most picture settings are preset at the factory Brightness to automatically adjust the TV s Brightness, Color, Contrast, and Sharpness. Colour Contrast Press ATV MENU button to display the on-screen menu.

  • Page 19: Sound Mode Selection

    3. ATV GENERAL OPERATION 3.11 SOUND MODE SELECTION You can preset sound mode that best suits your current programming among PP, Music, Theatre or Speech. Sound Press ATV MENU to display the on-screen menu. Loudness Press UP/DOWN button to select Sound. Balance Equalizer Sound Mode...

  • Page 20: Off-Timer

    4. TIMER FUNCTION Press ATV MENU button to go back to the submenu of Timer. Then press UP/DOWN button to select ON TIME. Press RIGHT button to highlight hour position in red, then use the number buttons or UP/DOWN buttons to set the hour. Press RIGHT button to highlight minute position in red, then use the number buttons or UP/DOWN buttons to set the minute.

  • Page 21: Blue Back Setting

    5. SPECIAL FUNCTION 5.2 BLUE BACK SETTING If this function is set to On mode, it will display a solid blue screen when a channel is selected that has no signal. Setup Press ATV MENU button to display the menu. Blue Back Rotate Press UP/DOWN button to select Setup.

  • Page 22: Calendar

    5. SPECIAL FUNCTION Press ATV MENU to display the on-screen menu. Setup Press UP/DOWN button to highlight Setup icon. Press RIGHT button to enter the Setup submenu. Blue Back Rotate Parent Guide Press UP/DOWN button to highlight Game. Game Calendar Press RIGHT button to enter Game directly.

  • Page 23: Notebook

    5. SPECIAL FUNCTION Press RIGHT to display the features of Channel Lock and then Parent Guide press UP/DOWN to select On or Off. When On is selected, it means Channel Lock Disable Program Enable you want to lock this channel. Repeat the above steps to set other Channel Lock Child Lock channels you want to lock.

  • Page 24: Program Swap

    5. SPECIAL FUNCTION 5.9 PROGRAM SWAP After the auto or manual search, you may want to rearrange the Setup program numbers in which the channels are stored. In this case, Blue Back program swap function may be useful to you. Rotate Parent Guide Press ATV MENU to display the on-screen menu.

  • Page 25: Channel Setting

    6. DTV OPERATION 6.2 CHANNEL SETTING 6.2.1 AUTO SEARCH Installation Automatic search is provided to scan each channel for services, follow these steps to perform auto search channel: Automatic Search Highlight the Settings in Main Menu and press SELECT button to Manual Search access.

  • Page 26: First Time Installation

    6. DTV OPERATION 6.2.3 FIRST TIME INSTALLATION When your TV is first switched on, the TV will configure itself Installation for the first time, this is called "First Time Installation", or you Automatic Search can also follow below steps to set First Time Installation: Highlight the Settings in Main Menu and press SELECT to access.

  • Page 27: Favourite Mode

    6. DTV OPERATION 6.3.3 FAVOURITE MODE The favourite mode can be enabled or disabled from the Configuration of Settings, or you can also enable or disable the mode by repeatedly pressing FAVOURITE button on the remote control. After selecting a favourite mode, you can quickly switch between some different favourite channels that belong to the same favourite list through pressing P+ button...

  • Page 28: Password Settings

    6. DTV OPERATION 6.3.5 PASSWORD SETTINGS This feature allows you to lock Main Menu, Installation. When the above services are locked, it is impossible to access to the service without entering password, follow these steps below to lock the above menus: Highlight the Settings in Main Menu, and press SELECT button to access.

  • Page 29: Channel List

    6. DTV OPERATION 6.4 CHANNEL LIST This feature enables you to delete an unwanted channel, edit Main Menu channel name, lock any inappropriate channel, etc. Channel List 6.4.1 DELETE CHANNEL Favourites Guides To delete an unwanted channel, follow these steps below: Settings Highlight Channel List in Main Menu, and press SELECT buttons to Figure19...

  • Page 30: Favourites List

    6. DTV OPERATION 6.4.4 FAVOURITES LIST This feature enables you to quickly select a list of channels you consider favourite, the TV allows you to have up to five different Channel List favourites lists. Edit Favourtie Lists dialog can be accessed not 1.
  • Page 31 6. DTV OPERATION An List Schedule EPG dialog is provided that presents some extended schedule EPG information, either on a banner for the current service, or as a full screen dialog showing multiple Guides services, follow these steps below to enter the dialog: Now/Next EPG Move the hightlight bar until List Schedule EPG in Guides submenu, and press SELECT button to enter the dialog as...

  • Page 32: Troubleshooting

    7. TROUBLESHOOTING 7.1 PROBLEMS OF PICTURE The most common types of picture problems are as follows: IGNITION Black spots or horizontal streaks appear, or the picture flutters or drifts. This is usually caused by interference from car ignition system, neon lamps, electric drills, or other electrical appliances.

  • Page 33: Problems Of Operation

    7. TROUBLESHOOTING 7.2 PROBLEMS IN OPERATION If this unit does not seem to operate properly, check the POSSIBLE CAUSES below. SYMPTOM POSSIBLE CAUSES NO POWER The power cord is not connected. The POWER BUTTON on the main unit is off. NO TV RECEPTION The antenna connector is not connected, or wires are broken.

  • Page 34: Specificiation

    8. SPECIFICATIONS MAIN UNIT 1. ATV Parts: P AL/BG TV Receiving System: AV Color System: PAL, NTSC 3.58 & 4.43 FS TUNER Tuner: 100 (0-99) Number of Preset Program: On screen display Channel Indicator: MENU display Function Adjust Indicator: English Language of OSD: 75-ohm unbalanced RF Aerial Input:...

  • Page 35: Packing List

    3. Other parts: 240V~, 50Hz Operating Voltage: Power Consumption: 110W (76cm) Picture TUbe: MM (W X D X H) Dimensions: Net W eight: 61 kg INFRA-RED REMOTE CONTROL: Full Function Remote Control Features: 8 meters Effective Distance Power: DC 3V (two batteries, size AA) Power Supply: PACKING LIST: 1.
  • Page 36 TEAC CORPORATION 3-7-3, Nakacho, Musashino-shi, Tokyo 180-8550, Japan Phone: (0422) 52-5081 TEAC AUSTRALIA PTY.,LTD. A.B.N.:80 005 408 462 HEAD OFFICE 280 William Street, Melbourne, VIC 3000 Phone : (03)9672 2400 SERVICE DIVISION MELBOURNE, VIC Pier 31 Lorimer Street, Port Melbourne, VIC 3207...
