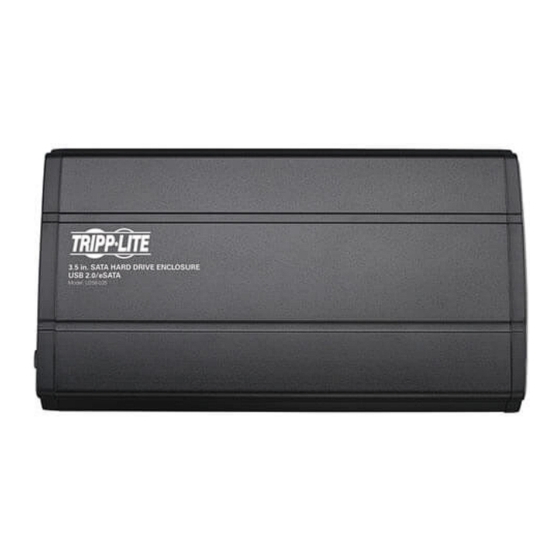

Tripp Lite U258-035 Owner's Manual

USB 2.0/eSATA External 3.5"
SATA Hard Drive Enclosure
Features
• Supports SATA data transfer rates of
up to 3 Gbps
• Supports Hi-Speed USB 2.0 data
transfer rates of up to 480 Mbps
• Sturdy aluminum case protects
drive and facilitates cooling

Specifications

• SATA compatible
• Hi-Speed USB 2.0 and USB 1.1
compliant
• FCC and CE certified
• 15-Pin and 7-Pin L-Type SATA
connectors
• 7-Pin eSATA connector
• USB 2.0 Type-B connector
• DC Power Jack – 12V, 2A
• 1.5 x 8.75 x 5 (HxWxD, in.)
• 12.8 oz.
LIFETIME LIMITED WARRANTY
Seller warrants this product, if used in accordance with all applicable instructions, to be free from original
defects in material and workmanship for its lifetime. If the product should prove defective in material or
workmanship within that period, seller will repair or replace the product, at its sole discretion. Service under this
Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges
prepaid) to:
Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609. Seller will pay return shipping charges.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM
ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER
THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED
BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF
MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD
SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND
CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts,
and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have
other rights which vary from jurisdiction to jurisdiction.)
TRIPP LITE; 1111 W. 35th Street; Chicago, IL 60609
Manual del propietario
Caja para disco duro externo eSATA
de 3,5" (8,8 cm) USB 2.0
Modelo: U258-035
Características
• Soporta velocidades de transferencia
de datos SATA de hasta 3 Gbps
• Soporta velocidades de transferencia
de datos USB 2.0 de alta velocidad
de hasta 480 Mbps
• El robusto gabinete de aluminio
protege el disco y facilita la
ventilación
• Acomoda discos SATA de 3,5"
(6,3 cm) estándar
Owner's Manual
Model: U258-035
• Fits standard 3.5" SATA drives
• Windows 2000/XP/Vista/7 and
®
Mac 10 (and above) compatible
®
• Plug-and-play, hot-swappable
• Lifetime limited warranty
System Requirements
• Available USB port, or eSATA
enabled computer and available
eSATA port
• Windows 2000/XP/Vista/7
• Mac OS10 and above
Package Contents
• U258-035 External Enclosure
• External Enclosure Stand
• USB A/B Device Cable
• 7-Pin eSATA Cable
• External Power Supply
• Screw Kit
• Owner's Manual
• Compatible con Windows 2000/XP/
®
Vista/7 y Mac 10 (y superiores)
®
• Conecte-y-Use (Plug and Play),
cambio en operación (Hot
Swappable)
• Garantía limitada de por vida
Installation
Note: Prior to installation, make a copy of your data to avoid any data loss
should a mistake be made during the install.
1. Remove the 3.5" chassis from the U258-035
enclosure.
2. Connect the 15-Pin and 7-Pin SATA connectors
to the corresponding SATA ports on the 3.5"
hard drive.
3. Slide the chassis back into the U258-035
enclosure. Secure the chassis to the enclosure using
the provided screws.
4. Connect the included USB cable or 7-Pin eSATA
cable from the U258-035 to your computer.
5. Connect the included power supply to the
U258-035, and then plug it into an appropriate
power source.
6. Turn on the U258-035 using the On/Off rocker
switch on the unit.
WARNING: The individual user should take care to determine prior to use whether this device is suitable,
adequate or safe for the use intended. Since individual applications are subject to great variation, the
manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific
application.
WARRANTY REGISTRATION
Visit www.tripplite.com/warranty today to register the warranty for your new Tripp Lite product. You'll be
automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
WARNING!
Use of this equipment in life support applications where failure of this equipment can reasonably be expected
to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not
recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or
nitrous oxide.
WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when
customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste
Tripp Lite follows a policy of continuous improvement. Product specifications are subject to change
without notice.
Manuel du propriétaire
Armoire de stockage SATA de 3,5 po
externe USB 2.0/eSATA
Modèle : U258-035
Caractéristiques
• Peut accueillir des taux de transfert
de données SATA allant jusqu'à 3
Gbps
• Peut accueillir des taux de transfert
de données USB 2.0 haute vitesse
allant jusqu'à 480 Mbps
• Boîtier résistant en aluminium
protège le lecteur et favorise le
refroidissement
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
1
2
3
3
200909073 93-2940-EN
• S'ajuste aux lecteurs SATA de 3,5 po
standards
• Compatible à Windows 2000/XP/
®
Vista/7 et Mac ® 10 (et supérieur)
• Prêt à l'emploi, remplaçable à chaud
• Garantie à vie limitée
