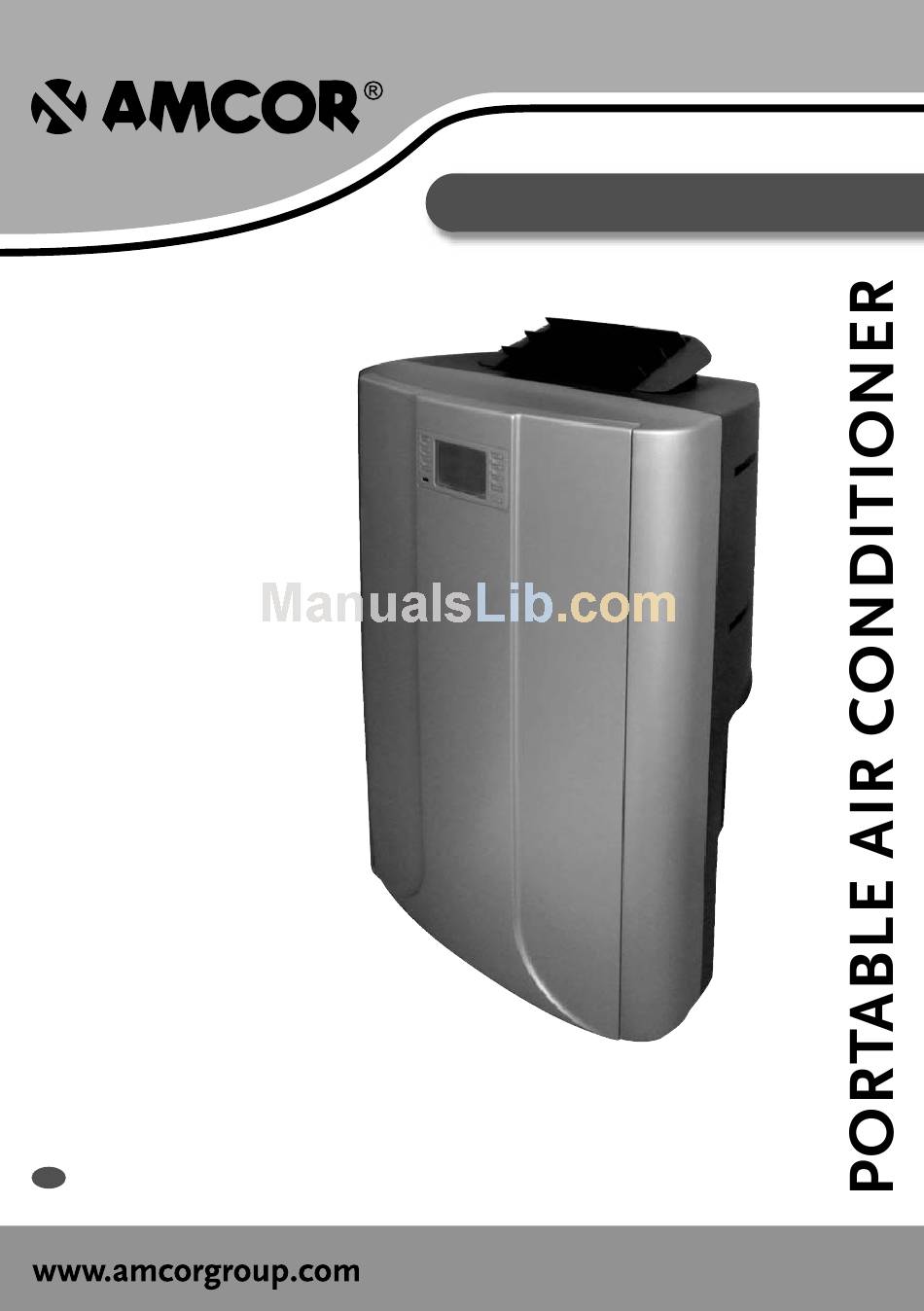

- Page 1 CPLM 9KE-B-410 12KE-B-410 15KE-B-410 Portable air conditioner...
-
Page 2: Safety Instructions
THANK YOU Thank you for choosing this innovative Amcor air conditioner. We suggest that you keep this manual in a safe place for future reference. It describes the many benefits and advanced features this unique product has to offer. Before you use your new air conditioner you should carefully read these instructions to maximise this product’s... - Page 3 WARNING • Never operate this appliance if it has a damaged cord or plug. Do not lead the cord over sharp edges. • A damaged supply cord should be replaced by the manufacturer, its service agent or a qualified person in order to avoid a hazard. •...
- Page 4 PARTS 1. Air outlet 2. Control panel 3. Carrying handle 4. Caster wheels Active carbon filter Remote control 5. Grill housing 6. Upper air inlet 7. Exhaust air outlet 8. Lower air inlet 9. Cable storage 10. Drainage point with water stopper Water container with LCD Slide bar connector...
-
Page 5: Control Panel
CONTROL PANEL Timer Sleep mode Sensor remote control Temperature Clock/ Cooling Sleep Timer mode Fan Timer settings Mode Increase Decrease Swing ON / OFF... -
Page 6: Installation
INSTALLATION WARNING! Before using the air conditioner it should be left in an upright position for at least 2 hours. This unit can easily be moved from one room to another. In doing so keep this in mind: – Ensure that the unit is positioned upright, on a level surface and 50 cm away from any obstacles. -
Page 7: Operation
OPERATION ON/OFF Press to switch the unit on or to switch off. A buzzer will beep, and the LCD will display 12:00 o’clock as default. Setting the clock Press the -button for 3 seconds to set the clock. The 2 left digits of the 4 digits on the LCD-display will flash. - Page 8 Programming the timer for ON - when the unit is OFF. • Perform the standard steps as described above. The linear time scale will be on between the ON programmed times until 24:00. The flashing bar on the time scale indicates the real time and moves a segment ahead every 30 minutes until it reaches the ON timer time, then the black segments in the linear time scale will disappear.
- Page 9 Air flow On the moment the air conditioner is connected to the mains, the louvres open and close and stay closed. • When the ON-button is pressed, the louvres open to maximum and return to an angle of 75° above the upper plane of the louvres housing. •...
-
Page 10: Remote Control
REMOTE CONTROL The unit responds to all signals that are sent by the remote control. There will be a beep sound from the unit after receiving the signal. The operation of the unit by remote control, is almost identical to the operation by the control panel. -
Page 11: Air Filter(S)
The old filters can be disposed in the ‘Non- biological garbage container’. • Replacement filter packages are available directly from Amcor. • To run the unit without active carbon filter does not do any harm to the air conditioner. -
Page 12: Emptying The Internal Water Container
EMPTYING THE INTERNAL WATER CONTAINER Under high humidity conditions it may be necessary to empty the internal water container. When the internal water container is full the backlight on the LCD-display flashes. The unit will switch off automatically. To empty the water container do the following: •... -
Page 13: Troubleshooting
• The old filters can be disposed of in the ‘Non-biological rubbish container’. Replacement filter packages are available from Amcor. • Put the unit in Fan Only mode for a few hours to ensure that the inside becomes completely dry. -
Page 14: Technical Data
