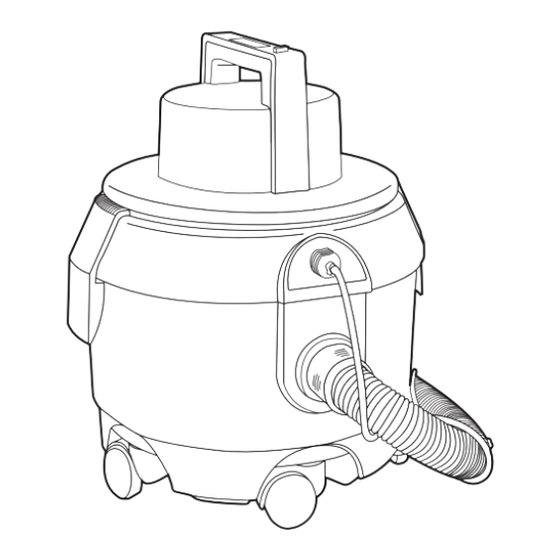

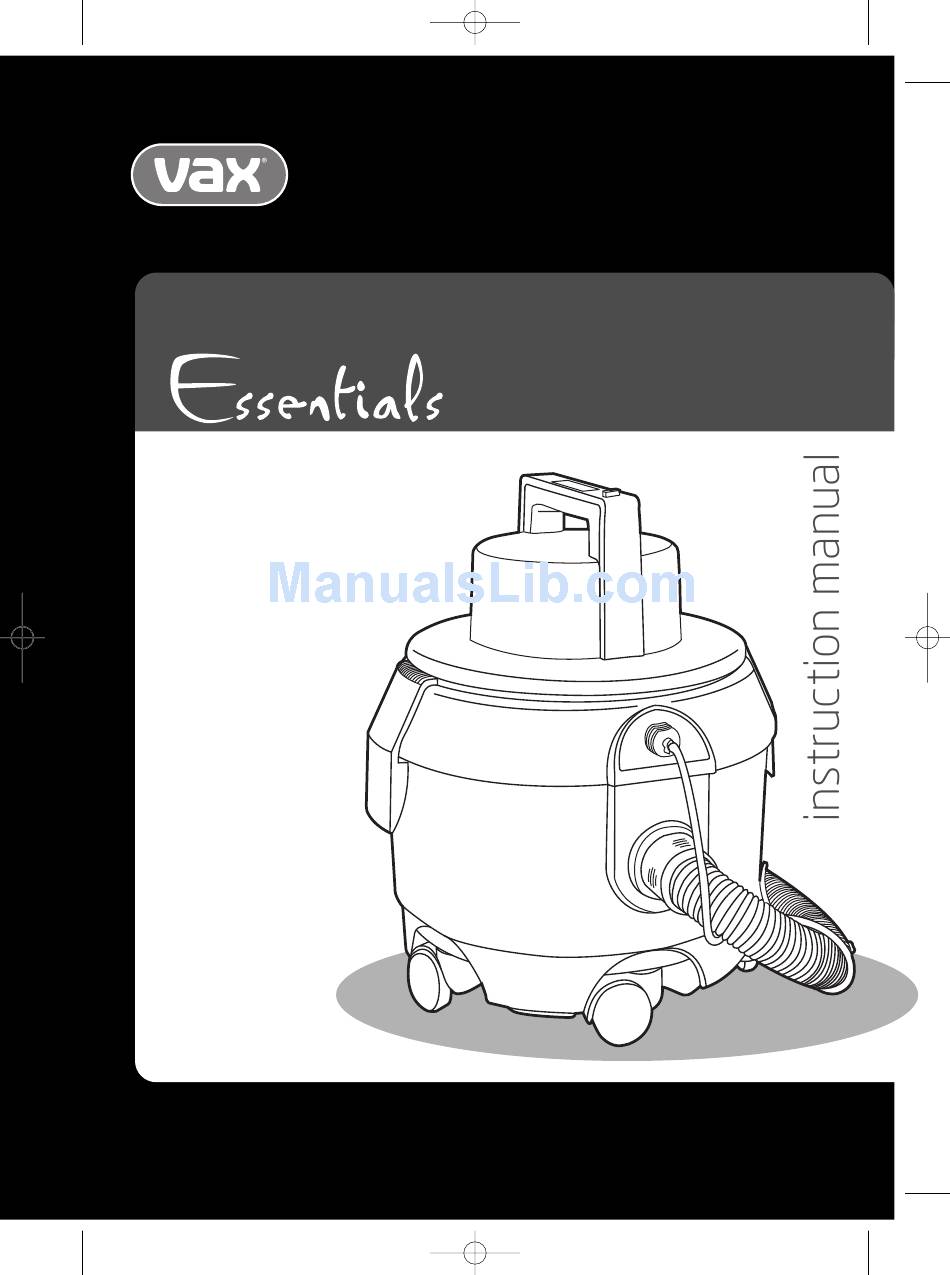

- Page 1 Vax VEW-01 Essentials User Guide.qxd 4/10/07 11:15 Page 1 Vax careline 0870 6061248 Carpet washer Vax model number: VEW-01 Please read carefully before using this cleaner. www.vax.co.uk Always fully extend the mains cable before use. Retain for future reference.
- Page 2 Vax VEW-01 Essentials User Guide.qxd 4/10/07 11:15 Page 2 www.vax.co.uk 1. Diagram VEW-01 A N T I A L L E R G E N A D D I T I V E Fig.1/1 1 Water pump button (green) 10 Hose...
-
Page 3: Safety Information
Do not use with a damaged cord or plug. If the supply cord and/or plug is damaged, they must be replaced PLEASE KEEP THESE INSTRUCTIONS by the manufacturer, a Vax Service Agent or similarly FOR FURTHER USE. qualified persons in order to avoid hazard. -
Page 4: Preparing The Carpet
Water Tank and fill with warm (max 40°C) water to point clean, it should be safe to clean the carpet. indicated on the tank. Add 1 capful of Vax AAA solution per litre of water (unless otherwise stated on the bottle) After cleaning (Fig 4/3). - Page 5 Vax VEW-01 Essentials User Guide.qxd 4/10/07 11:15 Page 5 Vax Careline 0870 606 1248 5. Assembly 1. Push solution tube to machine connector (A) firmly into Solution Port (A1). Twist solution tube connector (A1) a quarter turn to the right to lock into place (Fig.5/1).
- Page 6 Vax VEW-01 Essentials User Guide.qxd 4/10/07 11:15 Page 6 www.vax.co.uk 6. Usage 1. Plug in machine to power supply. 2. Press the red button to turn on the power. 3. Press the green button to activate the pump. Washing Carpets 1.
-
Page 7: Maintenance
Vax VEW-01 Essentials User Guide.qxd 4/10/07 11:15 Page 7 Vax Careline 0870 606 1248 7. Maintenance IMPORTANT: Ensure that the machine is switched off and unplugged from the socket before carrying out any maintainence. Cleaning the Pre-Motor Filter. 1. Remove the motor top from the unit, turn on its side and remove the float housing in an anti-clockwise direction to unscrew (Fig.7/1). -
Page 8: Troubleshooting
There are Cause: No electricity in electrical outlet. over 400 approved Vax Service Agents in the UK. For the Solution: Check fuse or breaker. nearest Service Agent, please call the Vax Careline. www.vax.co.uk Cause: ON/off switch not turned on. -
Page 9: Technical Specification
Vax VEW-01 Essentials User Guide.qxd 4/10/07 11:15 Page 9 Vax Careline 0870 606 1248 10. Technical Specification Voltage: 220-240V ~50Hz Wattage: 1300W Capacity: Clean water tank - 4 litres Dirty water tank - 5.2 litres Cord length: 7.5m Weight: 7.7kg Subject to technical change without notice. - Page 10 Vax VEW-01 Essentials User Guide.qxd 4/10/07 11:15 Page 10 www.vax.co.uk This page has been left intentionally blank...
- Page 11 Vax VEW-01 Essentials User Guide.qxd 4/10/07 11:15 Page 11 Vax Careline 0870 606 1248 This page has been left intentionally blank...
- Page 12 11:15 Page 12 EEC STATEMENT OF COMPLIANCE Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the product VEW-01 Essentials carpet washer is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive EMC: 2004/108/EC Electromagnetic Compatibility Directive Waste electrical products should not be disposed of with household waste.
