UPRIGHT CARPET WASHER
Vax Model Number: V-023

Instruction Manual

9/8/05
10:34 AM
Page 1
Vax Careline:
0870 6061248
Please read carefully before using the
carpet washer. Always fully extend
the mains cable before use.

Advertisement

Table of Contents
loading

Related Manuals for Vax Rapide Supreme V-023

Summary of Contents for Vax Rapide Supreme V-023

  • Page 1: Instruction Manual

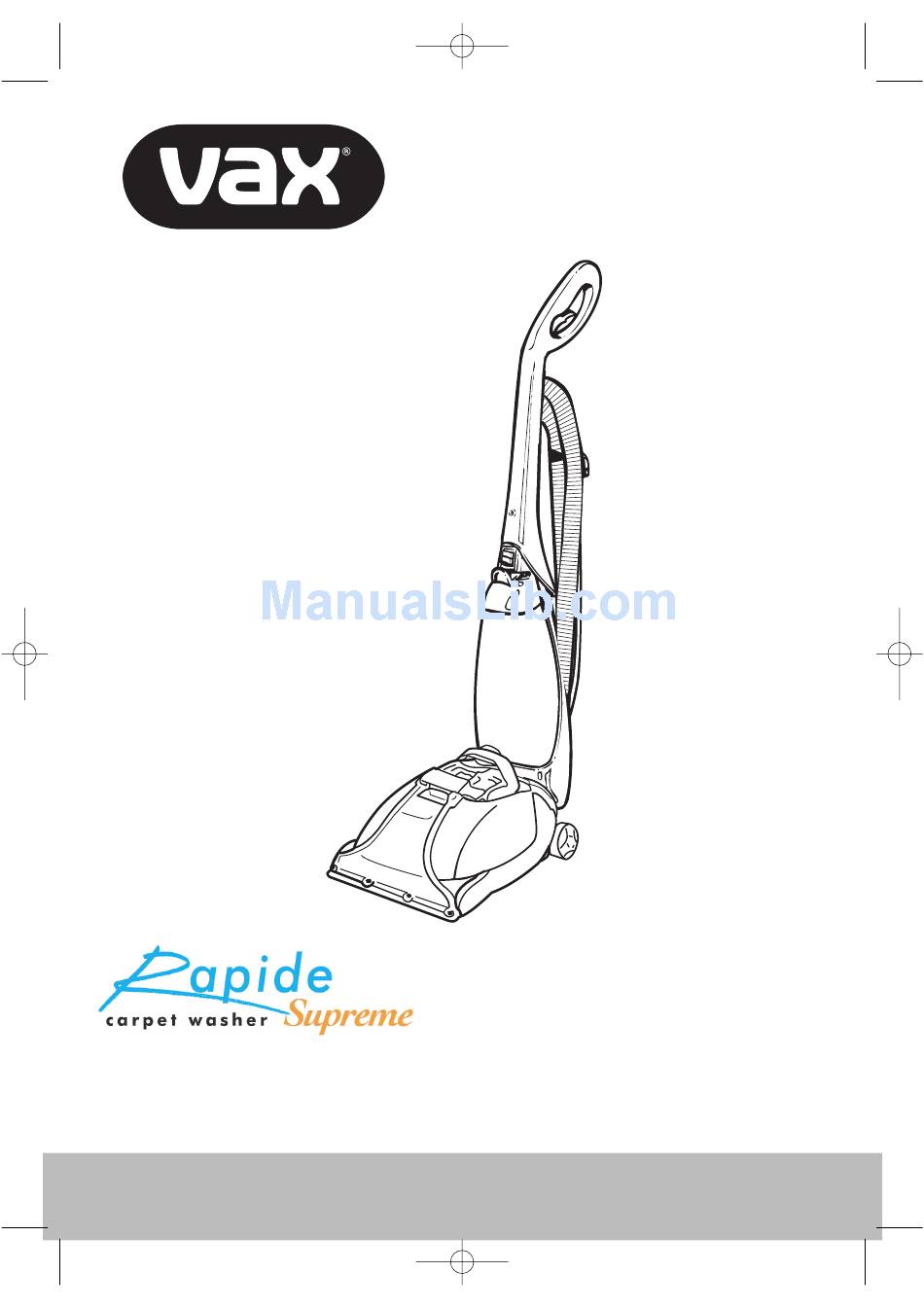

    Vax V-023 D6 mm.qxd 9/8/05 10:34 AM Page 1 Vax Careline: 0870 6061248 www.vax.co.uk Please read carefully before using the UPRIGHT CARPET WASHER carpet washer. Always fully extend Vax Model Number: V-023 the mains cable before use. Instruction Manual...
  • Page 2 Vax V-023 D6 mm.qxd 9/8/05 10:34 AM Page 2 Parts Overview 1. Diagram 1 Handle 2 Power on/off 3 Clean water tank latch 4 Clean water tank 5 Dirty water tank latch 6 Dirty water tank handle 7 Dirty water tank...

  • Page 3: Safety Information

    (Fig.3/1). cord and/or plug is damaged, they must be replaced by the manufacturer, a Vax Service Agent or similarly qualified persons in order to avoid hazard. 6. Do not pull or carry by the cord, use the cord as a handle, allow the cord to come into contact with hot or sharp surfaces or close a door on the cord.
  • Page 4 Vax V-023 D6 mm.qxd 9/8/05 10:34 AM Page 4 Use & Function Slide upper handle down onto unit. Insert the nut into the recess in the back of the upper handle. While holding the nut in place, insert the long screw through the front of the upper handle and tighten (Fig.3/3).
  • Page 5 Vax V-023 D6 mm.qxd 9/8/05 10:34 AM Page 5 Use & Function Continue wrapping the hose clockwise around Slide the upholstery attachment into the middle the tool caddies, pressing the hose into the slot of the lower tool caddy (Fig.3/8).

  • Page 6: Preparing The Carpet

    HELPFUL HINTS FOR CLEANING CARPET: Only use Vax AAA Carpet Cleaner with this carpet washer. Do not oversaturate carpet with cleaning solution while using the carpet washer.

  • Page 7: Attachment Usage

    10:34 AM Page 7 How to Operate/Accessories NOTE: Use only Vax AAA Carpet Cleaner solution. Connect the hose solution tube into the fitting on Using other cleaning solutions may cause excess the lower left side of handle facing carpet washer foaming.
  • Page 8 Cleaner. Other solutions may generate excessive foam which will cause the float to rise prematurely and shut off the suction. Use four (4) capfuls of Vax AAA Carpet Cleaner per fill up of the clean water tank. A higher concentration of carpet cleaner may cause excessive foaming.
  • Page 9 Vax V-023 D6 mm.qxd 9/8/05 10:34 AM Page 9 Emptying & Cleaning the Dirty Water Tank & Filter/Storage Rinse dirty water tank and filter with lukewarm (max 40ºC) water. Wipe and let dry thoroughly before storing to prevent mildew from forming.

  • Page 10: Carry Handle

    Vax V-023 D6 mm.qxd 9/8/05 10:34 AM Page 10 Storage/Brush Removal & Replacement To remove the brush access cover, use a Phillips Carry Handle screwdriver to remove the two (2) screws Grasp the handle on the back of the washer to move (Fig.9/2).
  • Page 11 Vax V-023 D6 mm.qxd 9/8/05 10:34 AM Page 11 Brush Removal & Replacement Replace the brush access cover by inserting the end furthest from the brush first. Then replace the front end before securing in place with the two (2) screws (Fig.9/5).

  • Page 12: Troubleshooting

    Cause: The clean water tank is not installed properly. Solution: Review How to Operate. Cause: The carpet washer needs a service. Solution: Take it to service centre or contact Vax Careline. PROBLEM: Carpet washer attachments won’t pick up Cause: The hose is clogged.

  • Page 13: Technical Specification

    600W An answerphone is available out of these hours. Clean water tank volume: 3.5 litres Any queries or concerns about using the Vax, call Dirty water tank volume: 2.5 litres the Vax Careline. Calls are charged at the UK Filter system: Foam block national rate.
  • Page 14 Vax V-023 D6 mm.qxd 9/8/05 10:34 AM Page 14 This page has been left intentionally blank.
  • Page 15 Vax V-023 D6 mm.qxd 9/8/05 10:34 AM Page 15 This page has been left intentionally blank.
  • Page 16 10:34 AM Page 16 EEC STATEMENT OF COMPLIANCE Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the product V-023 Rapide Supreme is manufactured in compliance with the following Directives: Safety: 73/23/EEC Low Voltage Directive EMC: 89/336/EEC Electromagnetic Compatibility Directive Waste electrical products should not be disposed of with household waste.
