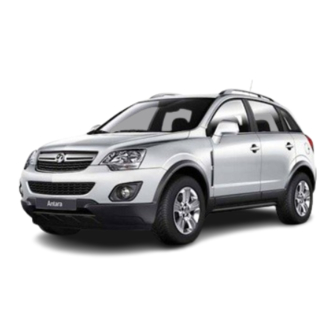

Vauxhall Antara Quick Reference Manual

Vehicle features
Manual transmission: Automatic transmission, Automatic transmission,
R = Reverse Automatic mode: Manual mode:
With the vehicle stationary, wait P = Park Move selector lever from D to the
3 seconds after depressing clutch R = Reverse left.
pedal and engage the gear. N = Neutral +
= Higher gear
D = Drive -
If the gear does not engage, set = Lower gear
lever to neutral, release the clutch The selector lever can only be
If a higher gear is selected when
pedal and depress again; then moved out of P or N when the
vehicle speed is too low, or a lower
repeat gear selection. ignition is on and the foot brake is
gear when vehicle speed is too
applied.
Do not grind the clutch high, the shift is not executed.
unnecessarily. To engage P or R, push the release
The selected gears 1 - 6 in manual
button on the selector lever.
When operating, depress clutch mode are displayed in the
pedal fully. Do not use the pedal as The selected mode, P, R, N or D is transmission display.
a foot rest. displayed in the transmission
display.
Automatic transmission, Starting the engine: Stop-start system:
Fuel economy mode: Turn key to position ACC When conditions allow, the system
In automatic mode, press switches off the engine to save fuel
s Move steering wheel slightly to
button; control indicator s release steering wheel lock and reduce emission levels if the
illuminates in the instrument Manual transmission in neutral vehicle is at a low speed or at a
cluster. with brake and clutch depressed standstill, e.g. at traffic lights or in a
traffic jam. It starts the engine as
Automatic transmission in P or N
The fuel economy mode allows the
with brake pedal depressed soon as the clutch is depressed.
transmission to adapt gearshift
Do not accelerate
patterns, improving the vehicle's To activate an Autostop:
fuel economy. Diesel engines: turn key to ON Depress clutch pedal
for preheating and wait for
Shift to neutral
control indicator ! to
Release the clutch pedal
extinguish
Turn key to START and release The needle points to AUTOSTOP in
the tachometer.
To restart engine, depress clutch
pedal again.
Vehicle features
Unlocking and opening the Closing and locking the tailgate: Opening the bonnet:
tailgate: Use the interior handle on the To open bonnet, pull release lever
/
Press button q on the remote underside of the tailgate to assist located below instrument
control. The vehicle cannot be when closing. Close the tailgate by panel on driver's side.
locked/unlocked with remote pushing it down so it latches
The bonnet will then be unlocked
control while key is in ignition securely.
and will partially open. Return
switch.
Press button p on the remote release lever to its original position.
With the engine running, the control to lock the tailgate and the
Do not pull release lever while the
tailgate will only unlock when the doors, or press central locking
vehicle is moving.
m
electrical parking brake is applied switch in the driver's door.
or automatic transmission is in
position P.
To open the tailgate, operate the
button above the number plate
and lift the tailgate.
To open completely, locate safety Electrical parking brake: Refuelling:
catch found slightly left of centre Pull switch J, parking brake Before refuelling, switch off engine
on underside of bonnet. Push catch operates automatically with and any external heaters with
upwards and lift bonnet gently. adequate force. For maximum combustion chambers (identified
The bonnet is held open force, e.g. when parking with trailer by sticker on fuel filler flap). Switch
automatically. attached or on inclines, pull switch off mobile phones. Fuel filler flap is
J twice. located at left rear side of vehicle.
To close bonnet, lower it gradually
and allow it to fall into the catch The parking brake can always be The fuel filler flap can only be
under its own weight. activated, even if the ignition is off. opened if the vehicle is unlocked.
Push fuel filler flap to release.
Before leaving the vehicle, check
Unscrew filler cap anticlockwise
parking brake status.
and retain cap in the bracket on
To release, switch on ignition, keep
the filler flap. Wipe off any
brake pedal depressed and push
overflowing fuel immediately.
switch J.
Petrol engines - use unleaded fuel
Drive away function
that complies with DIN EN 228.
Selecting a gear or engaging drive
Diesel engines - use diesel fuel that
gear (automatic transmission) and
complies with DIN EN 590.
then depressing the accelerator
Fuel tank capacity - 65 litres.
pedal releases electrical parking
brake.
Vehicle features
Engine oil:
S
When the ignition is switched on, control indicator will illuminate briefly. If the control indicator
illuminates continuously or whilst driving, the engine oil needs topping up immediately.
However, check engine oil level manually on a regular basis, to prevent damage to the engine. Ensure that the
correct specification of oil is used.
Check the oil with vehicle on a level surface. Engine must be at operating temperature and switched off for at
least 5 minutes.
Pull out dipstick, wipe clean, insert to stop on the handle, pull out and read engine oil level. Insert dipstick to
stop on handle and make half a turn.
Caution:
It is the owner's responsibility to maintain the correct level of an appropriate quality oil in the engine.
Tyre pressure:
Check tyre pressures, including the spare, every 14 days and prior to any long journey; tyres should be
checked when cold. This also applies to vehicles with tyre pressure monitoring system.
Always inflate the spare tyre to the value specified for full load.
Incorrect tyre pressures will impair safety, vehicle handling, comfort and fuel economy and will increase tyre
wear.
Tyre pressure (psi) Tyre pressure (psi) Tyre pressure (psi)
1)
Setting up to full load ECO setting up to full load Setting for trailer towing
Engine Tyres Front Rear Engine Tyres Front Rear Engine Tyres
2) 2)
A24 XF 215/70 R16 , 35 35 A24 XF 215/70 R16 , 38 38 A24 XF 215/70 R16
235/60 R17, 235/60 R17,
235/60 R17,
235/65 R17, 235/65 R17, 235/65 R17,
235/55 R18, 235/55 R18,
235/55 R18,
235/50 R19 235/50 R19 235/50 R19
2) 2)
A30 XF 215/70 R16 , 35 35 A30 XF 215/70 R16 , 38 38 A30 XF 215/70 R16
235/60 R17, 235/60 R17, 235/60 R17,
235/65 R17, 235/65 R17, 235/65 R17,
235/55 R18, 235/55 R18,
235/55 R18,
235/50 R19 235/50 R19 235/50 R19
2)
A22 DM 215/70 R16 , 35 35 A22 DM 2) A22 DM 215/70 R16
215/70 R16 , 38 38
235/60 R17, 235/60 R17, 235/60 R17,
235/65 R17, 235/65 R17,
235/65 R17,
235/55 R18, 235/55 R18, 235/55 R18,
235/50 R19 235/50 R19
235/50 R19
A22 DMH 215/70 R16 2) , 35 35 2) A22 DMH 215/70 R16
A22 DMH 215/70 R16 , 38 38
235/60 R17, 235/60 R17, 235/60 R17,
235/65 R17, 235/65 R17,
235/65 R17,
235/55 R18, 235/55 R18, 235/55 R18,
235/50 R19 235/50 R19
235/50 R19
3)
All Temporary spare 60 60 All Temporary spare - - All Temporary spare
1)
The ECO tyre pressure serves to achieve
the smallest amount of fuel consumption
possible.
2)
Winter tyres.
3)
Temporary spare wheel not to be used
with ECO tyres.
*KTA-2719-1*
Antara
Quick Reference Guide
S
Refer to Owner's Manual for detailed information. Depending on the model variant, special equipment
Illustrations may depict left-hand drive vehicles. and accessories, the scope of equipment on your
Operation is similar for right-hand drive vehicles. vehicle may differ from the descriptions in this guide.
Front Rear
2)
, 35 41
1. Side air vents 9. Centre air vents
2. Fixed air vents
10. Hazard warning flashers,
3. Turn & lane change signals, Stop-start system, Descent
headlight flash, low beam, Control System, Electronic
2)
, 35 41
high beam, exit lighting, Stability Control, parking assist,
parking lights, cruise control anti-theft alarm system LED,
4. Steering wheel controls folding exterior mirrors
5. Horn 11. Infotainment system
2) 6. Instruments
, 35 41 12. Front passenger airbag
7. Wiper and washer systems 13. Front passenger airbag system
8. Info-display for Infotainment, LED's, front passenger seat belt
tyre pressure monitoring, trip control indicator
computer, check control 14. Glovebox
2) , 35 41
Vehicle security
60 60
Unlocking: Locking:
Press button q on remote control Press button p on remote control
or, to lock from inside, close doors
or, to unlock from inside, press right
m
part of switch in driver's door. and tailgate and press left part of
m
The doors, tailgate and fuel filler switch in driver's door.
flap are unlocked. The doors, tailgate and fuel filler
flap are locked.
TS 1701-A-12 / KTA 2719-1
15. Fuse box
16. Climate control system
17. Ignition switch with
steering wheel lock
18. Accelerator pedal
19. Driver airbag
20. Brake pedal
21. Clutch pedal
22. Steering wheel adjustment
23. Bonnet release lever
24. Coin storage
25. Card holder
26. Light switch
Always ensure the doors, bonnet,
tailgate, sunroof, fuel filler flap and
windows are properly closed and
that no passengers are left in the
vehicle when locking with the
remote control and activating the
anti-theft locking system.
Press button p on remote control
twice within 3 seconds to activate
anti-theft locking system.
The lock buttons on all doors are
positioned such that the doors
cannot be opened. Therefore, do
not use this system if there
are people in the vehicle, as the
doors cannot be unlocked from
inside.
February 2012
