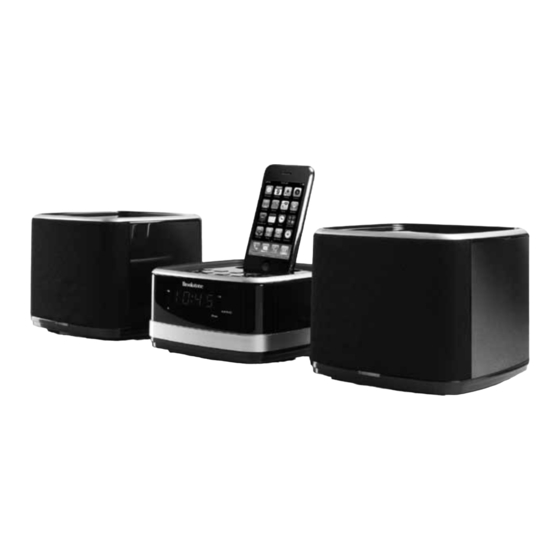

Brookstone Stack User Manual

Versatile stereo for small spaces
Hide thumbs
Table of Contents

Advertisement

Quick Links

Stack
VerSatIle StereO fOr SMall SPaceS

Advertisement

Table of Contents
loading

Related Manuals for Brookstone Stack

Summary of Contents for Brookstone Stack

  • Page 1 Stack VerSatIle StereO fOr SMall SPaceS...

  • Page 2: Table Of Contents

    Table of conTenTs Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Location of Parts and Controls .
  • Page 3 Warning To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture . CAUTION—TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR baCK) . NO USER-SERVICEabLE PaRTS INSIDE . REFER TO QUaLIFIED SERVICE PERSONNEL .

  • Page 4: Important Safety Instructions

    iMPorTanT safeTY insTrUcTions all of the safety and operating instructions should be read, adhered to and followed before the unit is operated . Read these instructions . 2 . Keep these instructions . 3 . Heed all warnings . 4 . Follow all instructions . 5 .
  • Page 5 Portable cart Warning 13 . Unplug this apparatus during lightning storms or when unused for long periods of time . 14 . Refer all servicing to qualified service personnel . Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped .
  • Page 6 caUTion • The apparatus should not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, should be placed on the apparatus . • The main plug is used to disconnect the device if you do not want the unit to remain readily operable .
  • Page 7 fcc inforMaTon This equipment has been tested and found to comply with the limits for a Class b Digital Device, pursuant to Part 15 of the FCC Rules . These limits are designed to provide reasonable protection against harmful interference in a residential installation . This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications .

  • Page 8: Location Of Parts And Controls

    locaTion of ParTs and conTrols (TOP) iPhone /iPod Device ® ® Docking Station 2 . iPhone/iPod Device Docking Connector 3 . iPod/iPhone Device Play/Pause button 4 . alarm button 5 . Preset button 6 . Standby/Function button 7 . Time & alarm Hour/Radio Frequency/back &...

  • Page 9: Location Of Parts And Controls

    locaTion of ParTs and conTrols (SPEaKER & FRONT) LED Display FM Radio Frequency MHz LED Indicator 2 . aM/PM Indicator 8 . Speaker Front 3 . alarm aL Indicator 9 . Speaker LED 4 . FM Radio Mode LED Indicator 10 .
  • Page 10 locaTion of ParTs and conTrols (baCK) Left/Right Speaker Sockets 6 . RCa Video Jack 2 . Speaker Socket Cover Screw DC-In Jack 3 . Reset button 8 . FM antenna Wire 4 . aUX-In Jack 5 . back-Up battery Compartment 2 3 4 5...
  • Page 11 locaTion of ParTs and conTrols (REMOTE) Infrared Transmitter 2 . STaNDbY/ON button 3 . FUNC button 4 . MODE button 5 . VOL +/- buttons 6 . MUTE button aLaRM ON/OFF button 8 . SLEEP button 9 . EQ button 10 .

  • Page 12: Operation

    2 . Plug the adapter into an electrical outlet . DOckINg yOur iPod/iPhone DeVIce Use the dock insert that came with the device you are using with Stack or choose the one which fits your device from the selection included with...

  • Page 13: Compatibility

    2 . Insert the 30-PIN CONNECTOR on the MaIN UNIT into your iPod/iPhone device, making sure the device is seated securely . 3 . Your iPod/iPhone device will begin to charge, or, if Stack is powered on, your device will begin to play .
  • Page 14 3 . To manually tune to a desired station, repeatedly press the buttons on the Stack or the TUn +/TUn - buttons on the remote . 4 . To automatically search for stations with strong signals, press and hold the or the TUn +/TUn - buttons until the frequency digits on the display begin to scan, then release the button .
  • Page 15 2 . Tune to the radio station you want to store in memory by repeatedly pressing the buttons on the Stack or the TUn +/TUn - buttons on the remote . button on the Stack or the MeM button on the remote .
  • Page 16 4 . Press the button to pause or resume iPhone/iPod playback . 5 . adjust the sound level by pressing the +/- buttons on Stack or the Vol +/Vol- buttons on the remote . Note: the volume level cannot be adjusted using the volume control on your iPhone/iPod device while it is docked on the Stack.
  • Page 17 1 . Securely dock your iPhone/iPod device . 2 . Connect one end of a RCa cable (not included) to the rear RCa Video Jack on Stack . 3 . Connect the other end of the RCa cable to VIDEO-IN of the television or video display on which you wish to watch the video and turn the unit on .
  • Page 18 To remove the iPhone/iPod device from the unit, press the button on the Stack or the button on the remote for three seconds to power off the Stack and then gently remove your device from the docking connector by pulling it straight up off the 30-PIN CONNECTOR .
  • Page 19 Stack or the button on the remote for three seconds to power off the Stack when you finish listening . Don't forget that you need to manually power off your external device as well . PreseT eQ seTTings The unit provides 5 preset EQ settings for your selection in either radio, aUX or iPhone/iPod mode .
  • Page 20 3 . Press the +/- buttons on the Stack or the Vol +/Vol - buttons on the remote to select loudness On/Off . 4 . Stack will take a few seconds to save your choice and exit the setting mode . seTTing The fUncTions Important: Stack must be Off to set the following functions.
  • Page 21 3 . Press the remote to scroll through and set the alarm hour . 4 . Press the +/- buttons on Stack or the Vol +/Vol — on the remote to scroll through and set the alarm minute . Note: Press and hold any of the buttons mentioned in steps 2 and 3 above to scroll through the numbers forward or backward quickly.
  • Page 22 2 . Press the +/- buttons on Stack or the Vol +/Vol — on the remote to select alarm source buzzer, FM radio or iPhone/iPod . • To select wake to FM radio, the FM radio LED indicator will illuminate .
  • Page 23 6 . To stop the alarm immediately after the buzzer sounds, press the button on Stack or the alarM on/off button . It will then reset itself for the following day . Wake tO raDIO Or iPhone/iPod DeVIce When the alarm time is reached, the selected alarm source Radio or iPhone/iPod will automatically turn on .

  • Page 24: Sleep Timer

    (00, 15, 30, 45, 60 or 90 minutes) . The LED display shows the sleep time; e . g . , “SL 15” if 15 minutes is selected . Stack plays for the selected length of time, then automatically turns off .
  • Page 25 Stack . • Unplug and then reconnect the aC power plug into the wall outlet . • Use a straightened paper clip, toothpick or similar objects to press the reseT button located at the rear of the main unit .

  • Page 26: Troubleshooting

    The remote’s batteries are low . Replace the remote’s batteries . Docked iPod player will not play Movies/videos can only be viewed using a movies/videos on its screen TV when the iPod player is attached to Stack . while attached to Stack .
  • Page 27 . Cannot access In order to view camera videos on a “Camera Videos” 5th gen iPod nano on your TV using Stack, on 5th gen iPod nano your camera videos must be manually ®...
  • Page 28 TroUbleshooTing (CONTINUED) ISSue SOlutION Confirm video cable is connected Movie is not displaying on TV . to the correct jacks on the speaker . Confirm correct Video Out cable type is selected under “iPod Settings . ” Confirm correct TV signal type is selected under “iPod Settings .

  • Page 29: Specifications

    sPecificaTions Power adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Input aC 100V-240V~50/60Hz Output DC 8V/2500ma Power Supply for the Unit .

  • Page 30: Warranty

    (“Warranty Period”) . If a defect arises and a valid claim is received within the Warranty Period, at its option, brookstone will either 1) repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a new product that is at least functionally equivalent to the original product, or 3) provide a store credit in the amount of the purchase price of the original product .
  • Page 31 “as is . ” This warranty does not apply to: a) damage caused by failure to follow instructions relating to product’s use or the installation of components; b) damage caused by accident, abuse, misuse, fire, floods, earthquake or other external causes;...
  • Page 32 Merrimack, New Hampshire USA 03054 • 800-846-3000 • www.Brookstone.com 649210...
