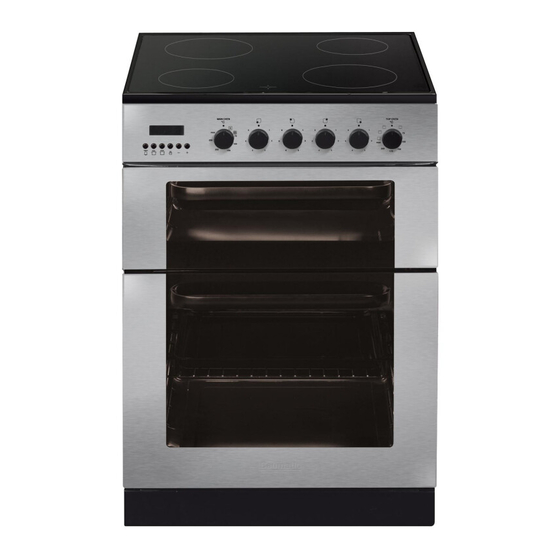

- Page 1 BCE625-SS/W/BL/R/IV 60 cm Twin cavity electric slot-in cooker...
- Page 2 User Manual for your Baumatic BCE625-SS/W/BL/R/IV 60 cm Twin cavity electric slot-in cooker with ceramic top NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Removing the oven door for cleaning Installation 27 - 32 Positioning 27 - 29 Safety chain anchors Securing the safety chains Electrical connection Connecting the main supply cable 31 - 32 My appliance isn’t working correctly 32 - 34 Baumatic consumables Contact details... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
Important safety information Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this ooklet, please contact the Baumatic Advice Line. - Page 6 Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will become hot. o If it is necessary for younger family members to be in the...
- Page 7 o Do not store chemicals, food stuffs, pressurised containers in or on the cooker or in cabinets immediately above or next to the cooker. o Do not heat up unopened food containers, as pressure can build up which may cause the container to burst. o Do not place flammable or plastic items on or near the hob burners, these types of materials should also not be placed in the oven or the compartment below the oven.
- Page 8 Please see the specific section of this booklet that refers to installation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 9: Specifications
pecificatio Product ensions: Height: 900 - 920 mm Width: 600 mm Depth: 600 mm Product specifications: o 4 zone ceramic hob: o 2 x 1.20 kW radiant zone (diameter 145 mm) o 2 x 1.80 kW radiant zone (diameter 1 80 mm) o 4 Individual residual heat indicators o Main (bottom cavity) fan oven... -
Page 10: Standard Accessories
Standard accessories: o 2 x Shelves o 2 x Ename lled baking tray with handle o 1 x Trivet lectrical details Rated Voltage: 220 - 240 Vac 50 Hz Supply Connection: 45A (double pole switched f used outlet with 3mm contact gap) Max Rated Inputs: 10.00 kW Mains Supply Lead... -
Page 11: Control Panel
ontrol Panel Control panel Thermostat control knob (main oven) this control knob control temperature in the main oven. o If you position the dial on the first icon clockwise, will select defrost function. Thermostat control knob (top oven & grill) Use this control knob to sel ect the oven function or grill in the top oven. -
Page 12: Oven Timer
ven timer 1) Minute minder bu tton 2) Duration button 3) End cook button 4) Manual operat ion button 5) Minus button 6) Plus button 7) Auto function symbol 8) Minute minder symbol 9) Manual operation sym 10) Oven in use symbol etting and using the oven programmer/timer Selecting manual operation mode After your appliance is connected to your mains supply for the first... -
Page 13: Setting The Time Of Day
etting the time of day After setting your oven for manual operation, you should also set the e of day. o After pressing the manual operation button (4), use the minus button (5) and plus button (6) to adjust the time that appears in the display. -
Page 14: Setting The Minute Minder Function
etting the minute minder function You are able to set the minute minder at any time, regardless of whether an oven function has been selected. You can set a period of time using the minute minder fu nction and an alarm will sound when hat peri od of time has elapsed. - Page 15 o It is then po ssible to set the duration of the cooking time that you require. o Press the duration button (2) and the display will show a value of 00:00. Set the period of time that you wish the duration function to countdown for, by using the minus (5) and plus (6) buttons.
-
Page 16: Setting The Start/End Time Function (Main Oven Only)
Setting the start and end time function (main oven only) This function will allow you to set a time in the future that the oven switches on at and a time that the oven will switch off at. Use the main oven control knob to select the mode of cooking that you require. -
Page 17: Changing The Cooking Time
o You will need to return the oven to manual operation mode, once the start and end t ime function has been used. To do this you should press the manual operation button, the auto function symbol will disappear from the display and the manual operation symbol will appear instead. -
Page 18: Adjusting The Display Brightness
Selecting a cooking function and temperature After your appliance is connected to your mains supply for the irst time, the numbers on the timer display will flash. Before you select a cooking function you should set the time of day (see pages 12-13 for how to do this). -
Page 19: Using The Top Oven And Grill
Using the top oven o The control knob should be turned clockwise used select conventional oven function temperature that you requ o You should continue turning the control knob clockwise to select the lower element, top element and grill function. These functions are static therefore the temperature cannot be adjusted. -
Page 20: Temperature Indicator Lights
Temperature indicator lights hese lights will come on to indicate that the heating elements are in operation. The relevant light, displayed above the control knobs, will switch off when the temperature set on the thermostat control knob has be en reached. It will cycle on and off throughout the cooking time. You sho uld not place food inside the cavity, until the correct cooking temperature has been reached. -
Page 21: Using The Hob Top
o The grill heating element becomes extremely hot during operation, avoid touching it inadvertently when handling the food which you are grilling. o The tray handle should only be used to reposition the drip tra y and NOT for removing it from the oven cavity. -
Page 22: Residual Heat Indicator
Residual heat indicator o After a zone is switched off, the corresponding cooking zone indicator will show a flashing letter “H”. This means that the temperature of the zone is over 60°C and is therefore high enough to cause injury. IMPORTANT: The residual heat indicator will disappear if your mains supply is cut. -
Page 23: Cleaning And Maintenance
DO NOT USE THE HOB IF TH E SURFACE BECOMES BROKEN CRACKED. SHOULD CONTACT BAUMATIC SERVICE EPARTMENT IMMEDIATELY. Cleaning a d maintenance Cleaning operations must only be carried out when the oven is cool. -
Page 24: Cleaning The Ceramic Hob Top
Any damage that is cause d to the appliance by a cleaning roduct will not be fixed by Baumatic free of charge, even if the appliance is within the guarantee period. Cleaning the ceramic hob top Any residues that are left on the hob top surface from clean agents will damage it. -
Page 25: Cleaning Table
leaning table Type of deposit Remo ve w What should I use imme diat ely? the a pplia to remove the has cooled deposit? down? ugar or food/liquid Ceramic hob scraper ntaining suga Tin foil or plastic Ceramic hob scraper Fat splashes Ceramic hob cleaner Metallic... -
Page 26: Removing The Oven Door For Cleaning
ving the oven door for cleaning o facilitate the cleaning of the inside of the cooker and the outer frame of the oven, the door can be removed as follows:- o The hinges (A) have two movable bolts on them (B). o If you raise both of the movable bolts (B), then the hinges (A) are released from the oven housing. -
Page 27: Installation
Install tion The installation must be carried out by a suitably qualified person, in accordance with the current version of the following. o UK Regulations and Safety Standards or their European Norm Replacements. o Building Regulations (issued by the Department of the Environment). - Page 28 (including the burners). o Baumatic do not recommend that the cooker is positioned below wall cupboards, as the heat and steam from the appliance and what is being cooked, may damage the cupboard and its contents.
-
Page 29: Safety Chain Anchors
o The cooker is fitted with four feet that can be adjusted to match height your kitchen cabinets. o If the cooker is not level or is unstable due to an uneven floor surface, use the adjustable feet to alter each corner until the cooker is level. -
Page 30: Securing The Safety Chains
Securing the safety chains o Before securing the safety chains, check that you have completed the installation process and that all connections have been made successfully and that the cooker is in its final operating position. o To fix the security chains to their anchor brackets: Unscrew the hex nut at the unattached end of the safety chain. -
Page 31: Electrical Connection
Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. -
Page 32: My Appliance Isn't Working Correctly
o Release the cover plate by removing the cover screw. o Loosen the cable clamp. o Feed the mains connection cable through the grommet in the back panel and cable clamp. Connect the mains supply cable to the terminal block on the cooker using the colour code on the previous page. - Page 33 o My food is not cooking properly * Ensure that you are selecting the correct temperature and the correct cooking function for the food that you are cooking. It may be appropriate to adjust your cooking temperature by plus or minus 10°C, to achieve the best cooking results. o My food is not cooking evenly * Check that the oven has been installed correctly and is level.
- Page 34 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
-
Page 35: Baumatic Consumables
BC005 Stainless Steel Cleaner and Protector (250 ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk... -
Page 39: Contact Details
