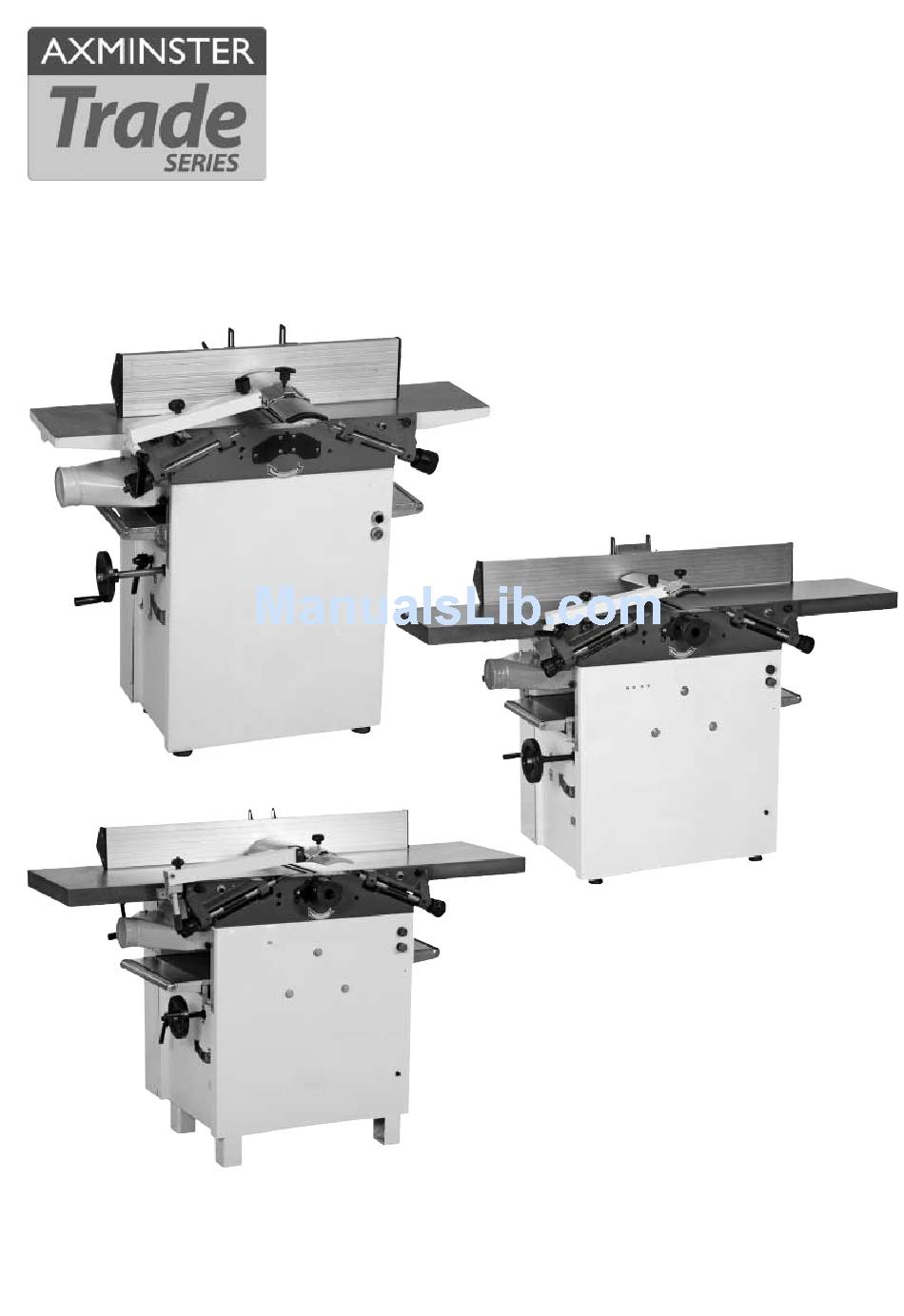

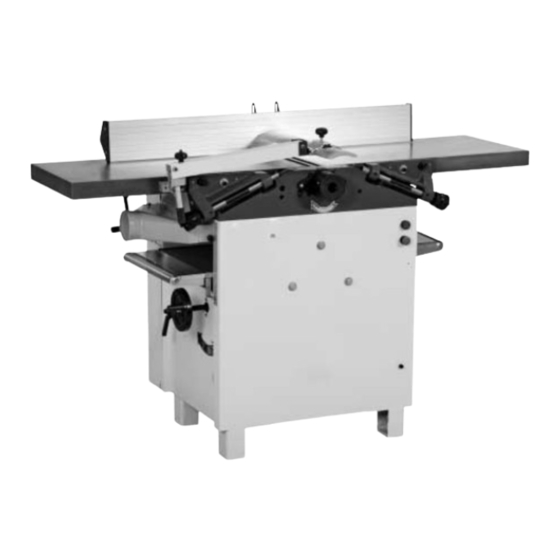

- Page 1 Code: 501202 Code: 501203 Code: 501204 AW106PT2 AW128PT & AW168PT Planer/Thicknesser 501202 (AW106PT2) 501203 (AW128PT) 501204 (AW168PT) Axminster Tool Centre, Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH axminster.co.uk...
-
Page 2: Table Of Contents
Machine Illustration and Parts Description 08-09-10-11 Operating Illustrations 12-13 Changing the Planer Blades 14-15-16 Routine Maintenance 17-18-19 Parts List/Drawing 1 (AW106PT2) 20-21 Parts List/Drawing 2 (AW106PT2) 22-23 Parts List/Drawing 3 (AW106PT2) 24-25 Parts List/Drawing 4 (AW106PT2) Parts List/Drawing 1 (AW128PT-AW168PT) -
Page 3: What's Included
What’s Included Model Numbers: ML392-ML393 (501202 & 501203) ML394Q/C2-410Q (501204) 1 No. AW106PT2 / AW128PT / AW168PT Planer Thicknesser (95% assembled) 1 No. Planer Fence 1 No. Planer Fence Mounting Base 1 No. Fence Securing Bracket 1 No. Overhand Planer Guard Mounting Bracket 1 No. -
Page 4: General Instructions For 230V Machines
General Instructions for 230V Machines Keep the work area as uncluttered as is sweatband, will minimise the possibility of your hair being caught up in the rotating parts of the machine, practical, this includes personnel as well as material. Under no circumstances should likewise, consideration should be given to the removal of rings and wristwatches, if these are liable to be a CHILDREN be allowed in work areas. -
Page 5: Specific Precautions Using Planer Thicknessers
Turn the dust extraction hood finish you will be applying to the surface when you up and over the block. select your cleaning/lubrication agent. Connect the dust extraction. Ensure the hose will not Specifications Model AW106PT2 AW128PT AW168PT Product Code 501202 501203 501204... -
Page 6: Initial Assembly And Setting Up
2 No. small ‘eye’ bolts. These screw into the top part of the Your AW106PT2, AW128PT and AW168PT offers the machine casting (as shown in fig 1.) and can be used facility of your being able to plane right or left to hoist the machine clear of the pallet. -
Page 7: Initial Assembly And Setting Up
Planer fence base Typ. 2 handled clamp nuts Fig 3 Fence mounting bracket Fence securing clamp NOTE: The pictures in this manual show the AW106PT2, the AW128PT & AW168PT is exactly the same but on a larger scale. - Page 8 Machine Illustration and Parts Description Fig 4 Cutter block guard clamp Mounting arm height adjustor Cutter block knob guard angle adjustor Spring metal plate Infeed table Outfeed table Infeed table adjustor Table extension Start/Stop switches Overhand cutter guard mounting Thicknessing table rise and fall control Thicknessing...
- Page 9 Machine Illustration and Parts Description Cutter block Cutter block guard clamp Cutter block guard angle Fence securing adjustor clamp Fence assembly Mounting arm height adjustor knob Cutter block Fig 5 guard Main chassis Outfeed table lock Start/Stop switches Cutter block guard mounting arm lock handle Autofeed...
- Page 10 Machine Illustration and Parts Description Cutter block guard angle Mounting arm Cutter block adjustor height adjustor guard clamp Fig 6 knob Cutter block guard Infeed table adjustor mounting arm lock handle Infeed scale for overhand Infeed table lock Fig 7a Fig 7 Infeed table adjustor...
- Page 11 Machine Illustration and Parts Description Fig 8 Limiting bar for Rise and fall material removal scale Anti-kick back fingers Infeed table Fig 9 lock Infeed table Outfeed table lock Table lock stud Table position studs Outfeed Outfeed table Thicknessing adjustor...
-
Page 12: Operating Illustrations
Operating Illustrations Fig 10 Planing narrow pieces of wood Fig 11 Planing with the fence inclined... -
Page 13: Operating Illustrations
Operating Illustrations Fig 12 Planing short pieces of wood using a pressure pad Fig 13 Planing using a push stick to carry the timber safely over the cutter block... - Page 14 Changing the Planer Blades MAKE SURE THAT THE MACHINE IS DISCONNECTED FROM THE POWER SUPPLY! Overview The planer blades are mounted into 3 slot housings will accept blades 250mm x 3mm x 30mm. After machined in the cutter block.The slot housing sharpening, the blades will reduce over their height comprises of a slot cut on a radial axis with a reverse dimension, but the blades can be safely used until...
- Page 15 Changing the Planing Blades Changing the Blades Locate the 5.5mm x 7mm A/F spanner in the tool kit. and wedge the cutter block to maintain it in position. Turn the cutter block until one of the slots is Set the springs into the holes in the bottom of the uppermost, (between the tables).
- Page 16 Changing the Planing Blades Fig 16 5.5mm x 7mm A/F spanner Blade setting tool Fig 17 Locating feet on the Cutter block The blade cutting block...
-
Page 17: Routine Maintenance
Routine Maintenance DISCONNECT THE PLANER THICKNESSER FROM THE MAINS SUPPLY. Your AW106PT2, AW128PT, AW168PT requires minimum maintenance, but it is essential that it is carried out to ensure the longevity and correct function of the machine. Daily Check the infeed and take off pressure rollers are not clogged, clean as necessary. - Page 18 Routine Maintenance Drive belt pulley Drive chain Bearing Fig 18 Table position studs Table lock stud Autofeed engage Drive belt and---- disengage control Motor Motor pulley...
- Page 19 Routine Maintenance OIL POINTS Fig 19 Light coat of oil on bearing Light coat of oil on the chain...
-
Page 20: Parts List/Drawing 1 (Aw106Pt2)
Parts List/Drawing 1 (AW106PT2) -
Page 21: Parts List/Drawing 1 (Aw106Pt2)
Parts List/Drawing 1 (AW106PT2) -
Page 22: Parts List/Drawing 2 (Aw106Pt2)
Parts List/Drawing 2 (AW106PT2) -
Page 23: Parts List/Drawing 2 (Aw106Pt2)
Parts List/Drawing 2 (AW106PT2) -
Page 24: Parts List/Drawing 3 (Aw106Pt2)
Parts List/Drawing 3 (AW106PT2) -
Page 25: Parts List/Drawing 3 (Aw106Pt2)
Parts List/Drawing 3 (AW106PT2) -
Page 26: Parts List/Drawing 4 (Aw106Pt2)
Parts List/Drawing 4 (AW106PT2) -
Page 27: Parts List/Drawing 1 (Aw128Pt-Aw168Pt)
Parts List/Drawing 1 (AW128PT-AW168PT) -
Page 28: Parts List/Drawing 1 (Aw128Pt-Aw168Pt)
Parts List/Drawing 1 (AW128PT-AW168PT) -
Page 29: Parts List/Drawing 2 (Aw128Pt-Aw168Pt)
Parts List/Drawing 2 (AW128PT-AW168PT) -
Page 30: Parts List/Drawing 2 (Aw128Pt-Aw168Pt)
Parts List/Drawing 2 (AW128PT-AW168PT) -
Page 31: Parts List/Drawing 3 (Aw128Pt-Aw168Pt)
Parts List/Drawing 3 (AW128PT-AW168PT) -
Page 32: Parts List/Drawing 3 (Aw128Pt-Aw168Pt)
Parts List/Drawing 3 (AW128PT-AW168PT) -
Page 33: Parts List/Drawing 4 (Aw128Pt-Aw168Pt)
Parts List/Drawing 4 (AW128PT-AW168PT) -
Page 34: Notes
Notes... -
Page 35: Notes
Notes... - Page 36 Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to protect the environment, take the packaging to the local recycling centre and place into the appropriate recycling bin. Only for EU countries Do not dispose of electric tools together with household waste material.
