Illustration And Parts Description Of Air Compressor - Axminster AWC20HP User Manual

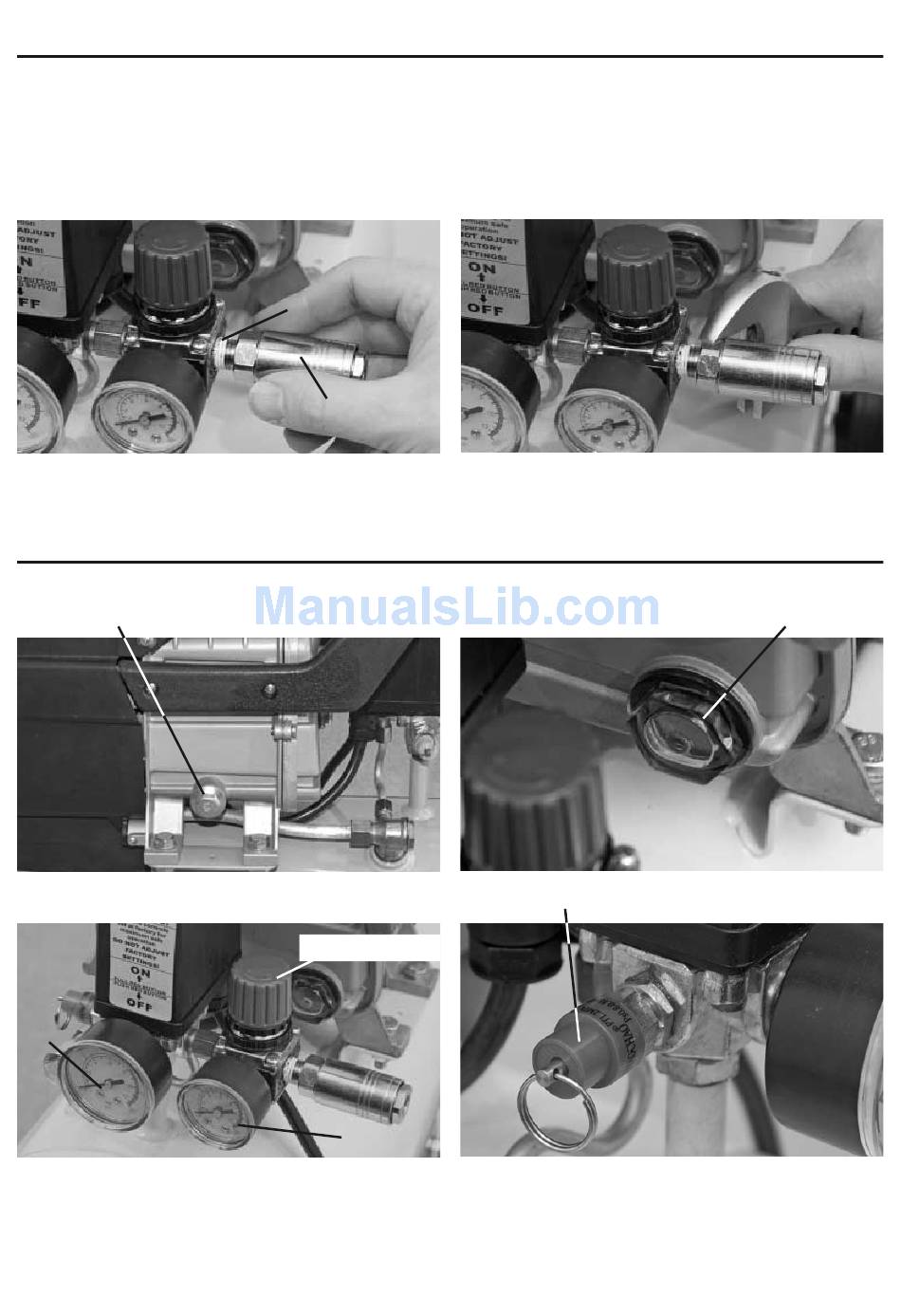

Assembly Instructions
Fitting the quick release coupling
Wrap some PTFE tape (A) around the thread on the 1/4" BSP male coupling (B) and screw it into the pressure
regulator outlet, lightly tighten using a spanner. (DO NOT OVERTIGHTEN) The compressor is now ready for use.
A
B

Illustration and Parts Description of Air Compressor

Oil drain plug
Oil level indicator
Tank pressure gauge (A) & Outlet pressure gauge (B)
Pressure relief valve
Pressure adjuster
A
B
