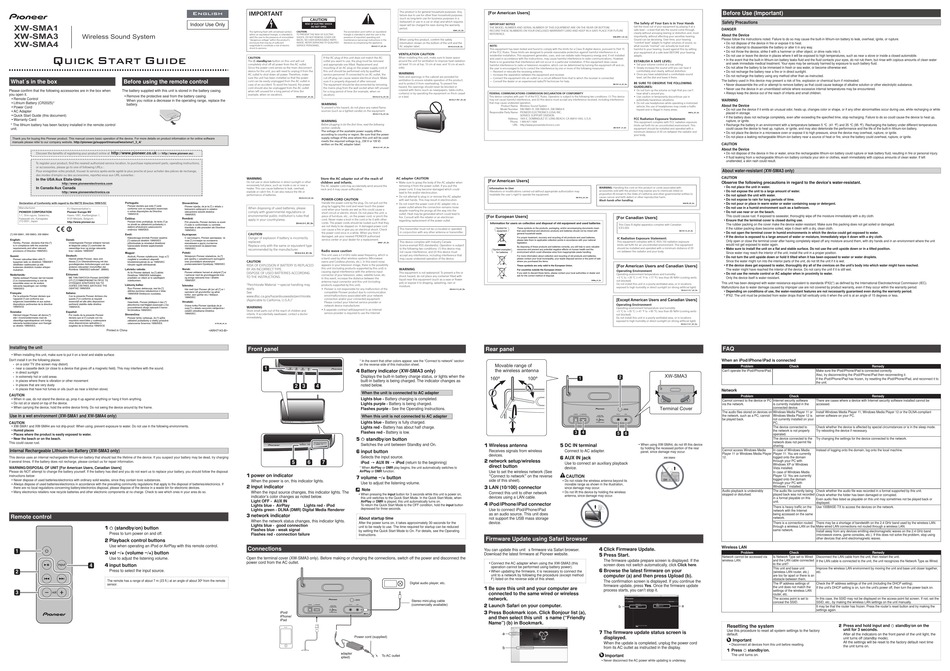

Pioneer XW-SMA1 Quick Start Manual

XW-SMA1
XW-SMA3
XW-SMA4
Quick Start Guide
What´s in the box Before using the remote control
Please confi rm that the following accessories are in the box when The battery supplied with this unit is stored in the battery casing.
you open it.
Remove the protective seal from the battery casing.
Remote Control
When you notice a decrease in the operating range, replace the
Lithium Battery (CR2025)*
battery.
Power Cord
AC Adapter
Quick Start Guide (this document)
Warranty Card
* The lithium battery has been factory installed in the remote control
unit.
http://pioneer.jp/support/manual/wss/sma1_3_4/
http://www.pioneer.co.uk
Discover the benefits of registering your product online at (or http://www.pioneer.eu).
To register your product, find the nearest authorized service location, to purchase replacement parts, operating instructions,
or accessories, please go to one of following URLs :
Pour enregistrer votre produit, trouver le service après-vente agréé le plus proche et pour acheter des pièces de rechange,
des modes d'emploi ou des accessoires, reportez-vous aux URL suivantes :
In the USA/Aux Etats-Unis
http://www.pioneerelectronics.com
In Canada/Aux Canada
http://www.pioneerelectronics.ca
Português:
Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC
Manufacturer:
EU Representative's:
PIONEER CORPORATION Pioneer Europe NV
1-1, Shin-ogura, Saiwai-ku, Haven 1087, Keetberglaan 1,
Kawasaki-shi, Kanagawa 9120 Melsele, Belgium
212-0031, Japan
http://www.pioneer.eu
Eesti:
English: Dansk:
Magyar: Polski:
Deutsch:
Suomi:
Norsk:
Nederlands: Ελληνικά:
Íslenska:
Français: Italiano:
Malti:
Hrvatski:
Svenska: Español:
Printed in China
Installing the unit
When installing this unit, make sure to put it on a level and stable surface.
Don't install it on the following places:
- on a color TV (the screen may distort)
- near a cassette deck (or close to a device that gives off a magnetic fi eld). This may interfere with the sound.
- in direct sunlight
- in extremely hot or cold areas
- in places where there is vibration or other movement
- in places that are very dusty
- in places that have hot fumes or oils (such as near a kitchen stove)
CAUTION
When in use, do not stand the device up, prop it up against anything or hang it from anything.
Do not sit or stand on top of the device.
When carrying the device, hold the entire device fi rmly. Do not swing the device around by the frame.
Use in a wet environment (XW-SMA1 and XW-SMA4 only)
CAUTION
XW-SMA1 and XW-SMA4 are not drip-proof. When using, prevent exposure to water. Do not use in the following environments.
Humid places
Places where the product is easily exposed to water.
Near the beach or on the beach.
This could cause rust.
Internal Rechargeable Lithium-ion Battery (XW-SMA3 only)
This device uses an internal rechargeable lithium-ion battery that should last the lifetime of the device. If you suspect your battery may be dead, try charging
it several times. If the battery does not recharge, please contact us for repair information.
WARNING/DISPOSAL OF UNIT [For American Users, Canadian Users]
Please do NOT attempt to change the battery yourself. If the battery has died and you do not want us to replace your battery, you should follow the disposal
instructions below:
Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances.
Always dispose of used batteries/electronics in accordance with the prevailing community regulations that apply to the disposal of batteries/electronics. If
there are no local regulations concerning battery/electronics disposal, please dispose of the device in a waste bin for electronic devices.
Many electronics retailers now recycle batteries and other electronic components at no charge. Check to see which ones in your area do so.
Remote control
1  (standby/on) button
Press to turn power on and off.
2 Playback control buttons
Use when operating an iPod or AirPlay with this remote control.
1
3 vol −/+ (volume −/+) button
Use to adjust the listening volume.
4 4 input button
2 Press to select the input source.
The remote has a range of about 7 m (23 ft.) at an angle of about 30º from the remote
sensor.
3
IMPORTANT
English
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, CAUTION: The exclamation point within an equilateral
within an equilateral triangle, is intended to TO PREVENT THE RISK OF ELECTRIC triangle is intended to alert the user to the
alert the user to the presence of uninsulated SHOCK, DO NOT REMOVE COVER (OR presence of important operating and
"dangerous voltage" within the product's BACK). NO USER-SERVICEABLE PARTS maintenance (servicing) instructions in the
enclosure that may be of sufficient INSIDE. REFER SERVICING TO QUALIFIED literature accompanying the appliance.
magnitude to constitute a risk of electric SERVICE PERSONNEL.
D3-4-2-1-1_A1_En
shock to persons.
CAUTION If the AC plug of this unit does not match the AC
The  standby/on button on this unit will not
outlet you want to use, the plug must be removed
completely shut off all power from the AC outlet. and appropriate one fitted. Replacement and
Since the power cord serves as the main disconnect mounting of an AC plug on the power supply cord of
device for the unit, you will need to unplug it from the this unit should be performed only by qualified
AC outlet to shut down all power. Therefore, make service personnel. If connected to an AC outlet, the
sure the unit has been installed so that the power cut-off plug can cause severe electrical shock. Make
cord can be easily unplugged from the AC outlet in sure it is properly disposed of after removal.
case of an accident. To avoid fire hazard, the power The equipment should be disconnected by removing
cord should also be unplugged from the AC outlet the mains plug from the wall socket when left unused
when left unused for a long period of time (for for a long period of time (for example, when on
example, when on vacation). vacation).
D3-4-2-2-2a*_A1_En
WARNING
To prevent a fire hazard, do not place any naked flame
sources (such as a lighted candle) on the equipment.
WARNING
Before plugging in for the first time, read the following
section carefully.
The voltage of the available power supply differs
according to country or region. Be sure that the power
supply voltage of the area where this unit will be used
meets the required voltage (e.g., 230 V or 120 V)
written on the AC adapter label.
WARNING
Store the AC adapter out of the reach of
Do not use or store batteries in direct sunlight or other
children and infants.
excessively hot place, such as inside a car or near a The AC adapter cord may accidentally wind around the
heater. This can cause batteries to leak, overheat,
neck and it may cause suffocation.
explode or catch fire. It can also reduce the life or
performance of batteries.
D3-4-2-3-3_A1_En
POWER-CORD CAUTION
Handle the power cord by the plug. Do not pull out the
plug by tugging the cord and never touch the power
When disposing of used batteries, please
cord when your hands are wet as this could cause a
comply with governmental regulations or
short circuit or electric shock. Do not place the unit, a
environmental public institution's rules that
piece of furniture, etc., on the power cord, or pinch the
apply in your country/area. cord. Never make a knot in the cord or tie it with other
cords. The power cords should be routed such that they
D3-4-2-3-1_B1_En
are not likely to be stepped on. A damaged power cord
can cause a fire or give you an electrical shock. Check
the power cord once in a while. When you find it
CAUTION
damaged, ask your nearest PIONEER authorized
Danger of explosion if battery is incorrectly
service center or your dealer for a replacement.
replaced.
Replace only with the same or equivalent type
recommended by the manufacturer.
Radio wave caution
D3-4-2-3-2_A1_En
This unit uses a 2.4 GHz radio wave frequency, which is
a band used by other wireless systems (Microwave
CAUTION
ovens and Cordless phones, etc.). In this event noise
appears in your television image, there is the possibility
RISK OF EXPLOSION IF BATTERY IS REPLACED
this unit (including products supported by this unit) is
BY AN INCORRECT TYPE.
causing signal interference with the antenna input
DISPOSE OF USED BATTERIES ACCORDING
connector of your television, video, satellite tuner, etc.
TO THE INSTRUCTIONS.
In this event, increase the distance between the
antenna input connector and this unit (including
"Perchlorate Material special handling may products supported by this unit).
apply. • Pioneer is not responsible for any malfunction of the
See compatible Pioneer product due to communication
error/malfunctions associated with your network
www.dtsc.ca.gov/hazardouswaste/perchlorate.
connection and/or your connected equipment.
(Applicable to California, U.S.A.)"
Please contact your Internet service provider or
network device manufacturer.
WARNING
• A separate contract with/payment to an Internet
Store small parts out of the reach of children and
service provider is required to use the Internet.
infants. If accidentally swallowed, contact a doctor
immediately.
R-TTE-24L_B1_En
Front panel
* In the event that other colors appear, see the "Connect to network" section
on the reverse side of this instruction sheet.
1
4 Battery indicator (XW-SMA3 only)
Displays the built-in battery charge status, or lights when the
built-in battery is being charged. The indicator changes as
2 3 4 noted below.
When the unit is connected to AC adapter
Lights blue - Battery charging is completed.
Lights purple - Battery is being charged.
Flashes purple - See the Operating Instructions.
When this unit is not connected to AC adapter
Lights blue - Battery is fully charged.
Lights red - Battery has about half charge.
Flashes red - Battery is low.
5  standby/on button
Switches the unit between Standby and On.
6 input button
Selects the input source.
5 6 7 iPod  AUX IN  iPod (return to the beginning)
* When AirPlay or DMR play begins, the unit automatically switches to
AirPlay or DMR function.
1 power on indicator
7 volume −/+ button
When the power is on, this indicator lights.
Use to adjust the listening volume.
2 input indicator
Note
When the input source changes, this indicator lights. The
When pressing the input button for 3 seconds while this unit is power on,
indicator's color changes as noted below.
this unit switches to the Quick Start Mode. In the Quick Start Mode, when
Light OFF - AUX IN
AirPlay or DMR is played, this unit automatically turns on.
Lights blue - AirPlay Lights red - iPod To return the Quick Start Mode to the OFF condition, hold the input button
depressed for three seconds.
Lights green - DLNA (DMR) Digital Media Renderer
3 network indicator
About startup time
When the network status changes, this indicator lights.
After the power turns on, it takes approximately 30 seconds for the
Lights blue - good connection
unit to be ready to use. The time required for startup can be reduced
Flashes blue - weak signal
by setting the Quick Start Mode to On. For details, see the Operating
Flashes red - connection failure
Instructions.
Connections
Open the terminal cover (XW-SMA3 only). Before making or changing the connections, switch off the power and disconnect the
power cord from the AC outlet.
This product is for general household purposes. Any
[For American Users]
failure due to use for other than household purposes
(such as long-term use for business purposes in a
restaurant or use in a car or ship) and which requires
IMPORTANT NOTICE
repair will be charged for even during the warranty
THE MODEL NUMBER AND SERIAL NUMBER OF THIS EQUIPMENT ARE ON THE REAR OR BOTTOM.
period.
K041_A1_En RECORD THESE NUMBERS ON YOUR ENCLOSED WARRANTY CARD AND KEEP IN A SAFE PLACE FOR FUTURE
REFERENCE.
When using this product, confirm the safety
information shown on the bottom of the unit and the
NOTE:
AC adapter label. D3-4-2-2-4_B1_En
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
VENTILATION CAUTION
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
When installing this unit, make sure to leave space
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
around the unit for ventilation to improve heat radiation
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
(at least 10 cm at top, 10 cm at rear, and 10 cm at each
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
side).
the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
WARNING
— Increase the separation between the equipment and receiver.
Slots and openings in the cabinet are provided for
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
ventilation to ensure reliable operation of the product,
— Consult the dealer or an experienced radio/TV technician for help.
and to protect it from overheating. To prevent fire
hazard, the openings should never be blocked or
covered with items (such as newspapers, table-cloths,
curtains) or by operating the equipment on thick carpet FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY
or a bed. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
D3-4-2-2-1a_A1_En
may not cause harmful interference, and (2) this device must accept any interference received, including interference
D3-4-2-1-7b*_A1_En
that may cause undesired operation.
Product Name: Wireless Sound System
Model Number: XW-SMA1-K, XW-SMA3-K, XW-SMA4-K
Responsible Party Name: PIONEER ELECTRONICS (USA) INC.
D3-4-2-1-7a_A1_En
SERVICE SUPPORT DIVISION
Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90810-1003, U.S.A.
Phone: 1-800-421-1404
URL: http://www.pioneerelectronics.com
D3-4-2-1-4*_A1_En
AC adapter CAUTION
[For American Users]
• Make sure to grasp the body of the AC adapter when
removing it from the power outlet. If you pull the
Information to User
power cord, it may become damaged which could
Alterations or modifications carried out without appropriate authorization may
lead to fire and/or electrocution.
invalidate the user's right to operate the equipment.
• Do not attempt to plug in or remove the AC adapter
with wet hands. This may result in electrocution.
• Do not insert the power cord of AC adapter into a
power outlet where the connection remains loose
despite inserting the prongs all the way into the
outlet. Heat may be generated which could lead to
[For European Users]
fire. Consult with the retailer or an electrician
regarding replacement of the power outlet.
Information for users on collection and disposal of old equipment and used batteries
This transmitter must not be co-located or operated
in conjunction with any other antenna or transmitter.
This device complies with Industry Canada
S002*_A1_En
licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may
not cause interference, and (2) this device must
accept any interference, including interference that
may cause undesired operation of the device.
These symbols are only valid in the European Union.
WARNING
For countries outside the European Union:
This equipment is not waterproof. To prevent a fire or
shock hazard, do not place any container filled with
Pb
liquid near this equipment (such as a vase or flower
pot) or expose it to dripping, splashing, rain or
moisture.
D3-4-2-1-3_A1_En
Rear panel
1 Wireless antenna
Receives signals from wireless
devices.
2 network setup/wireless
direct button
Use to set the wireless network (See
"Connect to network" on the reverse
side of this sheet).
3 LAN (10/100) connector
Connect this unit to other network
devices using a LAN cable.
4 iPod/iPhone/iPad connector
Use to connect iPod/iPhone/iPad
as an audio source. This unit does
not support the USB mass storage
device.
Firmware Update using Safari browser
You can update this unit s fi rmware via Safari browser.
Download the latest fi rmware at Pioneer website.
Connect the AC adapter when using the XW-SMA3 (this
operation cannot be performed using battery power).
When updating the fi rmware, it is necessary to connect the
unit to a network by following the procedure (except method
F) listed on the reverse side of this sheet.
1 Be sure this unit and your computer are
connected to the same wired or wireless
network.
2 Launch Safari on your computer.
3 Press Bookmark icon. Click Bonjour list (a),
and then select this unit s name ("Friendly
Name") (b) in Bookmark.
Before Use (Important)
Safety Precautions
The Safety of Your Ears is in Your Hands
Get the most out of your equipment by playing it at a
DANGER
safe level – a level that lets the sound come through
clearly without annoying blaring or distortion and, most
About the Device
importantly, without affecting your sensitive hearing.
D36-AP9-1_A1_En
Please follow the instructions noted. Failure to do so may cause the built-in lithium-ion battery to leak, overheat, ignite, or rupture.
Sound can be deceiving. Over time, your hearing
"comfort level" adapts to higher volumes of sound, so
Do not dispose of the device in fi re or expose it to heat.
what sounds "normal" can actually be loud and
Do not attempt to disassemble the battery or alter it in any way.
harmful to your hearing. Guard against this by setting
Do not throw the device, strike it with a hammer or other object, or drive nails into it.
your equipment at a safe level BEFORE your hearing
adapts. Do not use or leave the device in places where it will be exposed to high temperatures, such as near a stove or inside a closed automobile.
In the event that the built-in lithium-ion battery leaks fl uid and the fl uid contacts your eyes, do not rub them, but rinse with copious amounts of clean water
ESTABLISH A SAFE LEVEL:
and seek immediate medical treatment. Your eyes may be seriously harmed by exposure to such battery fl uid.
• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it Do not allow the battery to be immersed in fresh or sea water, or become otherwise wet.
comfortably and clearly, without distortion. Do not recharge the battery near a fi re or in direct sunlight.
• Once you have established a comfortable sound
Do not recharge the battery using any method other than as instructed.
level, set the dial and leave it there.
The battery used in this device may present a risk of fi re, explosion or chemical burn if mistreated.
BE SURE TO OBSERVE THE FOLLOWING
D8-10-1-2_A1_En Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other electrolytic substance.
GUIDELINES:
Never use the device in an unventilated vehicle where excessive internal temperatures may be encountered.
• Do not turn up the volume so high that you can't
Always keep the device out of the reach of infants and small children.
hear what's around you.
• Use caution or temporarily discontinue use in
potentially hazardous situations. WARNING
• Do not use headphones while operating a motorized
About the Device
vehicle; the use of headphones may create a traffic
hazard and is illegal in many areas. Do not use the device if it emits an unusual odor, heats up, changes color or shape, or if any other abnormalities occur during use, while recharging or while
S001a_A1_En placed in storage.
If the battery does not recharge completely, even after exceeding the specifi ed time, stop recharging. Failure to do so could cause the device to heat up,
FCC Radiation Exposure Statement:
rupture, or ignite.
This equipment complies with FCC radiation exposure
Recharge the battery in an environment with a temperature between 5 °C (41 °F) and 35 °C (95 °F). Recharging the battery under different temperatures
limits set forth for an uncontrolled environment. This
D8-10-4*_C1_En equipment should be installed and operated with a could cause the device to heat up, rupture, or ignite, and may also deteriorate the performance and the life of the built-in lithium-ion battery.
minimum distance of 20 cm between the radiator and
Do not place the device in a microwave oven or expose it to high pressure, since the device may overheat, rupture, or ignite.
your body.
Do not place a leaking rechargeable lithium-ion battery near a source of heat or fi re, since the battery could overheat, rupture, or ignite.
CAUTION
About the Device
Do not dispose of the device in fi re or water, since the rechargeable lithium-ion battery could rupture or leak battery fl uid, resulting in fi re or personal injury.
If fl uid leaking from a rechargeable lithium-ion battery contacts your skin or clothes, wash immediately with copious amounts of clean water. If left
unattended, a skin rash could result.
About water-resistant (XW-SMA3 only)
CAUTION
Observe the following precautions in regard to the device's water-resistant.
Do not place the unit in water.
WARNING: Handling the cord on this product or cords associated with
accessories sold with the product may expose you to chemicals listed on
Do not expose the unit to a large amount of water.
proposition 65 known to the State of California and other governmental entities to
Do not splash the unit with water.
D8-10-2_A1_En cause cancer and birth defect or other reproductive harm.
Do not expose to rain for long periods of time.
Wash hands after handling.
D36-P5_B1_En Do not pour or place in warm water or water containing soap or detergent.
Do not use in a humid environment such as a bathroom.
Do not use near or on the beach.
This could cause rust. If exposed to seawater, thoroughly wipe off the moisture immediately with a dry cloth.
[For Canadian Users]
Ensure that the terminal cover is closed during use.
This Class B digital apparatus complies with Canadian The rubber packing on the cover make the device water-resistant. Make sure this packing does not get soiled or damaged.
ICES-003.
If the rubber packing does become soiled, wipe it clean with a dry, clean cloth.
D8-10-1-3_A1_En
Do not open the terminal cover in humid environments in which the device could get exposed to water.
If the device is exposed to a large amount of water or moisture, immediately wipe it down with a dry cloth.
IC Radiation Exposure Statement:
Only open or close the terminal cover after having completely wiped off any moisture around them, with dry hands and in an environment where the unit
This equipment complies with IC RSS-102 radiation exposure
limits set forth for an uncontrolled environment. This equipment would not get exposed to water again.
should be installed and operated with a minimum distance of 20 Make sure to install the unit on a fl at and stable surface. Do not use the unit upside down or in a tilted position.
cm between the radiator and your body.
Since water may reach the interior of the unit, install the unit in a proper position.
Do not turn the unit upside down or hold it tilted when it has been exposed to water or water droplets.
Since the water might run into the interior parts of the unit, do not tilt the unit if it is wet.
[For American Users and Canadian Users] If the device does get exposed to water, thoroughly dry all of the crevices on the unit's body into which water might have reached.
The water might have reached the interior of the device. Do not carry the unit if it is still wet.
Operating Environment
Do not use the remote control or AC adapter when in proximity to water.
Operating environment temperature and humidity:
+5 °C to +25 °C (+41 °F to +77 °F); less than 85 %RH (cooling vents Only the device itself is water-resistant.
K058a_A1_En not blocked)
This unit has been designed with water-resistance equivalent to standards IPX2(*) as defi ned by the International Electrotechnical Commission (IEC).
Do not install this unit in a poorly ventilated area, or in locations
exposed to high humidity or direct sunlight (or strong artificial light) Malfunctions due to water damage caused by improper use are not covered by product warranty, even if they occur within the warranty period.
D3-4-2-1-7c*_A1_En
Depending on conditions of use, the water-resistant features are not necessarily guaranteed even during the warranty period.
* IPX2: The unit must be protected from water drops that fall vertically onto it when the unit is at an angle of 15 degrees or less.
[Except American Users and Canadian Users]
Operating Environment
Operating environment temperature and humidity:
+5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents
not blocked)
Do not install this unit in a poorly ventilated area, or in locations
exposed to high humidity or direct sunlight (or strong artificial light)
D3-4-2-1-7c*_A1_En
FAQ
When an iPod/iPhone/iPad is connected
Can't operate the iPod/iPhone/iPad.
2
1
Network
Cannot connect to the device or PC
via the network.
The audio fi les stored on devices on
the network, such as a PC, cannot
be played back.
3 4
5 6
5 DC IN terminal When using XW-SMA4, do not lift this device
by holding the recessed portion of the rear
Cannot access Windows Media
Connect to AC adapter.
panel, since damage may occur.
Player 11 or Windows Media Player
6 AUX IN jack
12.
Use to connect an auxiliary playback
device.
CAUTION
Do not rotate the wireless antenna beyond its
movable range as shown in the illustration,
since damage may occur.
Audio playback is undesirably
Do not lift this device by holding the wireless
stopped or disturbed.
antenna, since damage may occur.
Wireless LAN
4 Click Firmware Update.
5 Press Start.
Network cannot be accessed via
The fi rmware update prepare screen is displayed. If the
wireless LAN.
screen does not switch automatically, click Click here.
6 Browse the latest fi rmware on your
computer (a) and then press Upload (b).
The confi rmation screen is displayed. If you continue the
fi rmware update, press Yes. Once the fi rmware update
process starts, you can't stop it.
Resetting the system
Use this procedure to reset all system settings to the factory
7 The fi rmware update status screen is
default.
displayed.
Important
When the update is completed, unplug the power cord
Disconnect all devices from this unit before resetting.
from its AC outlet as instructed in the display.
1 Press standby/on.
The unit turns on.
Important
Never disconnect the AC power while updating is underway.
Problem Check Remedy
Make sure the iPod/iPhone/iPad is connected correctly.
Also, try disconnecting the iPod/iPhone/iPad then reconnecting it.
If the iPod/iPhone/iPad has frozen, try resetting the iPod/iPhone/iPad, and reconnect it to
the unit.
Problem Check Remedy
Internet security software There are cases where a device with Internet security software installed cannot be
is currently installed in the accessed.
connected device.
Windows Media Player 11 or Install Windows Media Player 11, Windows Media Player 12 or the DLNA-compliant
Windows Media Player 12 is server software on your PC.
not currently installed on your
PC.
The device connected to Check whether the device is affected by special circumstances or is in the sleep mode.
the network is not properly Try rebooting the device if necessary.
operated.
The device connected to the Try changing the settings for the device connected to the network.
network does not permit fi le
sharing.
In case of Windows Media Instead of logging onto the domain, log onto the local machine.
Player 11: You are currently
logged onto the domain
through your PC with
Windows XP or Windows
Vista installed.
In case of Windows Media
Player 12: You are currently
logged onto the domain
through your PC with
Windows 7 installed.
The audio fi le currently being Check whether the audio fi le was recorded in a format supported by this unit.
played back was not recorded Check whether the folder has been damaged or corrupted.
in a format playable on this
Even audio fi les listed as playable on this unit may sometimes not be played back or
unit.
displayed.
There is heavy traffi c on the Use 100BASE-TX to access the devices on the network.
network with the Internet
being accessed on the same
network.
There is a connection routed There may be a shortage of bandwidth on the 2.4 GHz band used by the wireless LAN.
through a wireless LAN on the Make wired LAN connections not routed through a wireless LAN.
same network.
Install away from any devices emitting electromagnetic waves on the 2.4 GHz band
(microwave ovens, game consoles, etc.). If this does not solve the problem, stop using
other devices that emit electromagnetic waves.
Problem Check Remedy
Is Network Type set to Wired Disconnect the LAN cable from the unit, then restart the unit.
and the LAN cable connected If the LAN cable is connected to the unit, the unit recognizes the Network Type as Wired.
to the unit?
This unit and base unit Improve the wireless LAN environment by moving the unit and base unit closer together,
(wireless LAN router, etc.) etc.
are too far apart or there is an
obstacle between them.
The IP address settings of Check the IP address settings of the unit (including the DHCP setting).
the unit does not match the
If the unit's DHCP setting is on, turn the unit's power off, then turn the power back on.
settings of the wireless LAN
router, etc.
The access point is set to In this case, the SSID may not be displayed on the access point list screen. If not, set the
conceal the SSID. SSID, etc., by making the wireless LAN settings on the unit manually.
It may be that the router has frozen. Press the router's reset button and try making the
settings again.
2 Press and hold input and  standby/on on the
unit for 3 seconds.
After all the indicators on the front panel of the unit light, the
unit turns off (standby mode).
All the settings will be reset to the factory default next time
the unit turns on.
