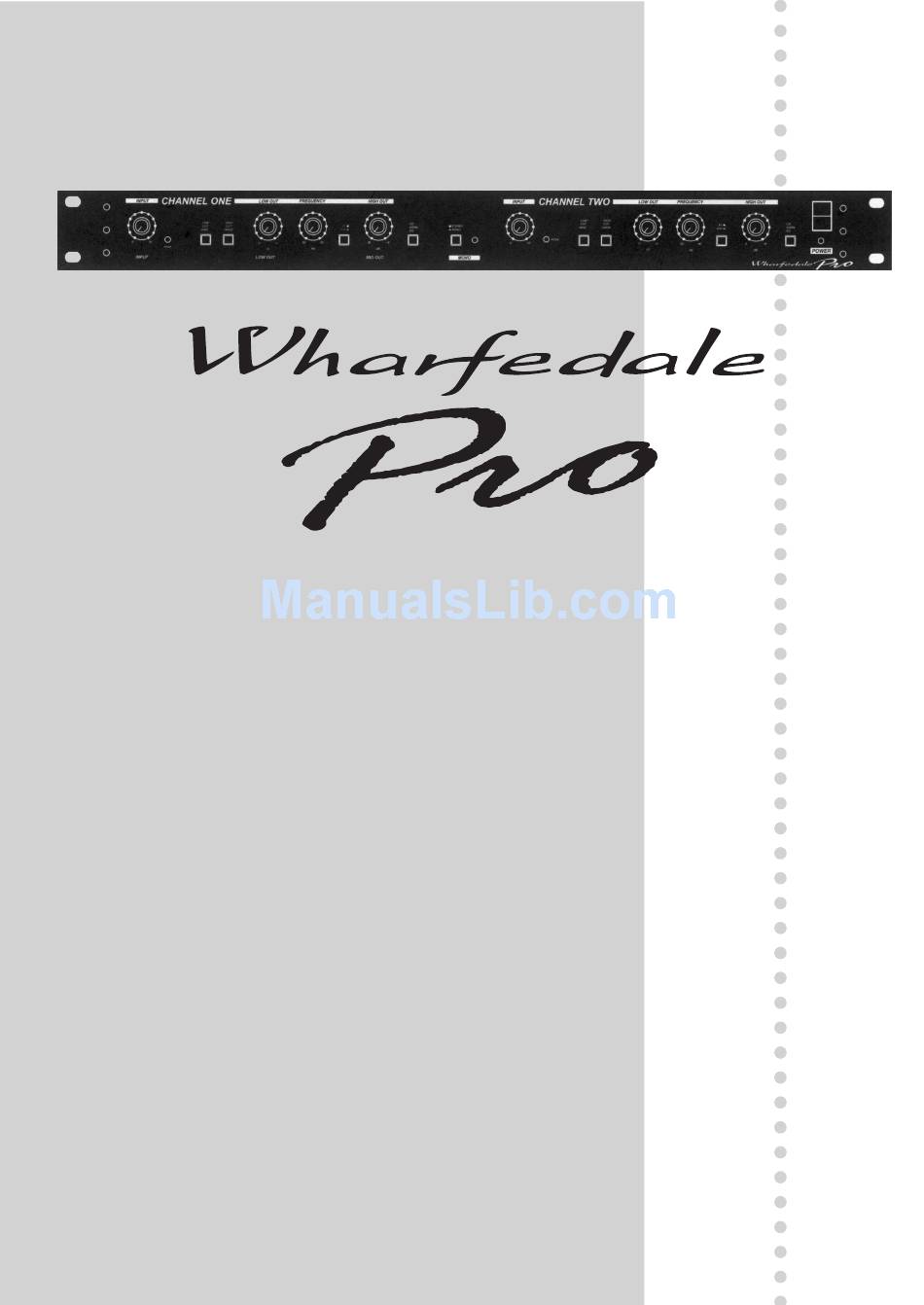

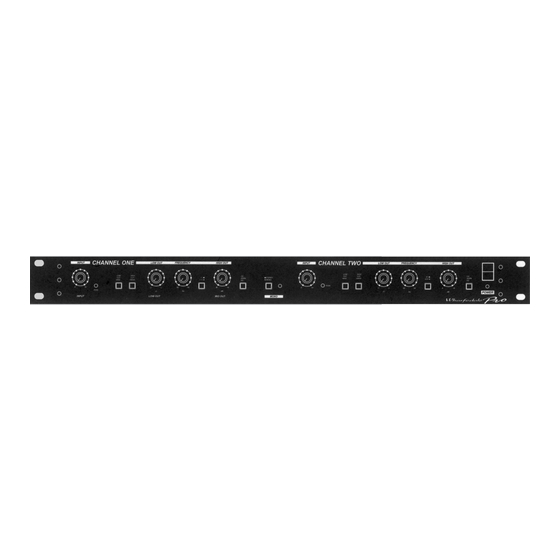

- Page 1 WPG SERIES PROFESSIONAL ELECTRONIC CROSSOVER WPG-202 OPERATING MANUAL...
- Page 2 Warranty card must be filled in fully and returned to Wharfedale Pro within 30 days from date of purchase. Wharfedale Pro Limited Warranty Failure to do so will in no way affect your statutory rights.
- Page 3 L E C T R O N I C C R O S S O V E R M A N U A L 9 10 11 12 13 15 16 14 These control no.in the key relate to Mono operation - in Stereo mode they have same key descriptions as channel one.
- Page 4 W P G S E R I E S P R O F E S S I O N A L Description connector case (chassis ground). Connect the output The WPG - 202 Series of Electronic crossovers fit between pins 2 and 1 with pin 2 positive. Leave pin 3 standard 1U, 19 (482mm) racks.
- Page 5 L E C T R O N I C C R O S S O V E R M A N U A L reserve. Selecting the right crossover frequencies ). Selecting the right Crossover Frequencies Selecting the right Crossover Configuration Most speaker/cabinet manufacturers supply low and/or Whether you choose stereo 2 way or mono 3 way is high frequency cut-off points for each driver.
- Page 6 W P G S E R I E S P R O F E S S I O N A L T E C H N I C A L S P E C I F I C A T I O N FREQUENCY RESPONSE: 20Hz - 20kHz +3dB THD:...
- Page 7 This means not connecting the ground on both the crossover input and output BALANCED INPUT WIRING TO WHARFEDALE PRO UNIT WITH STEREO 1/4 JACK to XLR CONNECTORS connectors. Wharfedale Pro advise that you connect the ground (shield) of...
- Page 8 Thank you for buying a Wharfedale WPG Series Pro Graphic Equalizer Unit. These units can be used with other Wharfedale Pro Units of which details can be obtained from your dealer. EVP Series of High Performance Loudspeakers WPG-202 Two channel Electronic Crossover...
