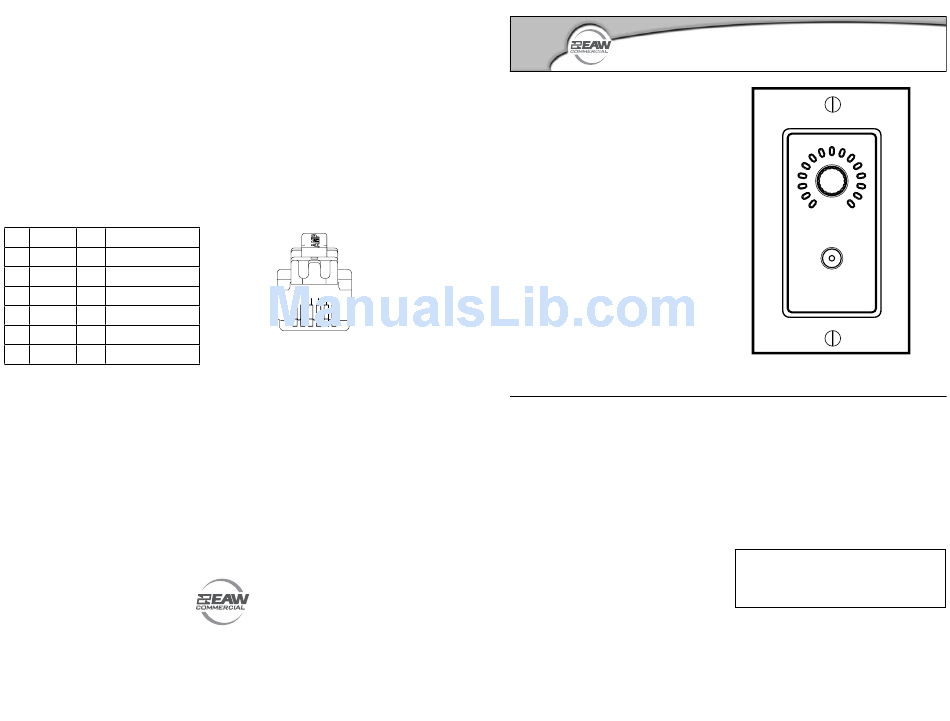

EAW UR1 Quick Start Manual

CONNeCtiNG MULtipLe reMOte CONtrOLS
Up to ten remote controls on 3000 feet of cable
may be connected to the master unit.
Unshielded twisted pair (UTP) cable is
suggested for the cable, with suitable connectors.
For example: Tyco/AMP 5-555426-3 (modular plug,
6 position, 6 termination, unshielded, long body for
solid core). The tool in this example is Tyco/AMP
2-231652-7.
The table below shows the connections for the
modular plug:
pin Signal
pair Suggested Color
01 GND
3- Orange
02 COMMS+ 2+
White/Green
03 VBUS
1- Blue
04 VBUS
1+ White/Blue
05 COMMS- 2-
Green
06 GND
3+ White/Orange
CONfiGUriNG fUNCtiONS
Please refer to the DX Navigator Help File for more information.
EAW Commercial | One Main Street | Whitinsville, MA 01588 USA | www.eaw.com
TEL: toll free in US & Canada 888.337.7404 | TEL outside US 425.892.6503 | FAX: 425.485.1152
UK 44.1268.570.808 | FAX 44.1268.570.809
Part No. SW0818 Rev. B 01/10 © 2010 LOUD Technologies Inc. All Rights Reserved.
COMMS+/- are the RS-485 bus connections.
GND is the common connection.
VBUS is power for the remotes coming from the
master unit; or coming from another remote,
or going to another remote (passing from the
master unit, or an alternately powered remote
- see the section on power). DO NOT make
alternate power connections directly to the
modular plugs or jacks.
1 2 3 4 5 6
Quick-Start Guide
The UR1 is a real-time universal remote
control. The UR1 may be programmed to operate
any number of things, such as volume, muting
inputs, recalling priorities, etc. Up to ten UR-family
remotes may be connected to one DX Remote bus
port on the rear of a DX family processor
(e.g. DX1208).
The function of each DX Remote is software
programmable from within the DX Navigator
software application.
Safety firSt!
Before connecting and using the equipment,
please read this Quick-Start Guide carefully
and keep it for future reference.
WARNING! this equipment has been
designed to be installed by qualified
professionals only! there are many factors to
be considered when installing professional
sound reinforcement systems. Some of these
factors include mechanical and electrical
considerations, as well as acoustic coverage
and performance. LOUD technologies strongly
recommends that this equipment be installed
only by a professional sound installer or
contractor.
Ur1
Universal Remote Control
1. Never install, connect, or disconnect the
remote control with the power supply on.
2. Before applying power to the Ur1, make
sure the cabling is correct as described in
this Quick-Start Guide.
CAUTION: to avoid the risk of electric
shock, never allow this equipment to be
exposed to rain or dampness.
