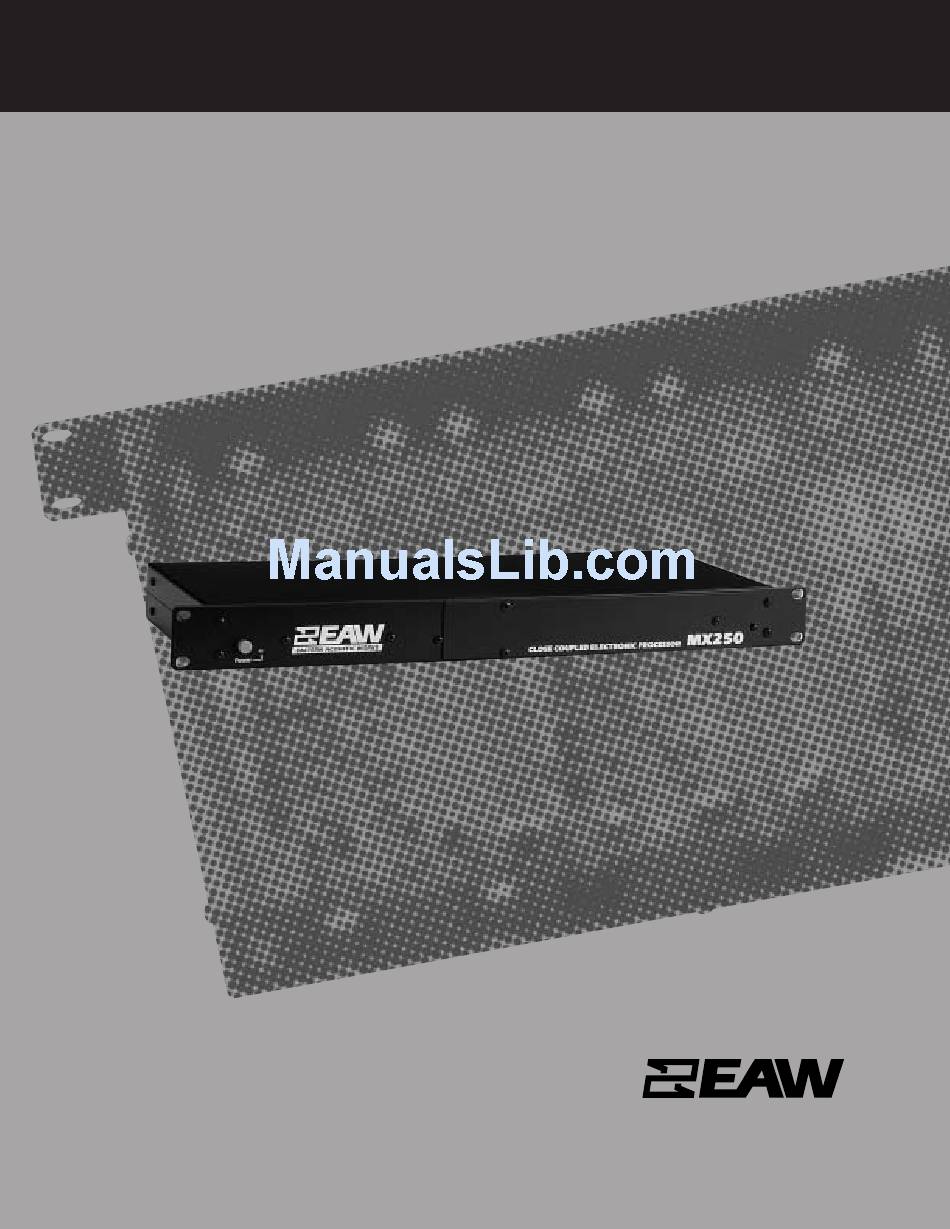

- Page 1 M X 2 5 0 O W N E R ’ S M A N U A L...
-
Page 3: Features Overview
The MX250 CCEP has a universal power supply compatible with virtually any AC power source throughout the world today.An internal switch sets the power supply for either 95-130 VAC (50-60 Hz) or 190-260 VAC (50-60 Hz) operation.A label on the rear of the MX250 indicates the factory voltage setting. - Page 4 C O N N E C T I N G T H E M X 2 5 0 C C E P Care should be taken to ensure that pin #3 of the MX250 input XLR is always connected.If connected to a balanced (differential) signal source, pin #3 should be connected to the negative (i.e.,inverting or “-”) signal line.If driven by an unbalanced (single-ended) source,pin #3 must be...
-
Page 5: Practical Considerations
P H Y S I C A L The case of the MX250 CCEP is fully enclosed to prevent the entry of foreign material and to shield the internal circuitry from most outside electromagnetic fields.To prevent the circuitry’s picking up hum from inadequately shielded transformers,mount the MX250 CCEP at least two inches from any power amplifier.Computer monitors,motorized devices,and some other gear may emit strong hum or electromagnetic fields... - Page 6 MX250.Use this reference to fine tune your particular combination of sub and full range products. This is easily done by removing the front panel of the MX250 and adjusting the gains to meet your needs. Full Range...
- Page 7 Left C hannel B alanced Input Outputs Par ametr ic EQ 1 8 0 IN V (RN _0 9 ) HIGH 4 th Order Hi-Pass 4 th Order Lo-Pass Out+ (RN _0 7 ) (RN _0 8 ) H igh Out- Left C hannel Outputs...
- Page 10 EAW or to an authorized EAW service facility.
