Visonic MCPIR-3000 Installation Instructions

MCPIR-3000
Fully Supervised PowerCode Wireless PIR Detector
1. INTRODUCTION
The MCPIR-3000 is an advanced, fully supervised ultra low-
current wireless PIR that incorporates a PowerCode transmitter.
Both transmitter and detector circuits are powered by an on-
board, long life 3.6 V Lithium battery.
Each MCPIR-3000 unit has a 24-bit ID code, randomly selected
in the factory from over 16 million possible combinations. This
code is therefore unique and virtually impossible to reproduce.
Compatible PowerCode receivers are designed to "learn" specific
IDs and respond only to them.
Following detection, the MCPIR-3000 triggers the on-board
transmitter which transmits its specific PowerCode ID followed by
an alarm signal and status designators for tampering and battery
condition. Alarm and other data are thus forwarded to the alarm
control panel or to a head-end computer, depending on the type
of system in which the detector is used.
Since messages transmitted by the MCPIR-3000 might collide
with messages transmitted by other PowerCode transmitters, a
"smart" anti-collision transmission sequence is used.
A periodic supervision message, distinguished by a specific marker, is
transmitted automatically once in 60 min. (USA) or 15 min. (Europe)
according to local standards. The receiver is thus informed that the
particular detector is taking an active part in the wireless network.
2. SPECIFICATIONS
TOP VIEW
90 °
SIDE VIEW
2.4 m
(8 ft)
-5°
-15°
-35°
0
3 6 9 12
10 20 30 40
Figure 2a. Coverage Pattern
Lens A
OPTICAL
Lens A Data
No. of Beams: 34
Field of View: 90°
Max. Coverage: 12 x 12 m (40 x 40 ft)
Lens 306 Data (Optional)
Lens type: Cylindrical
No. of Beams: 14
Max. Coverage: 9 x 9 m (30 x 30 ft)
Vertical Adjustment:
+2° to –12°.
ELECTRICAL
Battery Type: 3.6 Volt lithium thionyl chloride (LiSOCl
size 1/2AA, Tadiran TL-2150.
Nominal Battery Capacity: 1.2 Ah
Standby Current Drain: 0.015 mA.
DE3630
TOP VIEW
90°
SIDE VIEW
2.4 m
(8 ft)
VERTICAL CURTAINS
m
0 3 6
ft
10 20
Figure 2b. Coverage Pattern
Lens 306
) battery,
2
After triggering the transmitter, the MCPIR-3000 disarms itself to
save battery power. The detector rearms itself automatically
(reverts to the ready state) 2 minutes after the last movement has
been detected. An LED/ WALK-TEST jumper is used to override
the 2-minute rearm timer during walk testing.
A programmable pulse counter is included in the unit for
maximum immunity against false alarms.
or
Transmit Current Drain: 12 mA (including LED)
Battery Life Expectancy: 3 years (for typical use)
LED: Lights for 2 seconds upon transmission and upon motion
detection in the walk test mode.
Detector: Dual-element low-noise pyroelectric sensor.
Pulse Counter: Programmable to 1, 3 or 5 pulses.
Rearm Timer: 2 minutes after the last alarm; timer disabled in the
walk test mode.
WIRELESS
Frequency (MHz): 315, 433.92, 868.95, 869.2625 or other
frequencies according to local requirements.
Transmission Sequence: 3 data bursts at variable intervals within
3 seconds.
Encoding: 24-bit factory selected ID code, over 16 million possible
9 m
combinations.
30 ft
Message Length: 36 bits
Battery Supervision: Automatic reporting of low-battery status
with each alarm and with periodic autotest.
Tamper Alert: Reported at 3-minute intervals, until the tamper
switch is restored.
ENVIRONMENTAL
Operating Temperature: -10
Storage Temperature: -20
RFI Protection: > 20 V/m up to 1000 MHz.
PHYSICAL
Weight: 71g (2.5 oz).
Dimensions (H x W x D): 104 x 60 x 32 mm (2.4 x 4.1 x 1.3 in.)
Color: White.
Compliance with Standards: FCC Part 15, MPT1349, Directive
1999/5/EC and EN 50131-1 Grade 1 Class II
OPTIONAL MOUNTING ACCESSORIES
BR-1: Swivel bracket for wall mounting.
BR-2: BR-1 + corner mounting adapter.
BR-3: BR-1 + ceiling mounting adapter.

Installation Instructions

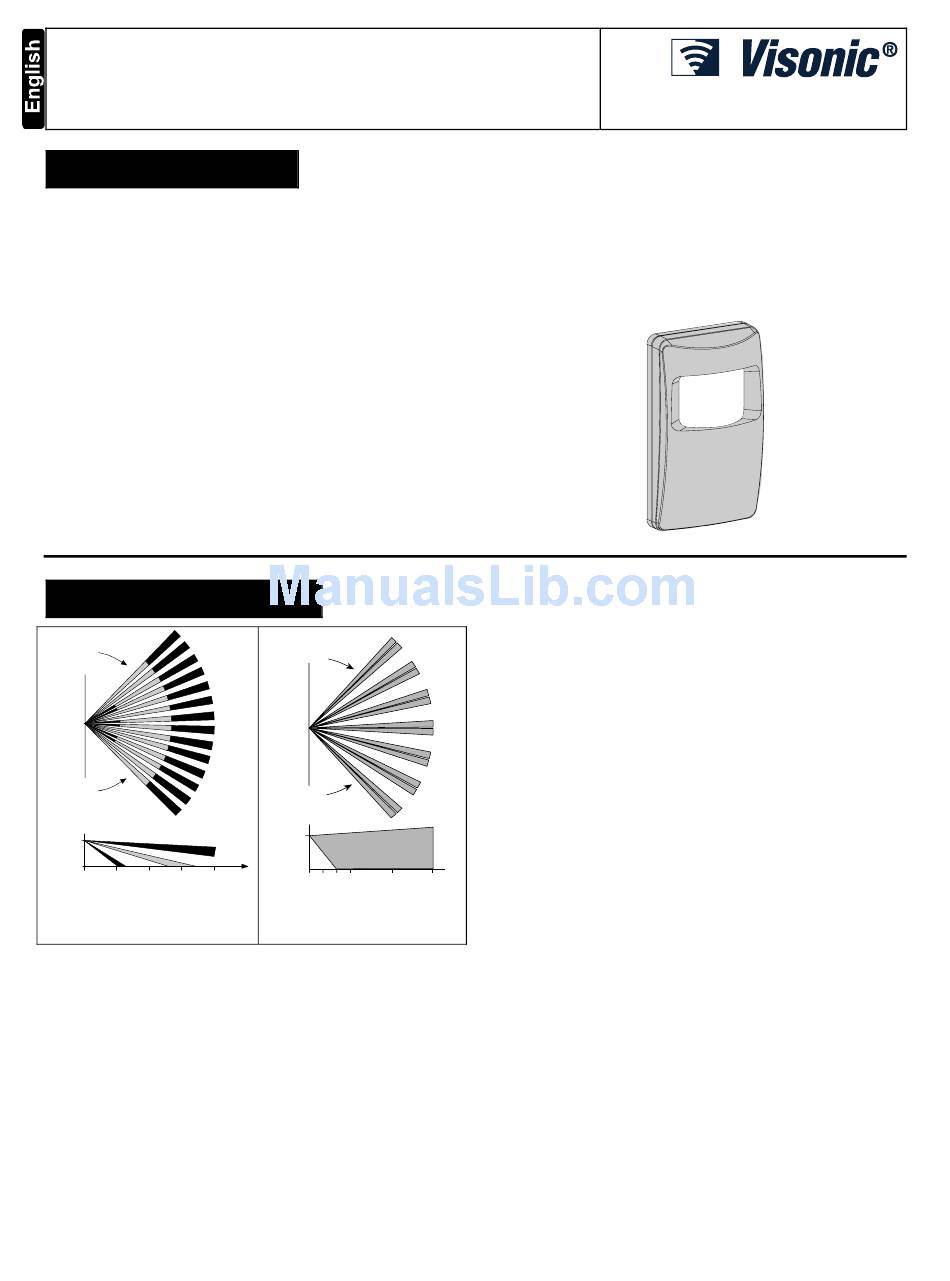

Figure 1. General View
° ° °
to 50 C (14 to 122
° ° °
to 60 C (-4 F to 140
°
F).
°
F).
