Fortinet FortiGuard Analysis and Management Service 1.2.0 Administration Manual page 32

Configuring widgets
32
To date
Top Enter the top number of entries to be displayed. For example, select
10 from the list so that only the top 10 events display.
Color (Bar chart Select the color of the bars on the bar chart. This is available only
when bar chart is selected. You can select a color from either the list
only)
or the color block.
When you select the color block, the Color Palette appears; select a
color and then select OK to apply it to the variable.
OK Select to save the settings (current session only).
Note: You must select Customize > Save Settings from the
Dashboard if you want your settings to be saved permanently.
•

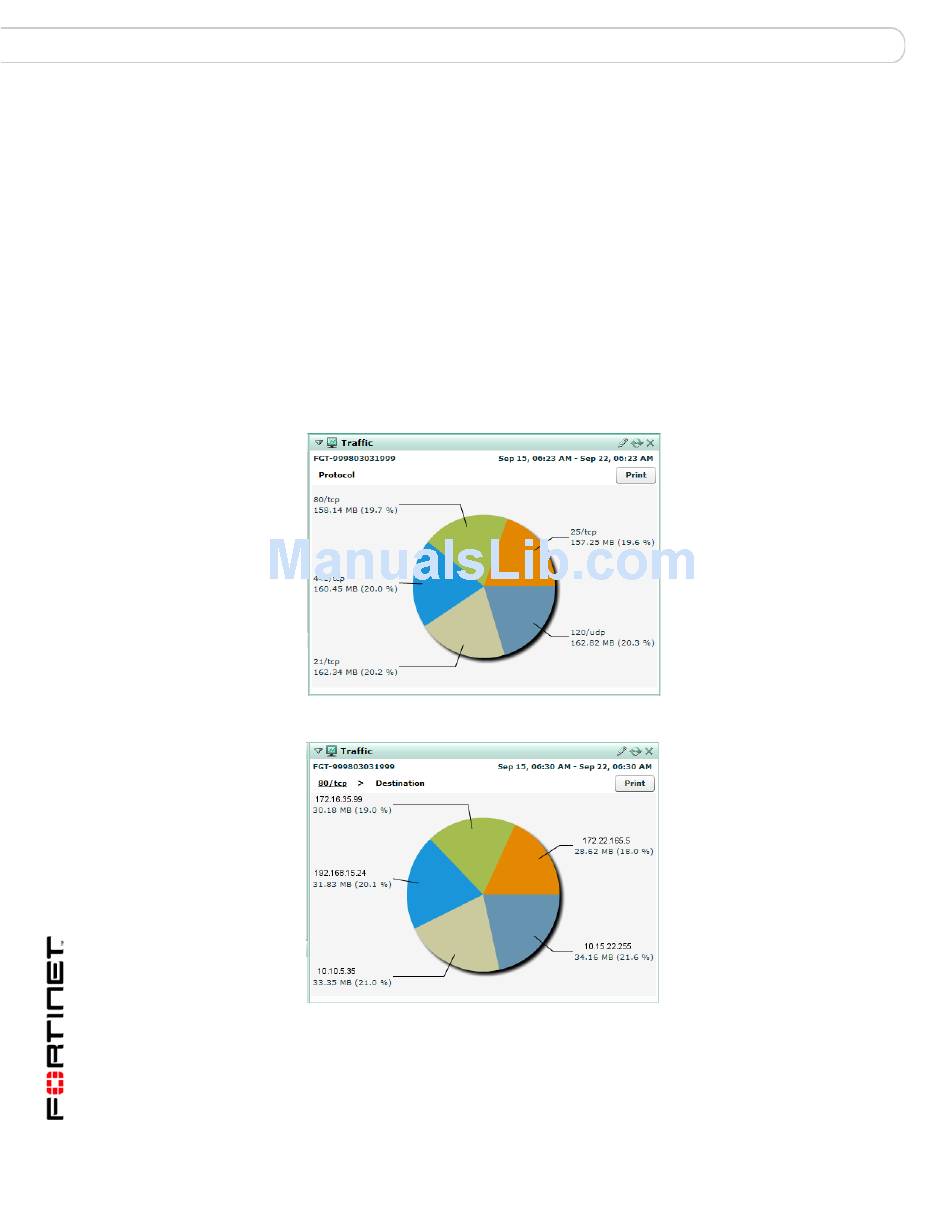

Figure 16: Traffic Report pie chart displaying the top traffic level by protocol
Figure 17: Traffic Report pie chart displaying second-level information for 80/tcp
FortiGuard Analysis and Management Service Version 1.2.0 Administration Guide
The end date and time of the time range. Appears
only when Specify is selected in Report period.
Select the calendar to configure the end date and
time. Select OK after configuring both the date
and time.
13-12000-406-20081031
Dashboard
