TRIBAR Spot
Unpacking: Thank you for purchasing the TRIBAR Spot by ADJ Prod-
ucts, LLC. Every TRIBAR Spot has been thoroughly tested and has
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all accessories necessary to operate the unit has
arrived intact. In the case damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Do not return this unit to your dealer without first contact-
ing customer support.

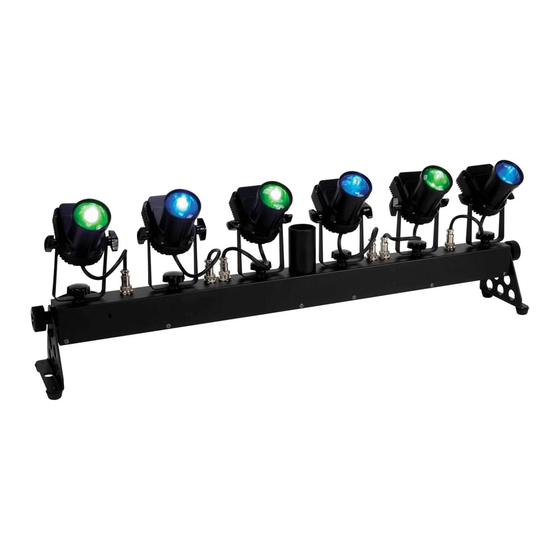

Introduction: The ADJ TRIBAR Spot is part of a continuing pursuit to
create high quality intelligent lighting. The TRIBAR Spot is an exciting
all-in-one DMX intelligent LED pin spot system. This lighting system
features six RGB color mixing LED fixtures. This fixture can be used in
a stand alone mode or connected in a Master/Slave configuration. This
system has six operating modes: Sound Active mode, Auto Run mode,
Built-In Program mode, Static Color Mode, RGB dimmer mode, and
DMX control mode.
Customer Support: ADJ Products, LLC provides a customer support
line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.adj.com for any comments or sugges-
tions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.
Pacific Standard Time.
Voice:
(323) 582-3322
Fax:
(323) 582-3108
E-mail:
support@adj.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
ADJ Products, LLC.
PLEASE recycle the shipping carton when ever possible.
ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 2
Introduction
Advertisement
Table of Contents
Related Manuals for American DJ TRIBAR Spot
Summary of Contents for American DJ TRIBAR Spot
- Page 1 Do not return this unit to your dealer without first contact- ing customer support. Introduction: The ADJ TRIBAR Spot is part of a continuing pursuit to create high quality intelligent lighting. The TRIBAR Spot is an exciting all-in-one DMX intelligent LED pin spot system. This lighting system features six RGB color mixing LED fixtures.
-
Page 2: General Instructions
• Always mount this unit in safe and stable matter. • Power-supply cords should be routed so that they are not likely to The TRIBAR Spot carries a 3 year limited warranty. Please fill out the be walked on or pinched by items placed upon or against them, enclosed warranty card to validate your purchase. -
Page 3: Power Supply
Spot has 7 DMX channel modes, please see page 9 for the different Figure 4 and PIN 3 (DMX +) of the last fixture. modes. The DMX address is set on the back panel of the TRIBAR Spot. 5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX- Your unit and your DMX controller require a stan- 512 data cables for DATA transmission in place of 3-pin. -
Page 4: Operating Modes
UP and DOWN buttons to scroll through the 7 Sound Active Mode: colors. In this mode the TRIBAR Spot will react to sound, and chase through the Auto Run Mode: different colors. 1. Plug the fixture in and press the MODE button until “AUTO”, is dis- 1. - Page 5 This function 2. Press the SET UP button until “Ir.XX” is displayed. “XX” represents also allows you to use your fixtures as spot lights. The TRIBAR Spot has either “on” or “oF”.
-
Page 6: Master/Slave Configuration
15-22 for DMX modes, values, and traits. SOUND ACTIVE - This button activates sound active mode. Use the ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 11 ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 12... -
Page 7: Photometric Chart
LED’s will flash 2-3 times. Use the number buttons to press in your desired address. See “SET ADDRESS” on this page for ex- amples. ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 13 ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 14... - Page 8 NO FUNCTION 8 - 255 STROBING SLOW - FAST MASTER DIMMER 0 - 255 0% - 100% ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 15 ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 16...
- Page 9 PROGRAM 21 226 - 235 PROGRAM 22 236 - 245 AUTO RUN 246 - 255 SOUND ACTIVE ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 17 ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 18...
- Page 10 NO FUNCTION 8 - 255 STROBING SLOW - FAST MASTER DIMMER 0 - 255 0% - 100% ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 19 ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 20...
- Page 11 RED (PINSPOT 6) 0 - 255 0% - 100% GREEN (PINSPOT 6) 0 - 255 0% - 100% ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 21 ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 22...
-
Page 12: Troubleshooting
Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue, dust, dew). ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 23 ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 24... -
Page 13: Warranty
1-year (365 day Limited Warranty) and batteries which have a 180 day limited warranty). Only the L.E.D.s carry a 3-year warranty ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 25 ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 26... -
Page 14: Specifications
Web: www.adj.com / E-mail: info@adj.com A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade Netherlands service@adj.eu / www.adj.com Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99 ADJ Products, LLC - www.adj.com - TRIBAR Spot User Manual Page 27...
