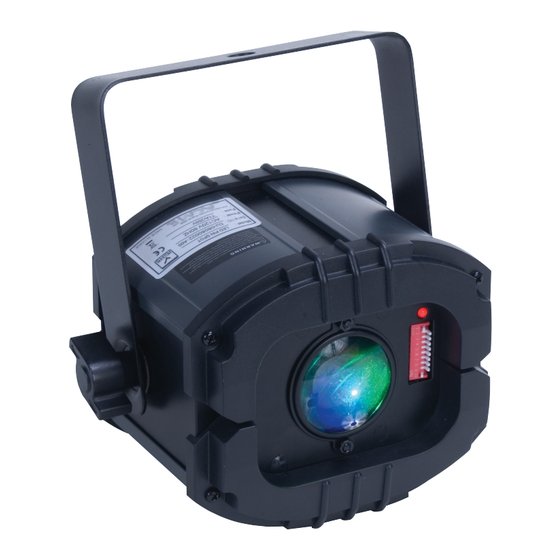

LED TRISPOT
User Instructions
10/08
Unpacking:
can DJ
shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all accessories necessary to operate the unit has
arrived intact. In the case damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Do not return this unit to your dealer without first contact-
ing customer support.
Introduction:
pursuit for creating high quality affordable intelligent fixtures. The LED
Trispot is a simple DMX intelligent LED effect. This fixture is light weight
and compact which makes it a great piece for mobile DJ's and clubs.
This unit can be used as a stand alone, or a sound-active mode. The
unit can also be controlled via DMX controller.
Customer Support:
port line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 9:00 a.m. to
5:00 p.m. Pacific Standard Time.
To purchase parts online visit http://parts.americandj.com
Warning!
not expose this unit to rain or moisture.
Caution!
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ
PLEASE recycle the shipping carton when ever possible.
American DJ
®
6122 S. Eastern Ave.
Los Angeles Ca. 90040
www.americandj.com
LED Trispot
Thank you for purchasing the LED Trispot by Ameri-
. Every LED Trispot has been thoroughly tested and has been
®
The LED Trispot is part of American DJ's continuing
American DJ
Voice:
(800) 322-6337
Fax:
(323) 582-2941
E-mail:
support@americandj.com
To prevent or reduce the risk of electrical shock or fire, do
There are no user serviceable parts inside this unit. Do not
.
®
American DJ Supply
- www.americandj.com - LED Trispot Instruction Manual Page 2
©
®
Introduction
provides a toll free customer sup-
®

Advertisement

Table of Contents
loading

Related Manuals for American DJ LED Trispot

Summary of Contents for American DJ LED Trispot

  • Page 1 Thank you for purchasing the LED Trispot by Ameri- LED TRISPOT can DJ . Every LED Trispot has been thoroughly tested and has been ® shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the...

  • Page 2: General Instructions

    Allow about 6” (15cm) between this device and a wall. • Do not attempt to operate this unit, if it becomes damaged. The LED Trispot carries a 1 year (365 days) limited warranty. Please • This unit is intended for indoor use only, use of this product out` fill out the enclosed warranty card to validate your purchase and war- doors voids all warranties.

  • Page 3: Power Supply

    DMX unit. The DMX address controller, as long as all fixtures and the controller are DMX compli- is set on the back panel of the LED Trispot. Your unit and your DMX ant. To ensure proper DMX data transmission, when using several controller require a standard 3-pin XLR connector DMX fixtures try to use the shortest cable path possible.

  • Page 4: Operating Modes

    Operating Instructions Operating Modes: Sound Active Mode: XLR Male Socket XLR Female Socket XLR Pin Configuration 1 Ground In this mode the LED Trispot will react to sound, and chase through 2 Cold 2 Cold 1 Ground REMOTE REMOTE INPUT...
  • Page 5 1. This function will allow you to control each individual fixture’s traits with a standard DMX 512 controller. 2. The LED Trispot can use either three DMX channels or five DMX LED Trispot™ DMX Values & Traits - 5 Channels channels.

  • Page 6: Troubleshooting

    Contact American DJ, Inc. Service Department at 800-322-6337. Send every 20 days. the product only to the American DJ, Inc. factory. All shipping charges must be pre-paid. If the re- quested repairs or service (including parts replacement) are within the terms of this warranty, Ameri- 3.
  • Page 7 LED Trispot Notes LED Trispot Notes American DJ Supply - www.americandj.com - LED Trispot Instruction Manual Page 13 American DJ Supply - www.americandj.com - LED Trispot Instruction Manual Page 14 © ® © ®...

  • Page 8: Specifications

    ©American DJ Supply American DJ World Headquarters: 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-2650 / Fax: 323-725-6100 Web: www.americandj.com / E-mail: info@americandj.com American DJ Supply - www.americandj.com - LED Trispot Instruction Manual Page 15 © ®...
