Summary of Contents for Optoma EzPro 600

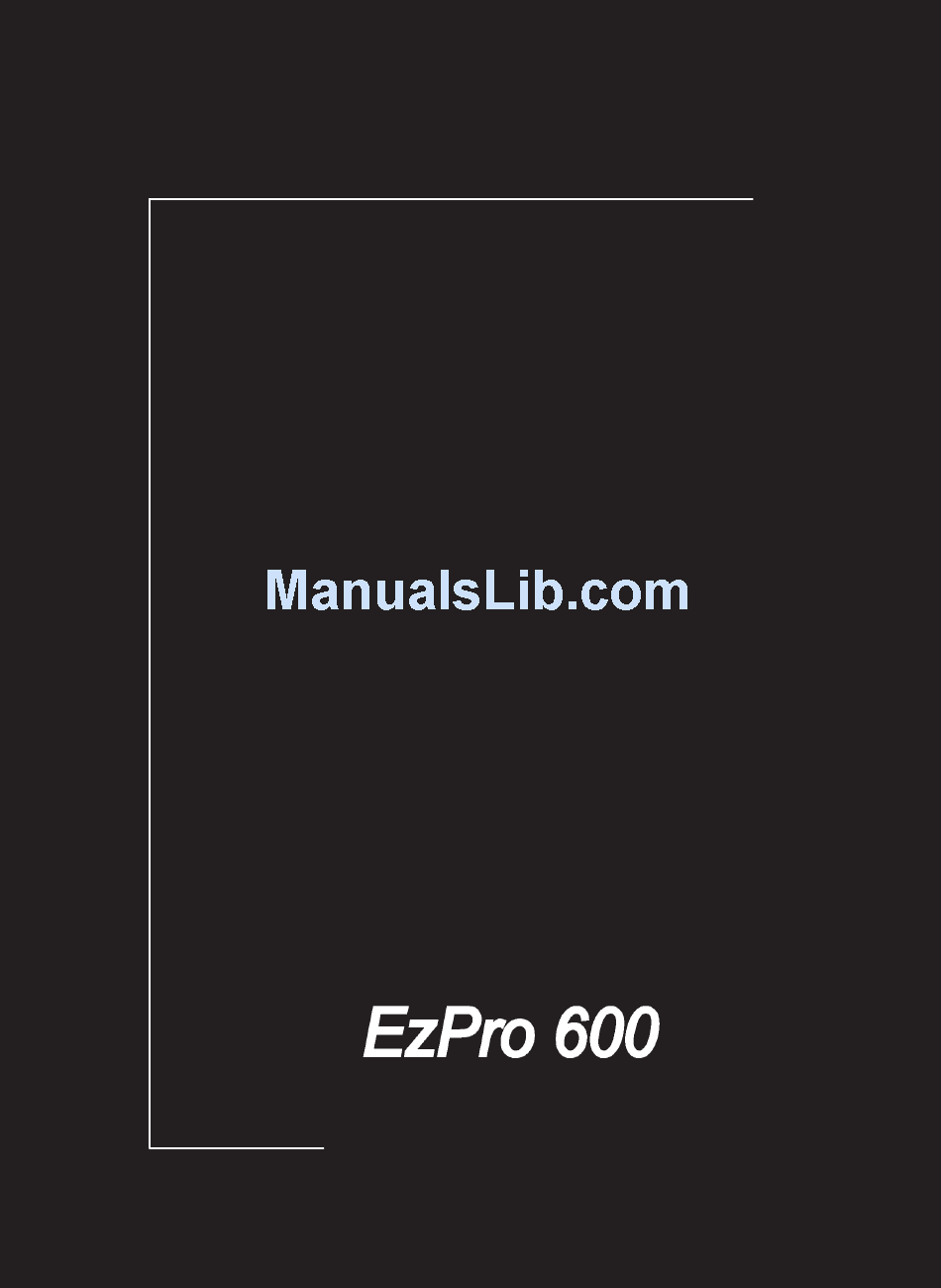

- Page 1 English English Français Ezpro 600 User’s Manual Manuel de l’utilisateur...
- Page 2 English English FCC Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation.
-
Page 3: Table Of Contents
English Table of Contents Usage Notice Precautions ..................2 Introduction About the Product ................. 3 Package Overview ................4 Installation Product Overview ................. 5 Connecting the Projection Display ............8 Powering On/Off the Projection ............11 Adjusting the Image Size ..............12 User Controls User Control Overview ................. -
Page 4: Usage Notice
English Usage Notice Do not look into the lens. The bright light may hurt your eyes. Warning- To reduce the risk of fire or electric shock, do not expose this Warning- product to rain or moisture. Please do not open or disassemble the product as this may cause Warning- electric shock. -
Page 5: Introduction
English Introduction About the Product This product, designed with a high-powered metal halide lamp, is an SVGA polysilicon LCD projection display. The outstanding features of it are listed as follows: 12 lbs (5.4 kg) lightweight compact design 250-watt user replaceable metal-halide lamp Triple 1.3”... -
Page 6: Package Overview
English Package Overview This projection display comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing. LCD Projection Display Power Cord Mac Multiform Adapter Mac Monitor Adapter VGA Cable S-Video Cable RCA Audio / Video Cable... -
Page 7: Installation
English Installation Product Overview Main Unit MENU POWER VOL. SOURCE RESET FOCUS / ZOOM Panel Controls Carrying Handle Power Switch Remote Control Receiver Projection Lens Elevator Releasing Button Speakers Elevator... -
Page 8: Connection Ports
English Connection Ports Audio Output Connectors Audio Input Connectors Composite Video Connector S-Video Connector Remote Mouse Connector Computer Input Connector Audio Input for Computers Monitor Loop-through Connector Signal Connection Ports Power Interface Power Connector Power Switch... -
Page 9: Remote Control
English Remote Control Curtain Freeze Power on/Standby CURTAIN FREEZE Enlargement Function STANDBY Source Selection Focus & Zoom Lens SOURCE FOCUS/ZOOM ENLARGE Adjustments Directional Select Keys Enter/Pointer MENU ENTER On-Screen Menus POINTER VOLUME MUTE Volume Mouse Left Button Down DRAG Right Mouse Button/ Left Mouse Button Backlight Function LIGHT... -
Page 10: Connecting The Projection Display
English Connecting the Projection Display S-Video Cable Power Cord RCA Audio Audio Cable Video Cable Mac Monitor Adapter Mac Adapter Monitor Cable VGA Cable Audio Cable Remote Receiver Cable * For Macintosh, use the Mac adapter. (Select the correct Mac type on your adapter, refer to the Macintosh spec. on page 9 or 31) To ensure the projection display works well with your computer, please configure the display mode of your graphic card to make it less than or... - Page 11 English Connecting the Mac adapter 1. Switch the supplied Mac adapter to your desired resolution. Refer to following figure and the section of compatibility mode on page 31. 13” 16” 19” 21” : OFF : ON Switch Example: Mac 16” Mac 13”...
- Page 12 English Connecting the remote control Follow regular setup procedures. Make sure you have a 100% compatible Microsoft Mouse and a Microsoft Mouse driver installed. Remote Receiver Cable Microsoft Mouse (Microsoft Mouse Connection) Mac or PC PS/2 Remote Adapter Mac or PC PS/2 Mouse Adapter Remote Receiver Cable Mac or PC PS/2 Mouse (Mac or PC PS/2 Mouse Connection)
-
Page 13: Powering On/Off The Projection
English Powering On/Off the Projection Display Powering On Projection Display. 4 4 4 4 4 Switch on the power; then turn on the lamp. The “POWER/STANDBY” indicator will blink green when the display initializes. After you press the “POWER” button, it will light green solidly and also the “LAMP”... -
Page 14: Adjusting The Image Size
English Adjusting the Image Size Adjusting the Image Size. 4 Press “FOCUS / ZOOM” button from the display, you can see you a zoom icon on the screen. Then press “+”or “-” to adjust it. (Refer to the below Figure.) 4 Adjust the height of projected image. - Page 15 English [600] [ ] Maximum ( ) Minimun [400] [300] (400) [200] (250) [150] (188) [100] (125) [60] (94) [32] (62) (37) (20) 3.6’ 6.9’ 11.8’ 17.8’ 23.7’ 35.2’ 47.0’ 75.6’ Max. 32” 60” 100” 150” 200” 300” 400” 640” Screen Min.
-
Page 16: User Controls
English User Controls User Control Overview There are two ways for you to control the functions: panel control and remote control. Panel control MENU VOL. POWER SOURCE RESET FOCUS / ZOOM Remote control Curtain Freeze Power on/Standby Enlarge Functions CURTAIN FREEZE STANDBY Source Selection... -
Page 17: Osd Menus
English OSD menus The OSD (On-Screen Display) menus will allow you to easily adjust the display functions. Press the “MENU” button for the OSD menu options. When in 1024 x 768 mode, When in VGA M03H/ M13H the OSD will be: mode the OSD will be: Language Language... -
Page 18: Function Descriptions
English Function Descriptions Basic functions: Power on/Standby Press the “Power on/Standby” button to turn on the projection lamp. Menu Press “Menu” button to pop up the OSD menu. Reset Press “Reset” to return the display parameters of the current mode to its factory default settings. Source Use “... - Page 19 English Language Choose “Language” item to select your choice of English, German, French, Spanish, Italian, Japanese and Chinese. (1) Volume adjustments: “+”, “-”, “Mute” Audio (2) Audio adjustments: Bass, Treble, Balance, Volume, 4 sound modes. Rear Projection Choose this function from OSD menu for a rear projection. Choose this funtion from OSD menu for a ceiling projection.
- Page 20 English Freeze Press the “Freeze” button to still the screen image. Curtain Press “Curtain” button to cover all the screen, then use 5 or 6 to pull up or down the curtain. Use 3 or 4 button to choose curtain color. Enlarge Press “Enlarge”...
- Page 21 English Presentation functions -- video source To adjust the contrast or brightness of the image, select Contrast/Brightness “Contrast/Brightness” from OSD menus. Color/Tint To adjust the color or tint of the image, select “Color/ Tint” from OSD menus. Press the “Freeze” button to still the screen image. Freeze...
-
Page 22: Appendices
English Appendices Troubleshooting If you are experiencing trouble with the projection display, refer to the follows. If the problem persists, please contact your local dealer or our service center. Problem: No image appears on screen. Press “Power on/Standby” button. Ensure all the cables and power connections are correctly and securely connected as described in the “Installation”... - Page 23 English 4. Follow above steps 1~2. Click on the “Advanced Properties ” button. 5. Select the “Change” button under the “Monitor tab” . 6. Click on “ Show all devices ”. Then select “ Standard monitor types ” under the “...
-
Page 24: Maintenance
English Maintenance Cleaning the air filter Cleaning Procedure: 1. Turn off the power. 2. Remove the air filter cover. 3. Remove the air filter from the filter cover. 4. Clean the air filter with a vacuum cleaner. 5. Place the air filter back in position. Make sure the air filter is fully inserted. Air Filter Air Filter Cover Air Filter... -
Page 25: Changing The Lamp
English Changing the lamp The projection display will detect the lamp life itself. It will show you a warning message when the lamp is used over working hours. When you see this message, change the lamp as soon as possible. Please refer to the “Accessories” on page 29 for the order information. - Page 26 English 4. Unscrew the 2 screws of the lamp module and pull out the lamp module by the handle. Lamp Screws Lamp Handle 5. Replace the new lamp module by handle and tighten the screws. Lamp Handle 6. Place the lamp cover back in position and lock the 2 screws. 7.
- Page 27 English Changing the fuse Spare Fuse Fuse Holder Fuse Changing Procedure: 1. Switch off the power and unplug the power cord. 2. Pull out the fuse holder. 3. Remove the blown fuse and then insert the spare fuse. 4. Put the fuse holder back in position.
-
Page 28: Ceiling Installation
English Ceiling Installation Warning: Installing the projection display on the ceiling must be done by a qualified technician. Contact your dealer for more information. Do not attempt to install the projection display yourself. Ceiling Procedure: Before your ceiling installation, refer to the “Adjusting the Image Size” on page 12 for the projection distance and image size. - Page 29 English 2. Lock the ceiling bracket with the ceiling rod by the supplied round thumbscrews. You may adjust your desired height by the holes on the bracket. Round Thumbscrew Ceiling Bracket * The height of the ceiling rod is from 15.75 to 25.6 inches (40~65cm). You can adjust your desired height by each interval (one inch / 2.5cm) between the holes.
- Page 30 English 3. Lock the projection display to ceiling bracket with the three bracket screws. Structural Ceiling Suspended Ceiling Three Bracket Screws Warning: Do not block the air filter of the projection display. 4. Adjust the projection angle of the projection display. Fast and precise image is easily accomplished through the roll and yaw adjustment.
-
Page 31: Accessories
English Accessories Standard Accessories Part Number Quick Start Cards 36.80703.001 User’s Manual 36.80701.001 Warranty Card call for part numbers VGA Cable ( 2M ) 42.53001.051 Mac Multiform Adapter 42.80707.001 Mac Monitor Adapter 42.50207.003 S-Video Cable ( 2M ) 42.50209.011 RCA Audio/ Video Cable ( 2M ) 42.80708.001 Audio Cable for Computer (2M) 42.80715.001... -
Page 32: Specifications
English Specifications LCD panel - active matrix TFT color LCD - 1.3” poly-silicon panels x 3 - tr=12ms, tf=30ms response time - 200:1 contrast ratio Lamp - 250-watt metal halide Number of Pixels - 1,557,504 {519,168 (832 x 624) x 3} Displayable Color - 16.7M colors Projection Lens... -
Page 33: Compatibility Modes
English Compatibility Modes H. Frequency V. Frequency Mode Resolution (kHz) (Hz) VESA VGA 720 x 400 31.47 85.00 VESA VGA 640 x 400 31.47 85.01 VESA VGA 640 x 350 31.47 85.01 VESA VGA 640 x 480 31.47 59.94 VESA VGA 640 x 480 37.86 72.81...
