Toshiba 32AV503 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

00GB_AV505D_EngOM.book Page 1 Wednesday, November 28, 2007 2:36 PM
AV50*
Series

Advertisement

Table of Contents
loading

Related Manuals for Toshiba 32AV503

Summary of Contents for Toshiba 32AV503

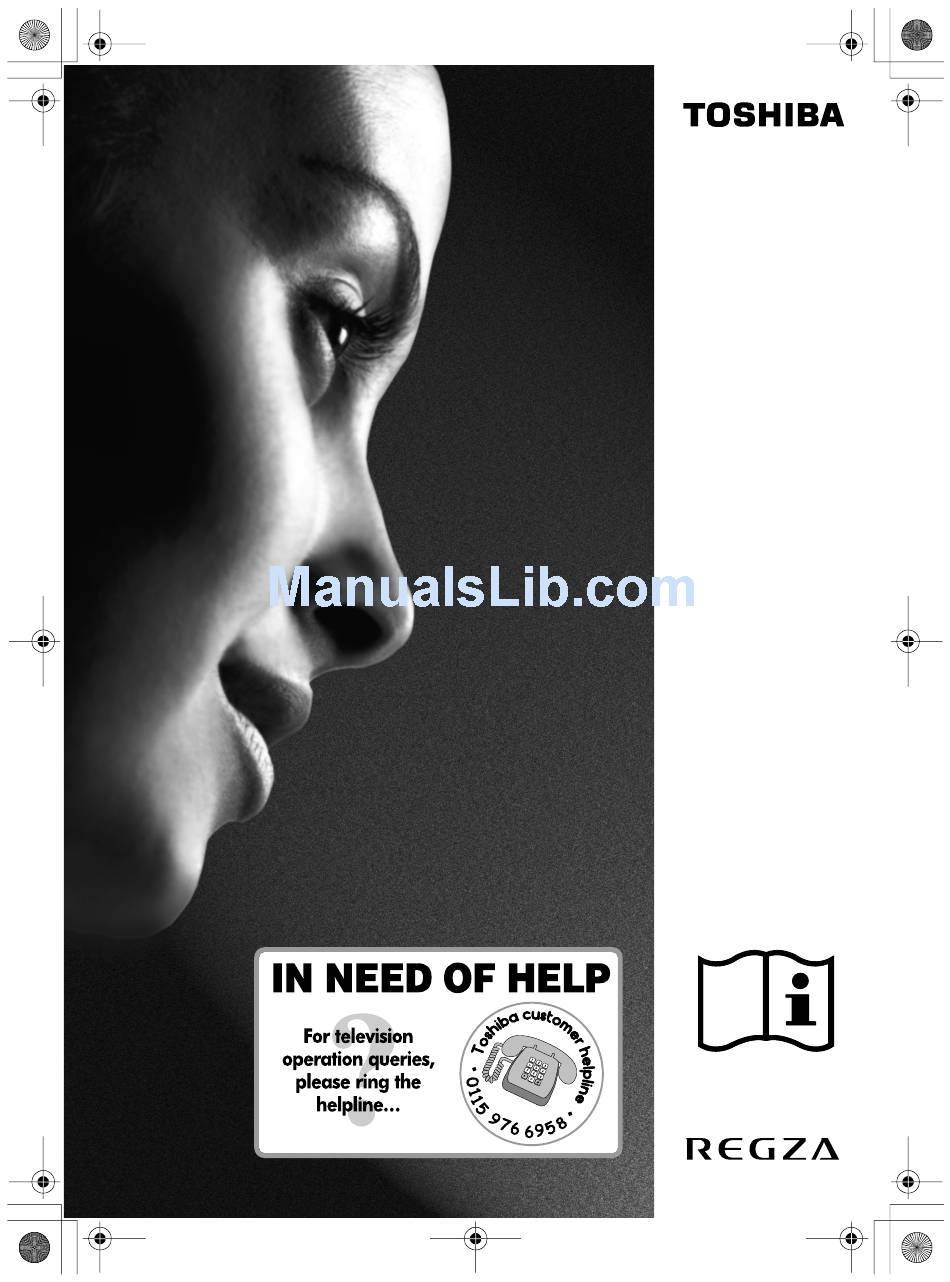

  • Page 1 00GB_AV505D_EngOM.book Page 1 Wednesday, November 28, 2007 2:36 PM AV50* Series...
  • Page 2 00GB_AV505D_EngOM.book Page 2 Wednesday, November 28, 2007 2:36 PM...

  • Page 3: Table Of Contents

    00GB_AV505D_EngOM.book Page 3 Wednesday, November 28, 2007 2:36 PM Contents SETTING UP Digital on-screen information and Programme Guide ..........26 Safety Precautions ..........4 Information ........... 26 Installation and important information ....5 Guide ............26 The remote control ..........6 Digital settings – parental control ......27 Inserting batteries and effective range of the Setting the PIN ..........

  • Page 4: Setting Up

    00GB_AV505D_EngOM.book Page 4 Wednesday, November 28, 2007 2:36 PM SETTING UP Safety Precautions DO NOT REMOVE ANY FIXED COVERS AS THIS WILL EXPOSE DANGEROUS AND 'LIVE' PARTS. This equipment has been designed and manufactured THE MAINS PLUG IS USED AS A DISCONNECTING to meet international safety standards but, like any DEVICE AND THEREFORE SHOULD BE READILY electrical equipment, care must be taken to obtain the...

  • Page 5: Installation And Important Information

    NOTE: A Toshiba wall bracket or stand, where available, must be used. If a non Toshiba wall bracket or stand is used the product’s BEAB approval will become void and the equipment is then used at the consumers own risk.

  • Page 6: The Remote Control

    00GB_AV505D_EngOM.book Page 6 Wednesday, November 28, 2007 2:36 PM SETTING UP The remote control 10 When using menus press (up), (down), (left) and (right) to move the cursor on the screen. Q to confirm your selection Simple at-a-glance reference of your remote 11 To alter the volume control.

  • Page 7: Connecting External Equipment

    00GB_AV505D_EngOM.book Page 7 Wednesday, November 28, 2007 2:36 PM SETTING UP Connecting external equipment Before connecting any external equipment, turn off all main power switches. If there is no switch remove the mains plug from the wall socket. HDMI™ INPUT SOCKETS VIDEO INPUT (EXT4) COMPONENT VIDEO INPUT (EXT3)

  • Page 8: Connecting An Hdmi™ Or Dvi Device To The Hdmi Input

    00GB_AV505D_EngOM.book Page 8 Wednesday, November 28, 2007 2:36 PM SETTING UP Connecting an HDMI™ or DVI To connect a DVI device device to the HDMI input Connect an HDMI-to-DVI adapter cable (HDMI type A connector) to HDMI1 terminal and audio cables to the HDMI1 The HDMI input on your television receives digital Audio socket (see illustration).

  • Page 9: Connecting A Computer

    00GB_AV505D_EngOM.book Page 9 Wednesday, November 28, 2007 2:36 PM SETTING UP Connecting a computer With the HDMI connection, you can watch your computer’s display on the television and hear the sound from the televisions speakers. To connect a PC to the HDMI terminal When connecting a PC to the HDMI terminal on the television, use an HDMI-to DVI adapter cable and analog audio cables.

  • Page 10: Using The Controls

    00GB_AV505D_EngOM.book Page 10 Wednesday, November 28, 2007 2:36 PM SETTING UP Using the controls Whilst all the necessary adjustments and controls for the television are made using the remote control, the buttons on the television may be used for some functions. COMMON INTERFACE The Common Interface is for a Conditional...

  • Page 11: Tuning The Television

    00GB_AV505D_EngOM.book Page 11 Wednesday, November 28, 2007 2:36 PM TUNING THE TELEVISION Tuning Digital television When the search is complete the television will automatically select programme one. Before switching on the television put your decoder The AUTO TUNING screen will display the total and media recorder to Standby if they are number of services found.

  • Page 12: Digital Auto Tuning

    00GB_AV505D_EngOM.book Page 12 Wednesday, November 28, 2007 2:36 PM TUNING THE TELEVISION You must allow the television to complete the Digital auto tuning search. NOTE: As new services are broadcast it will be necessary to re- When the search is complete the Auto tuning screen tune the television in order to view them.

  • Page 13: Digital Programme Sorting

    00GB_AV505D_EngOM.book Page 13 Wednesday, November 28, 2007 2:36 PM TUNING THE TELEVISION Digital programme sorting Digital manual tuning This feature is available for service engineers or can be NOTE: When the television is switched off the mode being used for direct channel entry if the multiplex channel viewed at the time will automatically be selected when the is known.

  • Page 14: Tuning Analogue Mode

    00GB_AV505D_EngOM.book Page 14 Wednesday, November 28, 2007 2:36 PM TUNING THE TELEVISION Tuning Analogue mode to move through the list to select a programme then press to view. Quick Setup The station order may be changed using the Manual tuning screen (see the analogue ‘Sorting programme The Quick Setup feature will tune all analogue channels positions’...

  • Page 15: Manual Tune

    00GB_AV505D_EngOM.book Page 15 Wednesday, November 28, 2007 2:36 PM TUNING THE TELEVISION Manual tune Press and using select the SET UP menu, with highlight Manual tuning, press to select. The television can be tuned-in manually using Manual tuning. For example: if the television cannot be connected to a media recorder/decoder with a SCART lead or to tune-in a station on another System.

  • Page 16: Programme Skip

    00GB_AV505D_EngOM.book Page 16 Wednesday, November 28, 2007 2:36 PM TUNING THE TELEVISION Programme skip Each signal will show on the television, if it is not your media recorder, press again to restart the To prevent certain programmes from being viewed, the search.

  • Page 17: Sorting Programme Positions

    00GB_AV505D_EngOM.book Page 17 Wednesday, November 28, 2007 2:36 PM TUNING THE TELEVISION Sorting programme positions Using Auto tuning Channels may be moved and stored on the programme position To set up the television using Auto tuning, press of your choice. and use to select the SET UP menu.

  • Page 18: Controls And Features

    00GB_AV505D_EngOM.book Page 18 Wednesday, November 28, 2007 2:36 PM CONTROLS AND FEATURES General controls In analogue mode, press to select SOUND. Selecting programme positions To select a programme position use the numbered buttons on the remote control. SOUND > < Programme positions can also be selected using Dual Dual 1...

  • Page 19: Widescreen Viewing

    00GB_AV505D_EngOM.book Page 19 Wednesday, November 28, 2007 2:36 PM CONTROLS AND FEATURES Widescreen viewing Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats. Press repeatedly to select between 4:3, Super Live 1, Cinema 1, Subtitle, 14:9, Wide, Super Live 2, Cinema 2 and PC.
  • Page 20 00GB_AV505D_EngOM.book Page 20 Wednesday, November 28, 2007 2:36 PM CONTROLS AND FEATURES Use this setting when watching a 14:9 14:9 broadcast. Use this setting when watching a widescreen DVD, widescreen video tape or a 16:9 broadcast (when available). Due to the range of WIDE widescreen formats (16:9, 14:9, 20:9 etc.) black bars may be visible...

  • Page 21: Picture Controls

    00GB_AV505D_EngOM.book Page 21 Wednesday, November 28, 2007 2:36 PM CONTROLS AND FEATURES Picture controls Backlight Adjusting the Backlight can improve the clarity of the screen Most of the picture controls and functions are when viewing. available in both digital and analogue modes. To access the required menus when in digital mode: In the PICTURE menu press to select Picture...

  • Page 22: Picture Preferences

    00GB_AV505D_EngOM.book Page 22 Wednesday, November 28, 2007 2:36 PM CONTROLS AND FEATURES Picture preferences MPEG NR – Noise Reduction This television offers the choice of personalising the picture When watching a DVD the compression may cause some words style. Press to view the different styles available: or picture elements to become distorted or pixelated.

  • Page 23: 3D Colour Management

    00GB_AV505D_EngOM.book Page 23 Wednesday, November 28, 2007 2:36 PM CONTROLS AND FEATURES 3D Colour management Active Backlight Control When 3D Colour management is selected it allows the ‘Base When Active Backlight Control is activated it will colour adjustment’ feature to become available. automatically optimise the backlighting levels for dark scenes.

  • Page 24: 4:3 Stretch

    00GB_AV505D_EngOM.book Page 24 Wednesday, November 28, 2007 2:36 PM CONTROLS AND FEATURES Panel lock 4:3 stretch When 4:3 stretch is activated the size switching system changes Panel lock disables the buttons on the television. All buttons on 4:3 programs into a full screen picture. the remote control can still be used.

  • Page 25: The Timers

    00GB_AV505D_EngOM.book Page 25 Wednesday, November 28, 2007 2:36 PM CONTROLS AND FEATURES The timers When all the details have been entered press save the timer. PLEASE NOTE: When a timed programme is about to start, an Programme timer – digital only information screen will appear offering the option of watching or cancelling the programme.

  • Page 26: Digital On-Screen Information And Programme Guide

    00GB_AV505D_EngOM.book Page 26 Wednesday, November 28, 2007 2:36 PM CONTROLS AND FEATURES Digital on-screen The details of the programme will have been added to the screen. Press to save. information and Programme Guide Guide When viewing in digital mode, the on-screen Select the on-screen guide by pressing GUIDE, the information and programme guide give access to guide screen will appear highlighting details of the...

  • Page 27: Digital Settings - Parental Control

    00GB_AV505D_EngOM.book Page 27 Wednesday, November 28, 2007 2:36 PM CONTROLS AND FEATURES Digital settings – parental Mode control This feature locks various menus to prevent the television being retuned or the settings being overridden. In order to prevent viewing of unsuitable films and In the PARENTAL CONTROL menu press to select programmes, channels and menus can be locked.

  • Page 28: Digital Settings - Other Features

    00GB_AV505D_EngOM.book Page 28 Wednesday, November 28, 2007 2:36 PM CONTROLS AND FEATURES Digital settings – other Locking programmes features Locked Programmes stops the viewing of digital channels, they can only be accessed by entering the PIN. Selecting favourite programmes From the FEATURE MENU press to select Favourite and Locked Programmes.

  • Page 29: Audio Languages

    00GB_AV505D_EngOM.book Page 29 Wednesday, November 28, 2007 2:36 PM CONTROLS AND FEATURES Audio languages Common interface This feature allows a programme or film to be viewed with a The Common Interface Slot, situated on the back of the choice of soundtrack language, provided they are currently television, enables the insertion of a CAM (Conditional Access being broadcast.

  • Page 30: Digital Settings - Software Upgrade

    00GB_AV505D_EngOM.book Page 30 Wednesday, November 28, 2007 2:36 PM CONTROLS AND FEATURES Digital settings – software Searching for new software upgrade If preferred, software upgrades can be searched for manually using Search for New Software. Version In the SOFTWARE UPGRADE menu press select Search for New Software.

  • Page 31: Input Selection And Av Connections

    00GB_AV505D_EngOM.book Page 31 Wednesday, November 28, 2007 2:36 PM CONTROLS AND FEATURES Input selection and AV INPUT signal selection connections This specifies the type of signal going into SCART 2 (EXT2) on the back of the television. Please refer to the manufacturers Defining the INPUT and OUTPUT sockets so that instructions for the connected equipment.

  • Page 32: Hdmi1 Audio

    00GB_AV505D_EngOM.book Page 32 Wednesday, November 28, 2007 2:36 PM CONTROLS AND FEATURES HDMI1 audio Lip Sync Latency If the connected HDMI source does not support digital audio, Lip Sync can synchronize the sound and picture. This feature is plug the audio cable into HDMI1 (AUDIO) on the back of the only available when equipment compatible with Lip Sync is television (as shown in the ‘Connecting an HDMI™...

  • Page 33: Text Services

    LIST will store your four favourite pages. For further information on your particular text system(s), see the broadcast text index page or, consult your local Toshiba Selecting modes dealer. The text character set will be automatically chosen by the language setting in the SET UP menu.

  • Page 34: Control Buttons

    00GB_AV505D_EngOM.book Page 34 Wednesday, November 28, 2007 2:36 PM TEXT SERVICES Digital interactive services Control buttons Below is a guide to the functions of the remote control text The digital interactive services are the up-to-date buttons. way of viewing service information, using computer-style formats, incorporating pictures and k To display the index/initial page: interactive views.

  • Page 35: Problem Solving

    Check the correct input has been chosen, S-VIDEO or common queries. AV. See AV connections page 31. For more information go to www.toshiba.co.uk What else can cause a poor analogue picture? Why is there no sound or picture? Interference or a weak signal. Try a different television Check the television is not in standby mode.
  • Page 36 00GB_AV505D_EngOM.book Page 36 Wednesday, November 28, 2007 2:36 PM PROBLEM SOLVING Why is the DTV main menu unavailable? Why is there no digital text service? Another mode is selected. Press to select DTV. The digital programme being viewed is not broadcasting digital text.
  • Page 37 00GB_AV505D_EngOM.book Page 37 Wednesday, November 28, 2007 2:36 PM PROBLEM SOLVING Why does the GREEN Active Standby LED sometimes take longer to go out? When put into standby the television’s active standby will automatically search all available channels for downloads, provided Auto upgrade is On. The time it takes to do this may vary.

  • Page 38: Information

    00GB_AV505D_EngOM.book Page 38 Wednesday, November 28, 2007 2:36 PM INFORMATION Notes For your own records Cleaning the screen and cabinet… Turn off the power, clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage.
  • Page 39 00GB_AV505D_EngOM.book Page 39 Wednesday, November 28, 2007 2:36 PM INFORMATION For your own records...

  • Page 40: Specifications And Accessories

    Audio L + R DVB is a registered trademark of the DVB Project Printed on recycled paper. 100% Chlorine free. © Toshiba Information Systems (U.K.) Limited All rights reserved. Reproduction in whole or part without written permission is strictly prohibited.

  • Page 41: License Information

    00GB_AV505D_EngOM.book Page 41 Wednesday, November 28, 2007 2:36 PM License Information used with Toshiba Televisions...
  • Page 42 TOSHIBA.However, some of the software components distributed under an EULA are made available for use by the user on the assumption that they are not copyrighted or warranted by TOSHIBA or any third party. These software components are licensed to the user free of charge and therefore are not covered by a warranty within the scope of the applicable laws.
  • Page 43 00GB_AV505D_EngOM.book Page 43 Wednesday, November 28, 2007 2:36 PM Exhibit A GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright © 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
  • Page 44 00GB_AV505D_EngOM.book Page 44 Wednesday, November 28, 2007 2:36 PM Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the program).
  • Page 45 00GB_AV505D_EngOM.book Page 45 Wednesday, November 28, 2007 2:36 PM c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with subsection b above.) The source code for a work means the preferred form of the work for making modifications to it.
  • Page 46 00GB_AV505D_EngOM.book Page 46 Wednesday, November 28, 2007 2:36 PM 8. If the distribution and/or use of the program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded.
  • Page 47 00GB_AV505D_EngOM.book Page 47 Wednesday, November 28, 2007 2:36 PM How to Apply These Terms to Your New Programs If you develop a new program, and you want it be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.
  • Page 48 00GB_AV505D_EngOM.book Page 48 Wednesday, November 28, 2007 2:36 PM Exhibit B GNU LESSER GENERAL PUBLIC LICENSE Version 2.1, February 1999 Copyright © 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
  • Page 49 00GB_AV505D_EngOM.book Page 49 Wednesday, November 28, 2007 2:36 PM When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom.
  • Page 50 00GB_AV505D_EngOM.book Page 50 Wednesday, November 28, 2007 2:36 PM 1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty;...
  • Page 51 00GB_AV505D_EngOM.book Page 51 Wednesday, November 28, 2007 2:36 PM 4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the Sections 1 and 2 above provided that you accompany it with the complete corresponding machine readable source code, which must be distributed under the terms of sections 1 and 2 above on a medium customarily used for software interchange.
  • Page 52 00GB_AV505D_EngOM.book Page 52 Wednesday, November 28, 2007 2:36 PM c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.
  • Page 53 00GB_AV505D_EngOM.book Page 53 Wednesday, November 28, 2007 2:36 PM 11. If, as a consequence of a court judgement or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradicts the conditions of this License, they do not excuse you from the conditions of this License.
  • Page 54 00GB_AV505D_EngOM.book Page 54 Wednesday, November 28, 2007 2:36 PM 16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH...
  • Page 55 00GB_AV505D_EngOM.book Page 55 Wednesday, November 28, 2007 2:36 PM Exhibit C /* zlib.h--interface of the 'zlib' general purpose compression library version 1.2.3, July 18th, 2005 Copyright © 1995-2005 Jean-loup Gailly and Mark Adler This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software.
  • Page 56 00GB_AV505D_EngOM.book Page 56 Wednesday, November 28, 2007 2:36 PM Printed on recycled paper. 100% Chlorine free. VX1A00080900...
