Installation of the Acoustic Matrix™ requires
long incredibly
fine woodworking & soldering skills and should
elongated
be performed only by a qualified repairman.
Acoustic The
Fishman Transducers will not be responsible for
The
any damages that may result from improper
and strings the
installation.
length, saddle's
pickup. the of
Please read these instructions carefully.
Matrix™
For technical assistance, contact Fishman
range dynamic
material
Customer Support at 978-988-9665 or
Acoustic The
tech@fishman.com
The
O C A ™ X I R T A M C I T S U O C
I n s t a l l a t i o n G u i d e I n s t a l l a t i o n G u i d e
Acoustic Matrix
Active Acoustic Guitar Pickup
Includes Installation Instructions for Models
Acoustic Matrix Natural I
Acoustic Matrix Natural II
Wide Format .125" (3.2 mm) Width
Narrow Format .094" (2.3 mm) Width
2.125" String Spacing
results.
with box direct or console recording Pickup Dimensions
amplifier, guitar electric or acoustic
WIDE FORMAT
be may pickup The unparalleled.
Width: .125" (3.17mm)
of ease and versatility The
Height: .053" (1.35mm)
miniaturized endpin-mounted, exclusive
Length: 2.650" (67.3mm)
surface-mount state-of-the-art
Sensing Area: 2.620" (66.55mm) Sensing Area:
system Matrix™ Acoustic active The
Maximum recommended string spacing for both formats : 2.500" (63.5mm)
NOTE: The overall length of the Acoustic Matrix™ pickup is 2.650" (67.3mm).
pickup guitar acoustic finest the
We recommend a saddle slot length of at least 2.875" (73mm).
will you that confident are We Matrix™.
The actual sensing area of the pickup is 2.620" (63.5mm) long and can accom-
Fishman the choosing for you Thank
modate string spacings of up to 2.500" (63.5 mm). Poor string balance may
result with string spacings greater than this. DO NOT trim the end of the pickup's
length as ground hum will be introduced. Custom pickup lengths are available
from Fishman.
Tools
• Plunge Router with 1/8" (3.15mm) cutter for Wide Format OR 3/32" (2.4mm)
cutter for Narrow Format
• 400 Grit Sandpaper or Scraper
• Rosin Core Solder
• 1/2" Open End Wrench
• 15/32" (11.9mm) Tapered Reamer or .....Variable Speed Drill
Parts List

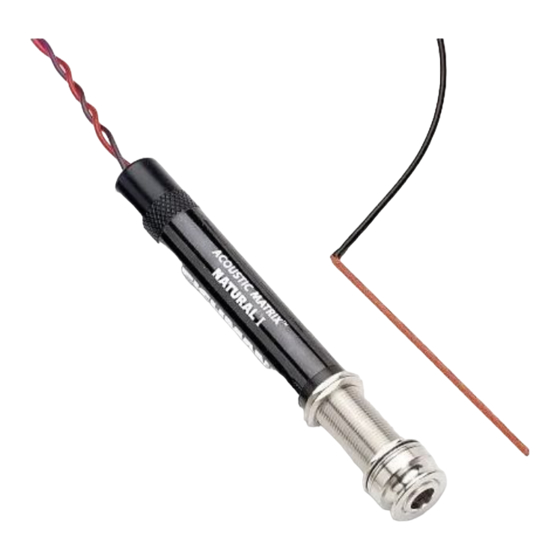

• Acoustic Matrix™ Pickup
• 1/4" endpin-mounted miniaturized preamp
• 3 adhesive-backed plastic wire guides
• Battery clip & screws
A N A M H S I F
Important
1. Both the pickup and preamp are integral components of the Acoustic Matrix™
system. Neither the pickup nor the preamp is meant to be used separately or in
conjunction with other pickups or endpin preamps. Degraded performance will
result from using the pickup or preamp with other systems.
2. Particular attention must be paid to the flatness and squareness of both the sad-
dle and the saddle slot. Pickup performance and balance will be be greatly
enhanced by a properly fit pickup. If you are new to undersaddle pickup instal-
lation, The Finer Points of Piezo Installation by Ken Parker is available at
www.fishman.com.
3. Handle the pickup carefully! Mishandling may result in ground hum or intermit-
tent signal. Fishman Transducers will be in no way responsible for any damages
to the pickup that occur due to misuse or poor installation.
Mechanical Factors
Affecting Pickup Performance
Before you install the pickup, make sure the bridge and saddle are within our
recommended "safe zone" of usable parameters.
TM
EQUIPPED!
quate break angle can often be realized by "ramping" the string slots. In
extreme cases, where the break angle is much less than 20° and the saddle is
so low that it is nearly flush to the top of the bridge, the instrument probably
requires a neck re-set. In these cases, resetting the neck to a higher angle will
restore the saddle height and the string break angle required for good pickup
performance.
50/50 Rule
We have found that there is a critical relationship between the overall saddle
height and the bridge slot depth. For adequate mechanical coupling and pickup
®
balance, we recommend that the saddle slot depth (with pickup installed)
measures no more than 50% of the total height of the saddle. If the slot
measures more than 50% of the total height of the saddle, balance and/or output
F A
I S H M A N C O U S T I C
level of the pickup may suffer. In these cases, add a hardwood shim under the
pickup. To determine the shim's thickness, subtract 1/2 of the total saddle height
NARROW FORMAT
from the slot depth. Then remove an equal amount of material from the bottom
Width: .094" (2.39mm)
of the saddle.
Height: .043" (1.09mm)
Length: 2.650" (67.3mm)
Exception to the 50/50 rule: Pickups in bridges (especially Martin
2.620" (66.55mm)
3/32" width) with exceptionally steep string break angle will generally perform
very well, even if the saddle slot depth measures more than 50% of the total sad-
dle height.
Prepare the Saddle Slot
A large percentage of string balance problems
with undersaddle pickups can be traced to an
unevenly cut or warped saddle slot.
Irregularities on the bottom or sides of
the slot can often prevent the saddle
from uniformly pressurizing the pickup.
For this reason, we strongly recommend that
• Caliper
before you install any undersaddle pickup, re-mill
• Soldering Iron
(30 watt max)
an existing slot with a plunge router, jigged up in an
• Wire Strippers
appropriate slot cutting fixture.
• 3/32" (2mm) Allen Wrench
1. Rout a .125" (3.17 mm) wide saddle slot for the Wide Format pickup.
X-Acto ® Saw
Rout a .094" (2.38 mm) wide slot for the Narrow Format pickup.
Center Punch
2. Be certain that the bottom of the slot is flat. Deepen an existing slot only
1/8" (3.15mm)Twist Drill
enough to obtain a clean, flat surface.
15/32" (11.9mm)Spade Bit Drill
Locate the Wire Hole
1. Locate the center of the wire hole no less than .100" (2.54 mm) from the clos-
est string.
2. Mark the location where the wire will enter the saddle slot. Center the mark
between the walls (width) of the slot.
3. Drill a .094" hole.
4. Clear wood chips and foreign materials from the saddle slot.
5. Carefully insert (do not bend) the pickup. The fit must be loose in the slot,
without binding on the sides or the ends of the pickup. If the ends of the pick-
up come in contact with the saddle slot, pickup failure could result.
Break Angle
For the pickup to perform opti-
NO MORE THAN 50%
Prepare the Saddle
mally, there should be a 20° (mini-
mum) string break angle across
We highly recommend the Fishman Cleartone™ saddle for enhancing the per-
the back of the saddle. An ade-
formance of the Acoustic Matrix™. We also suggest synthetic materials such as
Micarta™ or Corian™ as adequate substitutes. Organic saddles such as bone or
ivory can not be recommended since these are not structurally as consistent as
synthetic materials and could produce poor string to string balance through the
pickup.
1. Prepare a .125" or 3.17mm wide saddle (.094" or 2.38mm for Narrow
Format). For adequate pickup performance, the bottom and sides of the sad-
dle must be absolutely FLAT.
2. Remove only enough material from the width of the saddle to provide a slid-
ing fit in the slot. To test the fit, the saddle should slide easily in the slot, but
should not fall out when overturned. To maintain your current action, the new
saddle must be .053" shorter in height (.043" for Narrow Format pickups)
than your current saddle.
M ™
A T R I X
® style,
OR
No less than .100" (2.54 mm)
