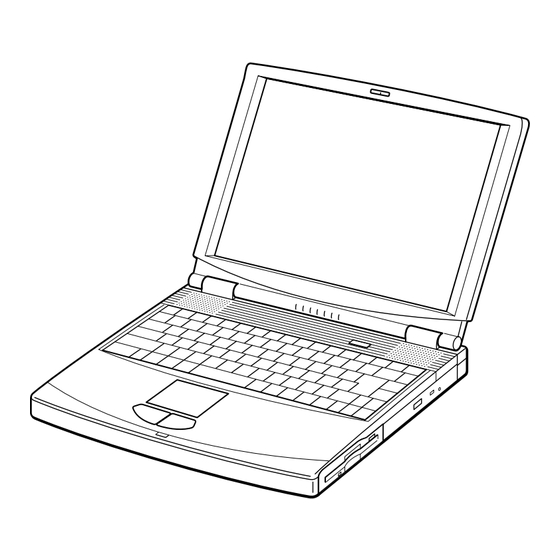

Sony VAIO PCG-FX210 Service Manual

Notebook computer
Hide thumbs Also See for VAIO PCG-FX210:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
PCG-FX210

SERVICE MANUAL

US Model
Canadian Model
S400
NOTEBOOK COMPUTER
9-872-204-11

Advertisement

Table of Contents
loading

Related Manuals for Sony VAIO PCG-FX210

Summary of Contents for Sony VAIO PCG-FX210

  • Page 1: Service Manual

    PCG-FX210 SERVICE MANUAL US Model Canadian Model S400 NOTEBOOK COMPUTER 9-872-204-11...
  • Page 2 Caution Markings for Lithium/Ion Battery - The following or similar texts shall be provided on battery pack of equipment or in both the Sony and VAIO are trademarks of Sony. Intel logo and Intel Inside operating and the service instructions.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Section Title Page Section Title Page CHAPTER 1. REMOVAL CHAPTER 2. SELF DIAGNOSTICS ......2-1 1-1. Flowchart ................. 1-1 (to 2-1) 1-2. Main Electrical Parts Location Diagram ......1-1 CHAPTER 3. BLOCK DIAGRAM 1-3. Removal ................1-2 .......

  • Page 4: Chapter 1. Removal

    CHAPTER 1. REMOVAL 1-1. Flowchart CNX-129 BOARD P 1-3 BRACKET TOUCH PALM REST PLATE P 1-3 P 1-3 P 1-3 DISPLAY BEZEL HINGE INVERTER HOUSING HOUSING COVER UNIT ASSY ASSY ASSY P 1-4 P 1-8 P 1-9 P 1-9 P 1-9 DISPLAY DVD-ROM ASSY...

  • Page 5: Hood Keyboard Assy, Keyboard Unit

    1-3.Removal 1. Hood Keyboard Assy, Keyboard Unit 3M2X4 Special Head (Black) 4Pull it up sliding it to the right. 8M2X4 Special Head (Black) 6Hood Keyboard Assy q;Keyboard Unit Four Claws MBX-50 Board MBX-50 Board CON21 CON15 2. Cooling Unit-2, Lithium Battery, DVD-ROM Drive 5Rotate the three screws that are built together with the Cooling Unit-2.

  • Page 6: Hdd, Door Battery

    3. HDD, Door Battery 1M2X6 Special Head (X6) (Gold) 1Screw M3X4 (X2) (Gold) 3Bracket HDD 2FPC 50Pin (for HDD) MBX-50 Board CON9 4FPC 50Pin 5HDD (for HDD) 2Screw M3X4 (X2) (Gold) 4Door Battery 4. Palm Rest Assy, Touch Pad, CNX-129 Board, Palm Rest Plate, Bracket Pad 3Pull it to the front slightly and raise to remove it.

  • Page 7: Display Assy, Hinge Cover

    5. Display Assy, Hinge Cover 1Stand the LCD upright to the MBX-50 board. 7M2.6 Cross 3+B M2 (X2) (Gold) (Hole) Bind (Black) 9M2X6 Special Head (X2) (Gold) 4Plate ground q;+B 2X12 (Silver) (SH) qaM2X6 Special Head (Gold) 5M2.6 Cross (Hole) Bind Six Claws (Black) 6M2.6 Cross (Hole)

  • Page 8: Pws-14 Board, Latch Detector

    6. PWS-14 Board, Latch Detector 2M2X4 Special Head (X2) (Black) 6PWS-14 Board 5Latch Detector MBX-50 Board CON22 4Two Claws 7. PC Card Connector, Modem Card, MBX-50 Board, I/O Bracket 1M2X6 Special Head (Gold) 2Bracket wire qkI/O Bracket qjScrew (HEX) (X6) (Silevr) 4+B 2X4 (Silver) 3M2X4 Special Head (X4) (Black)

  • Page 9: Speaker Unit, Swx-74 Board

    8. Speaker Unit, SWX-74 Board 6M2X4 (X2) (Black) Note : When removing the speaker unit, be sure not to damage the hood keyboard. 4M2X4 (X5) (Black) SWX-74 Board 7Speaker Unit SWX-74 Board 5SWX-74 Board 8M2X4 (X2) (Black) SWX-74 Board 9Speaker Unit Note : To re-install it, align the notch of the speaker unit with the projection of the hood keyboard.

  • Page 10: Modem Card (Removing From The Bottom)

    10. Modem Card (Removing from the bottom) 1M2X4 Special Head (Black) 2Modem Door 3M2 Grip (X2) (Black) 4Modem Card Confidential PCG-FX210 (UC)

  • Page 11: Lcd Section - Made By Ac

    11. LCD Section – Made by AC – 1. Bezel Housing Assy (14.1 inch) 1Cover Screw Lower (X2) 2M2X4 Special : claw part Head (X2) (Black) 1Cover Screw Upper (X2) 2M2X4 Special Head (X2) (Black) Bezel Housing Assy 4M2X4 Special Head (X5) (Black) 4M2X4 Special Head (X5) (Black) 8LCD Unit...

  • Page 12: Bracket Lcd Left, Bracket Lcd Right, Lcd Unit (14.1 Inch)

    2. Bracket LCD Left, Bracket LCD Right, LCD Unit (14.1 inch) 3Special Head M2x3 (X4) (Gold) 5LCD Unit 1Special Head M2x3 (X4) (Gold) 4Bracket LCD Left 2Bracket LCD Right 3. FPC, Inverter Assy, Display Housing Assy, LCD Harness Shield Tape 6M2X4 Special Head (Black) 7LCD Harness...

  • Page 13: Replacing The Cpu

    1-4.Replacing the CPU 1. Removing the CPU 1 Insert a screwdriver tip into the groove as shown and slant it 2 The CPU can be removed upward. in the direction of the arrow. NOTE: Do not use screwdrivers having a large tip than the width of the groove.

  • Page 14: Replacing Various Connector On The Mbx-50 Board

    1-5. Replacing Various Connectors on the MBX-50 Board Replace the connectors of “5-3. Connector Section” as follows. 1. Removing the I/O Bracket When removing the connectors of reference numbers 901, 902, 903, 904 and 169 (refer to page 5-7), remove the I/O bracket first.

  • Page 15: Dip Switch Setting Of The Mbx-50 Board

    1-6. DIP Switch Setting of the MBX-50 Board The DIP switch on the MBX-50 board (main board) is set to match with the LCD that is used in this computer. Part No. DIP switch setting 1 2 3 4 The upper position where ON indication is 1-476-166-11 shown is the ON position .

  • Page 16: Chapter 2. Self Diagnostics

    CHAPTER 2. SELF DIAGNOSTICS ATTENTION Please confirm “Self Diagnostics” method which will be informed you with distribution of “Self Diagnostics” software. Confidential PCG-FX210 (UC) (END)

  • Page 17: Chapter 3. Block Diagram

    CHAPTER 3. BLOCK DIAGRAM PCG-FX Series AMD Mobile Duron BLOCK DIAGRAM Rev. 800MHz (Cache: 128/64KB L1/L2) w/ Port Replicator (PCGA-PRFX1) 12/06/00 (FSB 100MHz) LCD Panel 462 PIN PGA SOCKET A 14.1" Port Replicator Main Memory VDC_IN PC100 SO-DIMM CNX-126 128MB (Max.512MB) Cardbus LCD Sig POWER CIRCUIT...

  • Page 18: Chapter 4. Frame Harness Diagram

    CHAPTER 4. FRAME HARNESS DIAGRAM DC-IN NETWORK MONITOR PRINTER SERIAL PHONE Rear Panel KEY BOARD INVERTER DC FAN FFC LED CNX-127 Board PCN1 CON13 CON6 CON11 CON2 CON1 CON3 CON21 (Side-A) CON15 CON4 CON19 CON23 CON9 VIDEO OUT CON5 CPU1 EXTERNAL MICROPHONE CON18 HEADPHONE...

  • Page 19: Chapter 5. Exploded Views And Parts List

    CHAPTER 5. EXPLODED VIEWS AND PARTS LIST NOTE: The components identified by mark 0 or • The mechanical parts with no reference number in the dotted line with mark 0 are critical for safety. exploded views are not supplied. Replace only with part number specified. •...

  • Page 20: Main Section

    5-1. Main Section Ref.No. Part No. Description Ref.No. Part No. Description X-4623-386-1 ASSY BOTTOM (A) X-4623-561-2 ASSY LATCH DETECTOR 4-640-837-22 DOOR BATTERY 1-756-148-11 SECONDARY BATTERY, LITHIUM 4-651-706-01 HEATSINK BOTTOM 4-651-989-01 SPACER (MBX) * 11 4-651-707-21 INSULATOR HEATSINK BOTTOM 4-651-701-01 DOOR MODEM 4-643-832-21 DUMMY CARD 4-654-701-01 CUSHION (HD-M2) A-8049-276-A COMPLETE PWB SWX-74...
  • Page 21 B33 B33 Supplied with 88 Supplied with 88 Supplied with 88 701 (Refer to Page 5-6.) Confidential PCG-FX210 (UC)

  • Page 22: Lcd Section - Made By Ac

    5-2. LCD Section – Made by AC – Ref.No. Part No. Description Ref.No. Part No. Description 1-476-318-11 INVERTER UNIT ACCESSORIES X-4623-378-1 HINGE LEFT MV ************ X-4623-445-3 ASSY HOU, BEZEL 14SA-Z (EXP) 4-635-277-22 COVER SCREW LOWER A-8048-965-A ASSY WEIGHT SAVER (Z) 4-635-276-22 COVER SCREW UPPER (Refer to Page 5-4.) 0702...

  • Page 23: Connector Section

    5-3. Connector Section Ref.No. Fig. Part No. Description 1-815-505-11 CONNECTOR, 2SLOT CARD BUS PC CARD SLOTS connector 1-779-745-21 JACK, DC DC IN connector 1-695-514-21 JACK (SMALL TYPE) 1P Headphone connector (GREEN) 1-565-999-11 JACK, MODULAR 2P Modular jack 1-785-976-11 CONNECTOR, D SUB (PLUG) 9P SERIAL connector 1-779-499-11 CONNECTOR, D SUB 25P PRINTER connector...
  • Page 24 PCG-FX210 (UC) This manual and the constituent data may not be replicated, copied nor reprinted in whole or in part without prior written authorization of Sony Corporation. English 2001E1600-1 Sony Corporation 9-872-204-11 © 2001 Sony Corporation — 38 — Published by MNC IT Planning & Control Dept.
