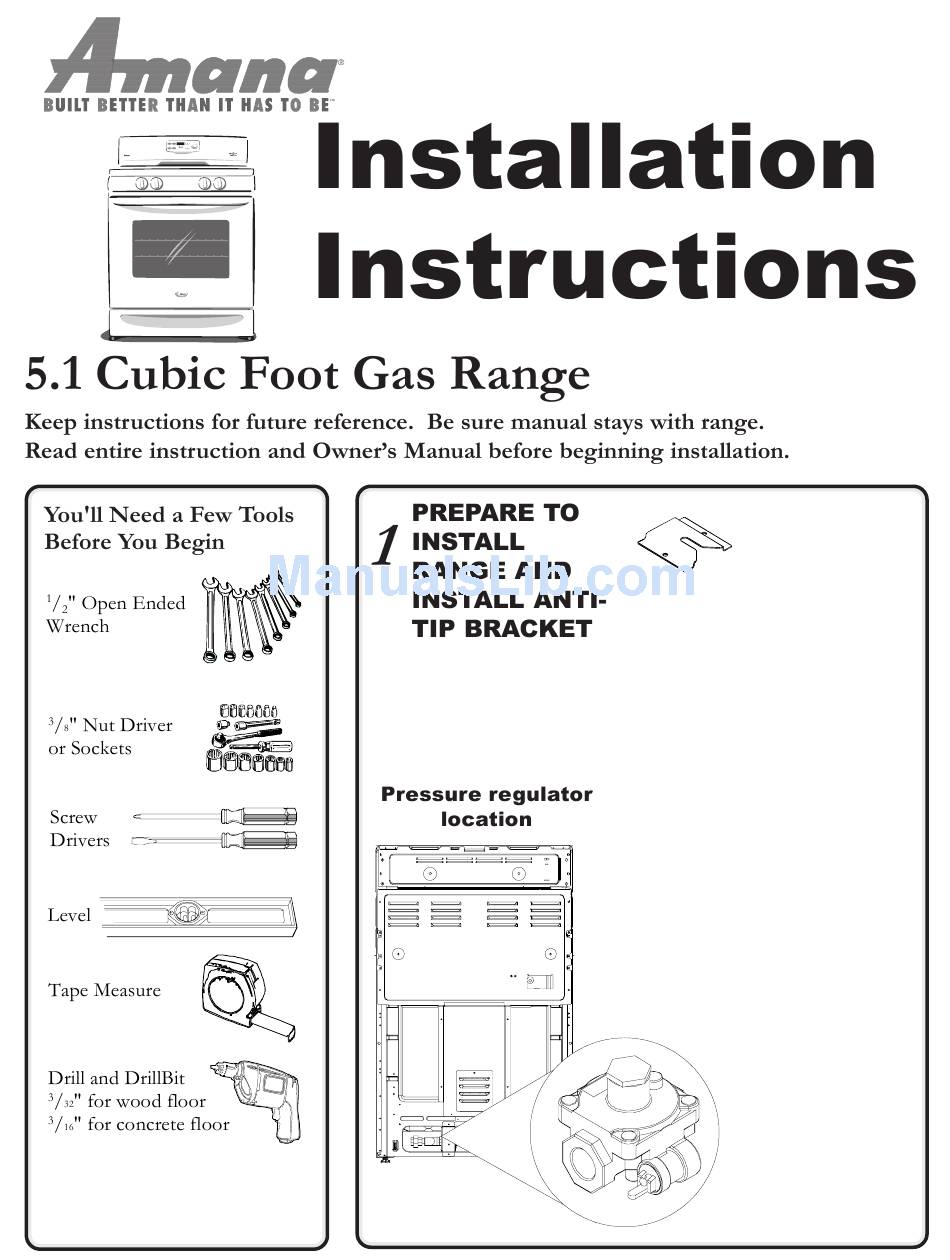

Amana Gas Range Installation Instructions Manual
5.1 cubic foot gas range
Hide thumbs
Also See for Gas Range:
- Installation instructions manual (16 pages) ,
- User instructions (12 pages)
Advertisement
Quick Links
Installer–
Leave this manual and other literature with owner for future use.
Anti-tip Bracket
Installation
To reduce risk of
range tipping, secure
range with a properly installed anti-
tip bracket. Refer to anti-tip
installation instruction.
Measure cabinet area and prepare
it according to illustrations in
Minimum Clearances to
Combustible Surfaces and Range
and Cabinet Dimensions section in
this instruction sheet.
Gas supply must not interfere with
electrical supply. Electrical supply
must not be grounded to the gas
supply line.
Once a suitable location is found
meeting the specified requirements,
proceed to the next step of the
installation.
Advertisement
Related Manuals for Amana Gas Range
Summary of Contents for Amana Gas Range
- Page 1 Installer– Leave this manual and other literature with owner for future use. Anti-tip Bracket Installation To reduce risk of range tipping, secure range with a properly installed anti- tip bracket. Refer to anti-tip installation instruction. Measure cabinet area and prepare it according to illustrations in Minimum Clearances to Combustible Surfaces and Range...
- Page 2 Connect gas supply to regulator using hard pipe or flexible connector (check local codes). Pressure regulator supplied with this appliance has a 1/2 inch NPT female connection. If gas union is used, remove storage Range is shipped to be connected to drawer, slide range into place, and connect union.
- Page 3 To avoid risk of damaging oven door, do not lift or Place range near final position and move range by plug in. A 3-wire electrical cord oven door handle. approximately 4 feet in length is Glass can break. supplied on range. Then, slide range into final position and adjust all legs (4) until range is level side to side and front to back.
- Page 4 E—Minimum of 3 inches to a vertical right or left side wall extending above cooking surface. F—Maximum depth of 25 inches. G—Maximum of 36 inch cabinet height. Part No. 36-32018601-0 2000 Amana Appliances Printed in U.S.A. 08/00 Amana, Iowa 52204...
- Page 5 Consider Description Location This range can be installed flush against right and left base cabinets, and rear vertical wall. Range must have a minimum distance of 3 inches from a left or right vertical wall extending above 36 inch standard countertop height. Use dimensions shown in this manual to determine space needed for installation.
- Page 6 Locate gas supply within gray shaded area. Locate electrical receptacle in area with diagonal lines. Gas and electrical supplies should not converge. Do not ground electrical supply to gas supply lines.
