Driveway Racer
Driveway Racer
™
Owner's Manual
with Assembly Instructions

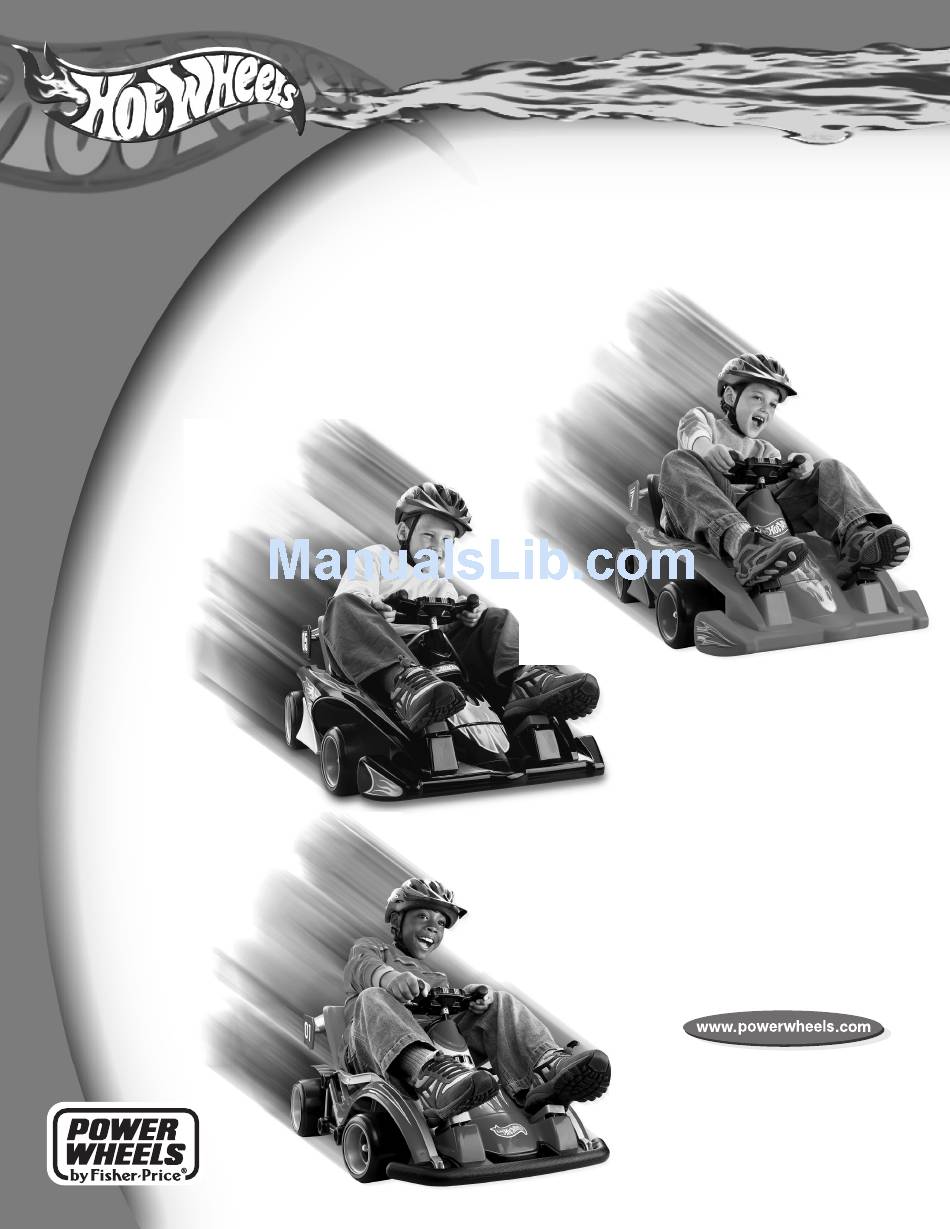

For Models H2836, C0530, C0532
Model C0532
Model H2836
Please read this manual and save
it with your original sales receipt.
Tools needed for assembly: Phillips
Screwdriver and Adjustable Wrench
(tools not included).
Use only with a Power Wheels
®
12 Volt Lead-Acid Rechargeable
Battery and Power Wheels
®
12 Volt Charger with Type "12V"
Connector (included).
Model C0530
Requires one LR44 alkaline
button cell battery for
Stopwatch operation (included).
Product features and decoration may vary from the
pictures above. Helmet not included.
Advertisement
Table of Contents
Related Manuals for Fisher-Price DRIVEWAY RACER C0530
Summary of Contents for Fisher-Price DRIVEWAY RACER C0530
- Page 1 Driveway Racer Driveway Racer ™ Owner's Manual with Assembly Instructions For Models H2836, C0530, C0532 Model C0532 Model H2836 Please read this manual and save it with your original sales receipt. Tools needed for assembly: Phillips Screwdriver and Adjustable Wrench (tools not included).
-
Page 2: Table Of Contents
- only one (1) rider at a time. • Use this vehicle ONLY outdoors. Most interior floor- ing can be damaged by riding this vehicle indoors. Fisher-Price ® will not be responsible for damage to the floor if the vehicle is used indoors. -
Page 3: Warnings And Cautions
ELECTRICAL HAZARD • Battery can fall out and injure a child if vehicle tips over. Always use battery cover (clamp). • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. - Use of the wrong type battery or charger could cause a fire or explosion resulting in serious injury. -
Page 4: Parts
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. - Page 5 Parts Wing Rear Bumper 2 Struts (Left and Right) 12 Volt Battery 2 Flaps 4 Caps 12 Volt Charger (Left and Right) Parts not shown: Label Sheet, Collapsible Pylons, Stencil, and Chalk. Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten the screws. 3 mm x 21 mm Screw - 1 - 20 x 3"...
-
Page 6: Parts Diagram
No. Part Quantity Frame Steering Column Rear Bumper Cowling Cover Cowling Steering Tube Steering Wheel Stopwatch Battery Cover (Clamp) Parts Diagram No. Part Quantity Pretend Motor Seat Wing Flap (Left and Right) Strut (Left and Right) 12 Volt Charger 12 Volt Battery Note: Model C0530 frame shown in illustration below. -
Page 7: Battery Charging
ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery cover (clamp). • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. -
Page 8: Assembly
Battery Charging Battery • Plug the charger connector into the battery • Plug the charger into a standard wall outlet Note: If power flow to the wall outlet is controlled by a switch, make sure the switch is “ON”. • Before first-time use, charge the battery for at least 18 hours. - Page 9 Frame • Fit the cowling assembly into the front end of the frame. Hint: Squeeze the cowling assembly slightly (on each side) to fit it inside the frame. • Insert two #8 x " screws into the front holes in the cowling.
- Page 10 Bottom View • Turn the frame on it’s side. Fit a each end of the steering tube. Make sure the rounded side is facing out. • Hand-tighten the lock nuts. Hint: You will fully-tighten these lock nuts in step 10. Steering Column Bottom View...
- Page 11 • Fit the rear bumper onto the rear end of the frame. " - 20 x 3" Screws Bottom View • While holding the rear bumper in place, turn the frame on its side. • Insert two " - 20 x 3" screw through the bottom of the frame and out through the top of the rear bumper.
- Page 12 Left Flap #8 x Screws Wing Hint:There is a left and right flap. Locate the L on the left flap and an R on the right flap. • Turn the wing upside down. Fit the flaps to the sides of the wing.
- Page 13 Assembly Seat Assembly • Slide a " washer onto two #8 x " screws. • Insert the #8 x " screws with washers through the seat and into the wing. Tighten the screws. Hint: The wing is designed to be adjustable. Please refer to page 22 for information on how to adjust the wing.
-
Page 14: Stopwatch Battery Replacement
Stopwatch Battery Replacement Hint: The stopwatch comes with an alkaline button cell battery. Use the following instructions only to replace the button cell battery. • Loosen the screws in the stopwatch battery compartment door. • Remove the battery compartment door and the worn LR44 button cell battery. -
Page 15: Label Decoration
Label Decoration Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •... - Page 16 Left Front View - Model C0532 Left Front View - Model C0530 Label Decoration Right Front View - Model C0532 Right Front View - Model C0530...
-
Page 17: Battery Installation
IMPORTANT! Use only a Power Wheels Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels 12 volt charger before ® operating your vehicle for the first time. Charge the battery for at least 14 hours after each use of the vehicle. -
Page 18: Battery Care And Disposal
Battery Care and Disposal Care If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. Please refer to the information on this page for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician. -
Page 19: Rules For Safe Driving
RIDING HAZARD WARNING Prevent Injuries and Deaths • Direct Adult Supervision Required. • Keep Children Within Safe Riding Areas These areas must be: - away from swimming pools and other bodies of water to prevent drownings. - generally level to prevent tipovers. - away from steps, steep inclines, cars, roads and alleys. -
Page 20: Go-Kart Racing
Go-Kart Racing - Tips, Tricks & Tracks PERFORMANCE FEATURES Heads up! This is no ordinary vehicle. It’s a Hot Wheels™ Go-Kart, designed for speed and meant for racing. Here’s some tips, tricks and track layouts to get you out of the gate and enhance go-kart racing thrills. - Page 21 Go-Kart Racing - Tips, Tricks & Tracks GET SET… The Checkered Flag Use materials you have at home to make your own hand-held checkered flag. Paper and felt are excellent flag materials; sticks, straws or wooden dowels make good stems. Copy the black-and-white checkered flag pattern;...
-
Page 22: Caring For Your Vehicle
Go-Kart Racing - Tips, Tricks & Tracks Oversteer Oversteer gives the front tires more grip on the track. Shifting your weight forward when turning will create more steering control. Oversteer is useful on low traction surfaces. Understeer Understeer is just the opposite of oversteer. When you want less front tire grip, lean back in the cockpit of your kart when turning. -
Page 23: Problems And Solutions Guide
Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your local Power Wheels at www.powerwheels.com. -
Page 24: Problems And Solutions Guide
Problems and Solutions Guide Problem Short run time (Less than Undercharged battery 1 - 3 hours per charge) Overcharged battery Battery is old and will not accept full charge Tripped thermal fuse Vehicle runs sluggishly Undercharged battery Battery needs charging Battery is old and will not accept full charge Vehicle is overloaded... - Page 25 Problems and Solutions Guide Problem Sometimes the vehicle doesn’t Loose wire or connector run, but other times it does Motor or electrical switch damage When the go foot pedal is pres- Loose wire or connector sed, the vehicle won’t run without a push “Dead Spot”...
-
Page 26: Limited Warranty
Bumper-to-Bumper* Limited Warranty *One year limited warranty from the date of purchase on the Power Wheels ® vehicle. Six month limited warranty on the 12 volt battery. For the original purchaser, this one year limited warranty covers the Power Wheels ®... -
Page 27: Pfcc Statement (United States Only)
FCC Note (United States Only) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 28 Mattel, Flame Logo, and color “Hot Wheels Blue” and associated trademarks designated by a ™ are trademarks of Fisher-Price, Power Wheels, and Power Wheels by Fisher-Price, Power Lock and Power Stick are U.S. trademarks of Mattel, Inc. ©2005 Mattel, Inc. All Rights Reserved. ® and ™ are registered trademarks of Mattel Inc.
