Linn DS players, Linn DSI intergrated DS players
Rev 4.01
DIGITAL STREAM PLAYERS
THE FUTURE OF MUSIC
Software information and technical help files
helpline@Linn.co.uk

Advertisement

loading

Related Manuals for Linn Klimax DS

Summary of Contents for Linn Klimax DS

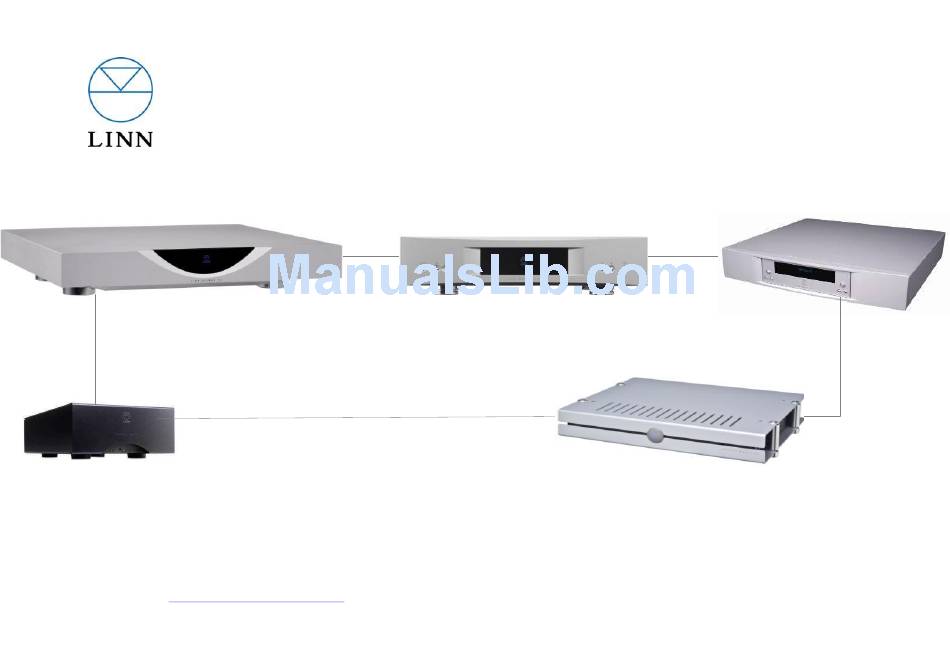

  • Page 1 Linn DS players, Linn DSI intergrated DS players Rev 4.01 DIGITAL STREAM PLAYERS THE FUTURE OF MUSIC Software information and technical help files helpline@Linn.co.uk...
  • Page 2 The data on the disk is digital. Therefore the retrieval process can be perfect (considering that when you load software from a data CD it would not work if there were errors). In a traditional CD player the data is read at the same time as the audio is being reproduced. There is no technical benefit in this time linkage. In the Klimax DS system the data is read to computer memory (hard-drive), this process can be verified as error-free by the use of checksums.
  • Page 3 This program is used for selecting the music, making a playlist and play, http://www.dbpoweramp.com/asset-upnp-dlna.htm pause, stop etc. It can also control the volume if used with a current model Linn pre amp or if using the variable volume on the Sneaky or Majik DS. Download from www.linn.co.uk/ds_software...
  • Page 4 Computer Requirements for a DS • A high speed internet connection ( not dial up)is required setup of the Linn DS system and getting metadata while ripping. This is not required for playback. • An Ethernet network with a switch capable of at least 100Mb/s •...
  • Page 5 Setup a folder called „Local Audio‟ will be created in C:\ and will be the default audio file storage location. After the CD rip/copy, these files can be copied to you r NAS or PC directory that is used by the UPnP Media Server. You will find dBpoweramp on the Linn UK Website. then “Support” then “Downloads” then “DS Software” and at the bottom of the page you will find “dBpoweramp”...
  • Page 6 Volume Kinsky Desktop (DAVAAR family) Last Track & PLAY / PAUSE & play DOWN add track/Album dragged track/Album to end of playlist Search Volume value Next Track & forward and MUTE Play track/Album This is your library path. That is, the route to your next library listing in the left window.
  • Page 7 KINSKY Desktop DAVAAR family (colours inverted for clarity) 1/3 1.Open Kinsky Desktop on your 2 Select the DS source name 3.Click on the library icon. This will Room name show you all of your Music sources 5. Click on the “Music” folder 4.Click on a Music source / library 6.
  • Page 8 9a. Drag the Album to the Play 9b. or Drag the Album to the 9c. or Drag the Album to the SKIP- button, the Linn DS will play SKIP+ symbol to play next symbol to add to the end of the existing...
  • Page 9 Konfig CARA/DAVAAR (for setting up your DS) “ KONFIG” can be found in your Programs under “Linn”. Click on the DS you want to program Reboot after changed Click on the Tab you require. Help window. Normally advanced Config to...
  • Page 10 Media Monkey (download from www.mediamonkey.com) To Fix Tags & Cover Art There is a help Tab on the top menu bar with full instructions. Open Media Monkey. On LH side find Music Library. It is likely to be in My Documents if using you computer as a server or if you are using a NAS you will find it as Z or similar if the NAS has been mapped.
  • Page 11 Left Click on “Auto Tag from Web Auto Tab screen will appear and MediaMonkey will search for info. If you are happy with the highlighted info click “Auto Tab” If not click “Options” and select Amazon from a different country. US UK Fra Can Jp Ger. See which has the best info and cover art.
  • Page 12 Instead of going to Auto Tab in Step 5 go to “Auto Tab by Filename” Fill in the gabs on the table. You can use Copy & Paste to save typing in the Artist & Album names multiple times. Right Click “Copy” Right Click “Paste”...
  • Page 13 WINAMP Shoutcast Playlists www.winamp.com 1. Open WINAMP software 2. Select the Online Services Followed by the SHOUTcast Radio 3. Select an MP3 station (shown on right hand of radio listings) and TUNE-IN 4. When the Radio Station is playing, Select the File Menu Then the “Save Playlist”...
  • Page 14 Audioshell (download from http://www.softpointer.com/AudioShell.htm) To Fix Tags & view metadata info. The Linn DS uses metadata for indexing your music so this is very useful to check your library. Audioshell and Tag & Rename are alternatives to MediaMonkey Audioshell You must first load Audioshell if it has not been loaded To Use Audioshell, Use Windows Explorer to find the track.
  • Page 15 Music IP Mixer (download from www.musicip.com/mixer For Auto Playlists Firstly I recommend you make a folder in you music library called “Playlists”. This file must be somewhere that Twonky scans. I have an artist Called “Playlist” but it can be anywhere that Twonky can see. Open Music IP Mixer.
  • Page 16 Music IP Mixer (download from www.musicip.com/mixer For Manual Playlists Firstly I recommend you make a folder in you music library called “Playlists”. This file must be somewhere that Twonky scans. I have an artist Called “Playlist” but it can be anywhere that Twonky can see. Open Music IP Mixer.

  • Page 17: Troubleshooting Guide

    ALAC files cannot be played on the Linn DS/DSI player If the ALAC files have been created with a early version of dBpowerAmp or iTunes, these Music files may not be played by the Linn DS/DSI. To recify this, we suggest using dBPowerAmp V14...
