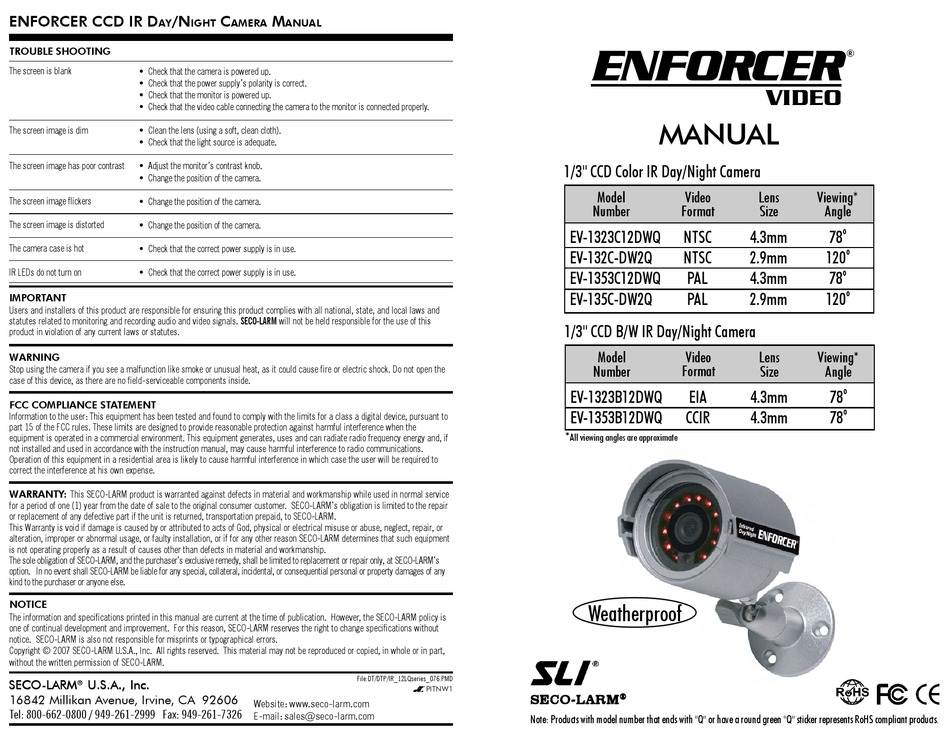

SECO-LARM 1353B12DWQ Manual

ENFORCER CCD IR D /N
AY
TROUBLE SHOOTING
The screen is blank • Check that the camera is powered up.
• Check that the power supply's polarity is correct.
• Check that the monitor is powered up.
• Check that the video cable connecting the camera to the monitor is connected properly.
The screen image is dim • Clean the lens (using a soft, clean cloth).
• Check that the light source is adequate.
The screen image has poor contrast • Adjust the monitor's contrast knob.
• Change the position of the camera.
The screen image flickers • Change the position of the camera.
The screen image is distorted • Change the position of the camera.
The camera case is hot • Check that the correct power supply is in use.
IR LEDs do not turn on • Check that the correct power supply is in use.
